Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

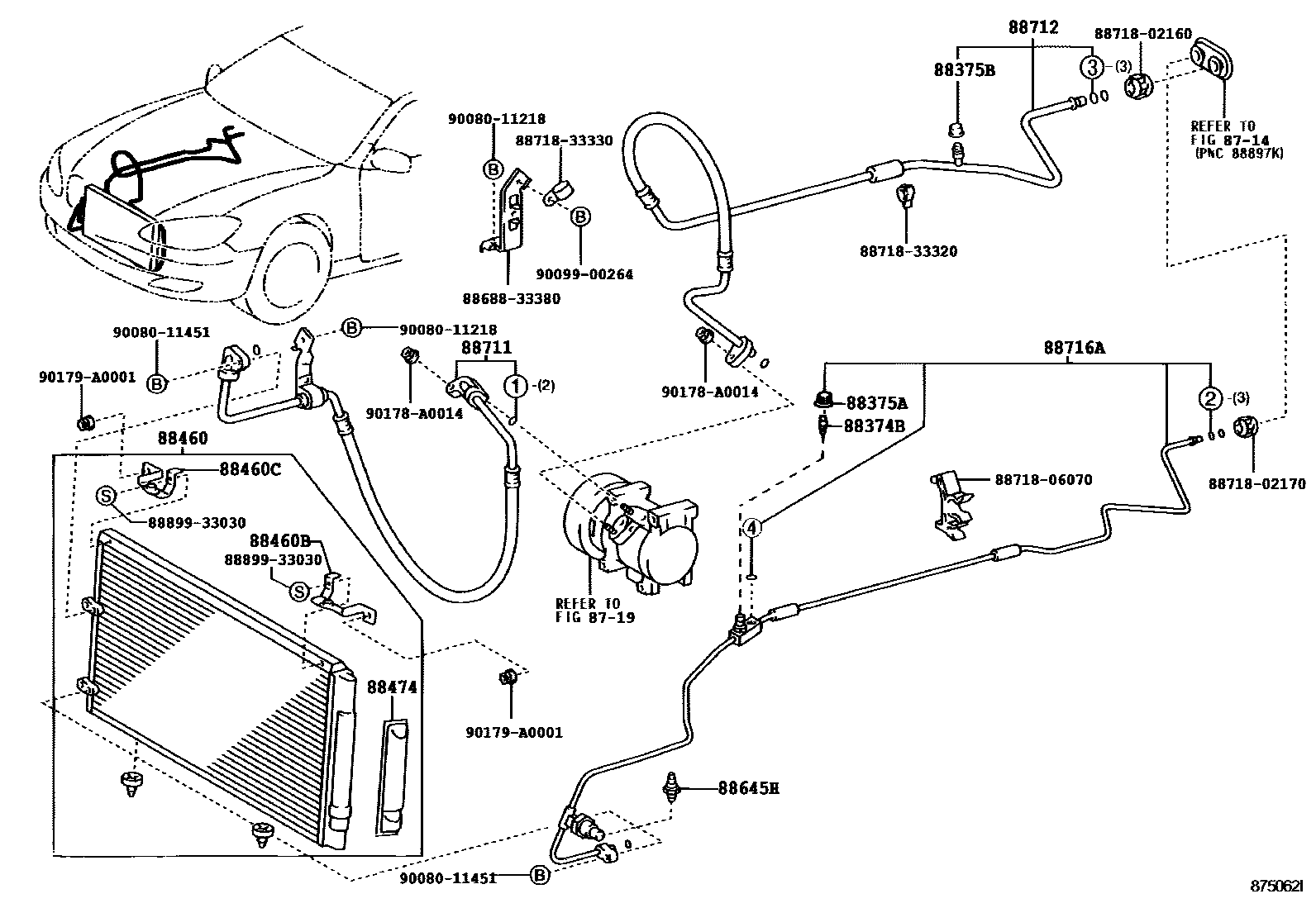

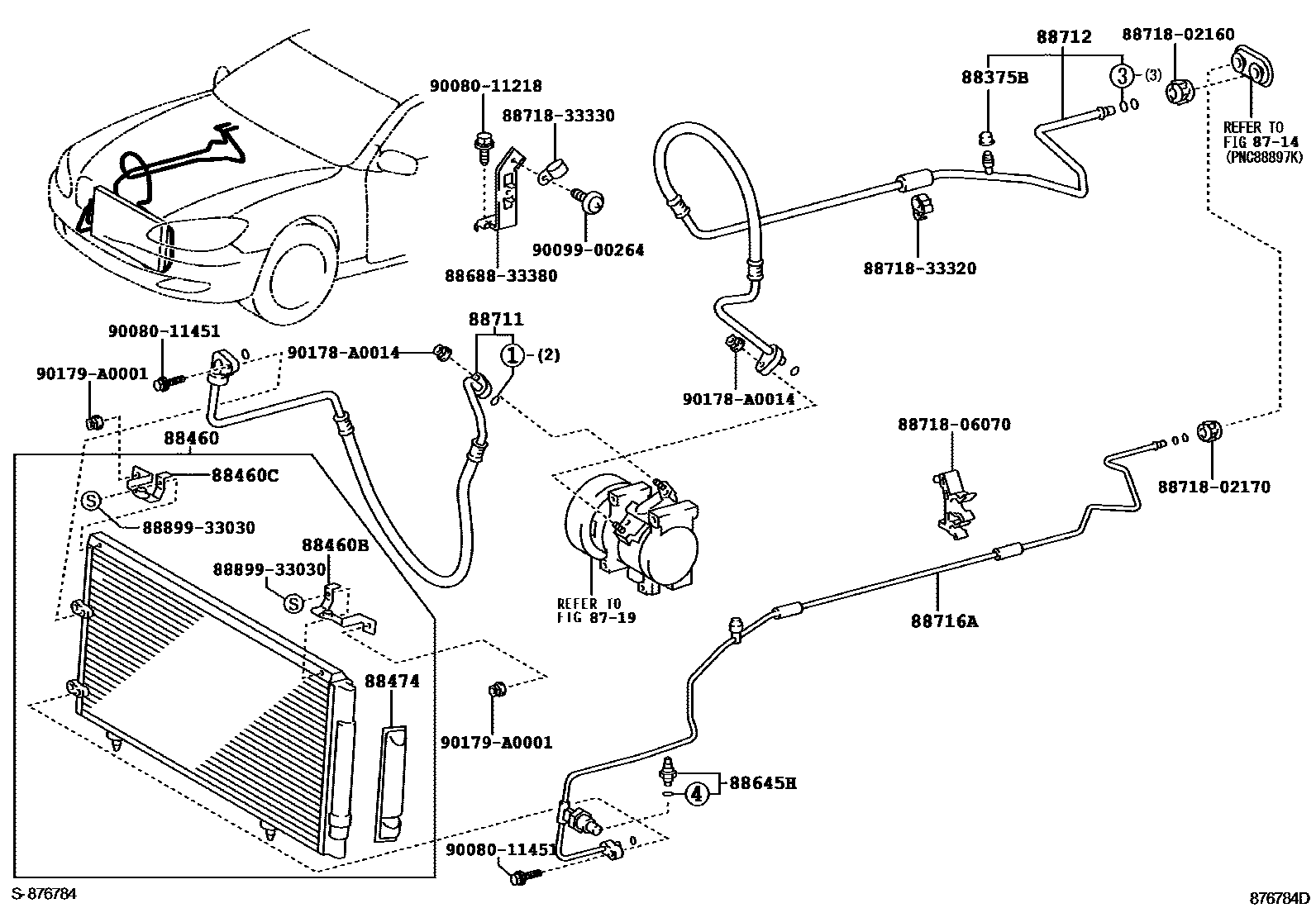

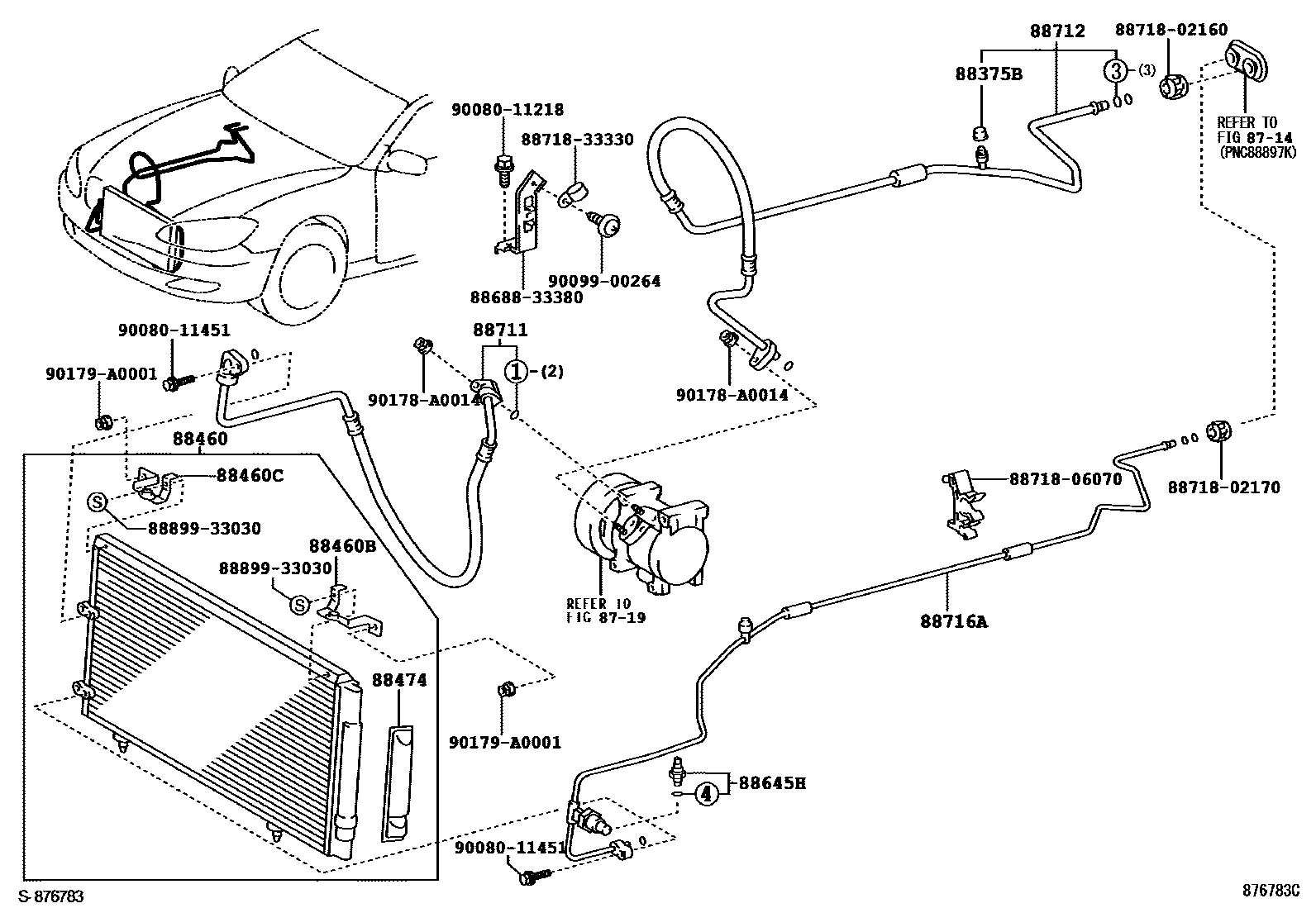

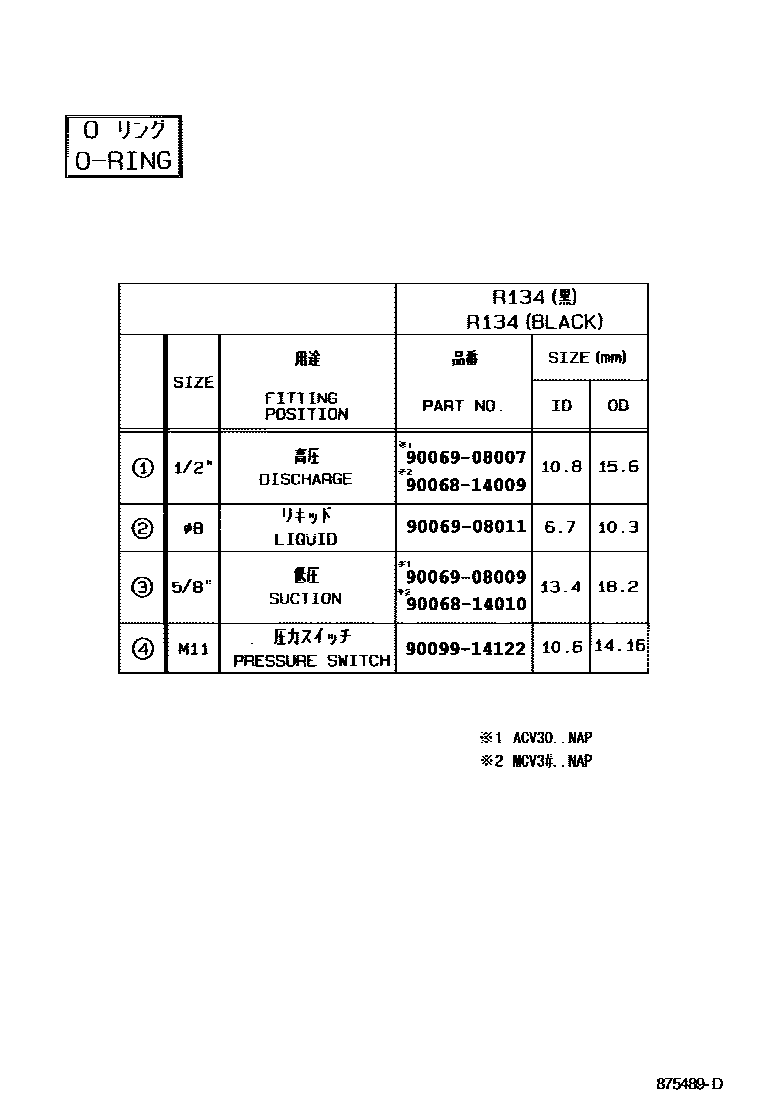

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-02060 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-06070 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-06120 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-06140 |
| 88474 | cooler dryer | 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-08010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06110 · 88711-06120 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-06050 · 88712-06060 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-06200 · 88716-06201 |
