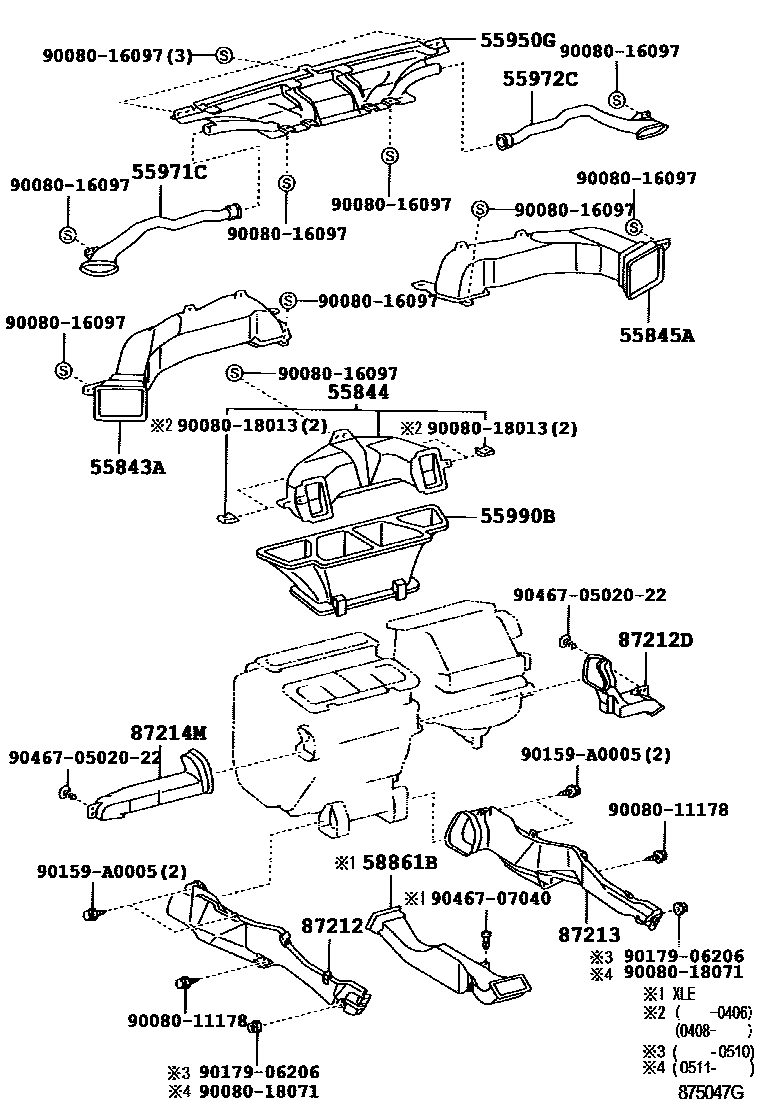

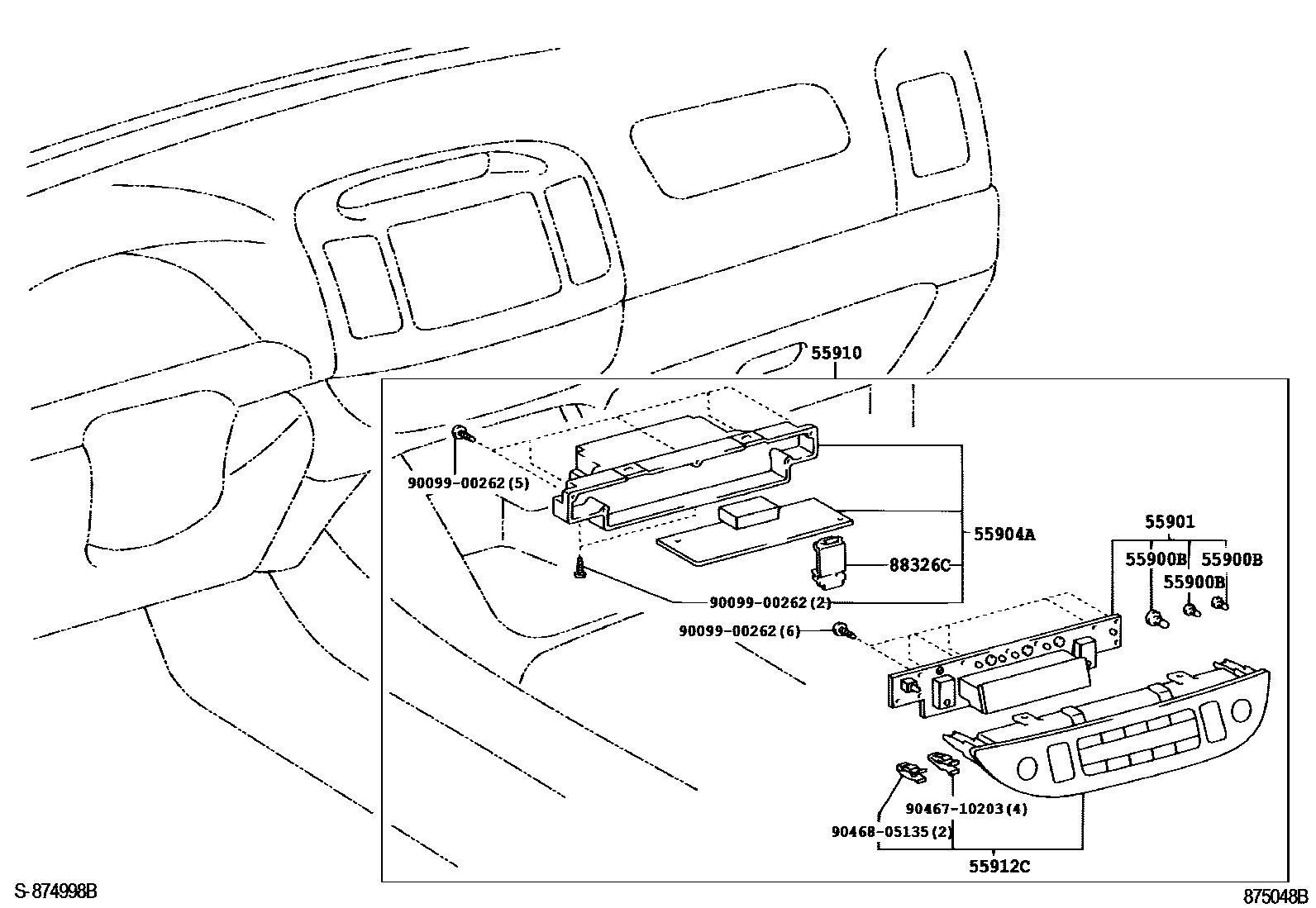

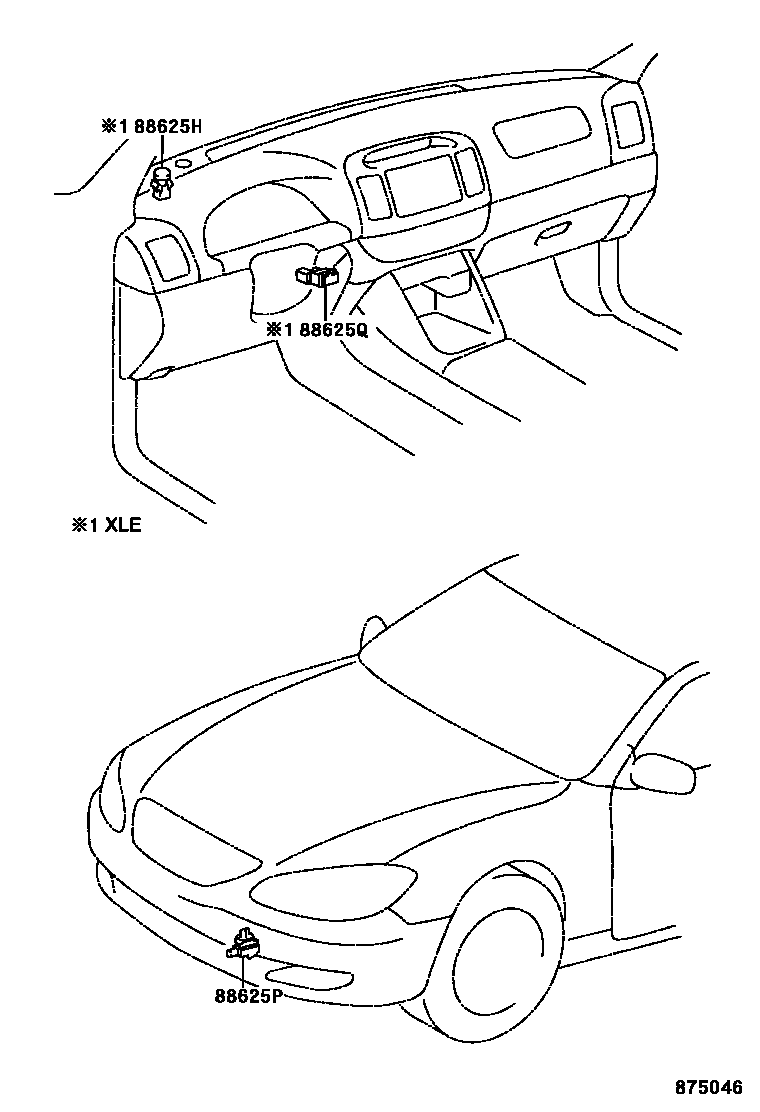

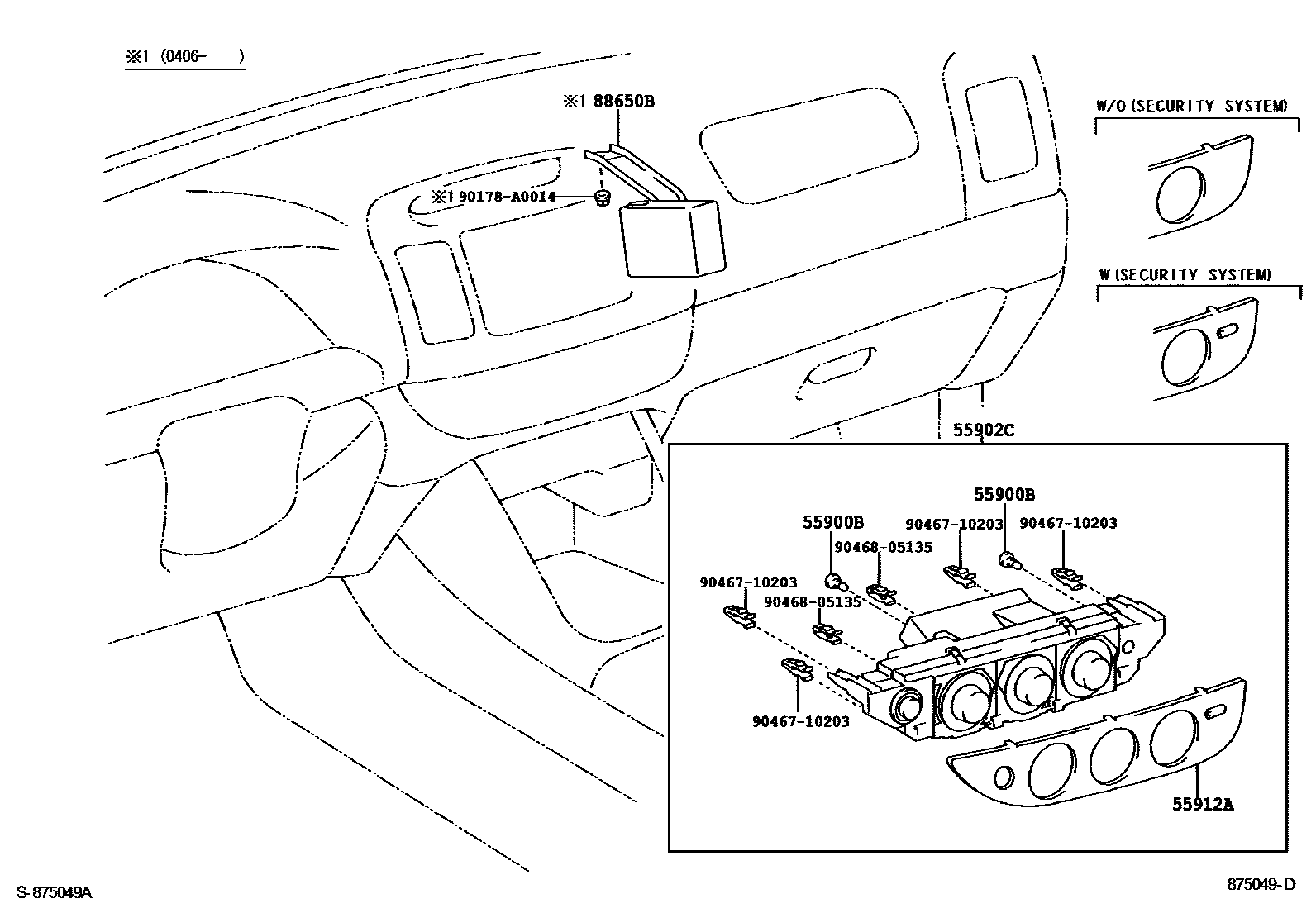

Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-AA020 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-AA020 · 55844-AA030 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-AA010 |
| 55900B | air conditioning control light bulb | 90010-03054 · 90010-03055 · 90010-03056 · 90011-11050 |
| 55901 | Heater controller base sub-assembly | 55901-06010 |
| 55902C | Air conditioning panel sub-assembly | 55902-06050 · 55902-06070 · 55902-06120 · 55902-06130 · 55902-06140 · 55902-06150 |
| 55904A | Heater control housing sub-assembly | 55904-06010 · 55904-06011 · 55904-06012 · 55904-06020 |
| 55910 | Heater or auxiliary ventilation control assembly | 55900-06070 · 55900-06071 · 55900-06072 · 55900-06150 |
| 55912A | heater control housing | 55912-06030 · 55912-06031 · 55912-06050 · 55912-06051 · 55912-06060 · 55912-06070 · 55912-06080 · 55912-06090 |
| 55912C | heater control housing | 55912-06010 |
| 55950G | Defroster nozzle assembly | 55950-AA020 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-AA020 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-AA020 |
| 55990B | Lower defroster nozzle assembly | 55990-AA010 · 55990-AA020 |
| 58861B | Air duct No. 1 for armrest box | 58861-AA010 |
| 87212 | No. 1 rear air duct | 87212-AA010 |
| 87212D | Heater to foot duct No. 1 | 55823-AA010 |
| 87213 | No. 2 rear air duct | 87213-AA010 |
| 87214M | Heater to foot duct No. 3 | 55824-AA010 |
| 88326C | Cover plate | 88326-63010 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-33150 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22130 · 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88650B | Air conditioning amplifier assembly | 88650-06100 |
