Toyota CAMRY 后视镜 — Figure 8701

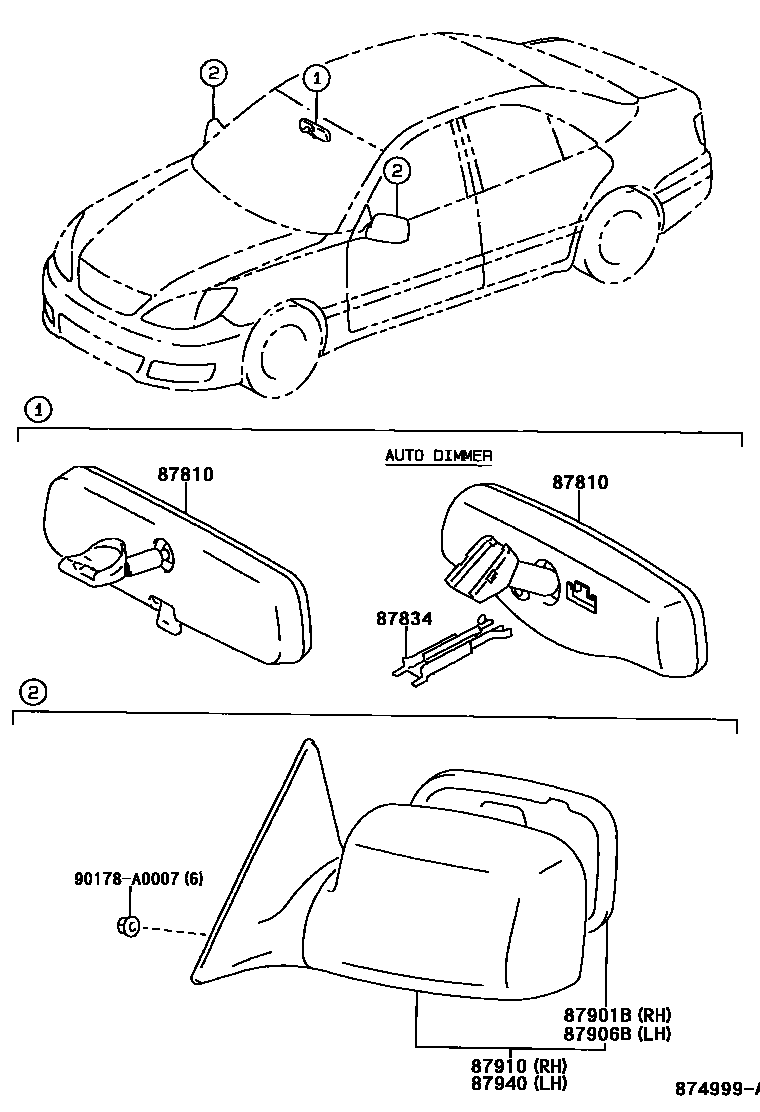

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-AA011 · 87810-AA020 · 87810-AC090 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-AC010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-AA080 · 87931-AA100 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-AA080 · 87961-AA100 |
| 87910 | Right exterior rearview mirror assembly | 87910-AA090 |
| 87940 | Left exterior rearview mirror assembly | 87940-AA090 |
