Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-AA040 · 85381-AA041 · 85381-AA042 |
| 85310 | Windshield washer motor and pump assembly | 85330-06030 · 85330-12340 · 85330-AA010 |
| 85319D | front washer seal | 85319-AA020 · 90069-20003 |

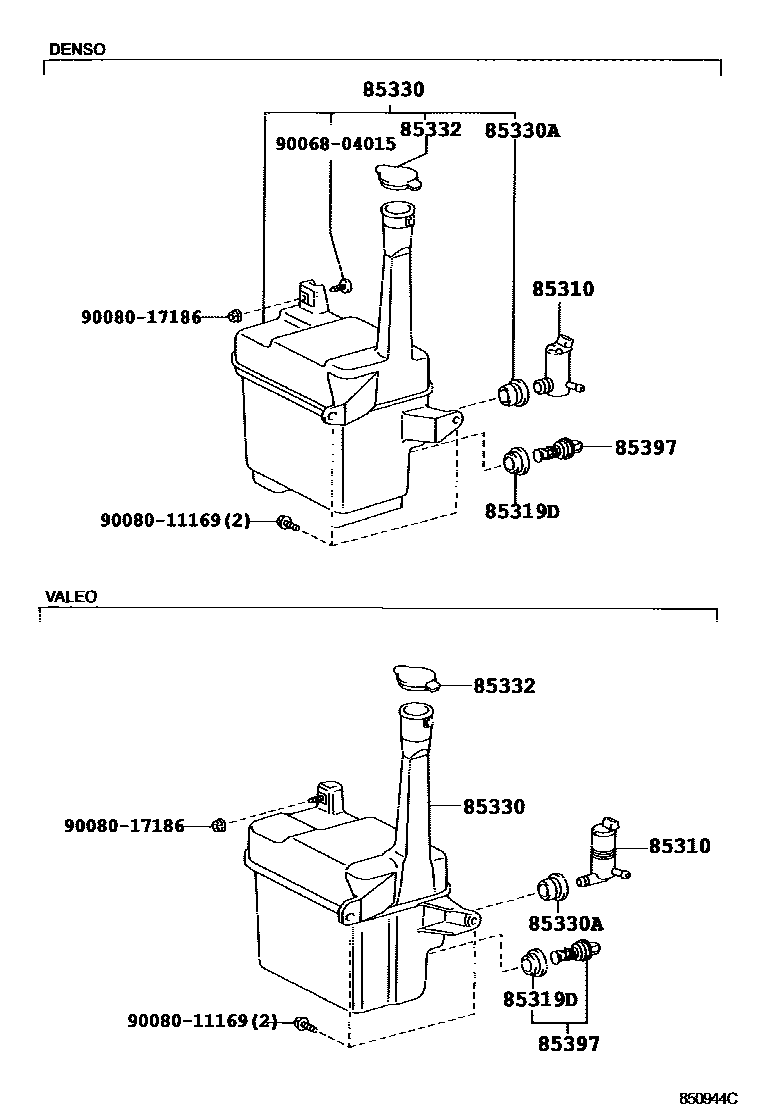

| 85330 | Windshield washer fluid tank assembly | 85315-AA030 · 85315-AA040 |
| 85330A | Windshield washer fluid tank bushing | 85365-02010 · 90068-32002 |
| 85332 | Windshield washer fluid tank cap | 85316-06021 · 85316-AA020 |

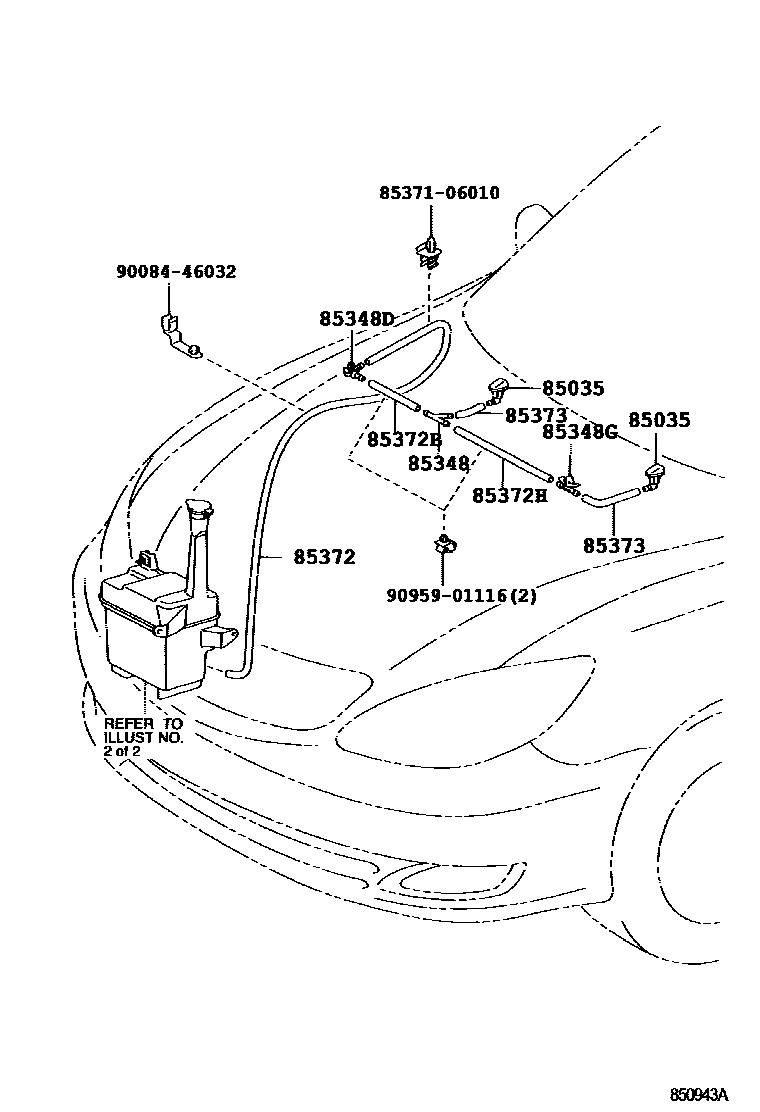

| 85348 | Windshield washer hose connector No. 1 | 85378-AA010 |
| 85348D | No. 1 windshield washer elbow joint | 85377-06020 |
| 85348G | Windshield washer hose connector No. 2 | 85375-AA020 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-AA060 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 85374-AA040 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 85374-AA050 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33024 |
| 85397 | Liquid level warning switch assembly | 85397-AA010 · 85397-AA020 · 85397-AA040 |
