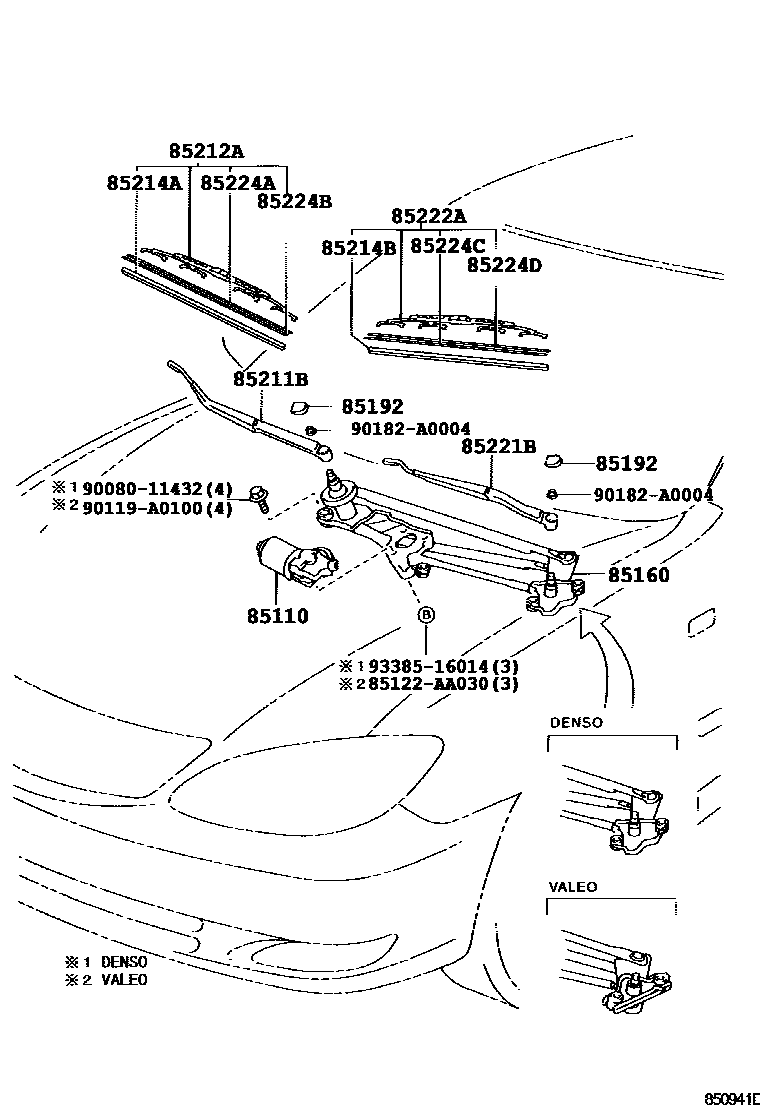

Toyota CAMRY 挡风玻璃刮水器 — Figure 8501
Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-AA030 · 85110-AA040 |
| 85160 | Windshield wiper connecting rod assembly | 85150-AA030 · 85150-AA040 |
| 85192 | windshield wiper arm cover | 85292-AA020 · 85292-AA030 |
| 85211B | Right front wiper arm | 85211-AA041 · 85211-AA051 |
| 85212A | Right front wiper blade | 85212-0C011 · 85212-AA040 · 85212-AA050 |
| 85214A | Right wiper rubber strip | 85214-0C011 · 85214-AA070 · 85214-AA080 |
| 85214B | Left wiper rubber strip | 85214-02150 · 85214-07040 · 85214-0C011 · 85214-AA090 |
| 85221B | Left front wiper arm | 85221-AA041 · 85221-AA051 |
| 85222A | Left front wiper blade | 85222-AA040 · 85222-AA050 · 85222-AA070 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-AA010 · 85224-AA030 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-AA010 · 85224-AA030 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-08020 · 85224-AA050 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-08020 · 85224-AA050 |
