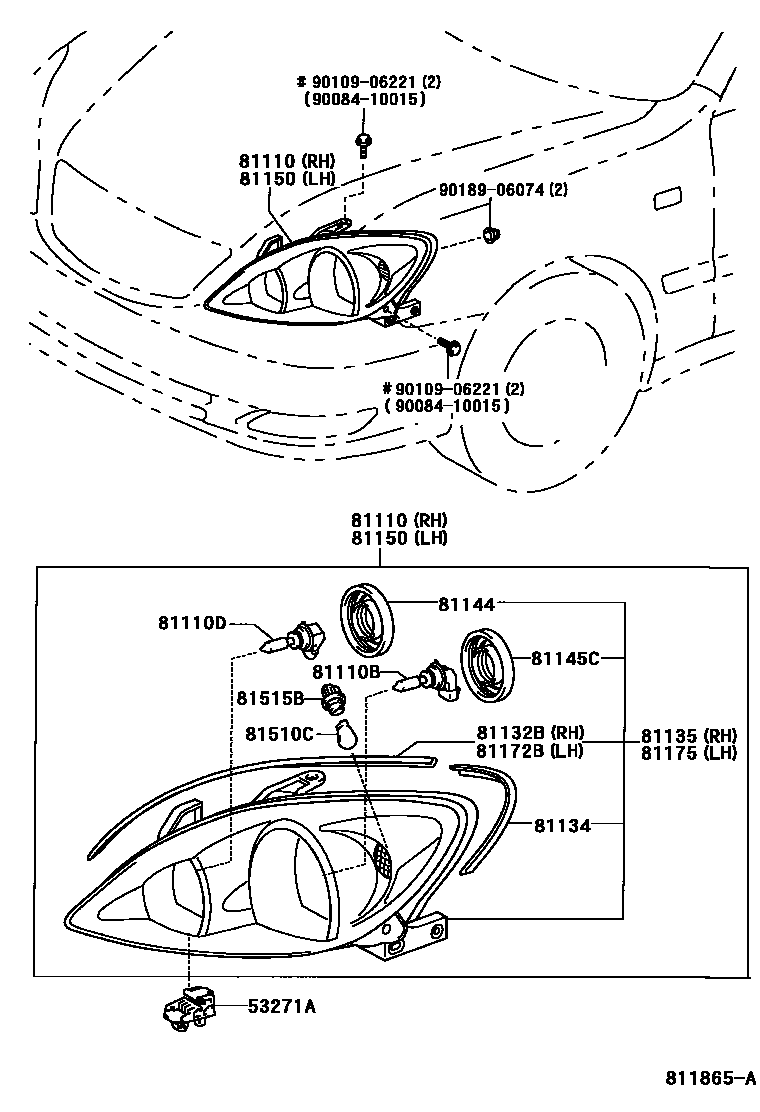

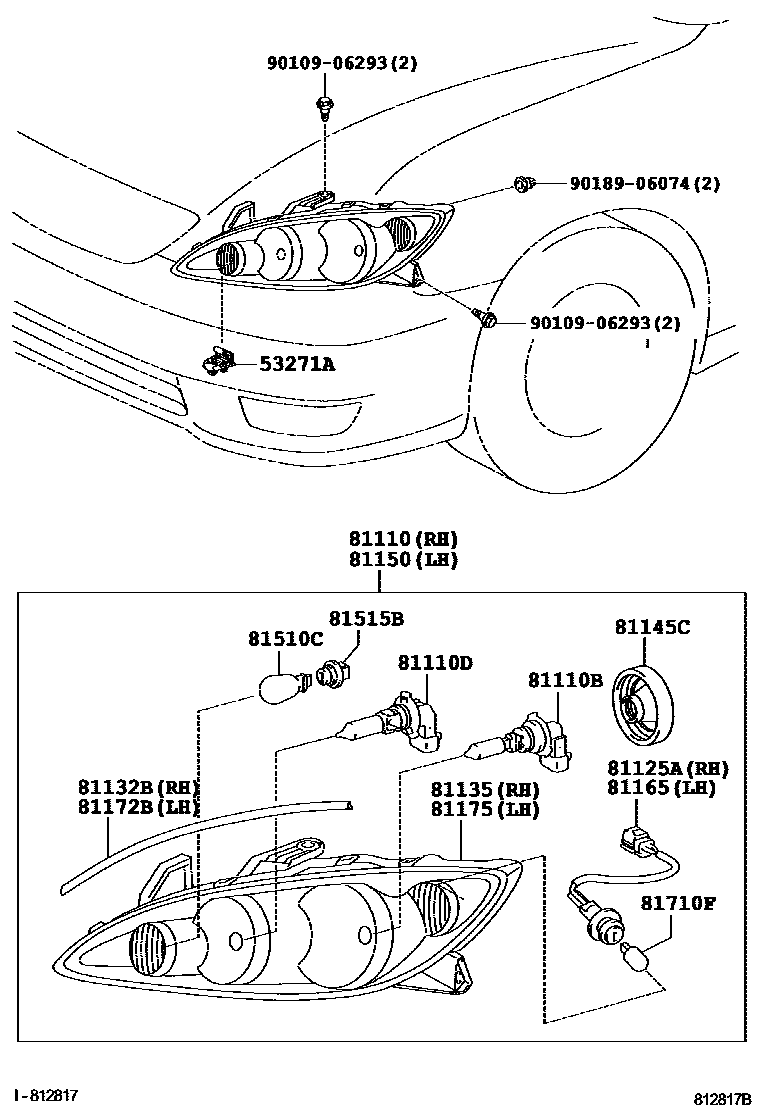

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-44010 |
| 81110 | Right headlight assembly | 81110-06180 · 81110-06190 · 81110-AA030 · 81110-AA040 · 81110-AA060 · 81110-AA070 |
| 81110B | Bulb (for headlight No. 1) | 90080-81040 · 90981-13047 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81125A | Right headlight wire | 81125-06180 |
| 81132B | Headlight cover gasket | 81132-06180 · 81132-AA030 |
| 81134 | headlight gasket | 81134-AA030 · 81134-AA060 · 81174-AA030 · 81174-AA060 |
| 81135 | Right headlight assembly | 81130-06180 · 81130-06190 · 81130-AA030 · 81130-AA040 · 81130-AA060 · 81130-AA070 |
| 81144 | No. 1 headlight cover | 90069-81008 |
| 81145C | No. 2 headlight lamp holder cover | 90069-81008 |
| 81150 | Left headlight assembly | 81150-06180 · 81150-06190 · 81150-AA030 · 81150-AA040 · 81150-AA060 · 81150-AA070 |
| 81165 | Left headlight wire | 81125-06180 |
| 81172B | Headlight cover gasket | 81132-06180 · 81172-AA030 |
| 81175 | Left headlight assembly | 81170-06180 · 81170-06190 · 81170-AA030 · 81170-AA040 · 81170-AA060 · 81170-AA070 |
| 81510C | Bulb (for front turn signal lamp) | 90084-98061 |
| 81515B | Front turn signal lamp holder | 90069-81003 |
| 81710F | Front width light bulb | 99132-12050 |
