Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

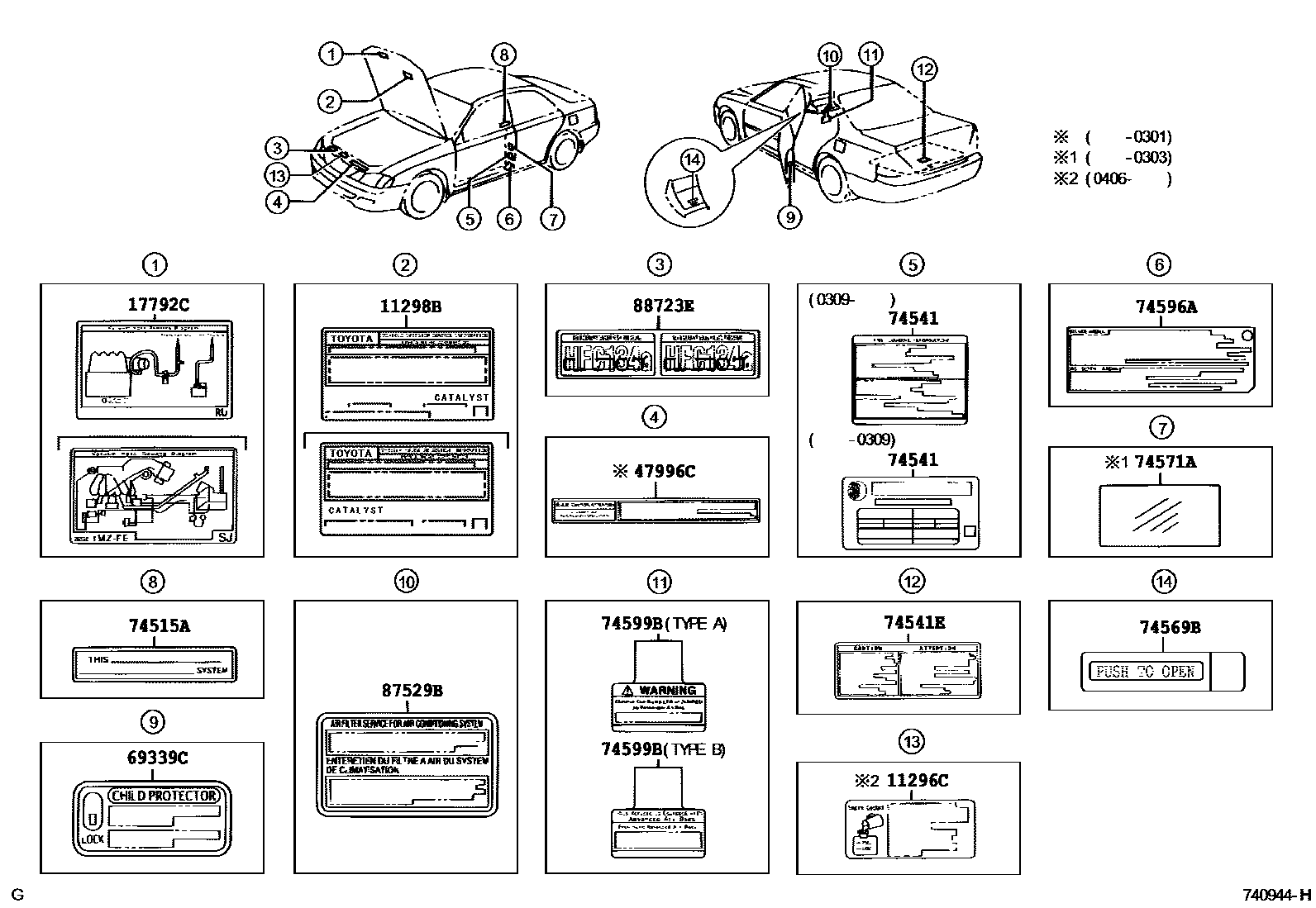

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11296C | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-20450 · 11298-20560 · 11298-20620 · 11298-28330 · 11298-28340 · 11298-28380 · 11298-28430 |
| 17792C | Engine vacuum hose information label | 17792-20230 · 17792-20240 · 17792-20270 · 17792-20280 · 17792-28150 · 17792-28170 |
| 47996C | Brake Bleed Warning Label | 47996-50050 |
| 69339C | Child Restraint Information Label | 69339-AA020 |
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74541 | tire pressure warning plate | 42661-06430 · 42661-06440 · 42661-AA051 · 42661-AA052 · 42661-AA061 · 42661-AA062 · 42661-AA110 · 42661-AA111 |
| 74541E | Small spare tire warning plate | 42668-06010 |
| 74569B | vehicle information label | 74569-33020 |
| 74571A | Label cover protective film | 74571-03020 |
| 74596A | Side air bag warning label | 74596-02010 |
| 74599B | Driver and passenger air bag information labels | 74599-06010 · 74599-0E020 |
| 87529B | Cabin filter information label | 87529-0E010 · 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-06050 |
