Toyota CAMRY 安全带和儿童保护座椅 — Figure 7104

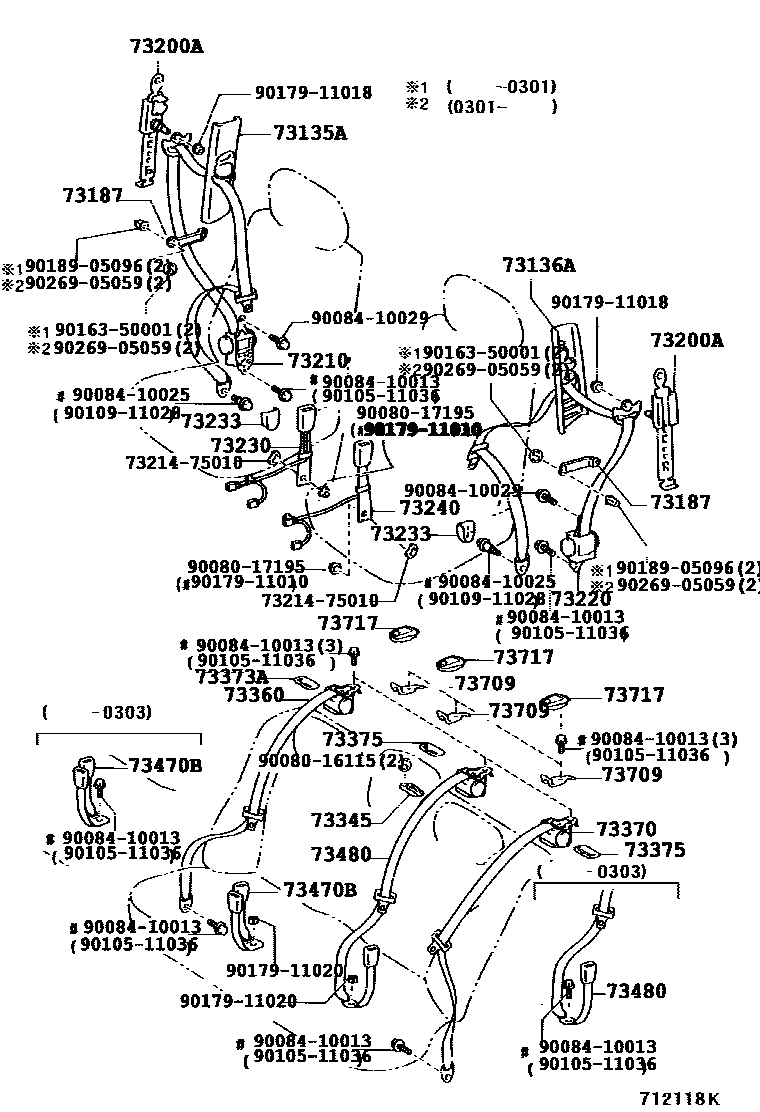

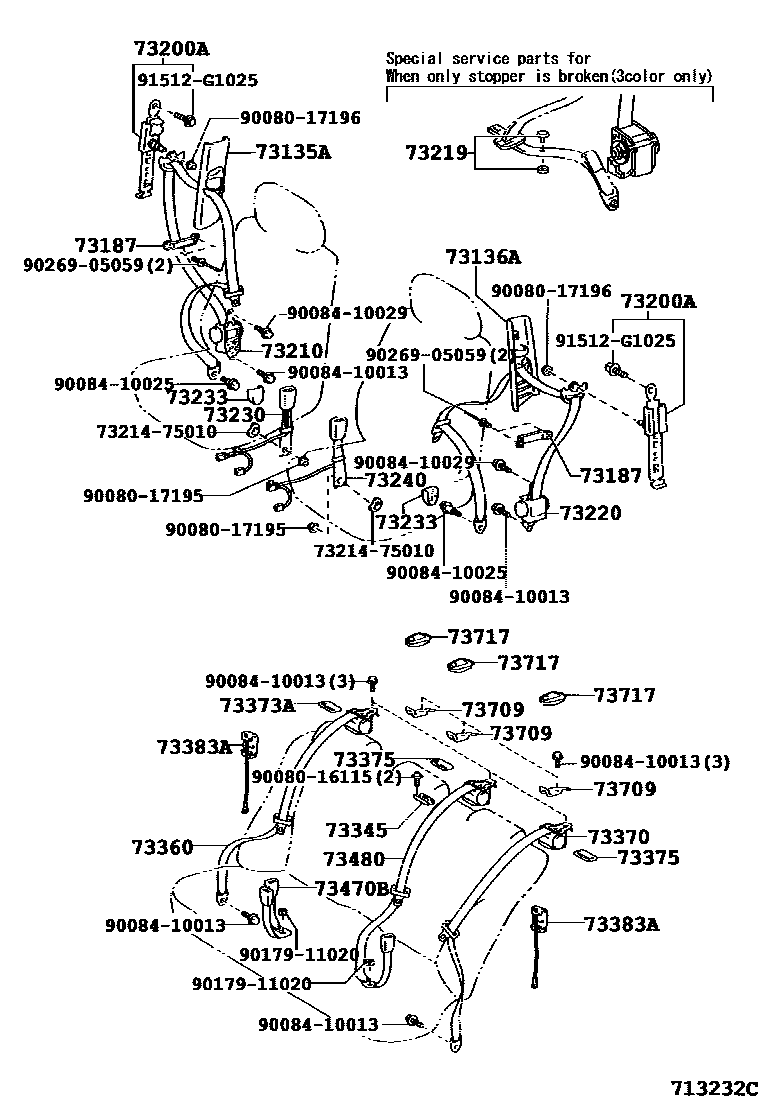

Toyota CAMRY EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73187 | Front seat shoulder belt guides | 73187-AA030 · 73187-AA050 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-AA020 |
| 73219 | Tongue plate stop | 73219-02010 · 73219-02020 · 73219-02030 |
| 73383A | Rear seat belt hook | 73383-AA020 |
| 73709 | Tie anchor bracket sub-assembly | 73719-33010 |
