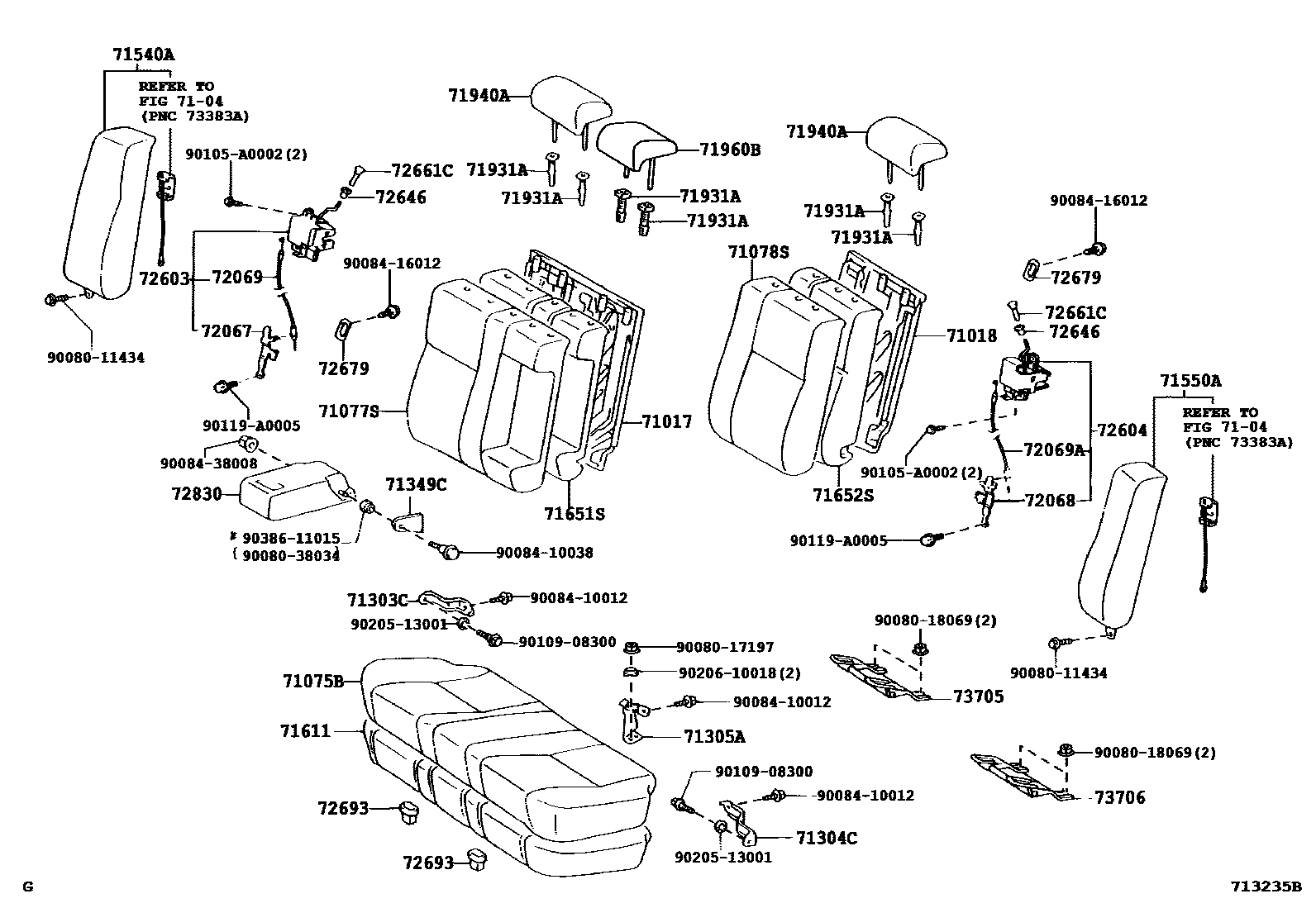

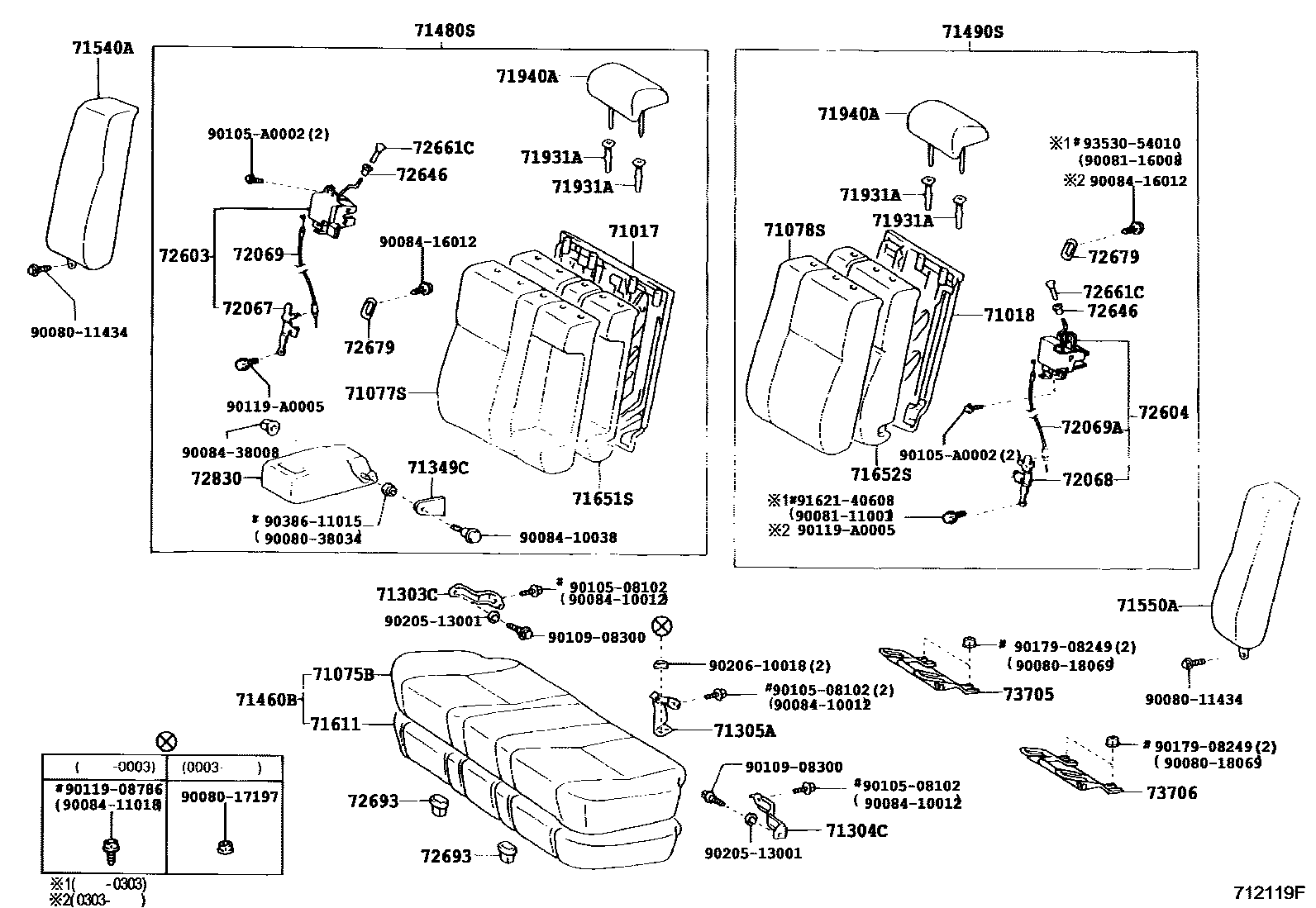

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06080 · 71017-AA040 |
| 71018 | Rear left seat back frame sub-assembly | 71018-AA030 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-AA030 |
| 71304C | Rear left seat back hinge sub-assembly | 71345-AA040 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-AA040 |
| 71349C | Rear seat back hinge cover | 71349-AA010 |
| 71611 | Rear seat cushion cushion | 71503-06080 · 71503-AA030 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06070 · 71651-06080 · 71651-AA040 · 71651-AA050 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-AA040 · 71652-AA050 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-AA010 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72067-AA010 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-AA010 |
| 72069A | Rear left seat back lock control cable sub-assembly | 72069-AA010 |
| 72603 | Rear right seat back lock sub-assembly | 72630-AA030 |
| 72604 | Rear left seat back lock sub-assembly | 72640-AA030 |
| 72679 | Rear seat back lock control box | 72679-06010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-AA010 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-AA010 |
