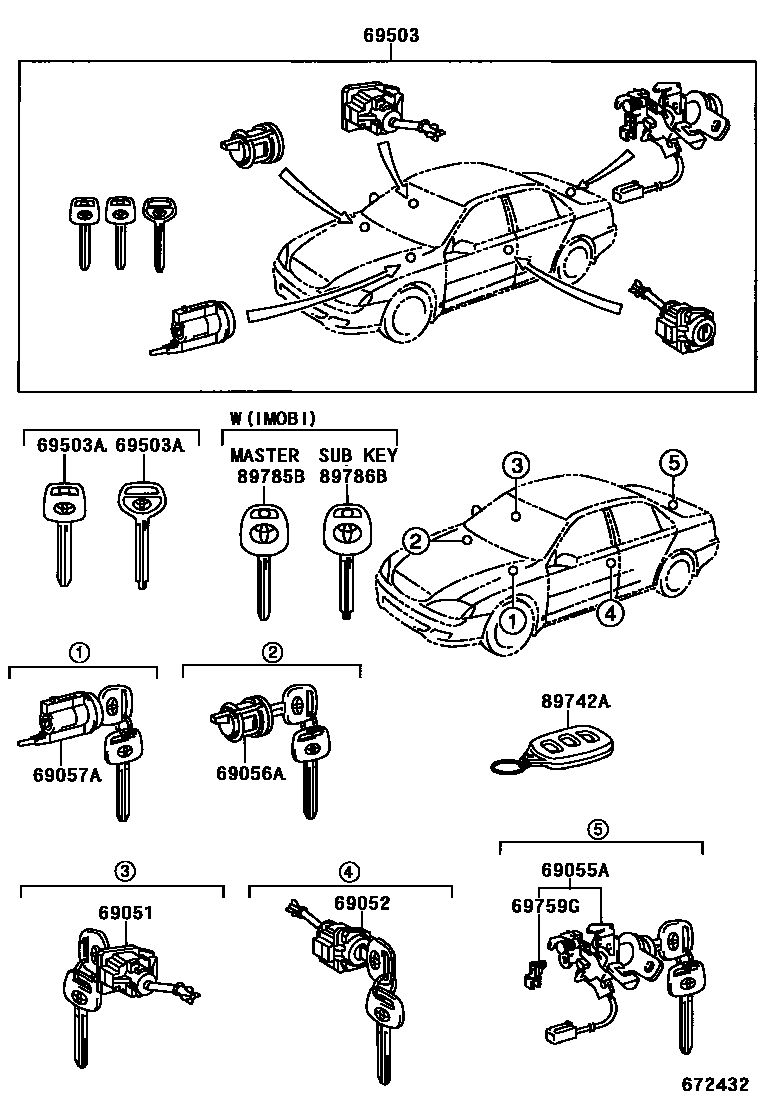

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-06010 |
| 69052 | Left door lock cylinder and key assembly | 69052-06010 · 69052-06040 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06010 · 69055-06020 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06010 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06010 · 69057-06020 · 69057-06021 |
| 69503 | Door lock cylinder components | 69005-06010 · 69005-06020 · 69005-06021 · 69005-06030 · 69005-06031 · 69005-06190 · 69005-06200 · 69005-06240 |
| 69503A | external tooth key | 90999-00188 · 90999-00199 |
| 69759G | Trunk door lock core buckle | 69759-06020 |
| 89742A | remote key | 89742-AA030 |
| 89785B | transceiver key master transmitter | 89785-26020 · 89785-60160 |
| 89786B | transceiver key secondary transmitter | 89786-60050 · 89786-60170 |
