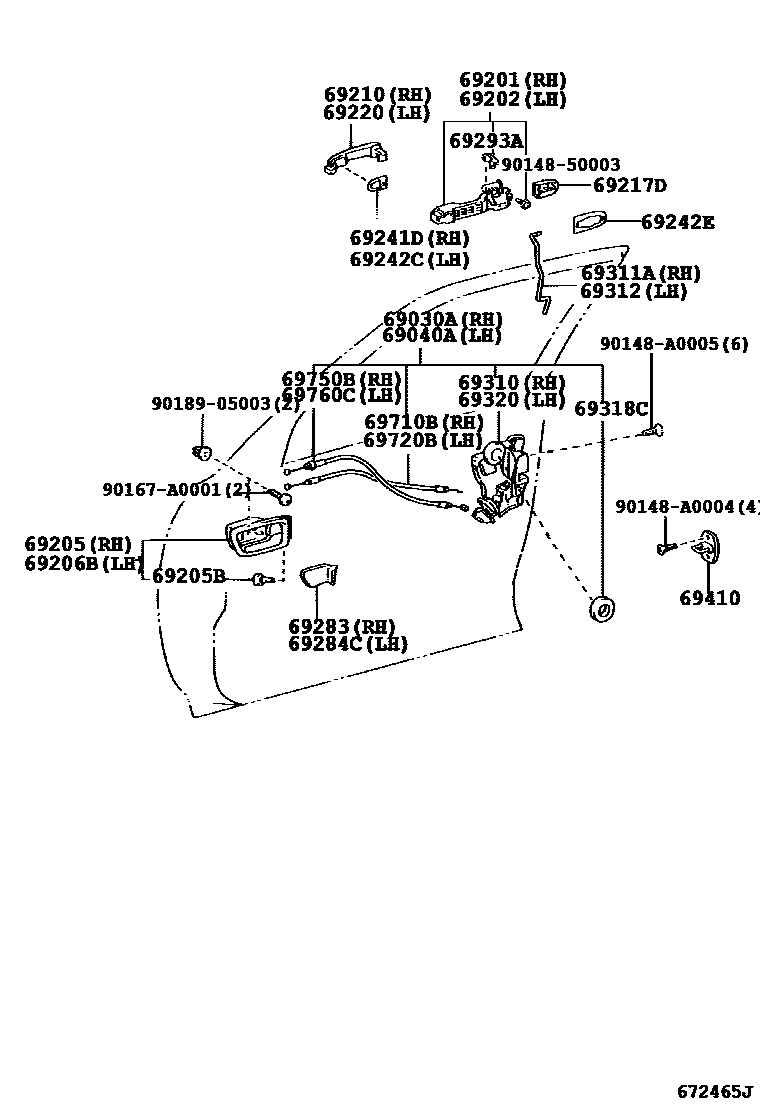

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-AA050 · 69030-AA070 |
| 69040A | Left front door door lock assembly with motor | 69040-AA050 |
| 69201 | Right door outer handle sub-assembly | 69201-AA010 |
| 69202 | Left door outer handle sub-assembly | 69202-AA010 |
| 69205B | Cushion pad (for inner front door handle) | 90080-54005 |
| 69241D | Right front door outer handle pad | 69241-AA020 |
| 69242C | Left front door outer handle pad | 69241-AA020 |
| 69242E | Front door rear outer handle pad | 69238-AA010 |
| 69293A | Front door outer handle buckle | 69293-33010 · 69293-33020 |
| 69310 | Right front door lock assembly | 69030-02130 · 69030-0E010 |
| 69311A | Right front door lock opening lever | 69311-AA030 |
| 69312 | Left front door lock opening lever | 69312-AA030 |
| 69318C | door lock harness seal | 69318-AA010 |
| 69320 | Left front door lock assembly | 69040-02120 |
| 69410 | Front door lock plate assembly | 69410-AA030 |
| 69710B | Right front door lock remote control cable assembly | 69710-AA020 |
| 69720B | Left front door lock remote control cable assembly | 69710-AA020 |
| 69750B | Right front door inner locking link assembly | 69750-AA020 |
| 69760C | Left front door inner lock cable assembly | 69750-AA020 |
