Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 33 PNC and OE references.

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 672449F
前门板和前门玻璃 — 672449F (200107 – 999999)

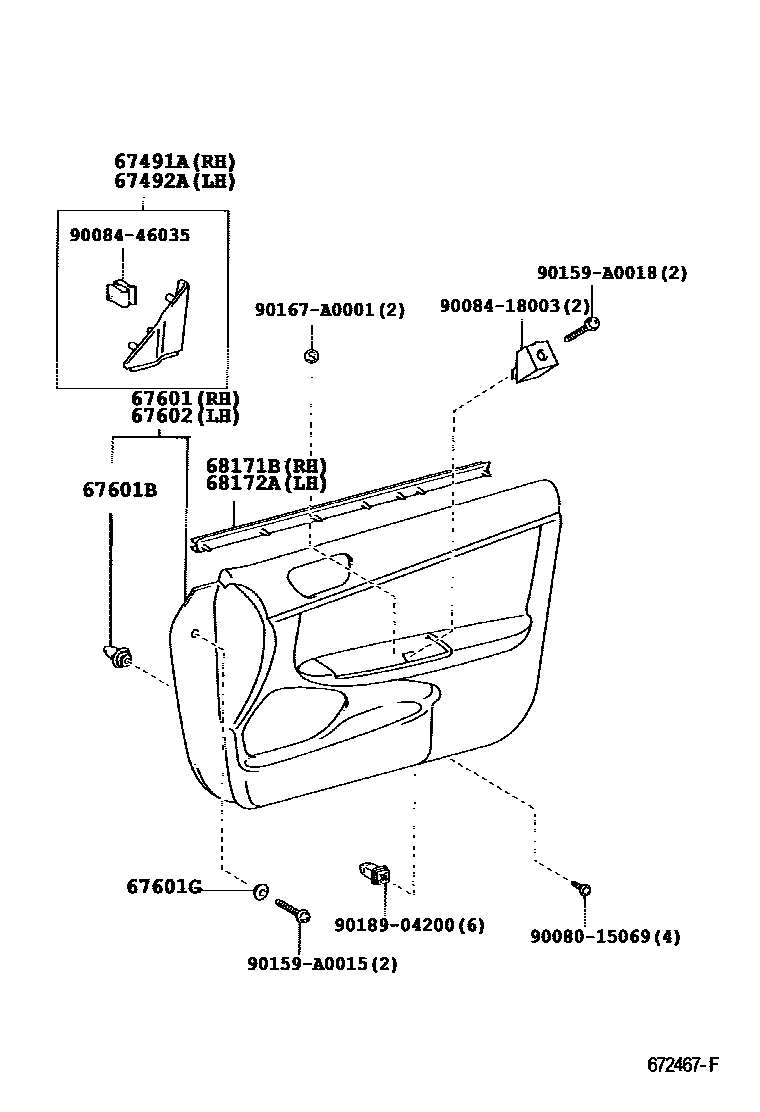

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 672467F
前门板和前门玻璃 — 672467F (200107 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-AA050 · 67001-AA052 · 67001-AA053 · 67001-AA054
67002Left front door panel sub-assembly67002-AA050 · 67002-AA052 · 67002-AA053
67111Outer right front door panel67111-AA030 · 67111-AA031
67112Outer left front door panel67112-AA030
67401FRight front door front lower door frame sub-assembly67401-AA020
67402FLeft front door front lower door frame sub-assembly67402-AA020
67403FRight front door rear lower door frame sub-assembly67403-AA040
67404FLeft front door rear lower door frame sub-assembly67404-AA040
67481ARight front door front lower door frame seal67481-AA020
67482ALeft front door front lower door frame seal67481-AA020
67491ARight front door lower door frame bracket decorative strip67491-AA040
67492ALeft front door lower door frame bracket decorative strip67492-AA040
67601BCatch (for front door trim panel)90467-10161
67811Front door silencer pad67811-AA040
67831Right front door access hole cover67831-AA050
67832Left front door access hole cover67832-AA050
67861Right front door seal67861-AA040
67862Left front door seal67862-AA040
67867CRight front door seal strip fixing67867-12150 · 67868-02020
67868CLeft front door seal strip fixing67867-12150 · 67868-02020 · 67868-12090
67869BFront door seal strip clip67869-20030
67923Front door No. 1 reinforcement cushion pad67923-AA010
67924Front door No. 2 reinforcement cushion pad67924-AA020
68101Right front door glass sub-assembly68101-AA030
68102Left front door glass sub-assembly68102-AA030
68141CRight front door glass lift channel68141-AA030 · 68141-AA031
68143AFront door glass lift channel No. 268143-AA010
68143BFront door glass lift channel No. 268144-AA010
68151CLeft front door glass lift channel68151-AA030 · 68151-AA031
68171BRight front door glass inner sealing strip68171-AA020
68172ALeft front door glass inner sealing strip68172-AA010
68610BRight front door opening limiter assembly68610-AA030
68620Left front door opening limiter assembly68620-AA030
