Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

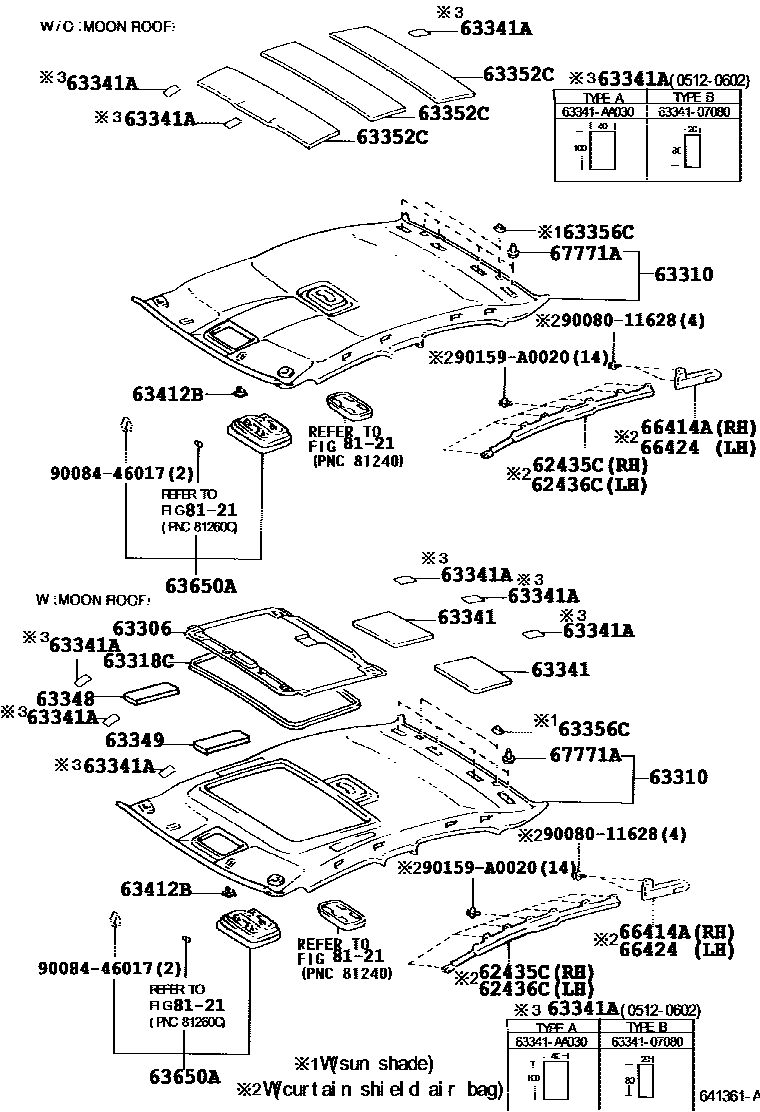

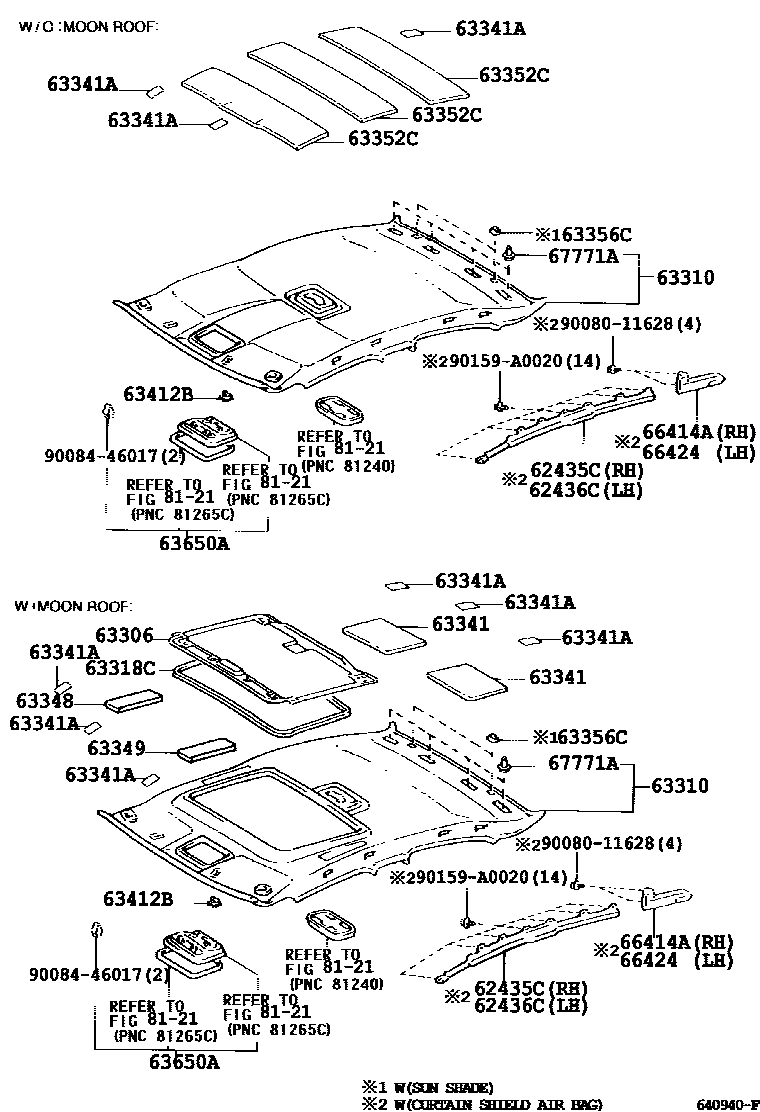

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435C | Roof right side rail decorative pad | 62435-33010 · 62435-AA010 |
| 62436C | Roof left side rail decorative pad | 62436-33010 · 62436-AA010 |
| 63341 | No. 1 roof silencer mat | 63341-AC020 |
| 63341A | No. 1 roof silencer | 63341-07020 · 63341-AA030 |
| 63348 | No. 8 roof silencer mat | 63348-AA010 |
| 63349 | No. 9 roof silencer mat | 63349-AA010 |
| 63352C | Headlining end pads | 63352-AA010 |
| 63412B | roof console fixings | 63412-33010 |
| 66414A | Right rear longitudinal member spacer | 66414-33010 · 66414-AA010 |
| 66424 | Left rear longitudinal member spacer | 66424-33010 · 66424-AA010 |
| 67771A | headliner fixings | 67771-12040 |
