VOCR EPC

Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 6 PNC and OE references.

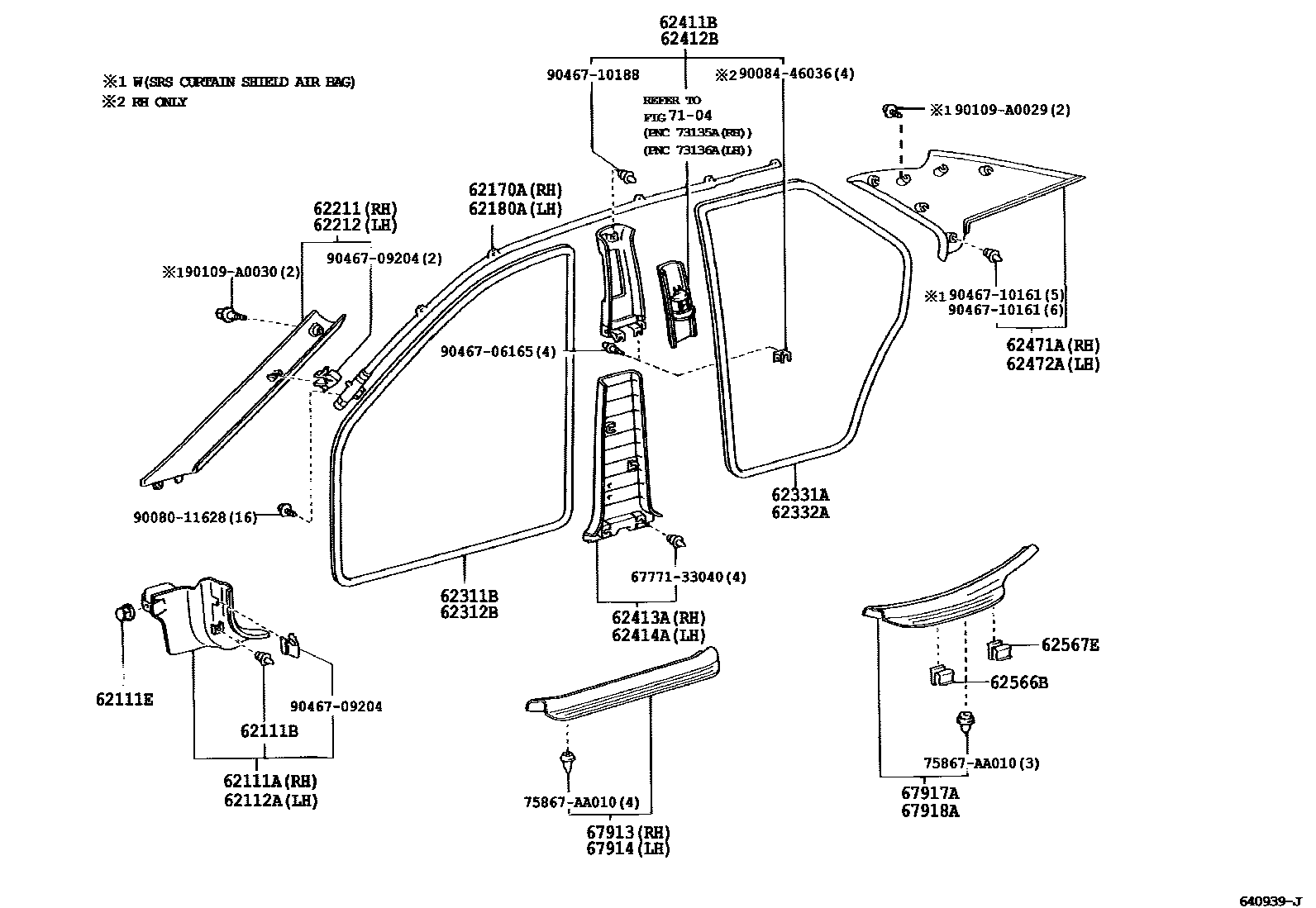

Toyota CAMRY 内饰板和车门防水胶条 EPC diagram — 640939J
内饰板和车门防水胶条 — 640939J (200107 – 999999)

PNC and OE references

PNCPart nameOE numbers
62111BClip (for cowl side trim panel)67771-33040
62111EFront wall side trim panel fixings90467-06147 · 90467-A0024
62170ARight curtain air bag assembly62170-06010 · 62170-06011
62180ALeft curtain air bag assembly62180-06010 · 62180-06011
62566BNo. 1 door inner sill protection strip clip62566-AA010
62567ENo. 2 door inner sill guard strip clip62566-32010
