Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

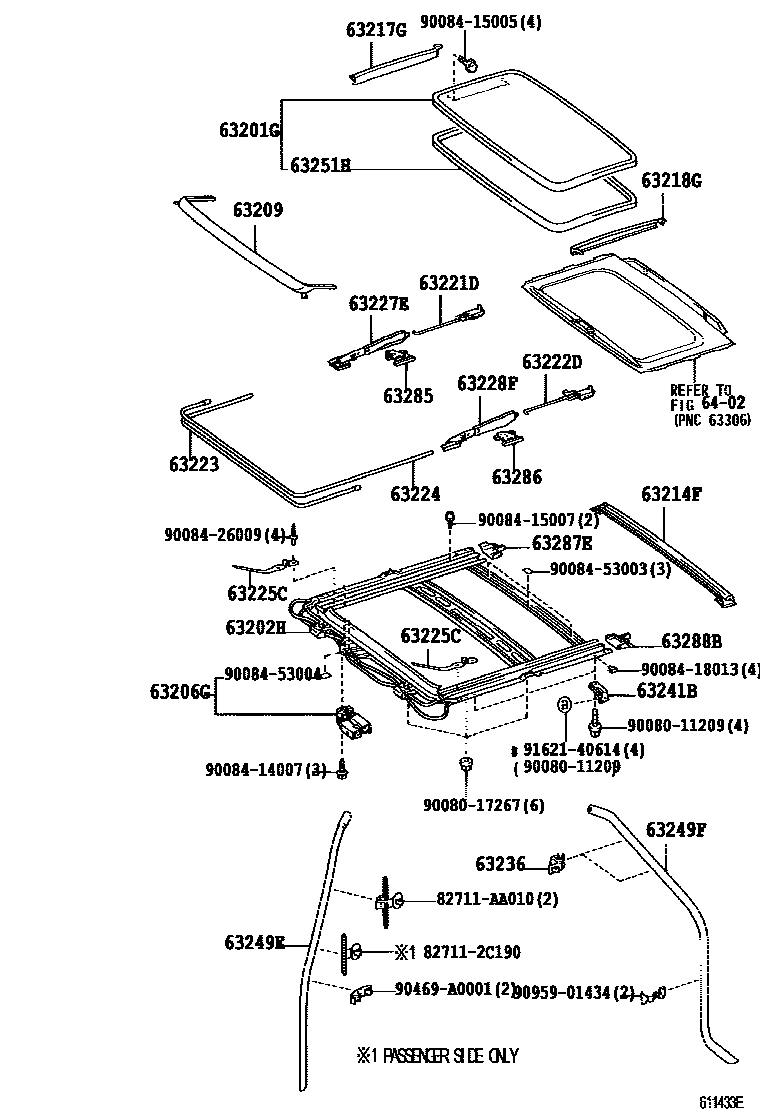

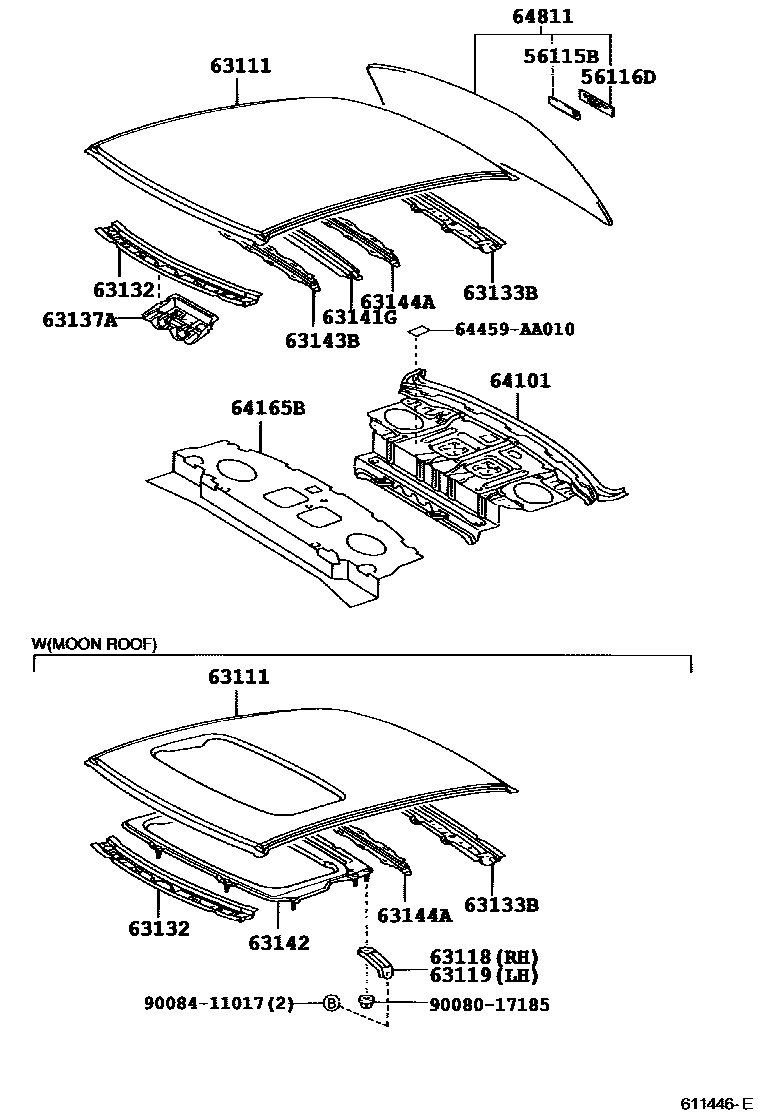

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-22010 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63111 | roof panel | 63111-AA060 · 63111-AA070 |
| 63118 | Right roof panel bracket | 63118-AA010 |
| 63119 | Left roof panel bracket | 63118-AA010 |
| 63132 | Windshield inner roof panel | 63132-AA050 |
| 63133B | back window frame | 63133-AA040 |
| 63137A | No. 1 ceiling light bracket | 63137-AA030 |
| 63141G | No. 1 roof panel reinforcement | 63141-AA030 |
| 63142 | No. 2 roof panel reinforcement | 63142-AA020 |
| 63143B | No. 3 roof panel reinforcement | 63143-AA030 |
| 63144A | No. 4 roof panel reinforcement | 63144-AA040 · 63144-AA050 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-AA020 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-AA030 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-AA020 |
| 63209 | Roof deflector sub-assembly | 63209-AA020 |
| 63214F | Roof rear drain channel | 63214-AA020 |
| 63217G | Right sliding sunroof trim | 63217-AA040 |
| 63218G | Sliding sunroof trim, left | 63218-AA030 |
| 63221D | Drainage channel duct on the right side of the roof | 63221-AA020 |
| 63222D | Drainage channel duct on the left side of the roof | 63222-AA020 |
| 63223 | Right sliding sunroof transmission cable | 63224-AA020 |
| 63224 | Left sliding sunroof transmission cable | 63224-AA020 |
| 63225C | roof deflector spring | 63225-AA020 |
| 63227E | Right sliding sunroof lift arm | 63227-AA020 |
| 63228F | Left sliding sunroof lift arm | 63228-AA020 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-AA010 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-AA020 |
| 63249E | Sliding skylight drain hose | 63249-AA040 |
| 63249F | Sliding skylight drain hose | 63249-AA050 |
| 63251H | Sliding skylight seal | 63251-AA010 |
| 63285 | Removable sunroof hinge, right | 63285-AA020 |
| 63286 | Removable sunroof hinge, left | 63286-AA020 |
| 63287E | Right sliding sunroof frame discharge end cap | 63287-AA020 |
| 63288B | Left side sliding sunroof frame discharge end cap | 63288-AA020 |
| 64101 | Upper back panel sub-assembly | 64101-AA080 |
| 64165B | No. 1 upper back panel hole cover | 64165-AA020 |
| 64811 | back window glass | 64801-AA010 · 64801-AA020 |
