Toyota CAMRY 中央扶手箱和支架 — Figure 5806

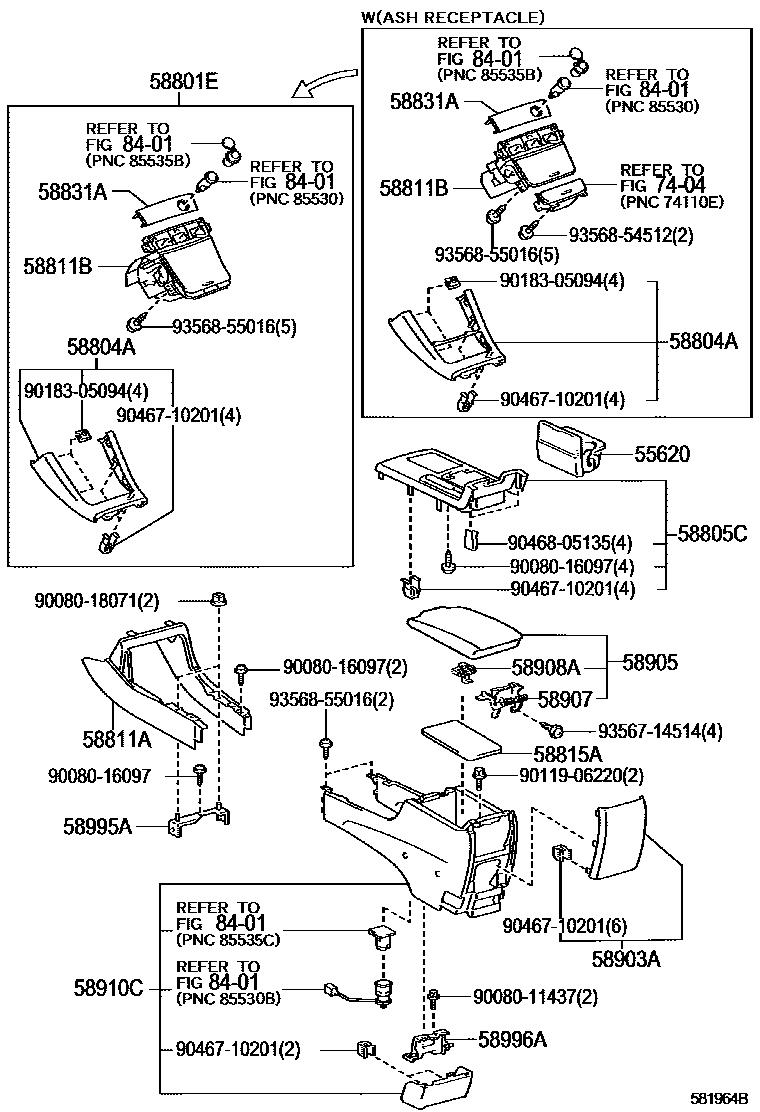

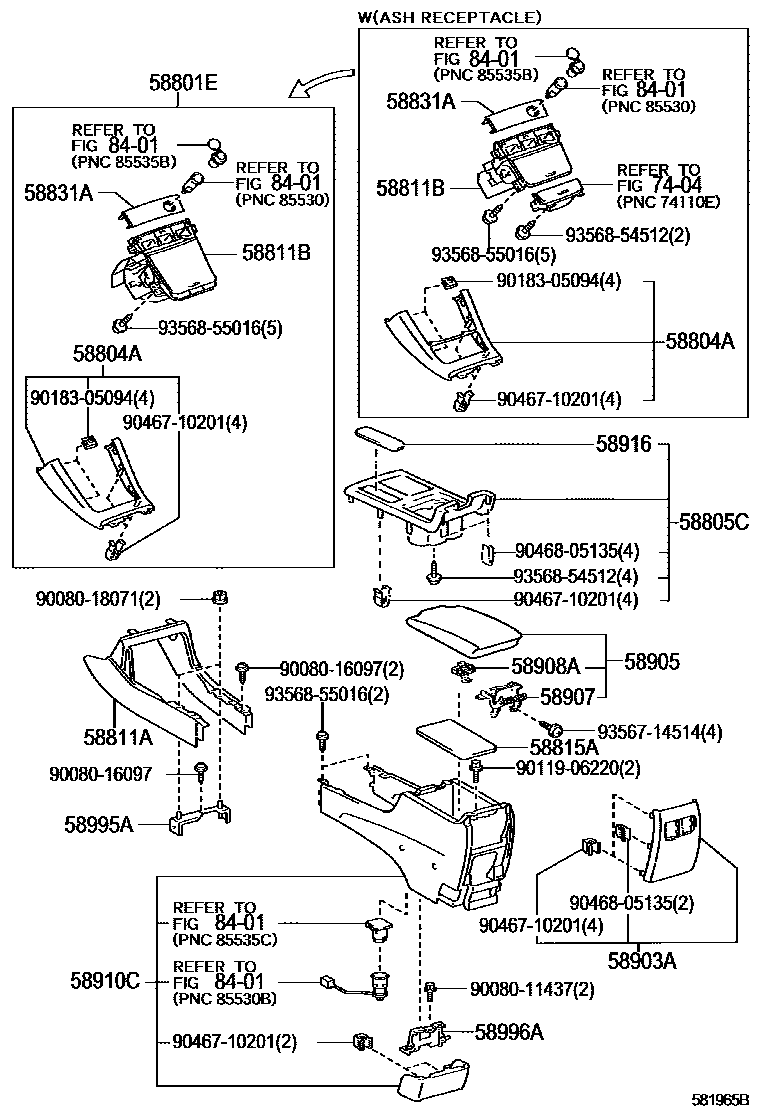

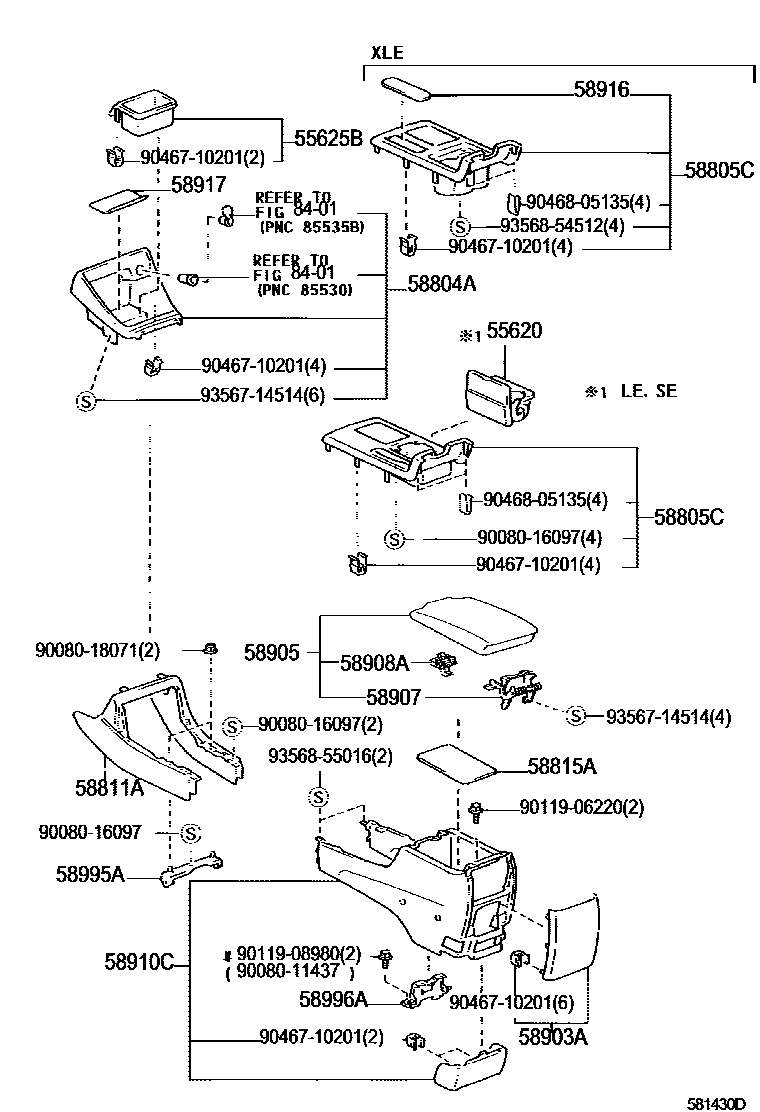

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620 | Dashboard cup holder assembly | 55620-AA010 |
| 55625B | Dashboard cup holder tray | 55625-AA020 |
| 58801E | Armrest box upper part assembly | 58801-06010 · 58801-06020 · 58801-06030 · 58801-06040 |
| 58804A | Armrest box upper panel sub-assembly | 58804-06020 · 58804-06050 · 58804-33570 · 58804-33580 · 58804-AA010 · 58804-AA050 · 58804-AA060 · 58804-AA070 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-33021 · 58805-33050 · 58805-AA010 · 58805-AA020 |
| 58811B | armrest box | 58802-06040 · 58802-06041 · 58802-06050 · 58802-06051 · 58802-33010 · 58802-33020 |
| 58815A | Armrest box felt pad | 58815-AA020 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06170 · 58831-06180 · 58831-06190 · 58831-06200 · 58831-33060 · 58831-33070 · 58831-33080 · 58831-33090 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-AA020 · 58907-AA030 |
| 58908A | Armrest box lid lock assembly | 58908-32050 |
| 58916 | Armrest box bottom pad | 58916-AA020 |
| 58917 | Armrest box bottom pad No. 2 | 58917-AA010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-AA020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-AA020 |
