Toyota CAMRY 前保险杠及附件 — Figure 5201

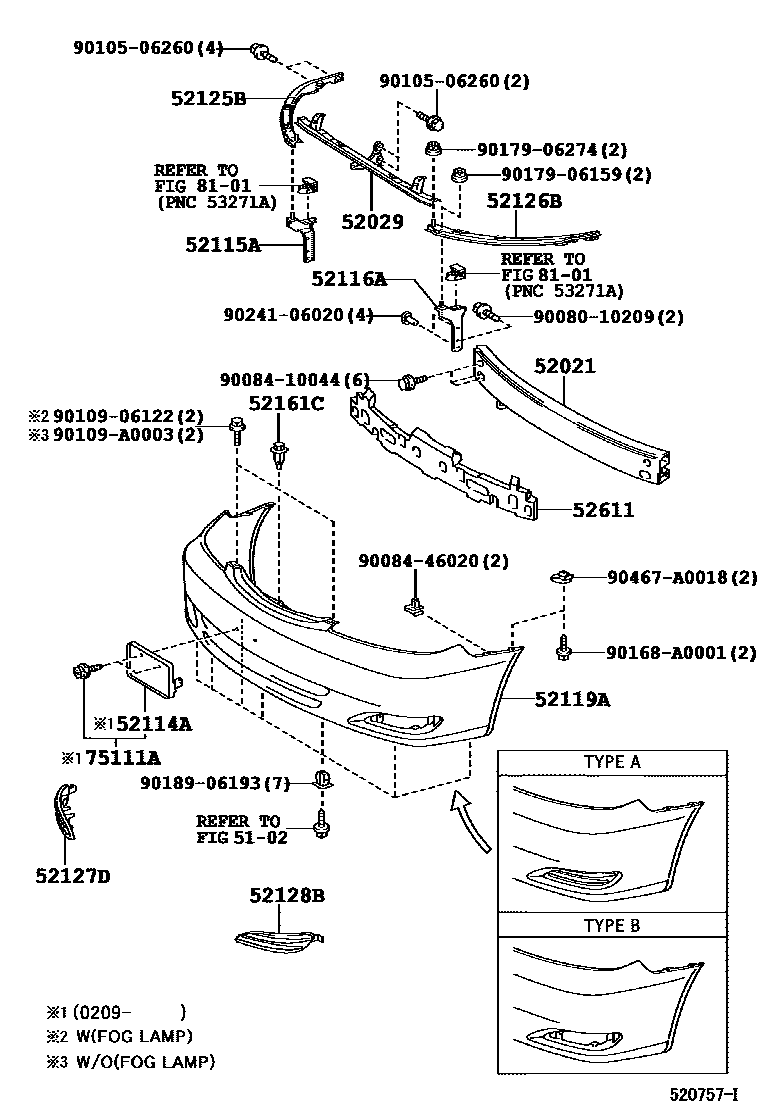

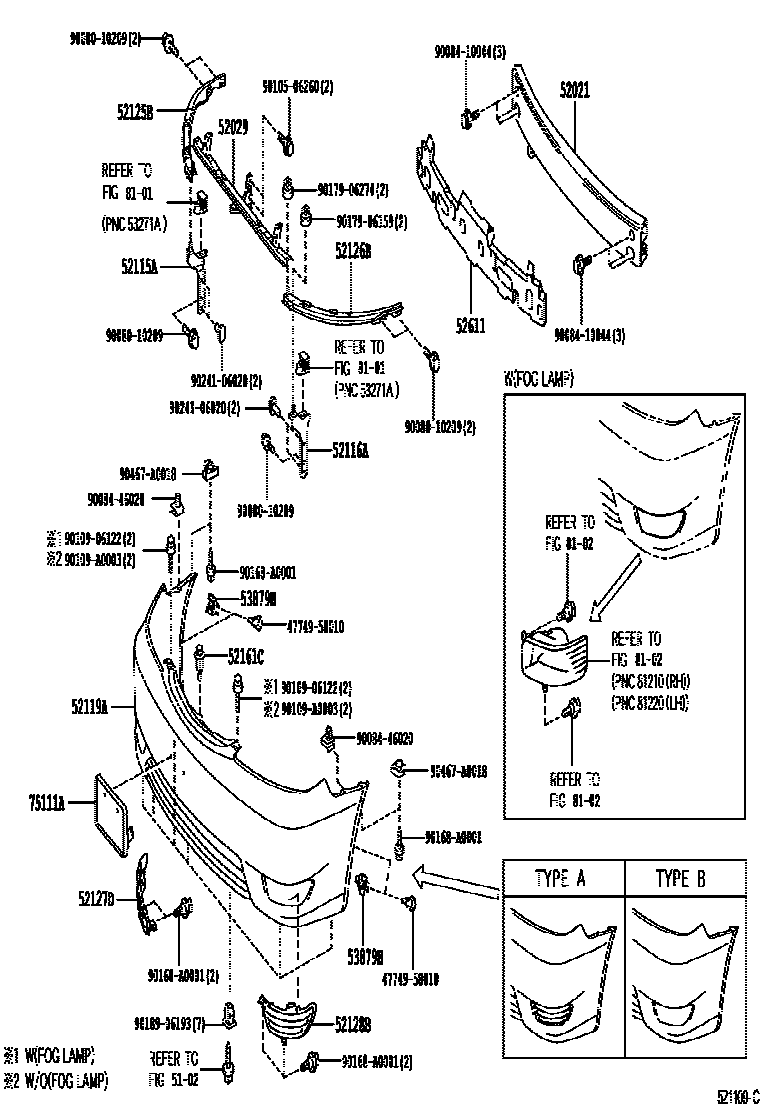

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-AA020 · 52021-AA040 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-AA030 |
| 52114A | Front bumper extension mounting bracket | 75111-AA020 |
| 52115A | Front bumper right side bracket | 52115-AA020 |
| 52116A | Front bumper left bracket | 52116-AA020 |
| 52119A | front bumper cover | 52119-06908 · 52119-06909 · 52119-AA904 · 52119-AA905 |
| 52125B | Front bumper reinforcement right extension section | 52125-AA020 |
| 52126B | Front bumper reinforcement left extension section | 52126-AA020 |
| 52161C | front bumper insert | 52161-02020 |
| 52611 | front bumper energy absorber | 52611-AA040 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
| 75111A | front license plate bracket | 75101-06010 · 75101-AA040 |
