Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

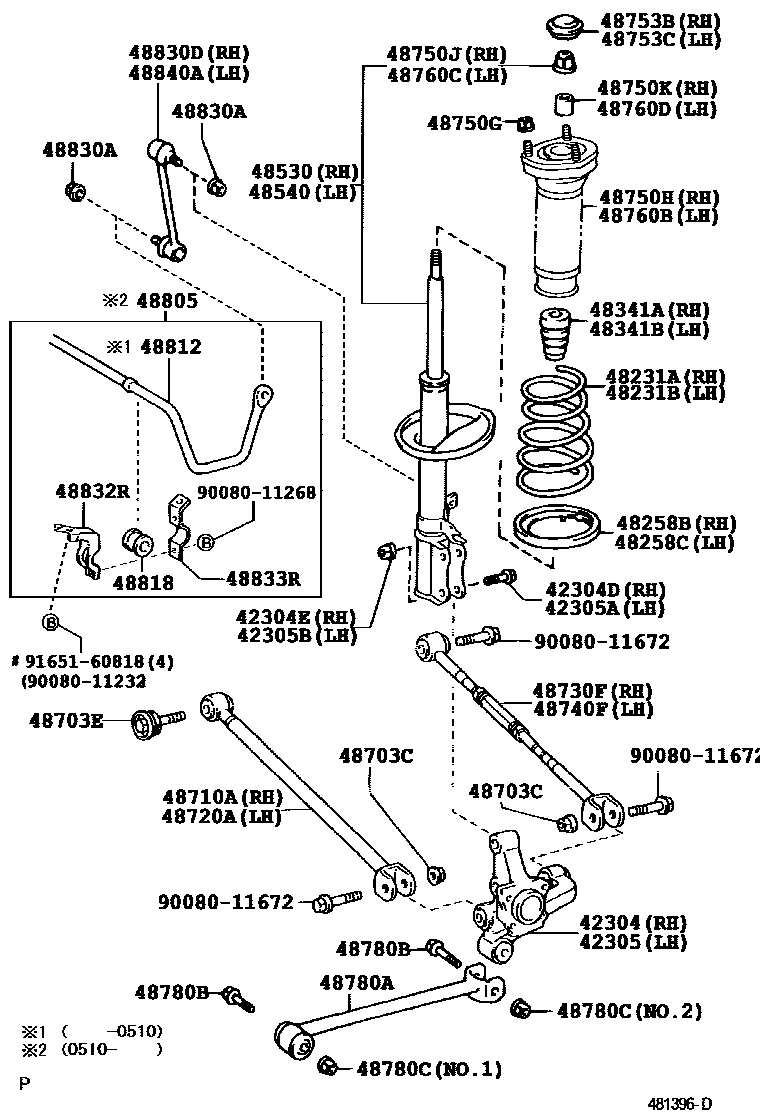

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06090 · 42304-06100 · 42304-33030 · 42304-48010 |
| 42304D | Bolt (for rear axle right bracket) | 90080-10398 · 90901-05001 |
| 42304E | Nut (for rear axle right bracket) | 90178-15001 · 90178-A0028 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06090 · 42305-06100 · 42305-33030 · 42305-48010 |
| 42305A | Bolt (for left rear axle bracket) | 90080-10398 · 90901-05001 |
| 42305B | Nut (for left rear axle bracket) | 90178-15001 · 90178-A0028 |
| 48231A | Right rear coil spring | 48231-AA080 · 48231-AA090 · 48231-AA140 · 48231-AA200 · 48231-AA210 · 48231-AA220 |
| 48231B | Left rear coil spring | 48231-AA080 · 48231-AA090 · 48231-AA140 · 48231-AA200 · 48231-AA210 · 48231-AA220 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-AA010 · 48258-AC010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-AA020 · 48258-AC010 |
| 48341A | No. 1 right rear spring buffer block | 48341-06012 · 48341-AA010 |
| 48341B | No. 1 left rear spring buffer block | 48341-06012 · 48341-AA010 |
| 48530 | Right rear shock absorber assembly | 48530-39885 · 48530-80196 · 48530-A9120 · 48530-A9130 · 48530-A9240 · 48530-A9250 · 48530-A9410 · 48530-A9590 |
| 48540 | Left rear shock absorber assembly | 48540-39465 · 48540-39635 · 48540-A9100 · 48540-A9110 · 48540-A9170 · 48540-A9180 · 48540-A9220 · 48540-A9270 |
| 48703C | Nut (for rear suspension arm) | 90080-17223 · 90179-14068 |
| 48703E | Bolts (for rear suspension arms) | 90080-11674 · 90901-19045 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-AA020 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-AA020 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-AA030 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-AA030 |
| 48750G | Nut (for rear suspension mount) | 90178-08007 · 90178-A0002 |
| 48750H | Right rear suspension support assembly | 48750-06060 · 48750-06061 · 48750-06062 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90080-17212 · 90177-14001 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-06011 |
| 48753C | Left rear suspension support cover No. 1 | 48753-06011 |
| 48760B | Left rear suspension support assembly | 48760-06060 · 48760-06061 · 48760-06062 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90080-17212 · 90177-14001 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-48020 |
| 48780B | Bolts (for support rods) | 90080-11133 · 90119-12131 |
| 48780C | Nut (for support rod) | 90178-A0011 · 90179-12063 · 90179-12091 · 90179-A0004 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-AA010 · 48805-AA020 · 48805-AA041 |
| 48812 | rear stabilizer bar | 48812-AA050 · 48812-AA071 · 48812-AA090 |
| 48818 | Rear stabilizer bar bushing | 48818-06150 · 48818-06160 · 48818-AA010 |
| 48830A | Nut (for rear stabilizer link) | 90080-17227 · 90179-10183 |
| 48830D | Right rear stabilizer bar link assembly | 48830-06030 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-06020 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48832-06030 |
| 48840A | Left rear stabilizer bar link assembly | 48830-06030 |
