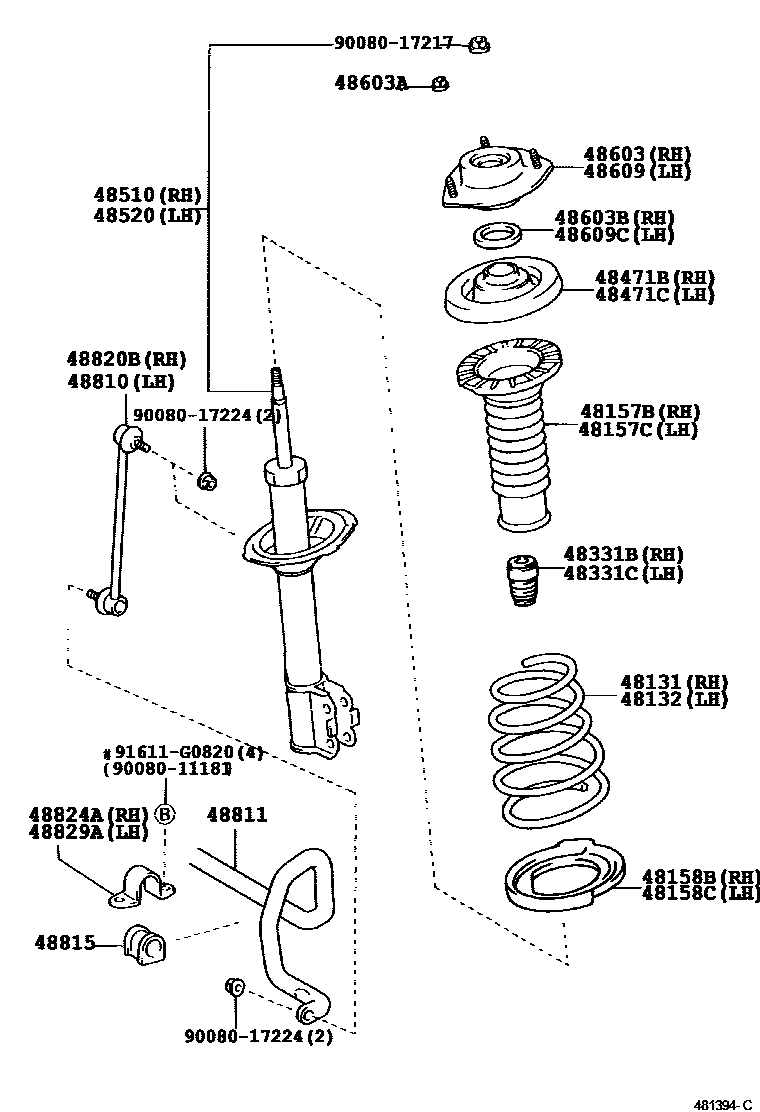

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-AA120 · 48131-AA140 · 48131-AA150 · 48131-AA160 · 48131-AA210 · 48131-AA220 · 48131-AA330 · 48131-AA331 · 48131-AA340 · 48131-AA341 · 48131-AA350 · 48131-AA351 · 48131-AA360 · 48131-AA361 · 48131-AA370 · 48131-AA371 · 48131-AA380 · 48131-AA381 |
| 48132 | Left front coil spring | 48131-AA120 · 48131-AA140 · 48131-AA150 · 48131-AA160 · 48131-AA210 · 48131-AA220 · 48131-AA330 · 48131-AA331 · 48131-AA340 · 48131-AA341 · 48131-AA350 · 48131-AA351 · 48131-AA360 · 48131-AA361 · 48131-AA370 · 48131-AA371 · 48131-AA380 · 48131-AA381 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-06040 · 48157-06080 · 48157-06081 · 48157-06082 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-06040 · 48157-06080 · 48157-06081 · 48157-06082 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-33031 · 48158-AA020 · 48158-AA030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-33031 · 48158-AA020 · 48158-AA030 |
| 48331B | Right front spring buffer block | 48331-AA010 |
| 48331C | Left front spring buffer block | 48331-AA010 |
| 48471B | Front coil spring upper right seat | 48471-06030 · 48471-AA010 |
| 48471C | Front coil spring upper left seat | 48471-06030 · 48471-AA010 |
| 48510 | Right front shock absorber assembly | 48510-A9190 · 48510-A9200 · 48510-A9390 · 48510-A9400 · 48510-A9620 |
| 48520 | Left front shock absorber assembly | 48520-A9110 · 48520-A9120 · 48520-A9250 · 48520-A9260 · 48520-A9330 |
| 48603 | Right front suspension bearing sub-assembly | 48609-06090 |
| 48603A | Nut (for front suspension mount) | 90080-17225 · 90178-10017 · 90178-10018 · 90178-A0004 |
| 48603B | Bearing (for right front suspension mount) | 90080-36070 · 90903-63014 |
| 48609 | Left front suspension bearing sub-assembly | 48609-06090 |
| 48609C | Bearing (for left front suspension mount) | 90080-36070 · 90903-63014 |
| 48810 | Left front stabilizer bar link assembly | 48820-06040 |
| 48811 | front stabilizer bar | 48811-AA020 · 48811-AA060 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-06080 · 48815-06090 |
| 48820B | Right front stabilizer bar link assembly | 48820-06040 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-06020 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-06020 |
