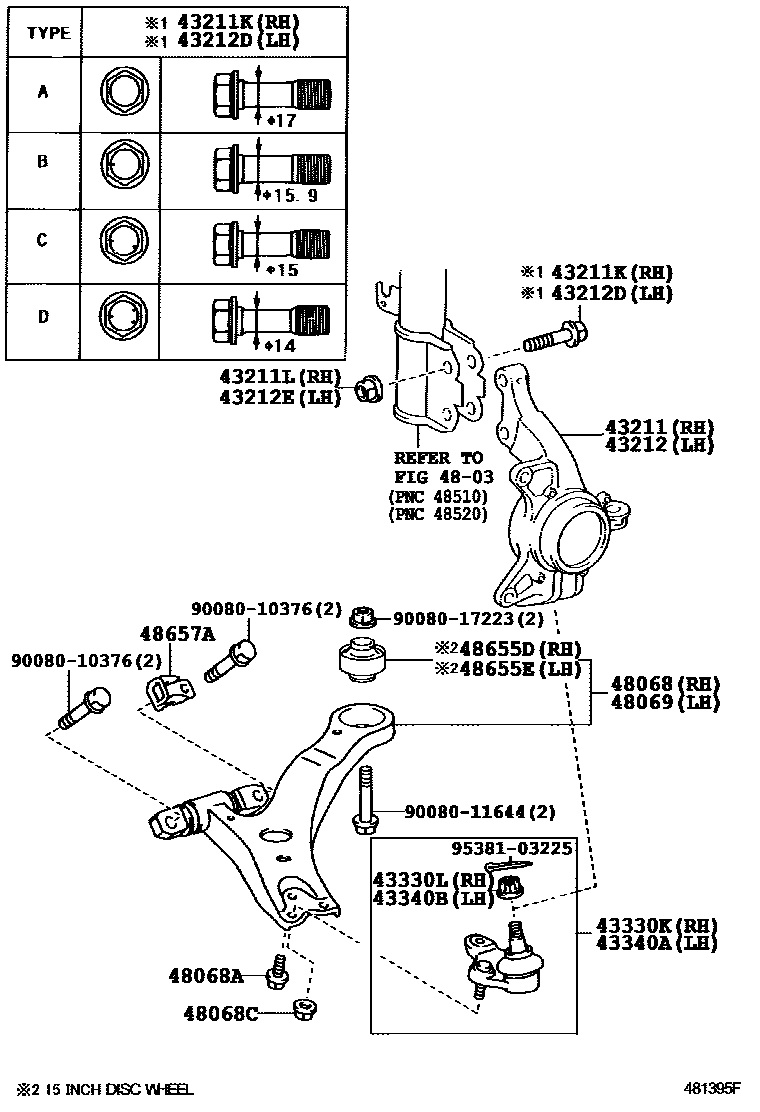

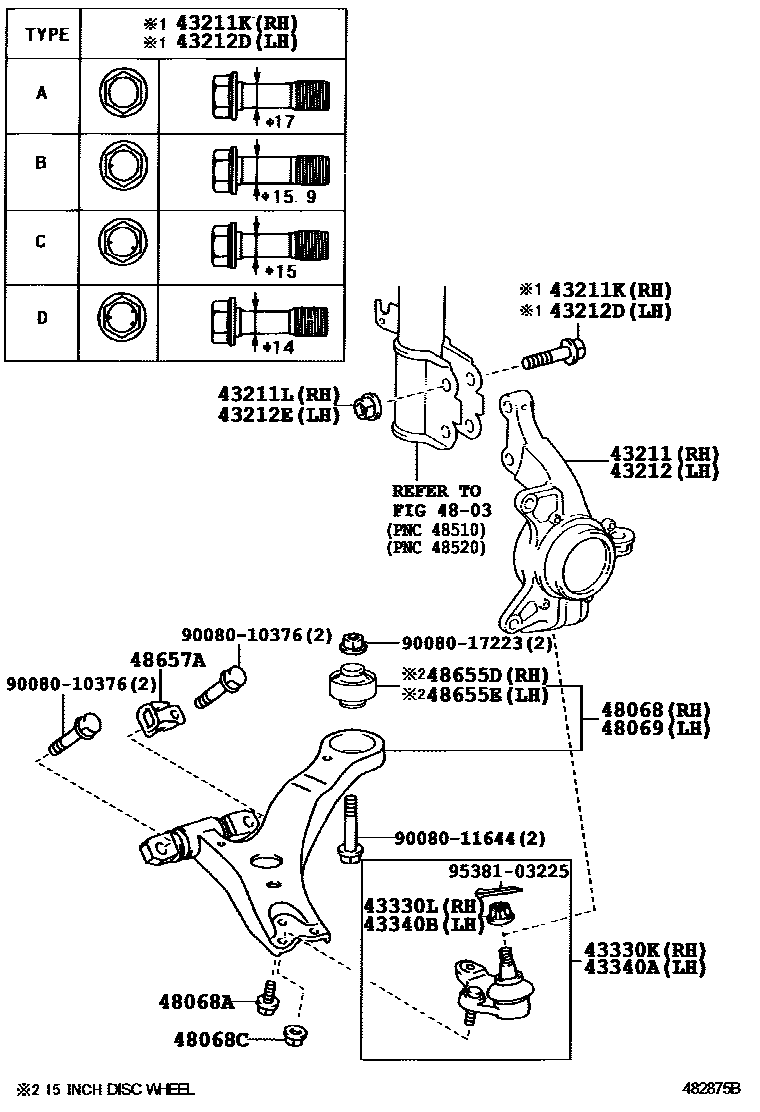

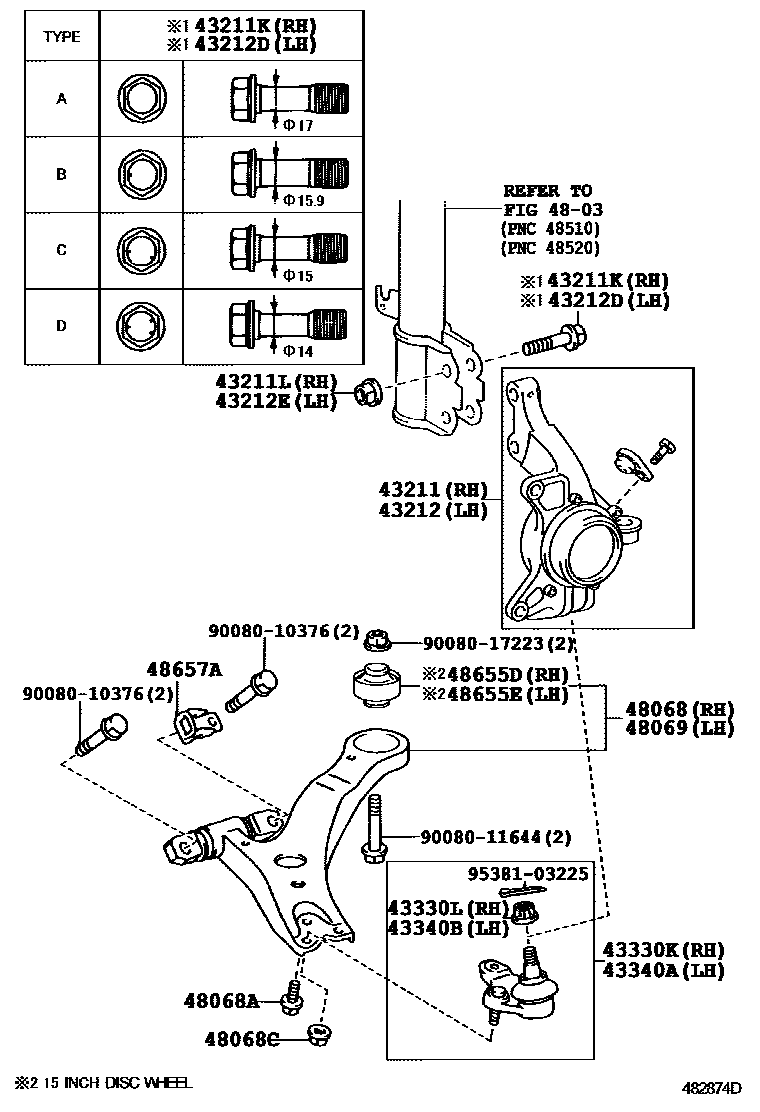

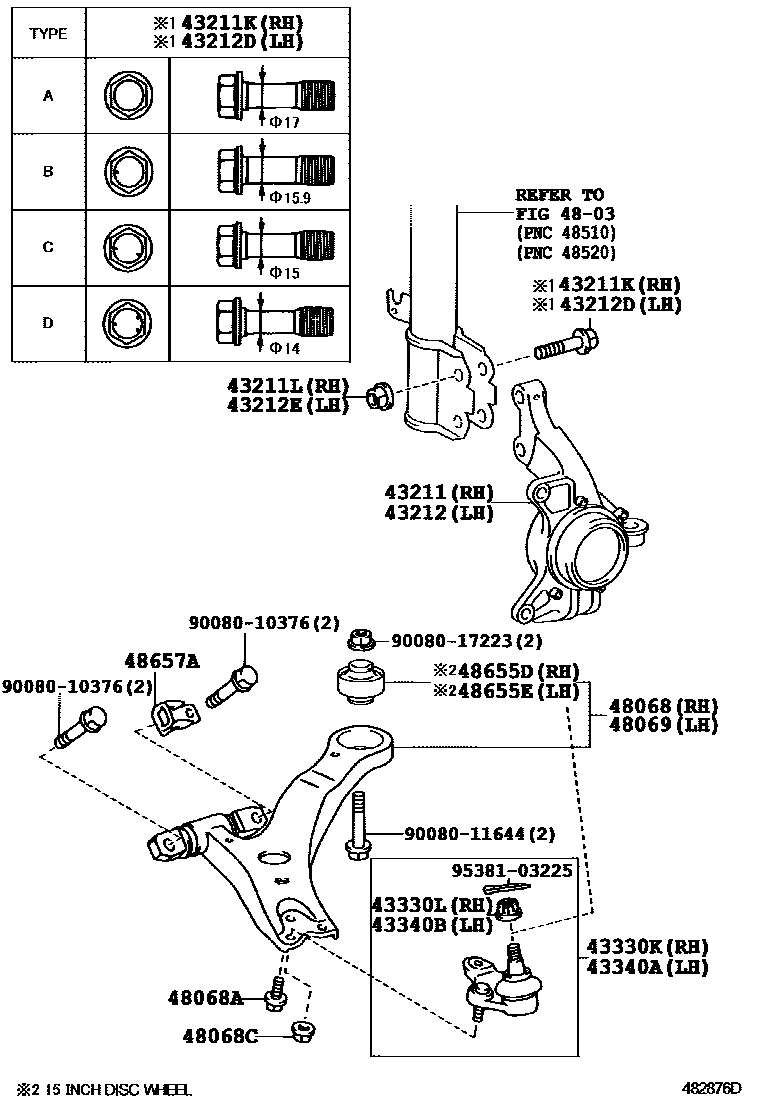

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-06110 · 43211-06120 · 43211-33080 · 43211-39045 · 43211-58010 · 43211-AA010 |
| 43211K | Bolt (for right steering knuckle) | 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 · 90105-A0052 |
| 43211L | Nut (for right steering knuckle) | 90178-17001 · 90178-A0027 |
| 43212 | left steering knuckle | 43212-06150 · 43212-06160 · 43212-33100 · 43212-39035 · 43212-58010 · 43212-AA010 |
| 43212D | Bolt (for left steering knuckle) | 90105-17008 · 90105-17009 · 90105-17010 · 90105-17011 · 90105-A0052 |
| 43212E | Nut (for left steering knuckle) | 90178-17001 · 90178-A0027 |
| 43330K | Right front lower ball joint assembly | 43330-09160 |
| 43330L | Castle nut (for right front lower ball joint) | 90080-17214 · 90171-14003 |
| 43340A | Left front lower ball joint assembly | 43340-09010 |
| 43340B | Castle nut (for left front lower ball joint) | 90080-17214 · 90171-14003 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-06070 · 48068-06100 |
| 48068A | Bolt (for front suspension lower arm) | 90080-10132 · 90080-10271 · 90105-12122 |
| 48068C | Nut (for front suspension lower arm) | 90178-12015 · 90179-12052 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-06070 · 48069-06100 |
| 48655D | Right front No. 2 lower arm bushing | 48655-06040 |
| 48655E | Left front No. 2 lower arm bushing | 48655-06040 |
| 48657A | Front lower arm bushing stop | 48657-06010 |
