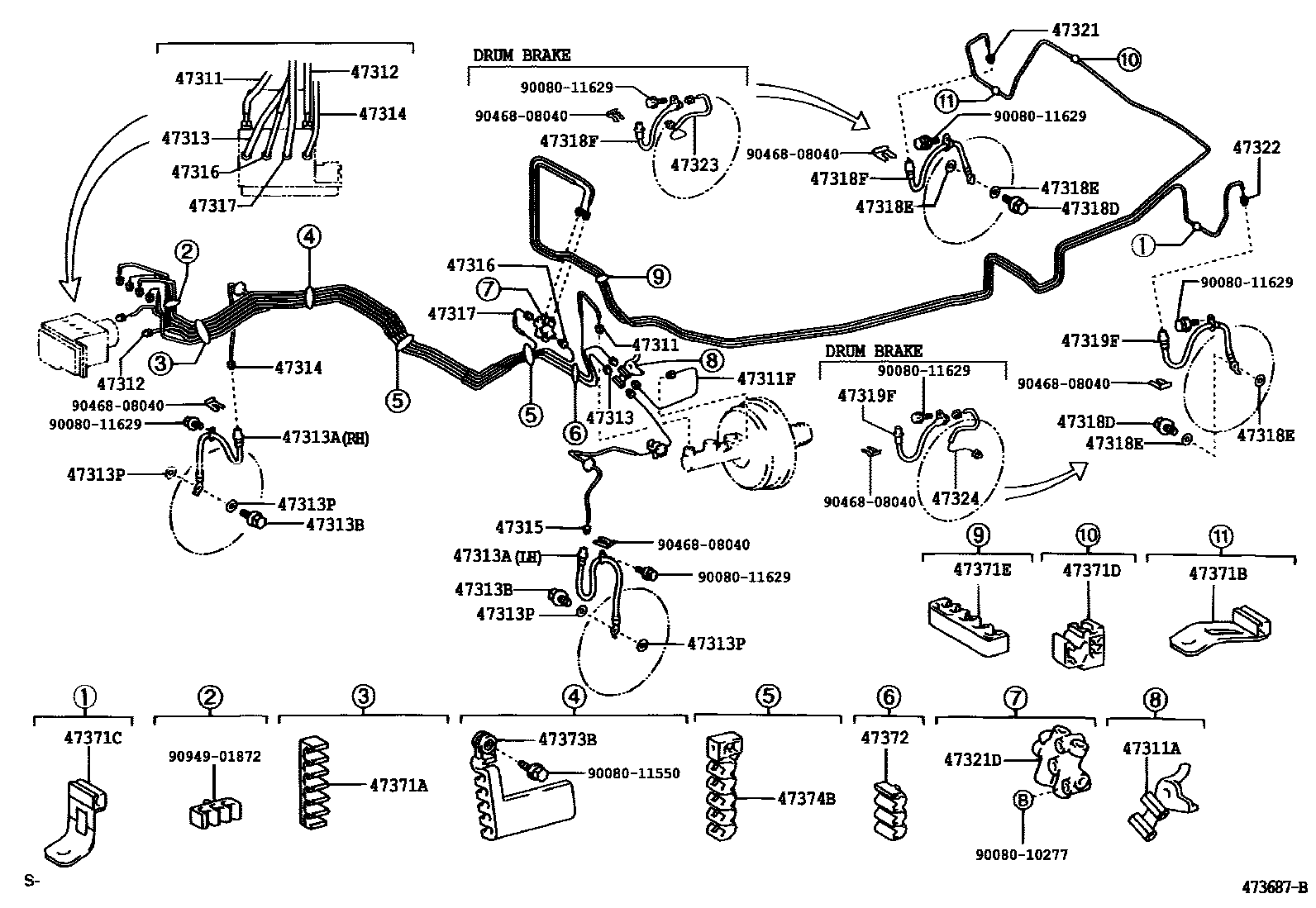

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 9 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

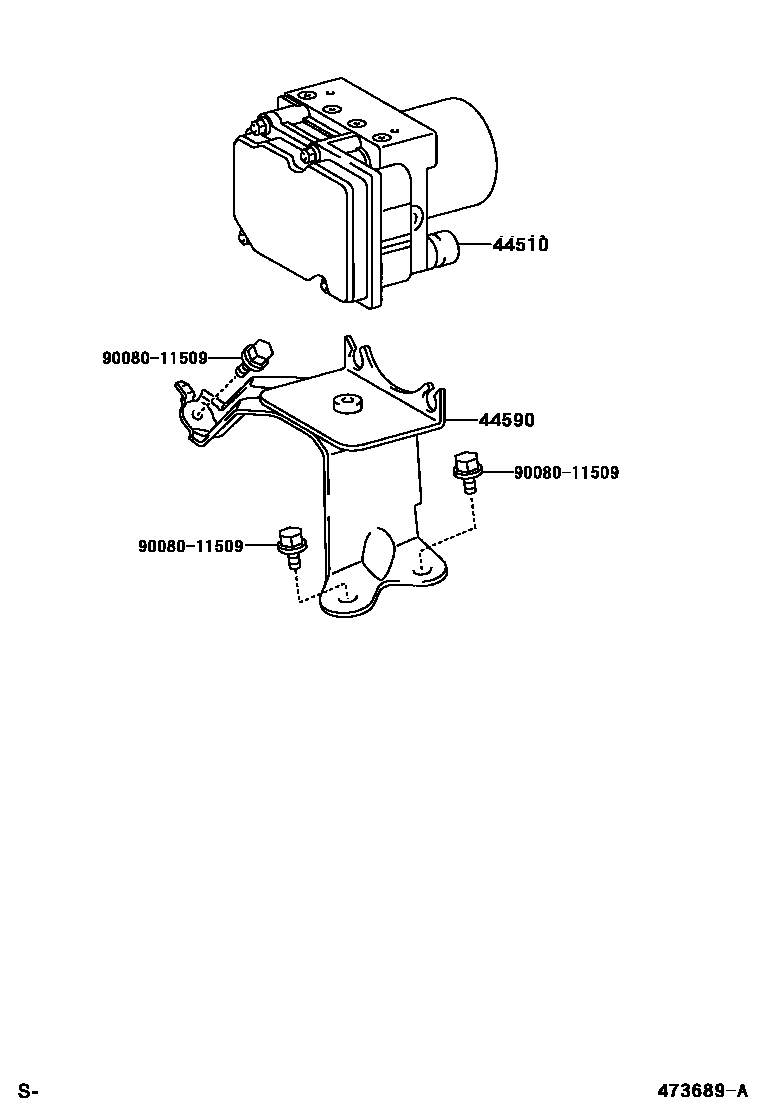

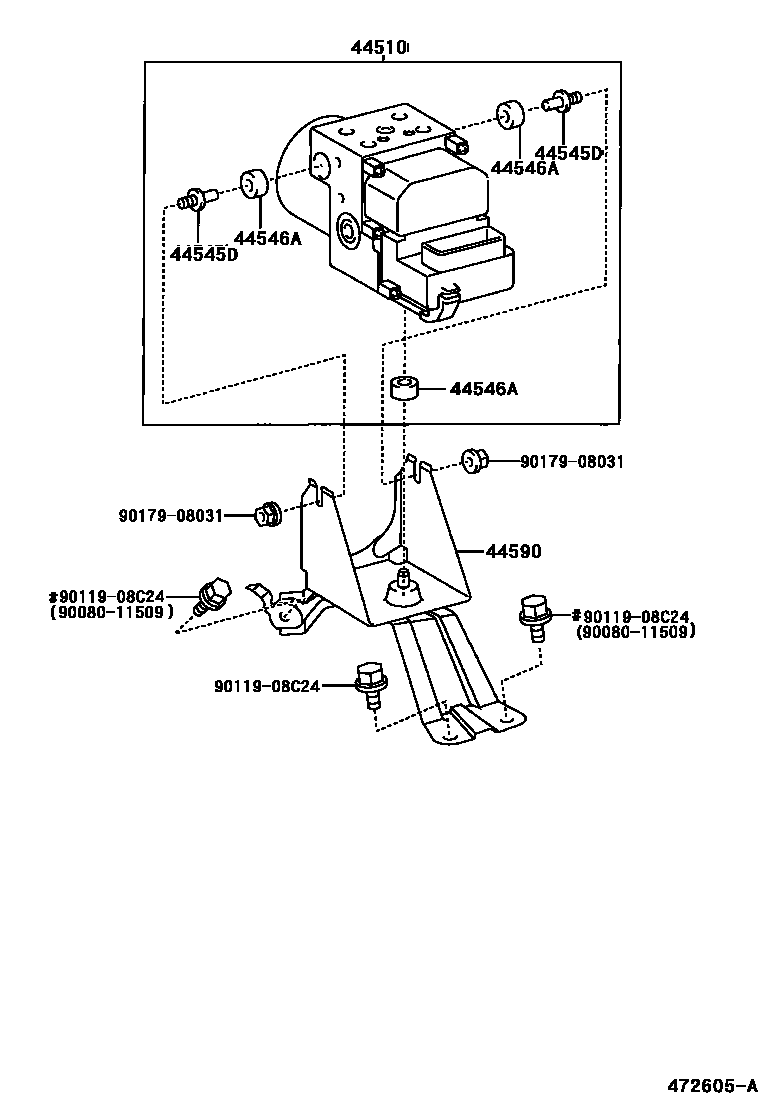

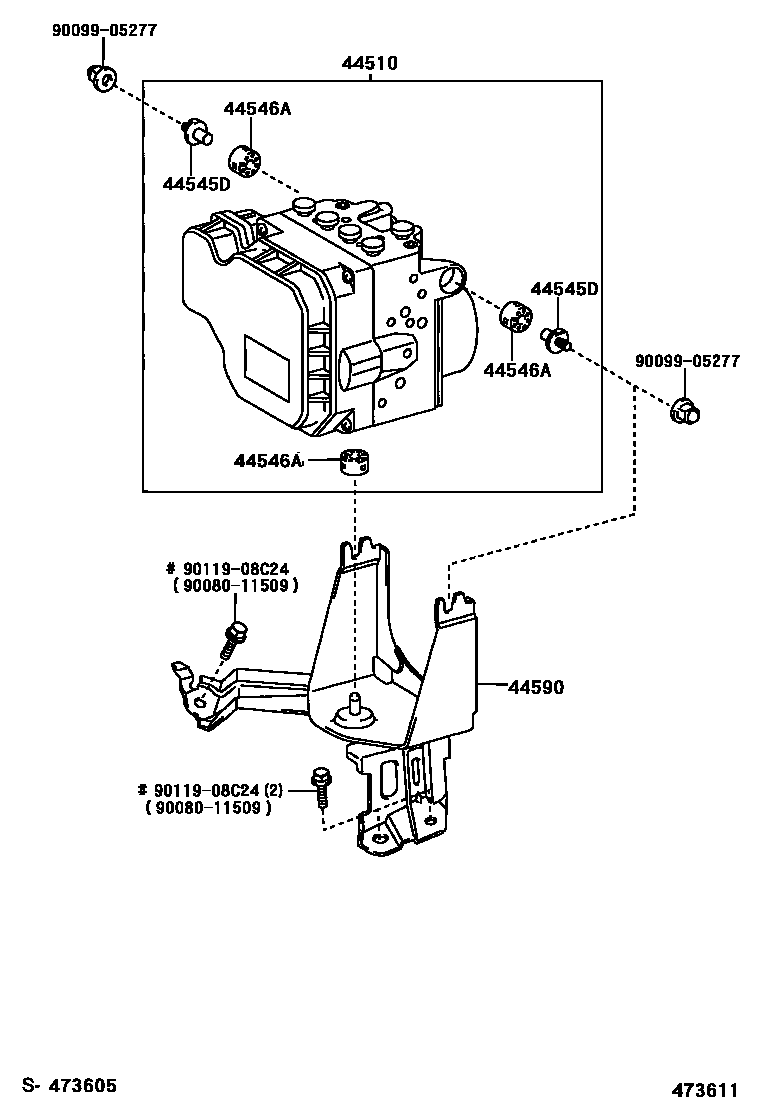

| 44510 | brake actuator assembly | 44050-06050 · 44050-06060 · 44050-33080 · 44050-33081 · 44050-33110 · 44050-33130 |
| 44545D | Brake actuator bolt mount | 44545-42090 · 44578-06020 |
| 44546A | Brake actuator bolt cushion | 44546-06020 · 44546-42090 |

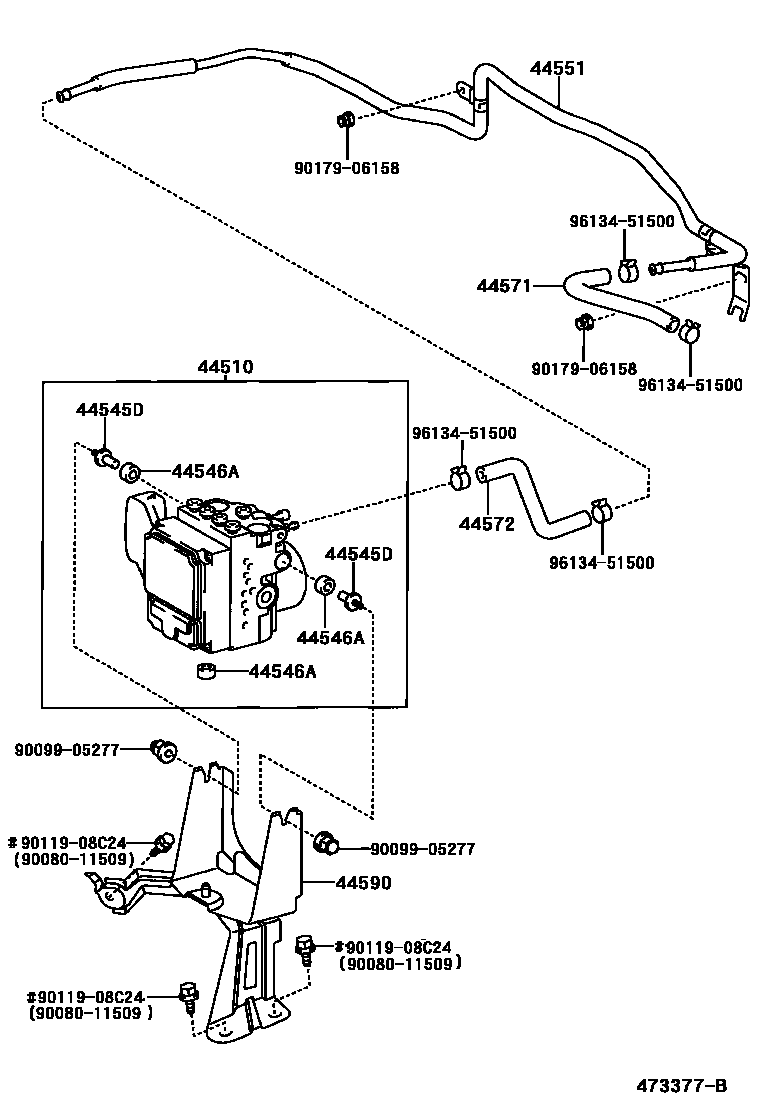

| 44551 | No. 1 brake actuator pipe | 44551-33040 |
| 44571 | brake actuator hose | 44571-33060 |
| 44572 | No. 2 brake actuator hose | 44572-33020 |
| 44590 | Brake actuator bracket assembly | 44590-06050 · 44590-06080 · 44590-06081 · 44590-06090 · 44590-33070 |

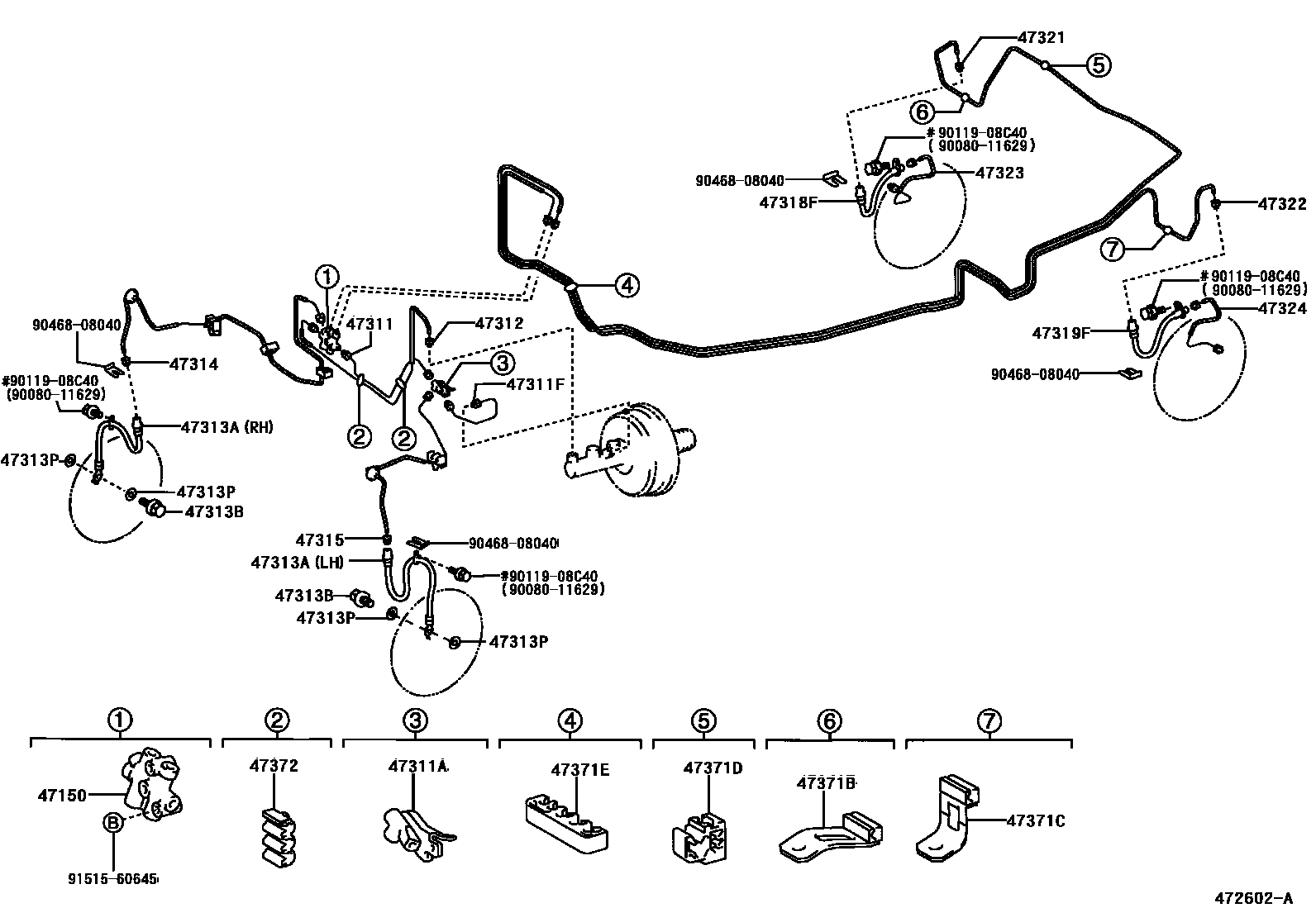

| 47150 | Proportional valve assembly | 47150-16050 |

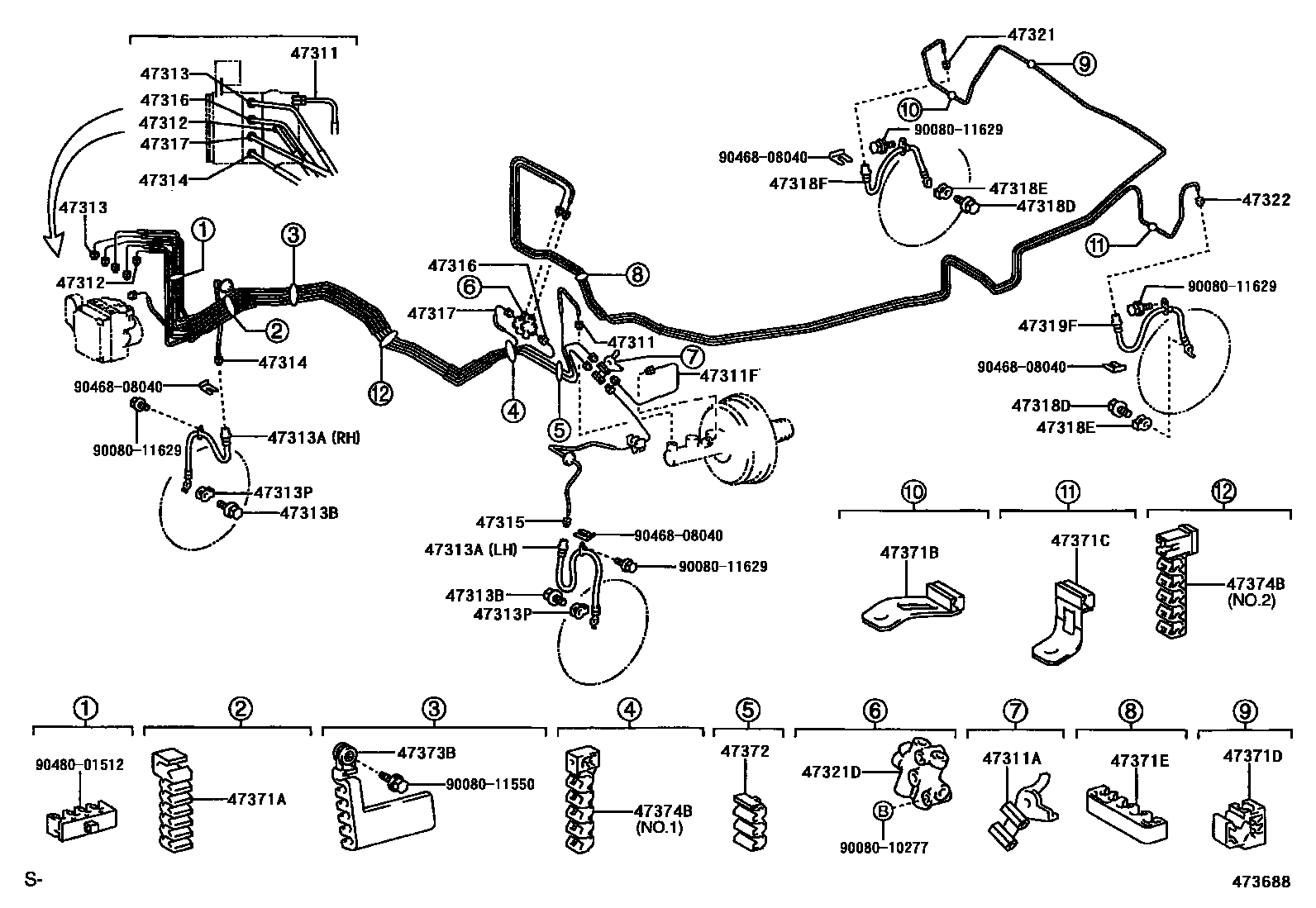

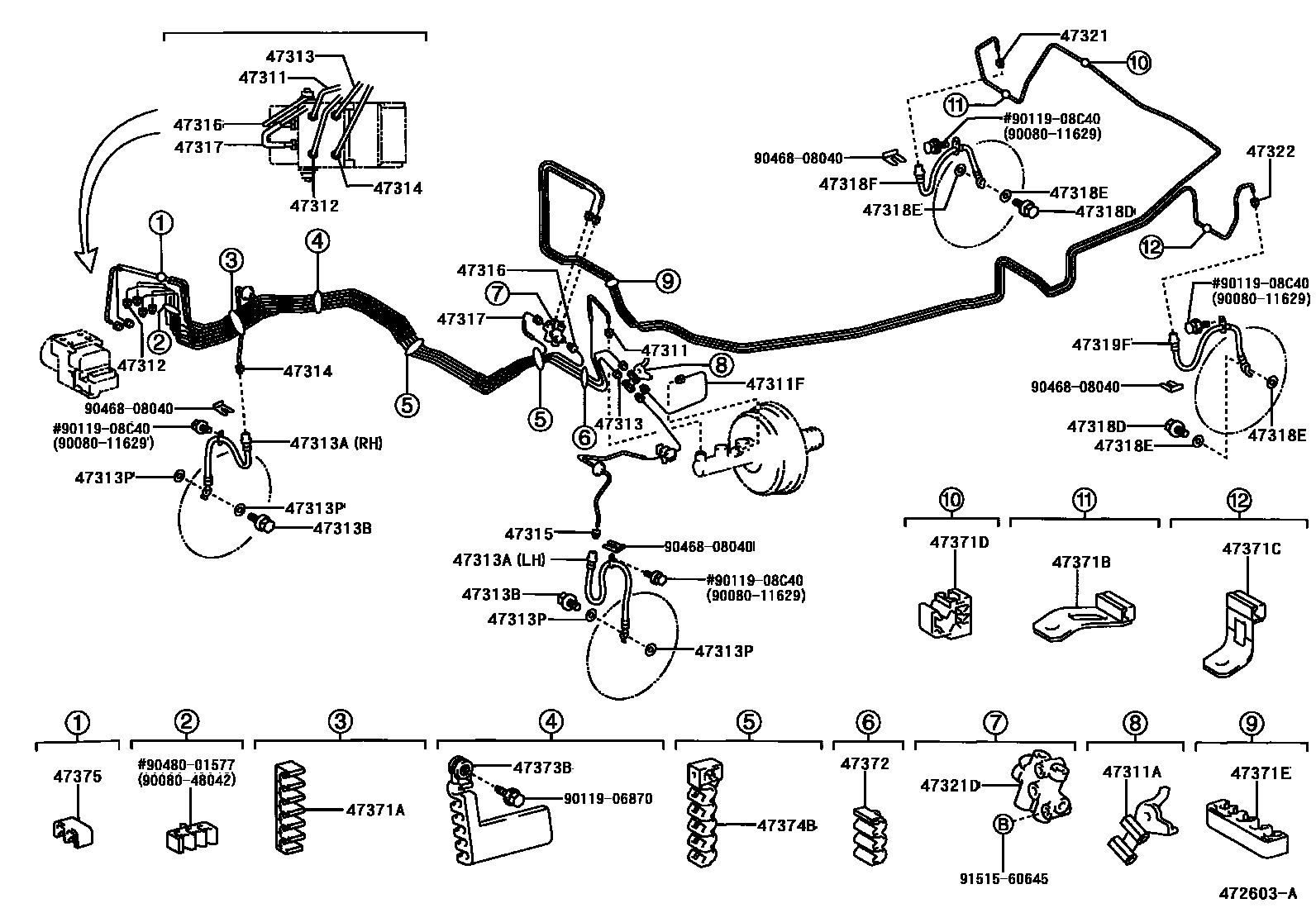

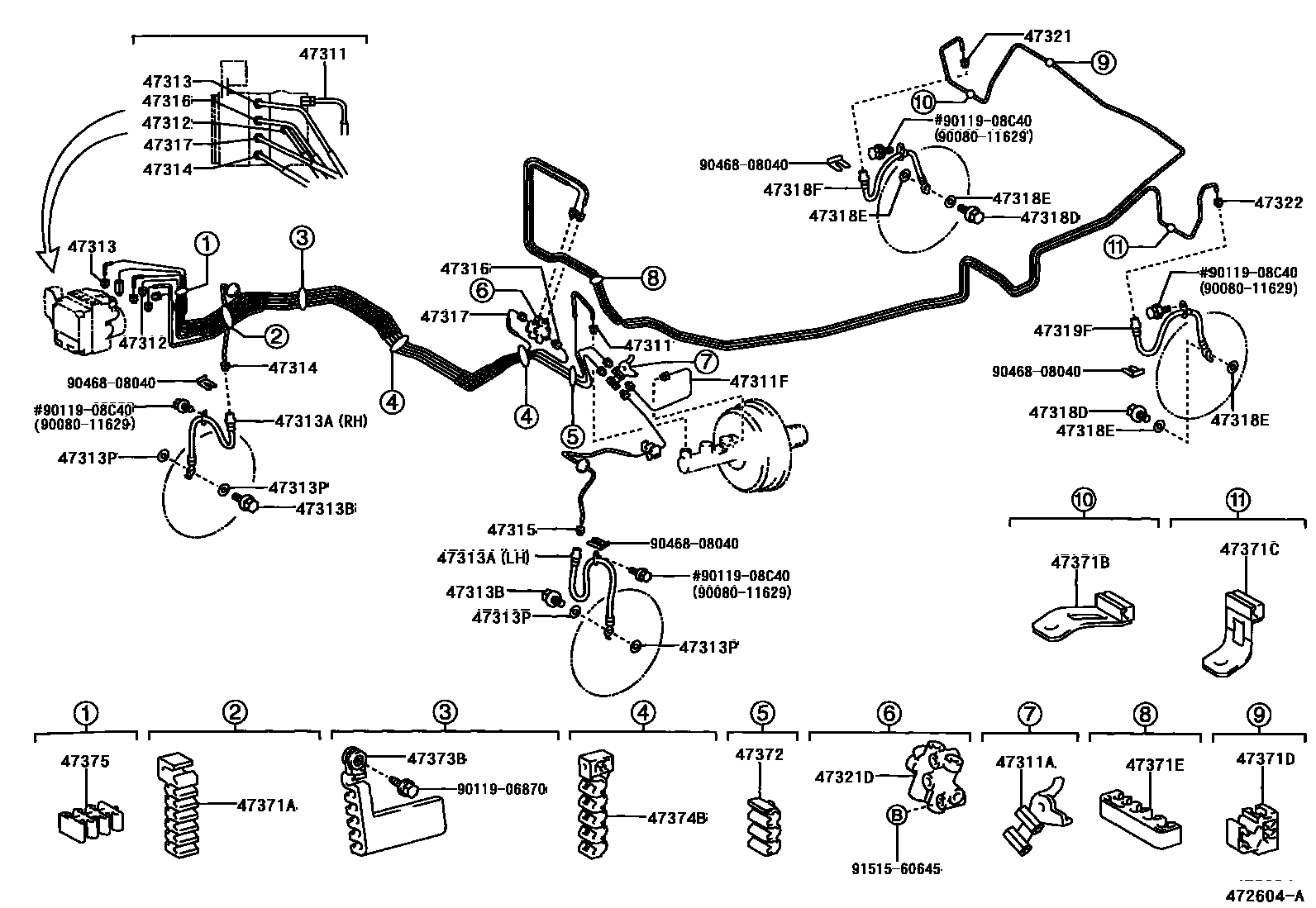

| 47311 | No. 1 front brake pipe | 47311-06040 · 47311-06041 · 47311-06050 · 47311-06060 · 47311-06061 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10238 · 90904-13011 |
| 47311F | No. 1 frame front brake pipe | 47311-06070 · 47311-06080 |
| 47312 | No. 2 front brake pipe | 47312-06080 · 47312-06081 · 47312-06090 · 47312-06091 · 47312-06100 |
| 47313 | No. 3 front brake pipe | 47313-06080 · 47313-06081 · 47313-06090 · 47313-06091 |
| 47313A | No. 1 front flexible hose | 90080-94121 · 90080-94122 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-06070 · 47314-06071 · 47314-06080 · 47314-06090 · 47314-06091 |
| 47315 | No. 5 front brake pipe | 47315-06120 · 47315-06130 |
| 47316 | No. 6 front brake pipe | 47316-06150 · 47316-06151 · 47316-06160 · 47316-06161 |
| 47317 | No. 7 front brake pipe | 47317-06130 · 47317-06131 · 47317-06140 · 47317-06141 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90080-94123 · 90080-94125 |
| 47319F | Left rear flexible hose | 90080-94124 · 90080-94126 |
| 47321 | No. 1 rear brake pipe | 47321-06080 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 |
| 47322 | No. 2 rear brake pipe | 47322-06080 |
| 47323 | No. 3 rear brake pipe | 47323-06150 · 47323-06151 |
| 47324 | No. 4 rear brake pipe | 47324-06150 · 47324-06151 |
| 47371A | No. 1 brake pipe clamp | 47372-33010 · 90949-01C85 |
| 47371B | No. 6 brake pipe clamp | 47371-32130 |
| 47371C | No. 7 brake pipe clamp | 47371-32140 |
| 47371D | No. 8 brake pipe clamp | 90949-01B45 |
| 47371E | No. 9 brake pipe clamp | 90949-01C53 |
| 47372 | No. 2 brake pipe clamp | 90464-00778 |
| 47373B | No. 3 brake pipe clamp | 90949-01C55 |
| 47374B | No. 4 brake pipe clamp | 90949-01C56 · 90949-01D06 |
| 47375 | No. 5 brake pipe clamp | 90949-01970 · 90949-01972 |
