Toyota CAMRY 后鼓式制动器分泵和底板 — Figure 4706

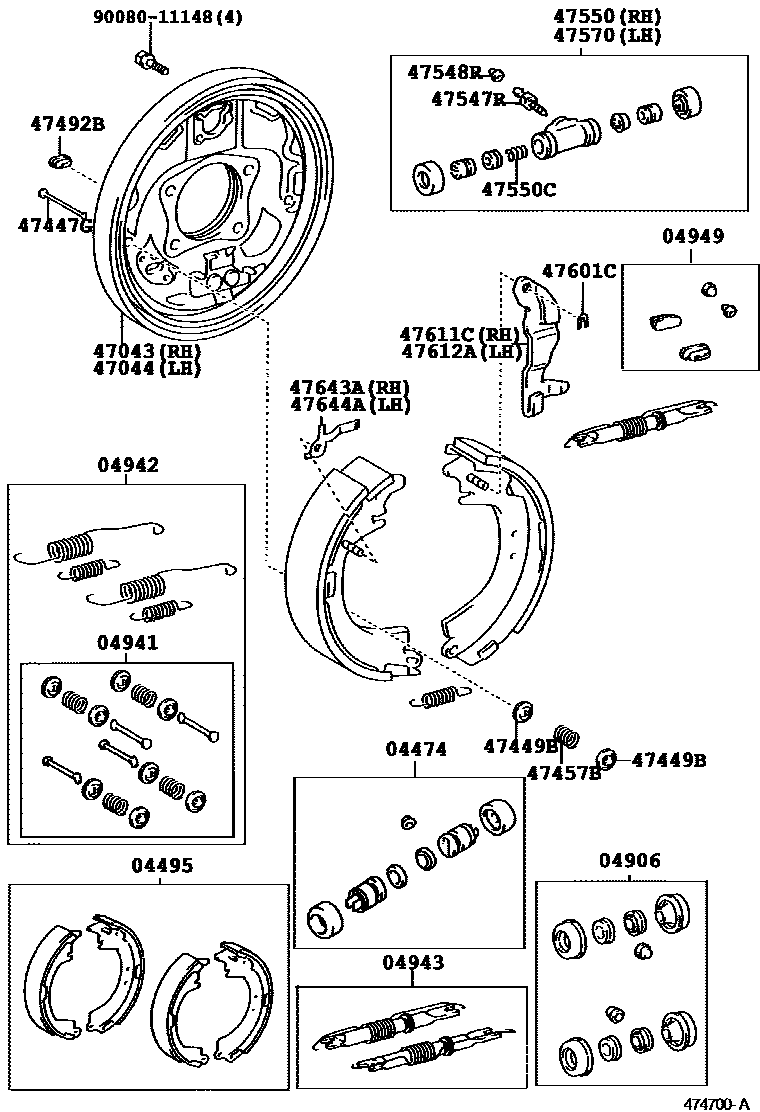

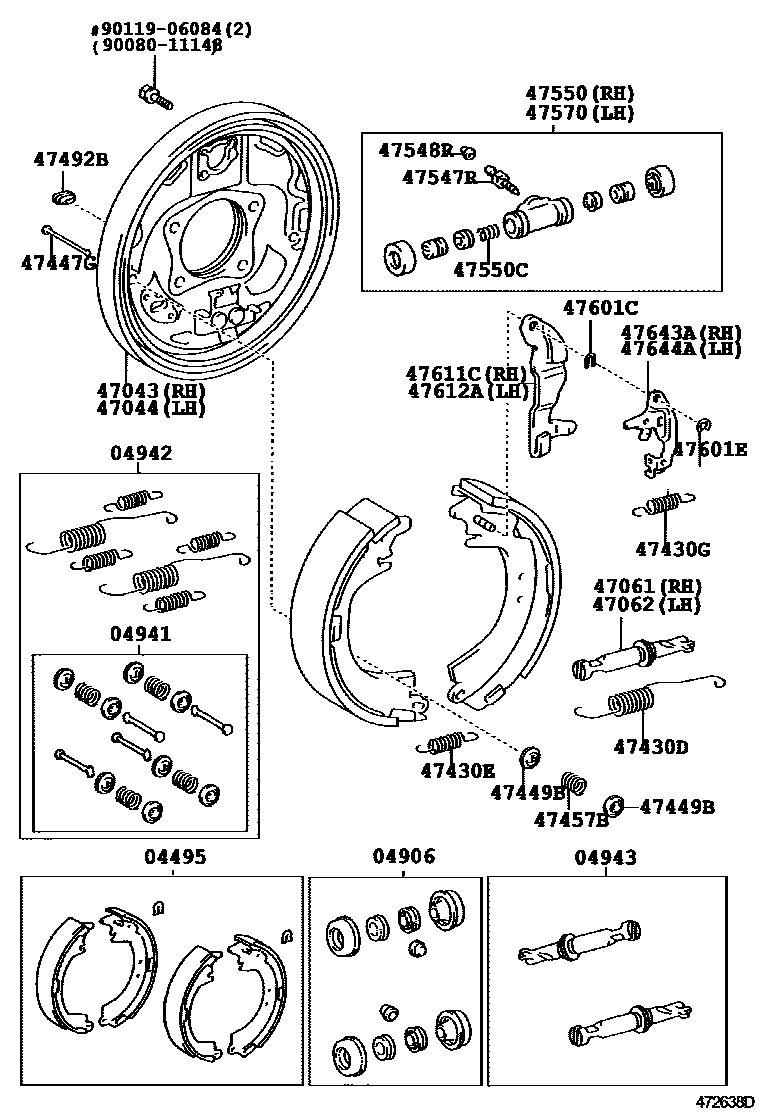

Toyota CAMRY EPC diagram 4706, 后鼓式制动器分泵和底板, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-33030 |
| 04495 | Rear brake shoe assembly | 04495-06010 · 04495-06040 |
| 04906 | Rear wheel pump cup assembly | 04906-33020 · 04906-33030 |
| 04941 | Rear brake shoe limit spring assembly | 04941-06010 · 04941-06040 |
| 04942 | Rear brake spring assembly | 04942-06010 · 04942-06040 |
| 04943 | Right rear brake bracket assembly | 04943-06010 · 04943-06020 |
| 04949 | Rear brake plug assembly | 04949-06030 |
| 47043 | Right rear brake base plate sub-assembly | 47043-06030 · 47043-06080 · 47043-33020 |
| 47044 | Left rear brake base plate sub-assembly | 47044-06030 · 47044-06080 · 47044-33020 |
| 47061 | Right parking brake shoe push rod assembly | 47061-06020 |
| 47062 | Left parking brake shoe push rod assembly | 47062-06020 |
| 47430D | Tension spring (for rear brake shoe return) | 90080-50069 · 90080-50070 · 90506-29008 · 90506-29009 |
| 47430E | Tension spring (for rear brake shoe return) | 90080-50068 · 90506-23346 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90080-50067 · 90506-12011 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-07020 · 47447-20030 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-06010 |
| 47457B | Compression spring (for rear brake shoe limit spring pin) | 90080-50066 · 90080-50397 · 90501-20756 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-06020 |
| 47547R | Bleed plug (for rear drum brake) | 47547-22020 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-06050 · 47550-06051 · 47550-33020 · 47550-33021 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90501-09079 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47570-06050 · 47570-06051 · 47570-33020 · 47570-33021 |
| 47601C | C-shaped washer (for rear brake) | 90080-20012 |
| 47601E | E-ring (for rear brake) | 90080-52087 · 96160-00500 |
| 47611C | Right parking brake shoe lever | 47611-06020 · 47611-33010 |
| 47612A | Left parking brake shoe lever | 47612-06020 · 47612-33010 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-06020 · 47643-33010 · 47643-42010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-06020 · 47644-33010 · 47644-42010 |
