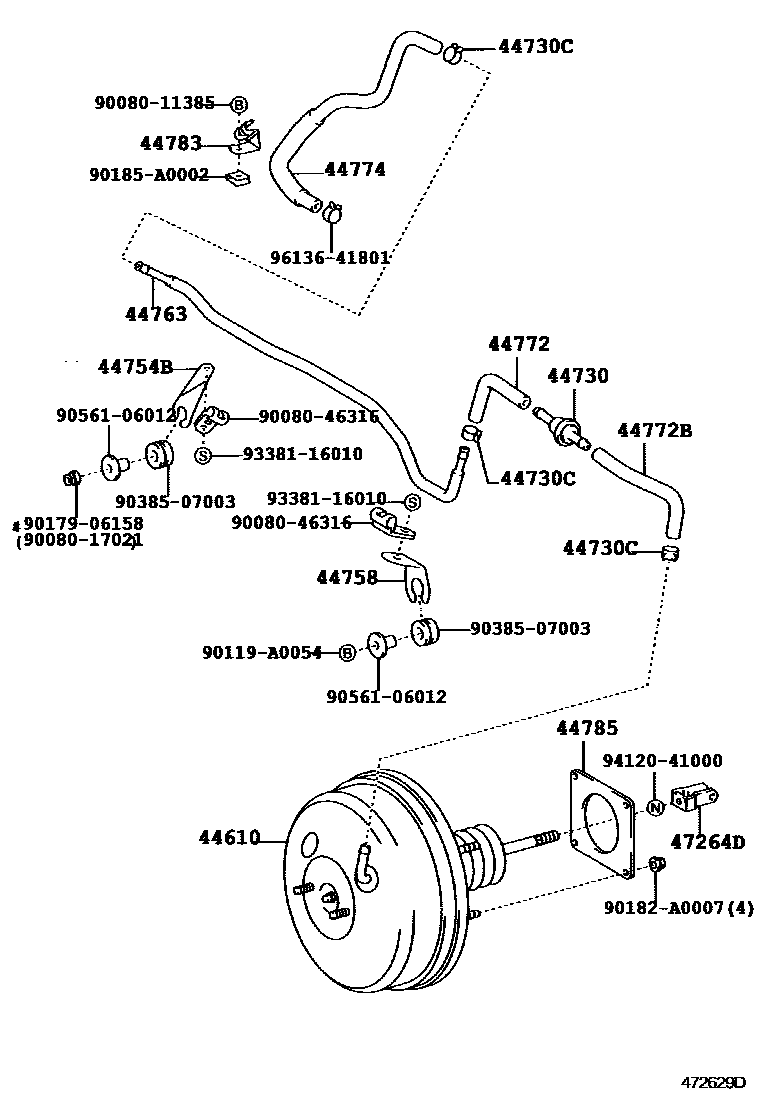

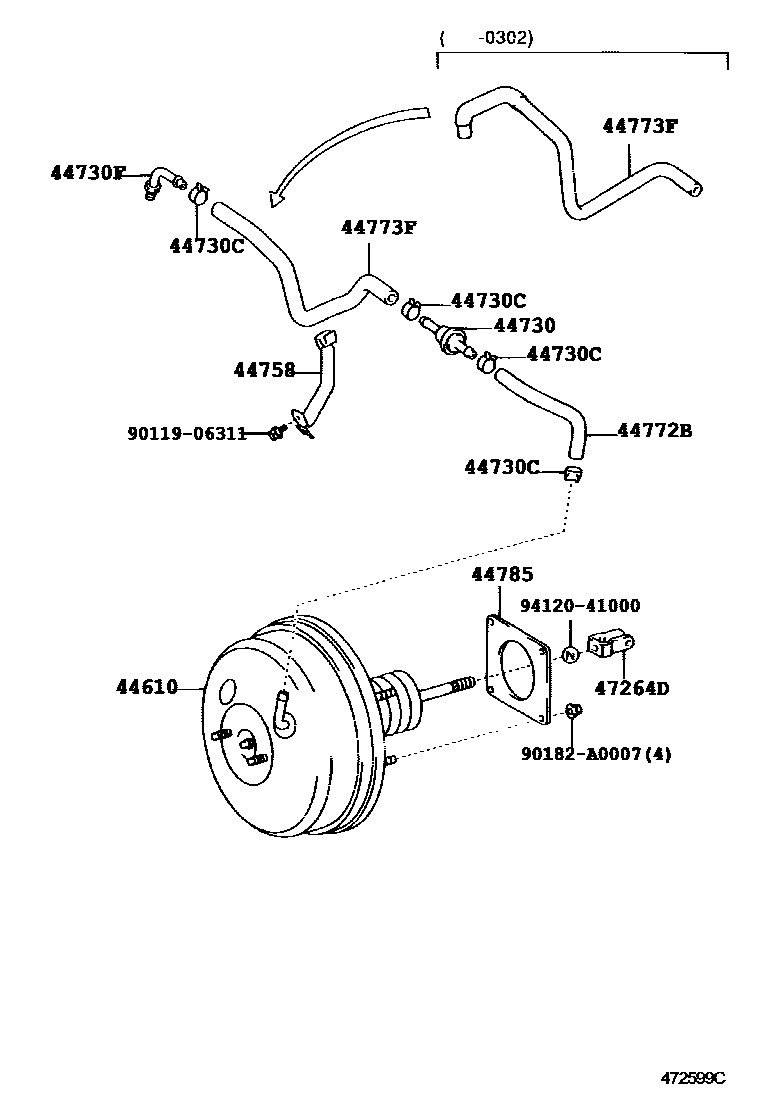

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06210 · 44610-06260 · 44610-06290 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44730C | Clip (for vacuum hose) | 90466-A0003 · 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51046 · 90407-51002 |
| 44754B | Vacuum tube holder | 44758-06040 |
| 44758 | Vacuum check valve bracket | 44758-06030 · 44758-33070 |
| 44763 | booster vacuum tube | 44763-06020 |
| 44772 | Hoses (check valve to connector tube) | 44772-06030 |
| 44772B | Hoses (check valve to brake booster) | 44772-06040 |
| 44773F | Hoses (connector to check valve) | 44773-06030 · 44773-06080 |
| 44774 | Hoses (joints to connector tubes) | 44774-06020 |
| 44783 | Vacuum hose clamp | 44783-06020 · 44783-28010 |
| 44785 | brake booster pad | 44785-02010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 |
