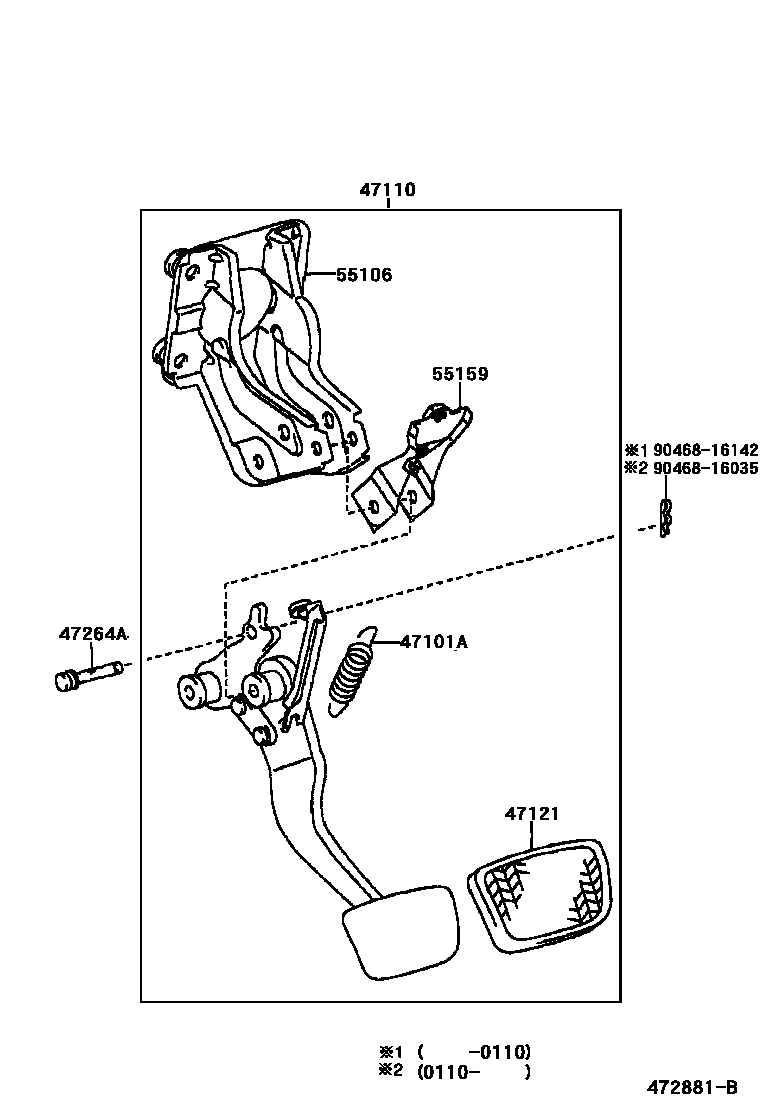

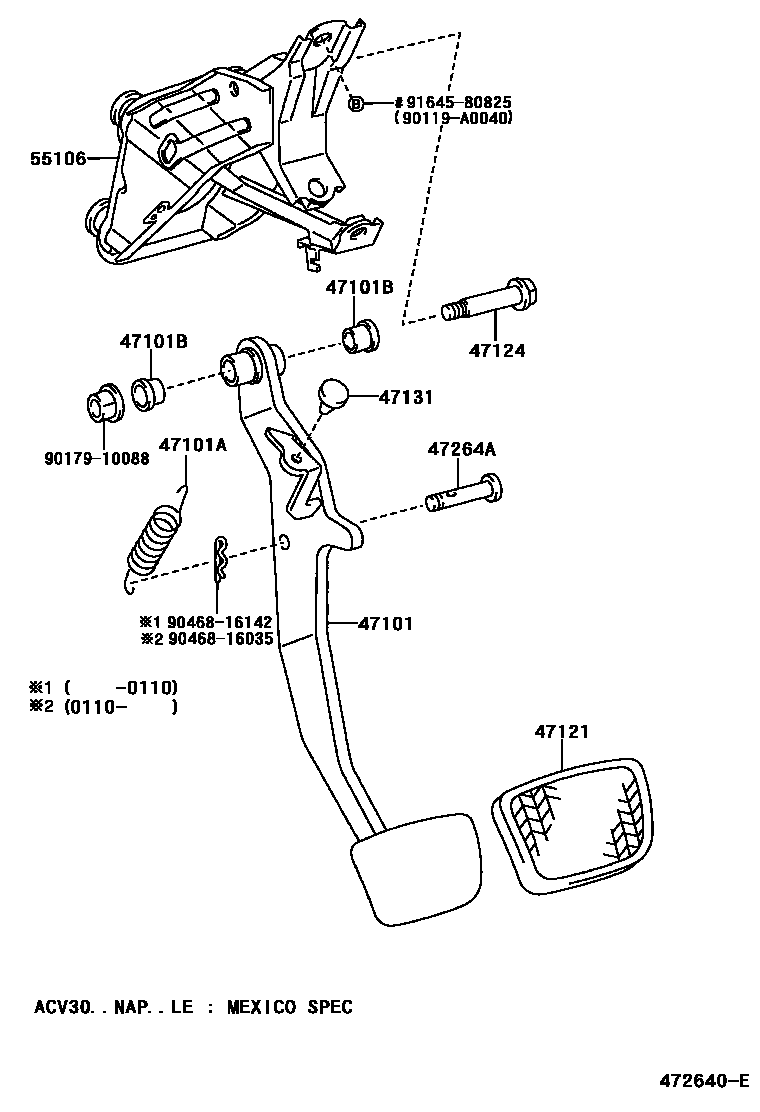

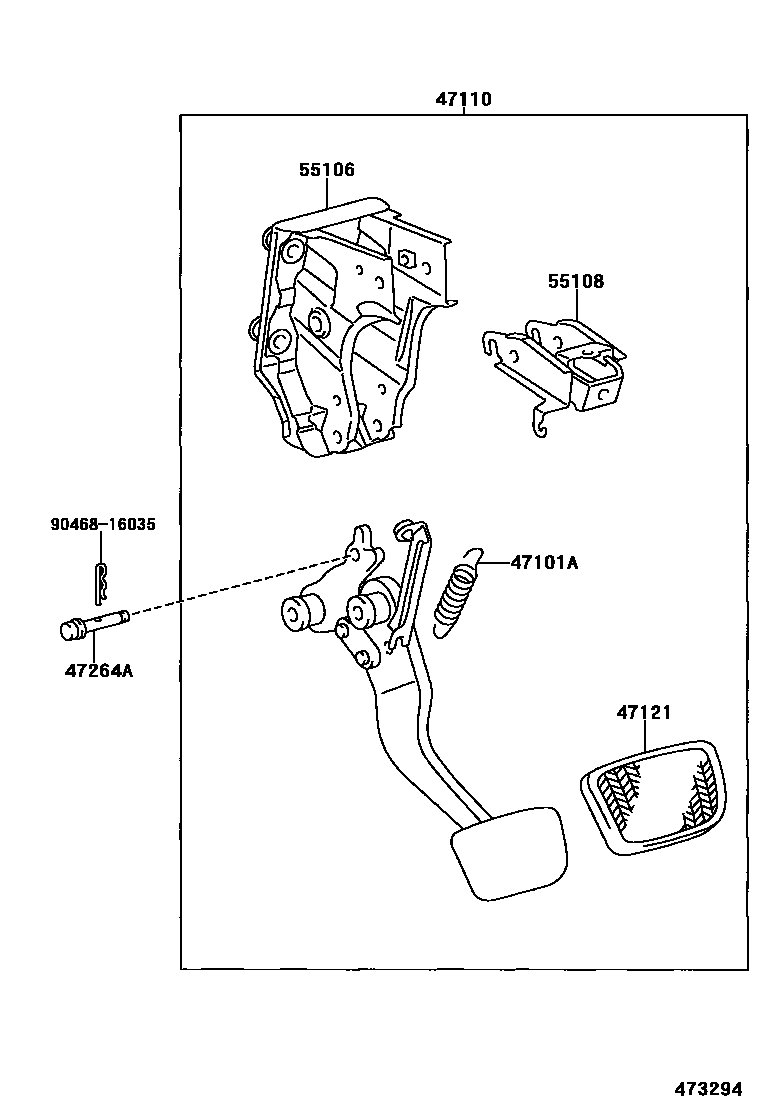

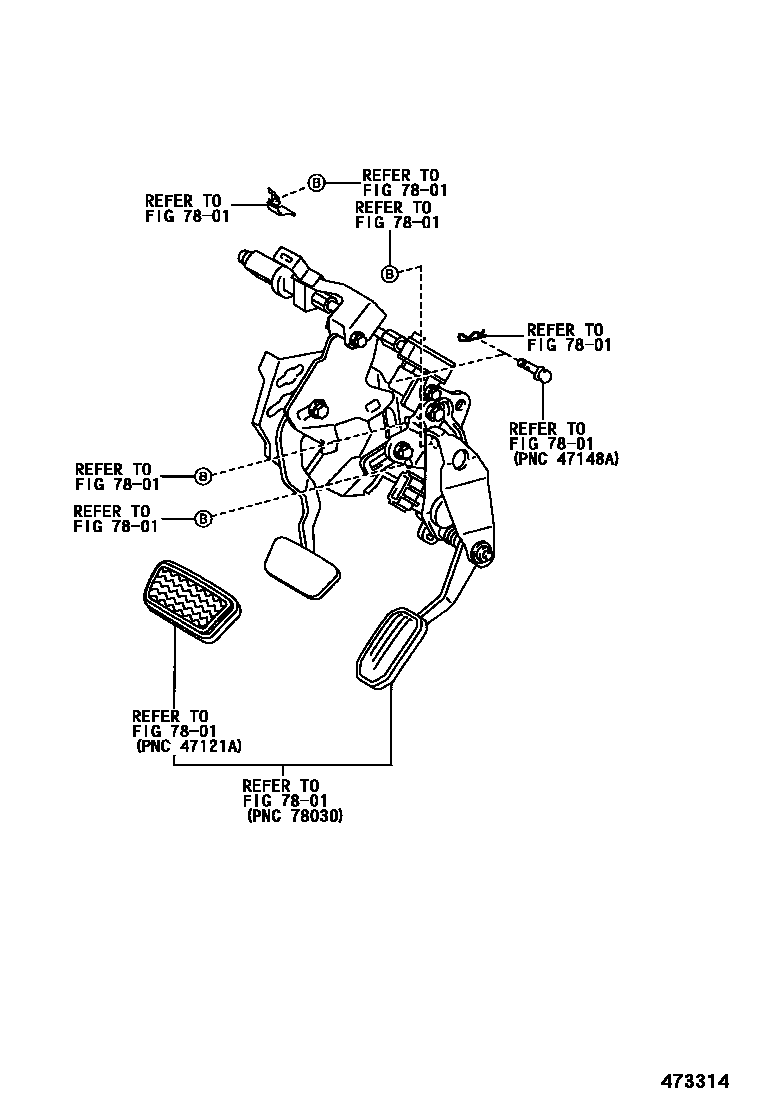

Toyota CAMRY Brake Pedal & Bracket — Figure 4701
Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-33070 |
| 47101A | Spring (for brake pedal return) | 47146-33010 · 90507-14051 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47110 | Brake pedal bracket assembly | 47110-06050 · 47110-06051 |
| 47121 | brake pedal pad | 47121-50020 |
| 47124 | brake pedal shaft | 90109-10167 |
| 47131 | Bump pad (for brake light switch) | 90541-06036 |
| 47264A | Pin (for push rod) | 47148-33010 · 47148-33011 |
| 55106 | Brake pedal bracket sub-assembly | 55106-06030 · 55106-06031 · 55106-33080 |
| 55108 | Brake pedal No. 3 bracket sub-assembly | 55108-06020 |
| 55159 | pedal support bracket | 55159-06010 |
