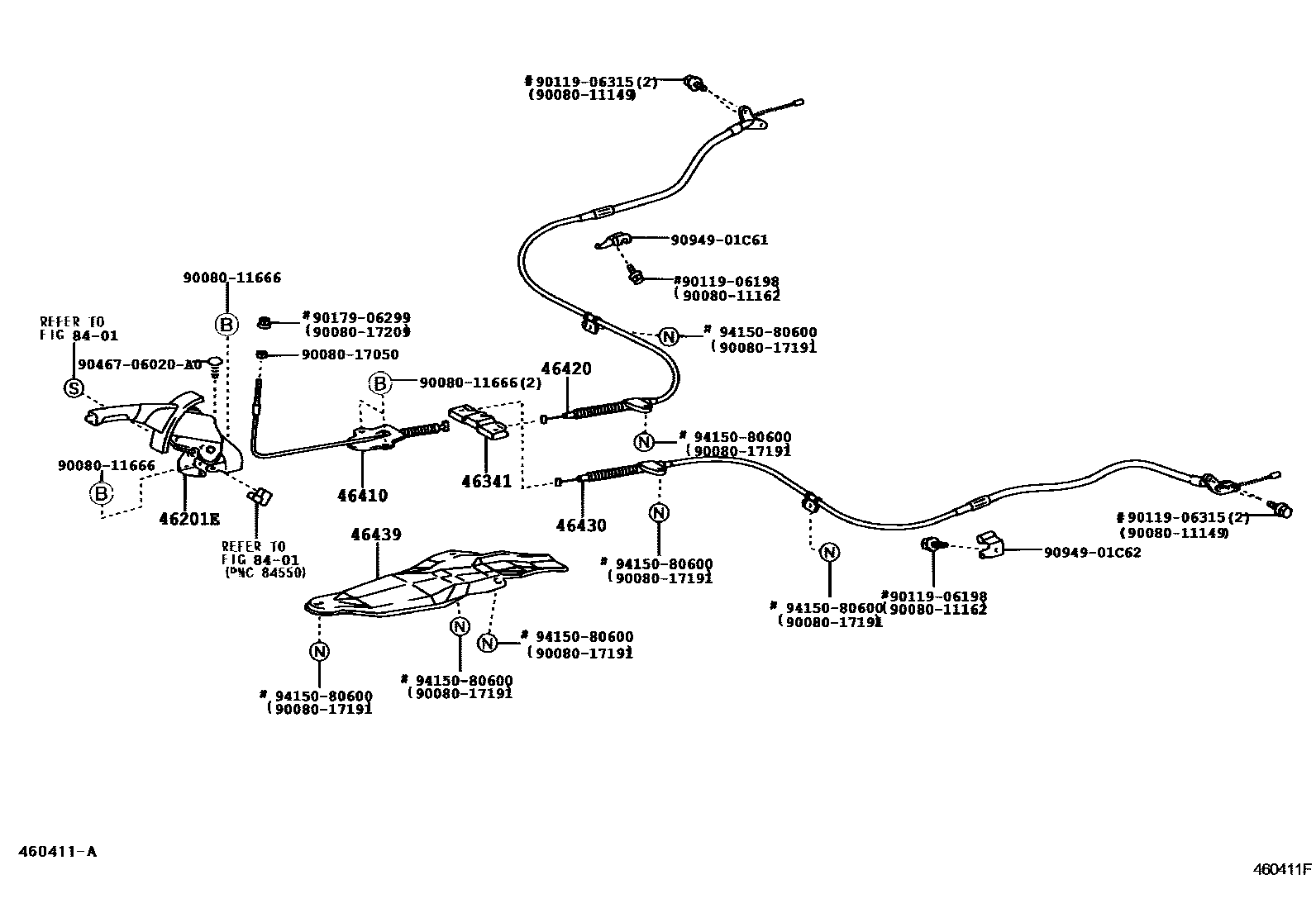

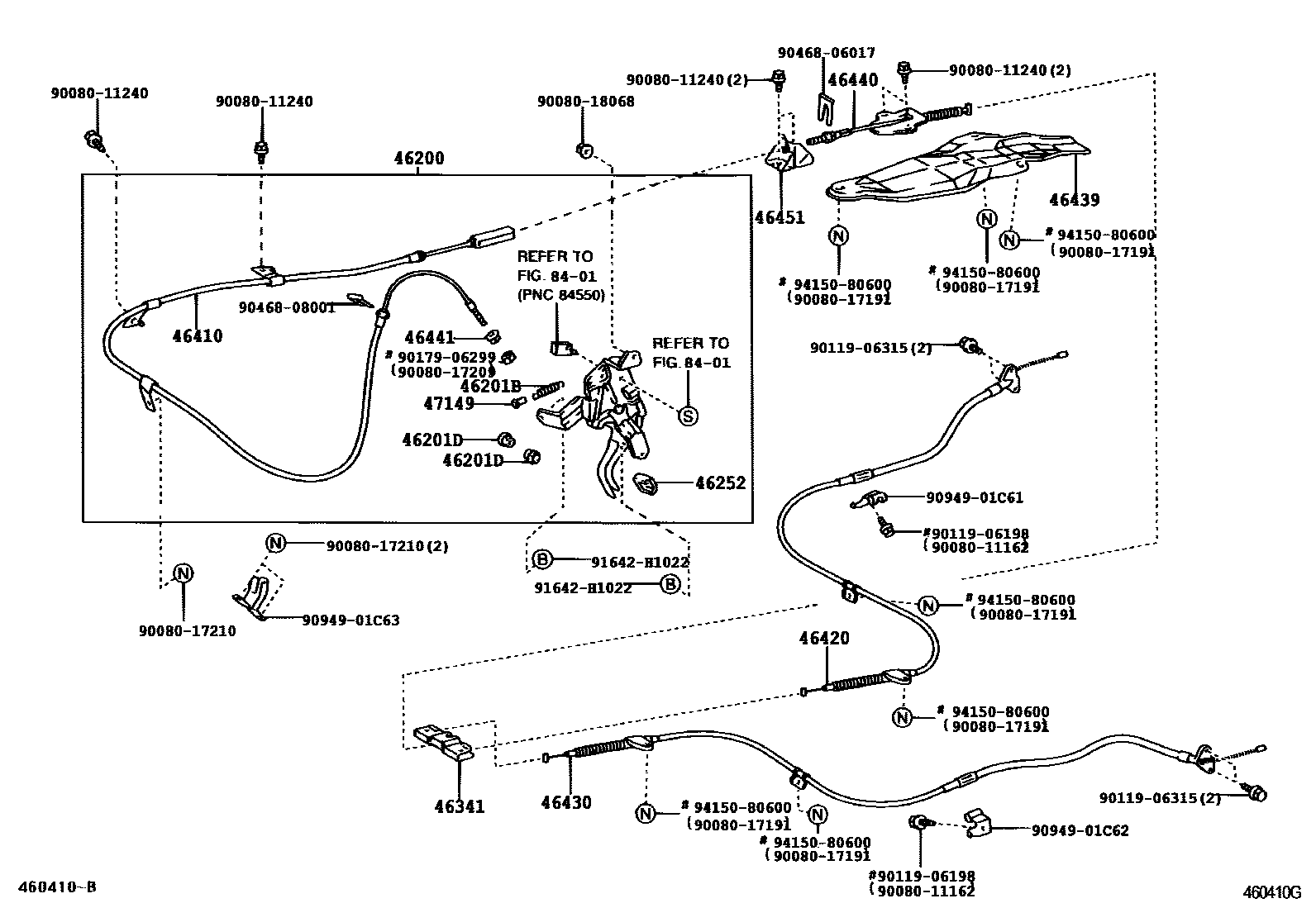

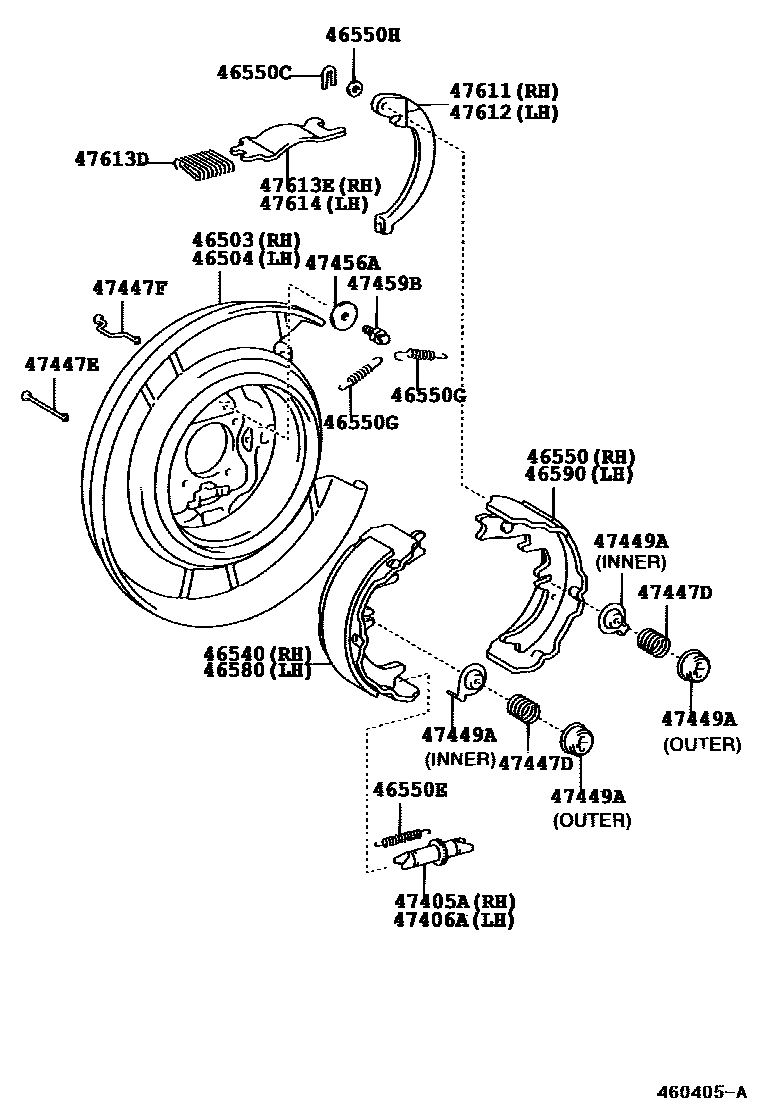

Toyota CAMRY Parking Brake & Cable — Figure 4601
Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46200 | Parking brake control pedal assembly | 46200-33050 |
| 46201B | Tension spring | 90506-19005 |
| 46201D | Bushing (for parking brake pedal) | 90386-16022 |
| 46201E | Parking brake lever sub-assembly | 46201-06080 |
| 46252 | Parking brake pedal pad | 46252-63010 |
| 46341 | Parking brake balancer | 46341-20070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-06030 · 46410-33120 |
| 46420 | Parking brake No. 2 cable assembly | 46420-06050 · 46420-33090 · 46420-33100 |
| 46430 | Parking brake No. 3 cable assembly | 46430-06050 · 46430-33090 · 46430-33100 |
| 46439 | Parking brake cable insulation pad | 46439-06020 |
| 46440 | Parking brake No. 4 cable assembly | 46440-06010 |
| 46441 | No. 1 cable adjustment nut | 46441-12010 |
| 46451 | cable bracket | 46451-07010 |
| 46503 | Right parking brake pad sub-assembly | 46503-06030 · 46503-33030 |
| 46504 | Left parking brake pad sub-assembly | 46504-06030 · 46504-33030 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-20070 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46550-06020 · 46550-33020 |
| 46550C | C-shaped washer (for parking brake shoe) | 90213-07018 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90501-A0004 · 90506-12010 · 90506-A0004 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90506-A0005 · 90507-16009 |
| 46550H | Spacer (for parking brake shoe) | 90564-09184 · 90564-09185 · 90564-09186 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-20060 · 46540-20070 |
| 46590 | No. 2 left parking brake shoe assembly | 46590-06020 · 46590-33020 |
| 47149 | return spring shock absorber | 47149-22010 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-30040 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-30040 |
| 47447D | Compression spring (for parking brake shoe limit) | 90501-14049 · 90501-A0008 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-20030 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 47447-22020 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 47449-30030 · 47449-32010 |
| 47456A | Brake shoe guide (for parking brake) | 47456-33010 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-30010 |
| 47611 | Right parking brake shoe lever | 47611-20030 |
| 47612 | Left parking brake shoe lever | 47612-20030 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90501-A0004 · 90504-14002 |
| 47613E | Right parking brake shoe push rod | 47613-20040 |
| 47614 | Left parking brake shoe push rod | 47614-20010 |
