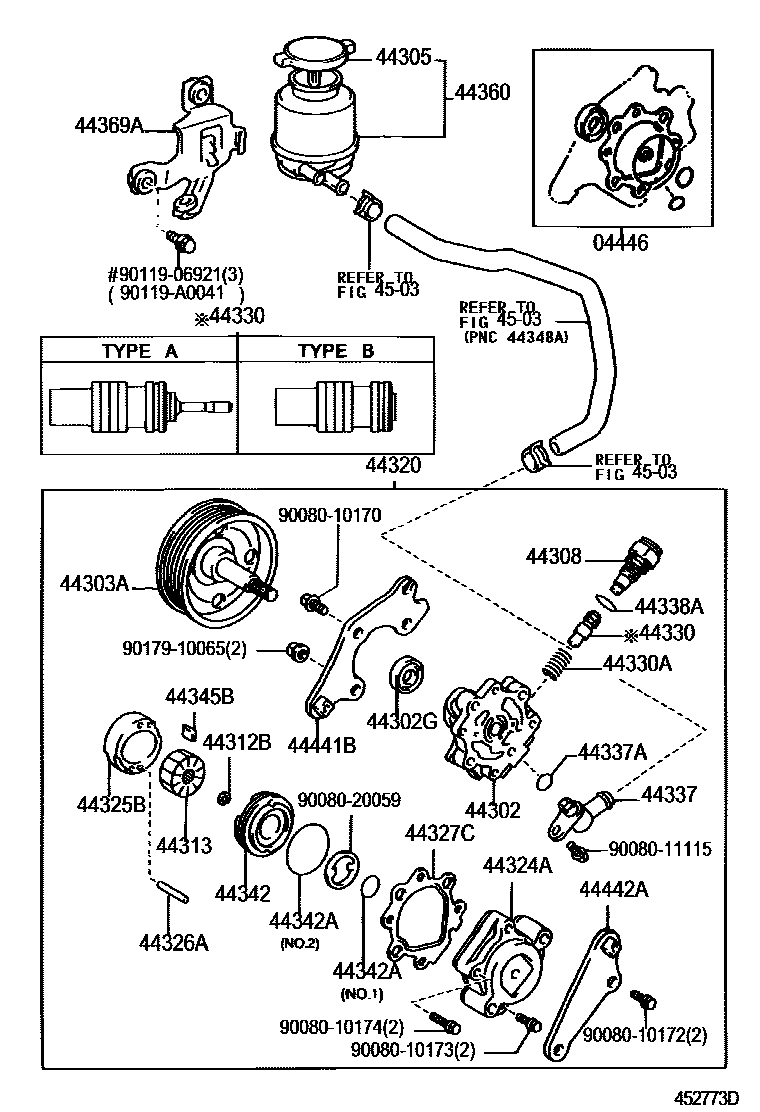

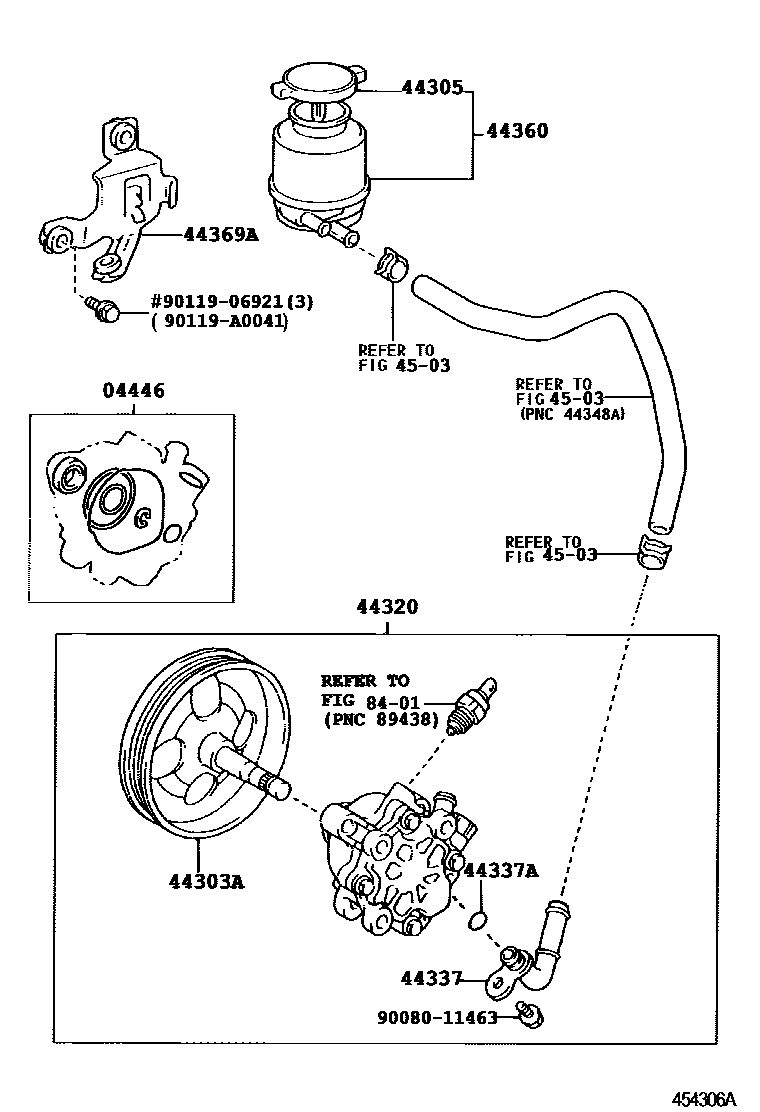

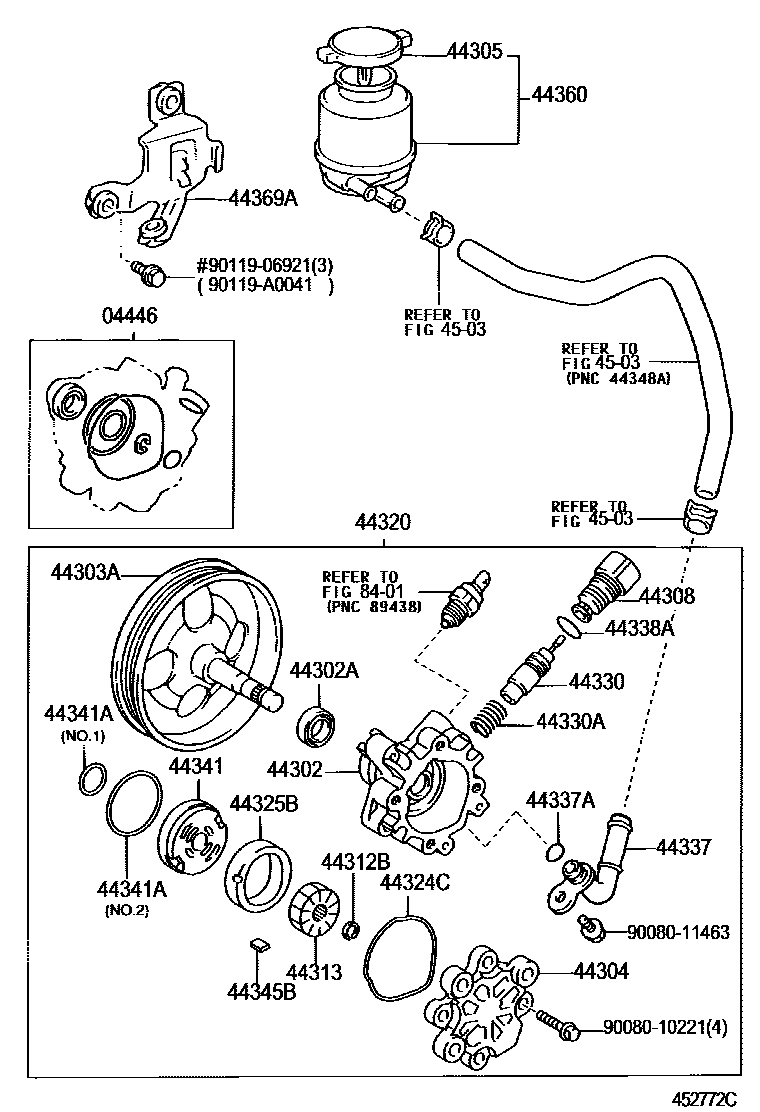

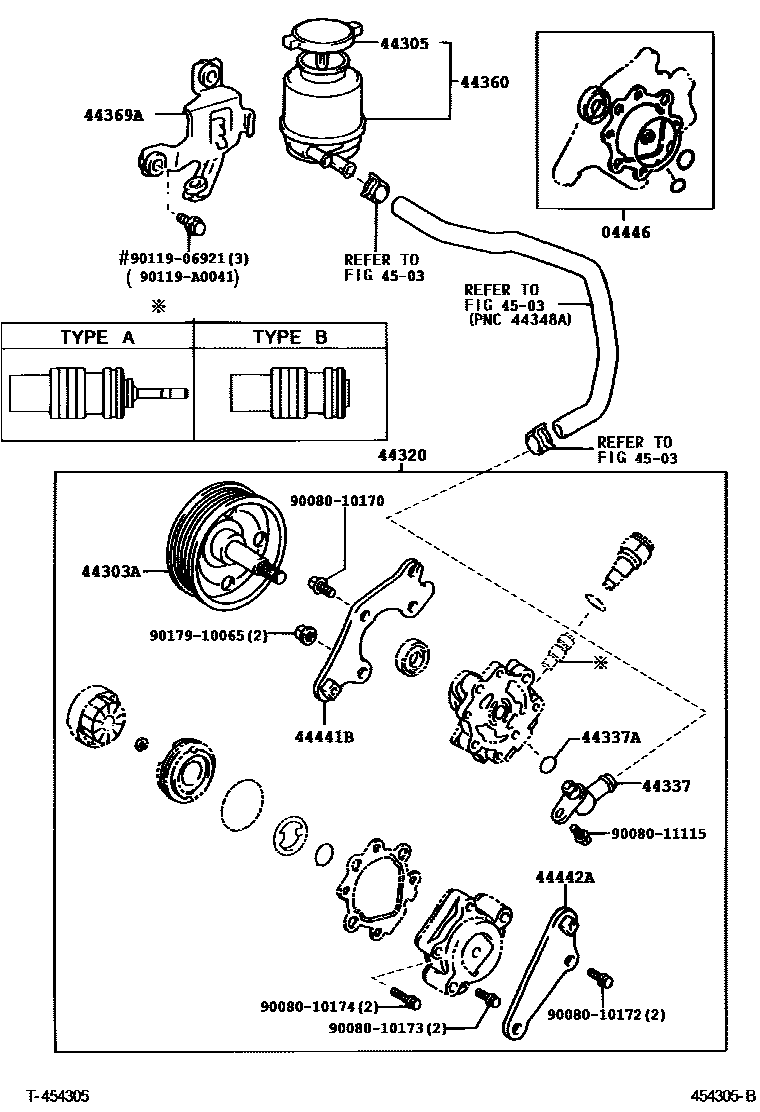

Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502
Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-02140 · 04446-04010 · 04446-06040 · 04446-06050 |
| 44302 | Front vane pump housing sub-assembly | 44302-06050 · 44302-07011 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90080-31071 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90080-31020 |
| 44303A | Shaft sub-assembly with pulley | 44303-06010 · 44303-06030 · 44303-06060 |
| 44304 | Vane pump rear housing sub-assembly | 44304-06010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-06030 |
| 44308 | Pressure hole connector sub-assembly | 44308-06010 · 44308-06020 · 44308-33060 · 44338-06030 · 44338-06040 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52033 |
| 44313 | vane pump rotor | 44313-06010 · 44313-06020 · 44313-06030 · 44313-06040 · 44313-06050 · 44313-06060 · 44313-06070 · 44313-06080 · 44313-06090 · 44313-06100 |
| 44320 | Vane pump assembly | 44310-06070 · 44310-06071 · 44310-06080 · 44310-06110 |
| 44324A | Pump back shell | 44324-07010 |
| 44324C | O-ring (for pump rear housing) | 90903-01007 |
| 44325B | vane pump cam ring | 44325-06010 · 44325-06020 · 44325-06030 · 44325-06040 · 44325-06050 · 44325-06060 · 44325-06070 · 44325-06080 · 44325-06090 · 44325-06100 |
| 44326A | Direct sales (for vane pump cam rings) | 90080-25024 |
| 44327C | Vane pump casing gasket | 44327-04010 |
| 44330 | Flow control valve assembly | 44330-06071 · 44330-06081 · 44330-06091 · 44330-06101 · 44330-06111 · 44330-06121 · 44330-06130 · 44330-06140 · 44330-06150 · 44330-06160 · 44330-06170 · 44330-06180 · 44330-06250 · 44330-06260 · 44330-06270 · 44330-06280 · 44330-06290 · 44330-06300 |
| 44330A | Compression spring (for flow control valve) | 90080-50221 · 90080-50222 |
| 44337 | Power steering suction port connector | 44337-06040 · 44337-32110 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30034 · 90301-11020 |
| 44338A | O-ring (for pressure port connector) | 90080-30035 · 90301-18009 |
| 44341 | Vane pump front cover | 44341-32031 |
| 44341A | O-ring (for vane pump front cover) | 90301-16012 · 90301-45003 |
| 44342 | Vane pump rear end cover | 44342-06010 |
| 44342A | O-ring (for vane pump rear end cover) | 90080-30031 · 90080-30032 |
| 44345B | vane pump disc | 44345-04010 · 44345-04020 · 44345-04030 · 44345-04040 · 44345-04050 · 44345-06010 · 44345-06020 · 44345-06030 · 44345-06040 · 44345-06050 |
| 44360 | Vane pump oil storage tank assembly | 44360-06030 |
| 44369A | No. 1 oil storage tank bracket | 44390-06020 |
| 44441B | Pump front bracket | 44441-06040 |
| 44442A | Vane pump rear bracket | 44442-07010 |
