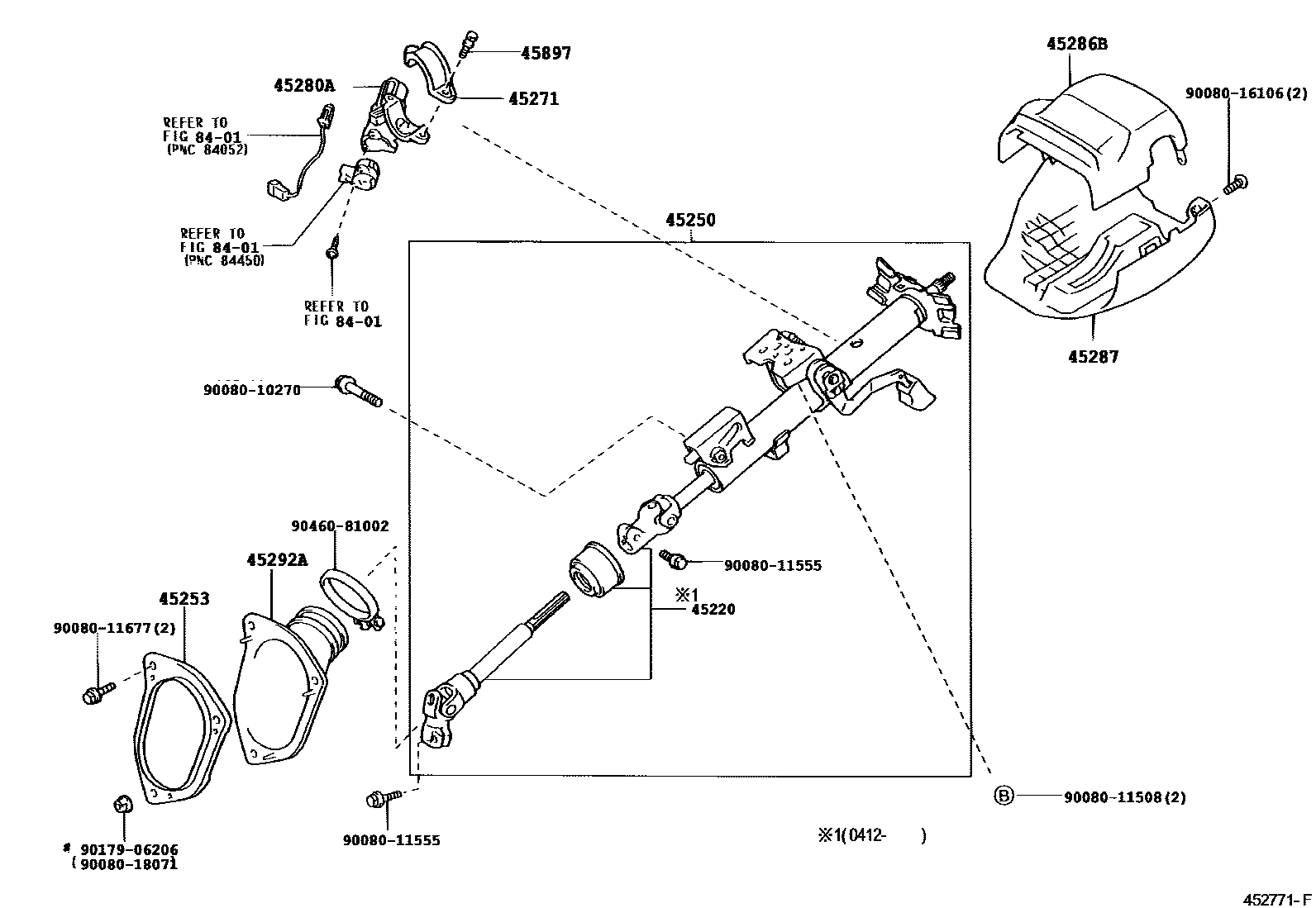

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45220 | Steering intermediate shaft assembly | 45220-33260 · 45220-33270 |
| 45250 | Steering column assembly | 45250-06340 · 45250-06410 · 45250-06420 · 45250-06421 |
| 45253 | Steering column hole cover | 45253-06020 |
| 45271 | Clamp on steering column | 45271-16020 · 45271-33040 |
| 45280A | Steering column upper bracket assembly | 45280-06020 · 45280-06060 |
| 45292A | Dust cover under spindle | 45292-06020 · 45292-06050 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
