Toyota CAMRY Front Drive Shaft — Figure 4302

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 6 images and 33 PNC and OE references.

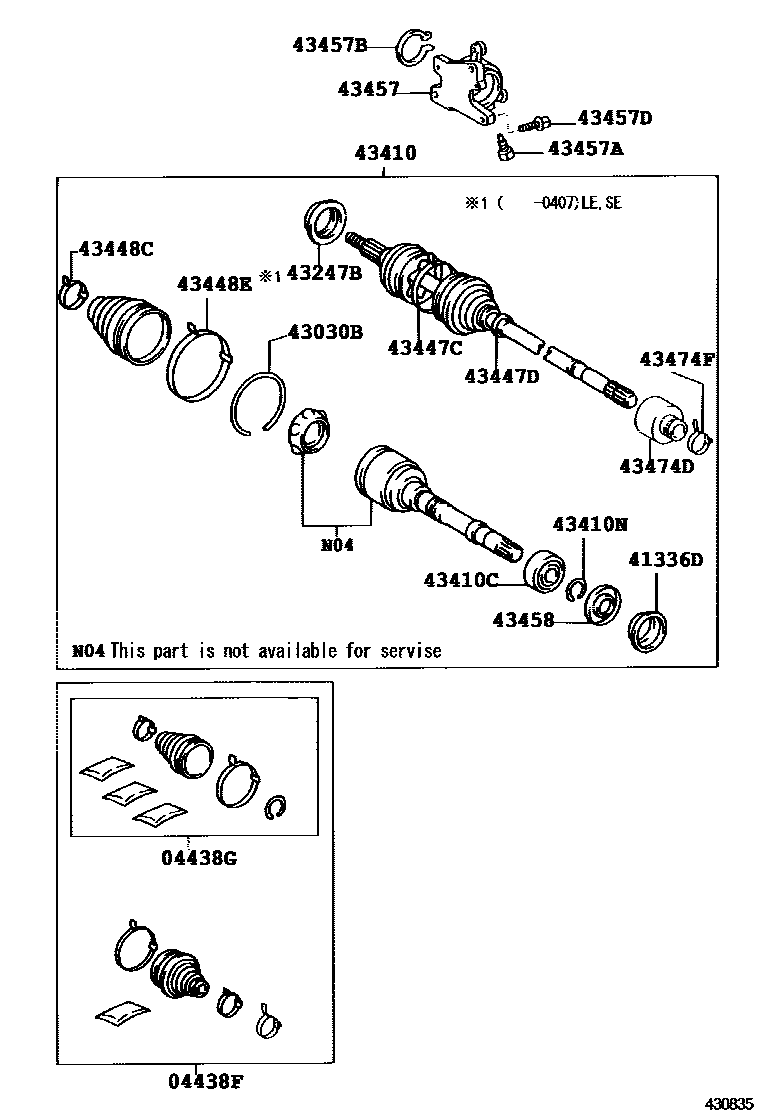

Toyota CAMRY Front Drive Shaft EPC diagram — 430835D
Front Drive Shaft — 430835D (200107 – 999999)

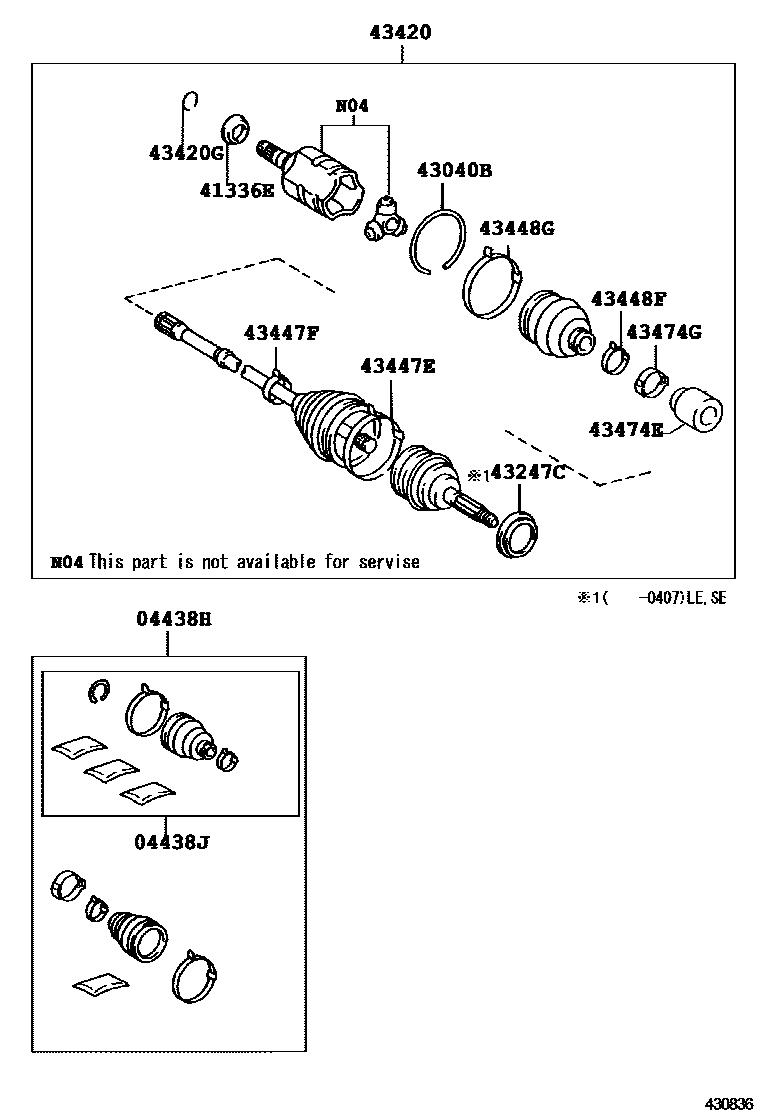

Toyota CAMRY Front Drive Shaft EPC diagram — 430836D
Front Drive Shaft — 430836D (200107 – 999999)

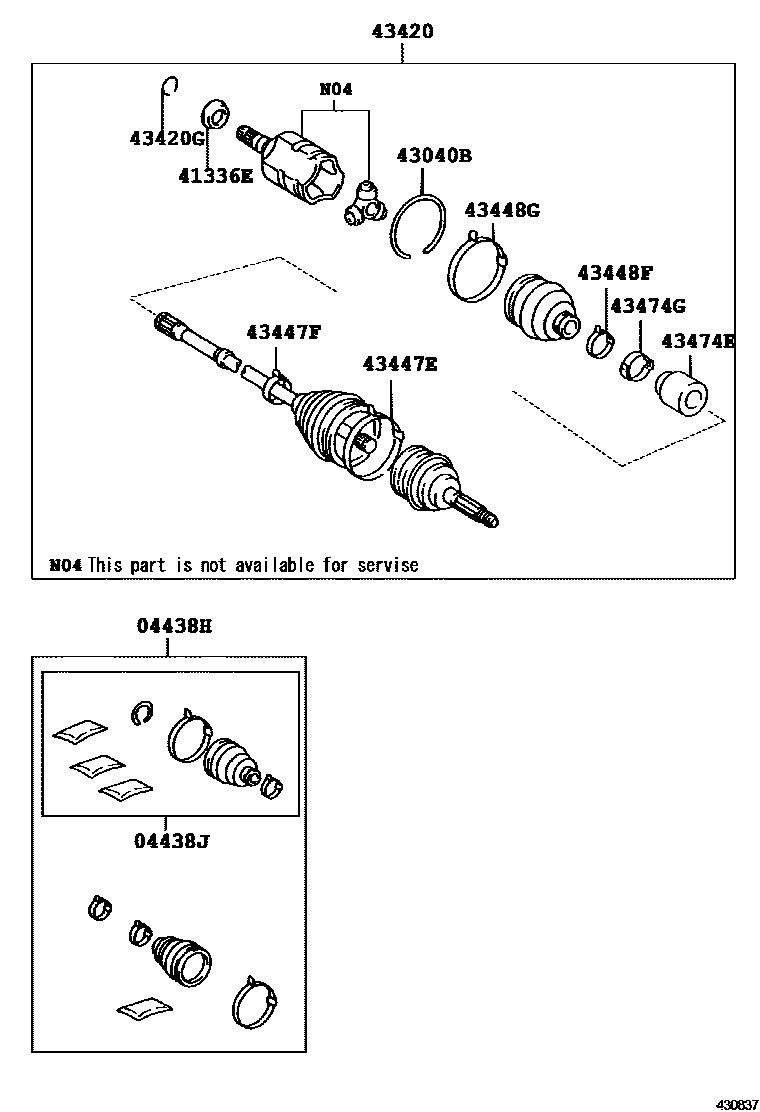

Toyota CAMRY Front Drive Shaft EPC diagram — 430837E
Front Drive Shaft — 430837E (200107 – 999999)

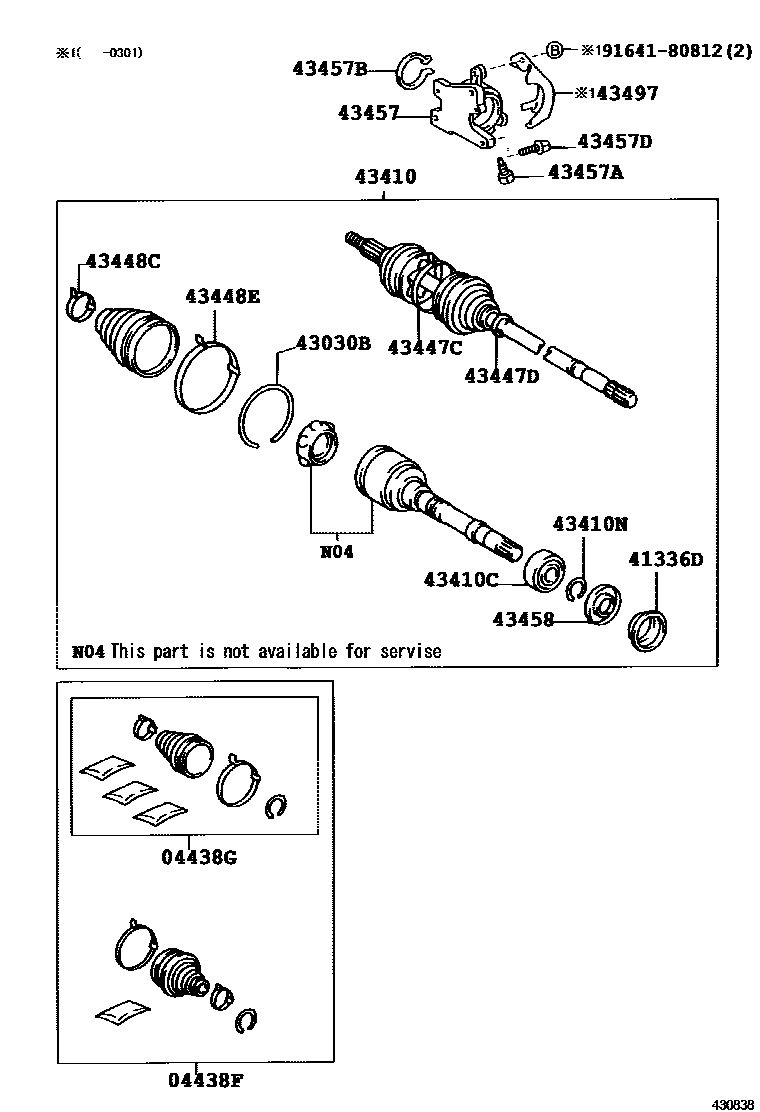

Toyota CAMRY Front Drive Shaft EPC diagram — 430838D
Front Drive Shaft — 430838D (200107 – 999999)

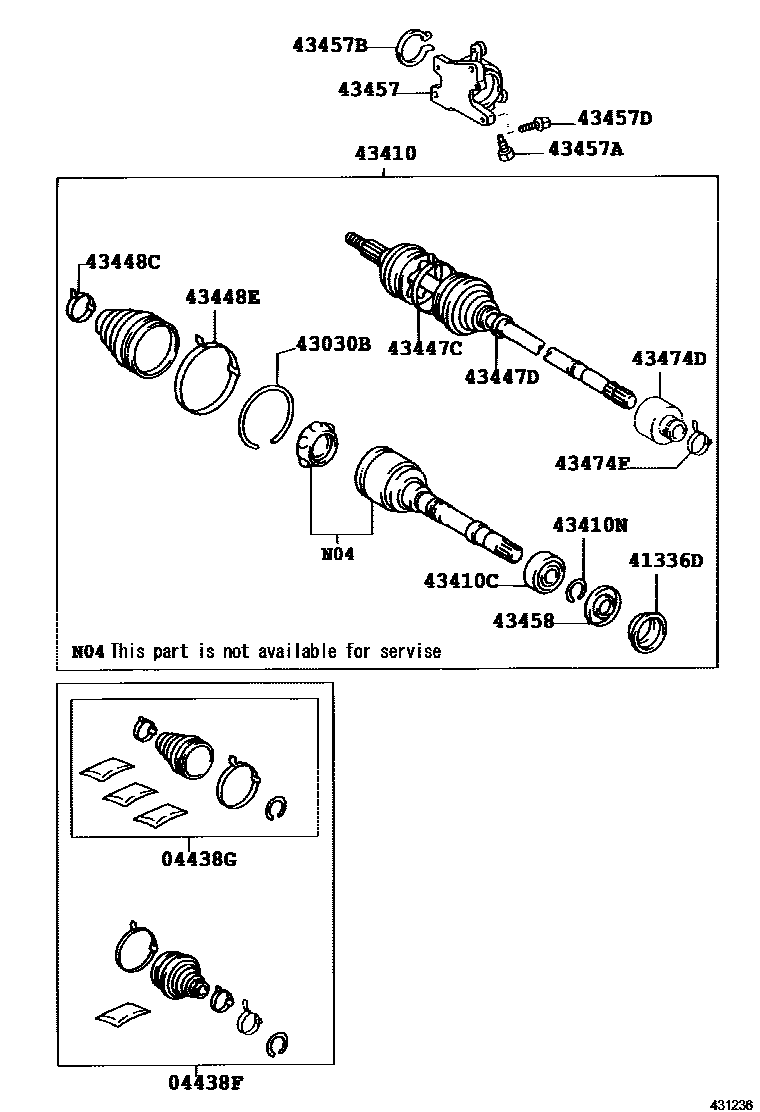

Toyota CAMRY Front Drive Shaft EPC diagram — 431236B
Front Drive Shaft — 431236B (200309 – 999999)

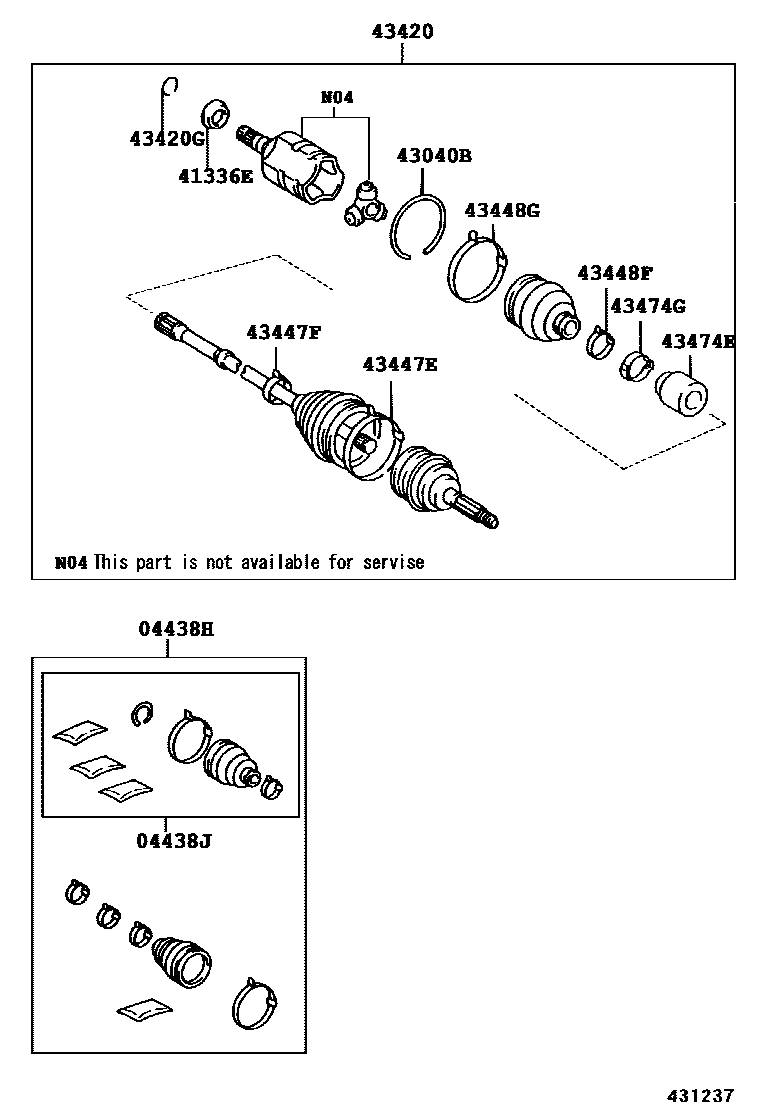

Toyota CAMRY Front Drive Shaft EPC diagram — 431237B
Front Drive Shaft — 431237B (200309 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04438-06120 · 04438-06130 · 04438-08080 · 04438-0E030
04438GRight front drive shaft inner universal joint dust boot assembly04438-06110 · 04438-07010 · 04438-08010
04438HLeft front driveshaft inboard and outboard dust boot assembly04438-06120 · 04438-06140 · 04438-06410 · 04438-0E010
04438JLeft front drive shaft inner universal joint dust boot assembly04438-06110 · 04438-06400 · 04438-07010 · 04438-08020
41336DRight front driveshaft dust cover41336-06020
41336ELeft front driveshaft dust cover41336-06060 · 41336-07010
43030BHole snap ring (for right front drive shaft inboard universal joint)43425-08040 · 90080-52118
43040BHole snap ring (for left front drive shaft inboard universal joint)43425-08040 · 90080-52118
43247BNo. 2 right front wheel bearing dust cover43247-06040
43247CNo. 2 left front wheel bearing dust cover43247-06040
43410Right front driveshaft assembly43410-06200 · 43410-06221 · 43410-06231 · 43410-06450 · 43410-06480
43410CBearings (for front driveshaft)90080-36133
43410NHole snap ring (for right front driveshaft)90080-52013
43420Left front drive shaft assembly43420-06201 · 43420-06221 · 43420-06231 · 43420-06450 · 43420-06490 · 43420-06500
43420GHole snap ring (for left front driveshaft)90080-52017
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-04040 · 42345-06040 · 42345-06080
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-04030 · 42345-06090
43447EClamp (for left front axle outer universal joint dust cover)42345-04040 · 42345-06040 · 42345-06080
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-04030 · 42345-06090
43448CClamp (for the universal joint dust cover inside the right front axle)42345-07020 · 42345-08070
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-07010 · 42345-08060
43448FClamp (for left front axle inner universal joint dust cover)42345-07020 · 42345-08070
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-07010 · 42345-08060
43457drive shaft bearing bracket43457-08010 · 43457-33010 · 43457-33020
43457ABolts (for securing the No. 1 drive shaft bearing bracket)90119-10461
43457BHole snap ring (for drive shaft bearing bracket)90521-78002
43457DBolts (for securing the No. 2 drive shaft bearing bracket)90080-10087
43458Front drive shaft dust cover43458-06020
43474DRight front driveshaft shock absorber43474-06011
43474ELeft front driveshaft shock absorber43474-06011 · 43474-06020 · 43474-06050 · 43474-28010
43474FClamp (for right front driveshaft shock absorber)42345-06100
43474GClamp (for left front driveshaft shock absorber)42345-06100
43497Bearing bracket heat insulation pad43497-33010
