Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

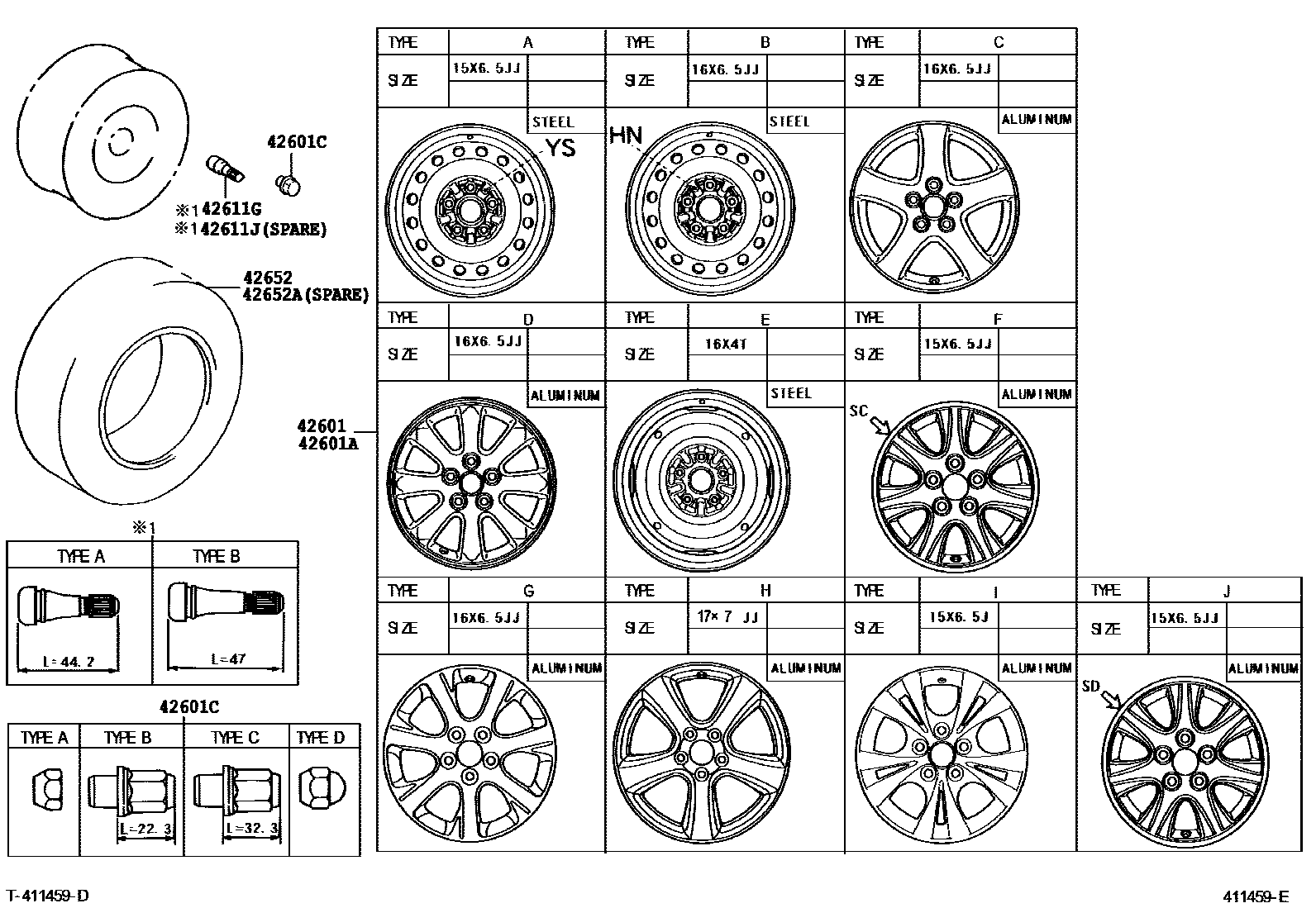

| 42601 | spoke wheel | 42611-06160 · 42611-06170 · 42611-06180 · 42611-33350 · 42611-33360 · 42611-AA020 · 42611-AA070 · 42611-AA080 · 42611-YY030 · 42611-YY080 |
| 42601A | Spoke wheel (for spare tire) | 42611-06060 · 42611-06160 · 42611-06170 · 42611-AA080 |
| 42601C | Hub nut (for axle) | 90080-17035 · 90084-94001 · 90084-94002 · 90942-01021 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-AC020 |
| 42611G | Valve (for tubeless tires) | 90080-45001 · 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 · 90080-45006 |
| 42621 | wheel cover | 42621-AA080 · 42621-AA090 · 42621-AA100 · 42621-AA150 |
| 42652 | tires | 42652-33431 |
| 42652A | Tire (for Spare Wheel) | 42652-33431 |
