Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

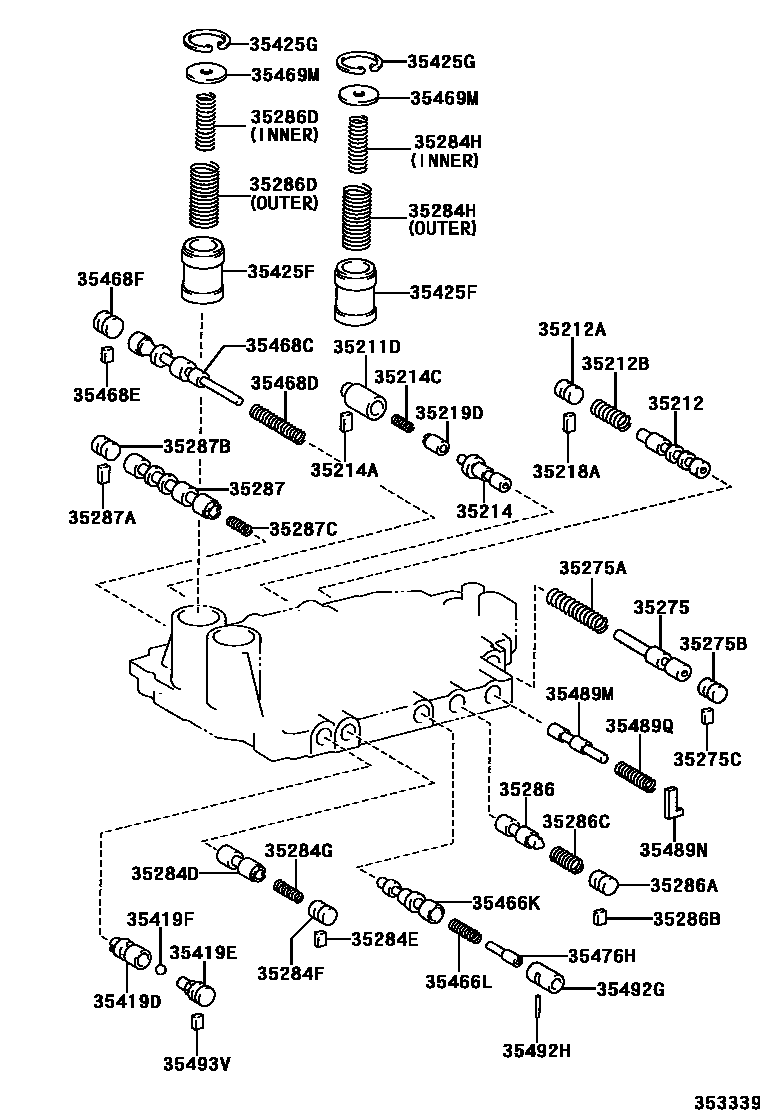

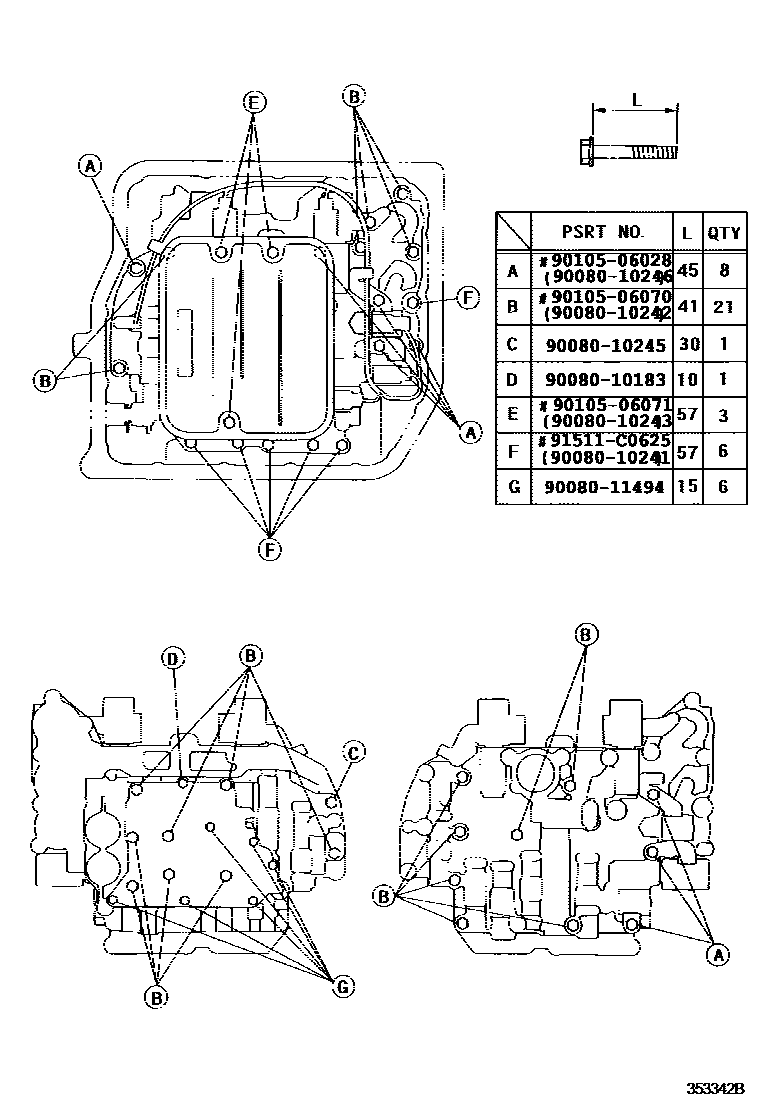

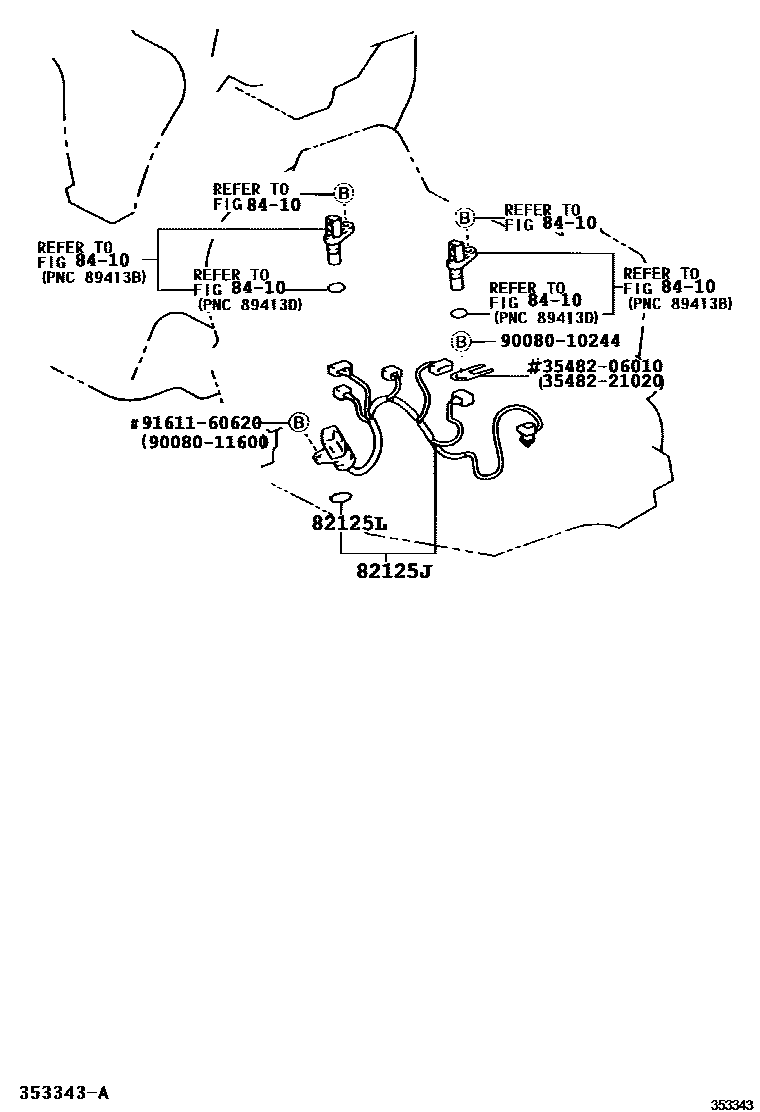

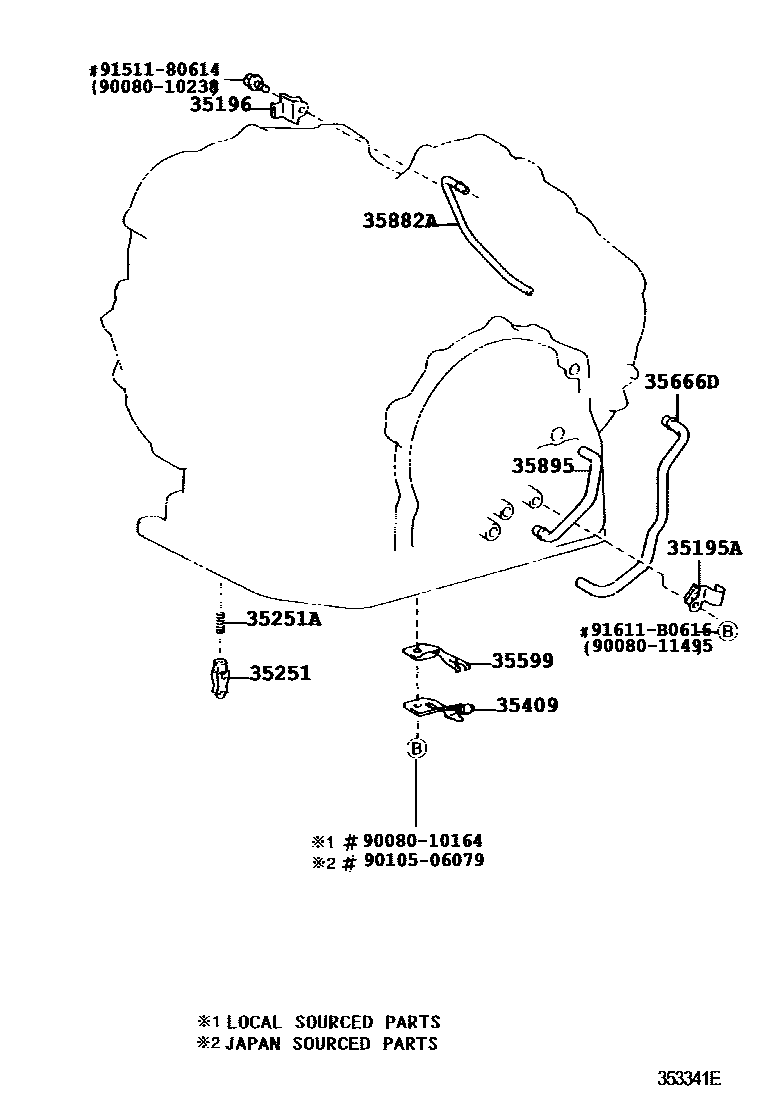

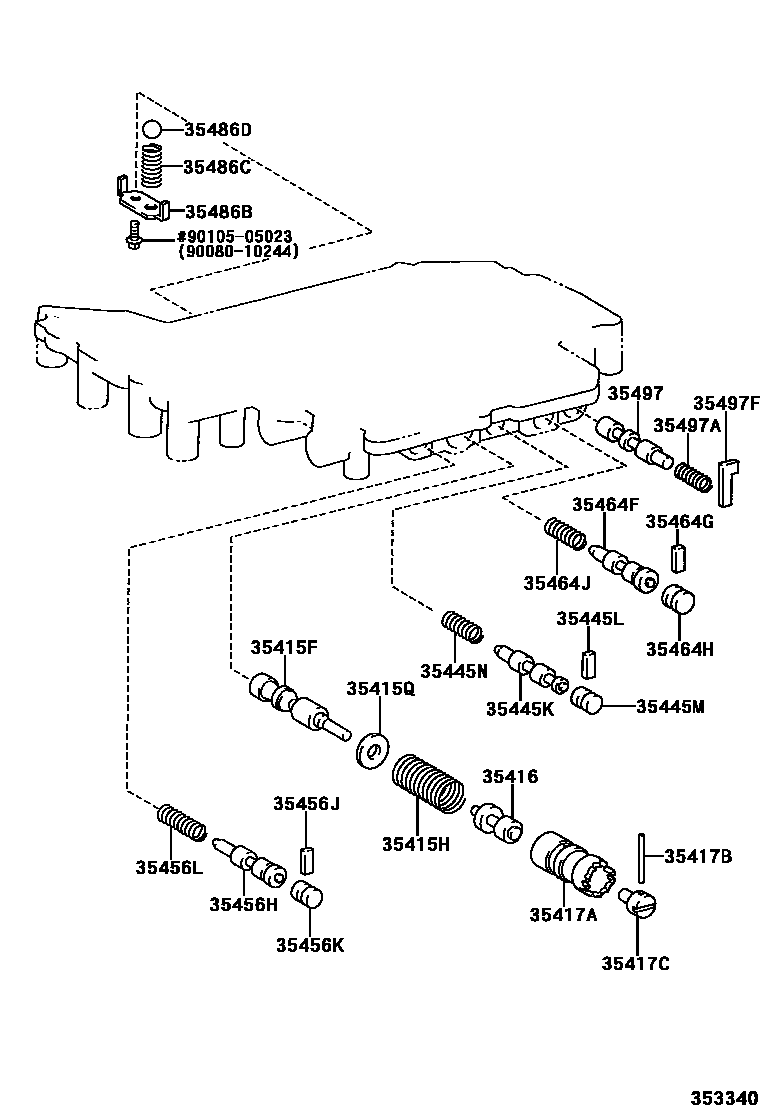

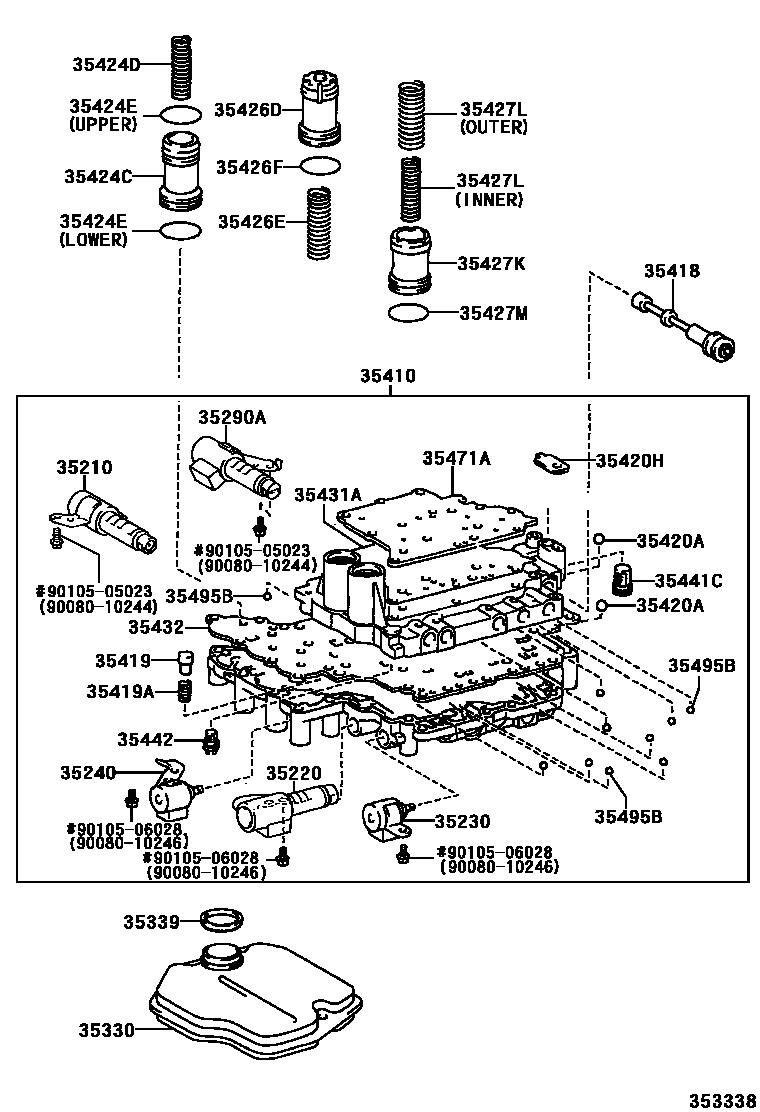

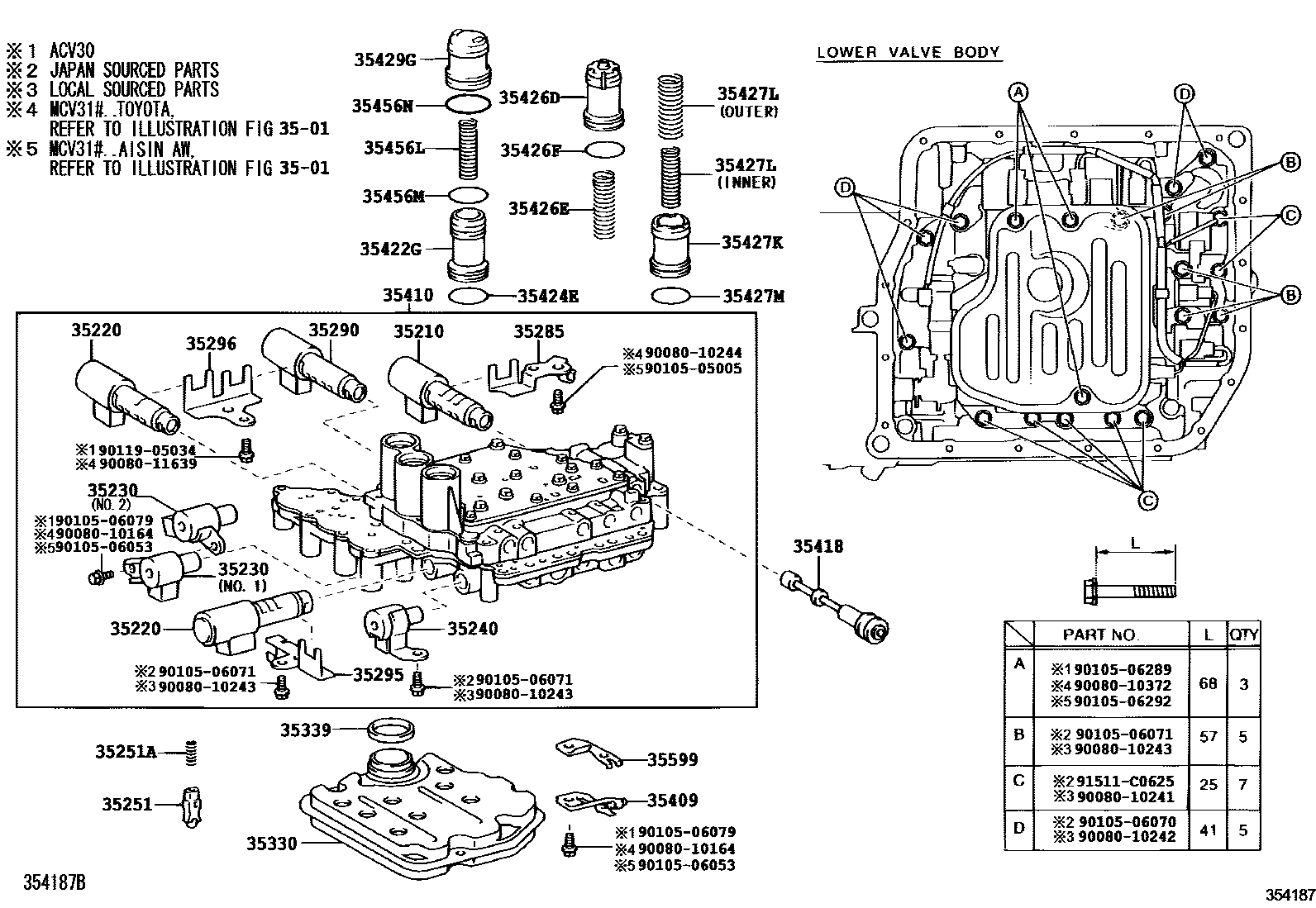

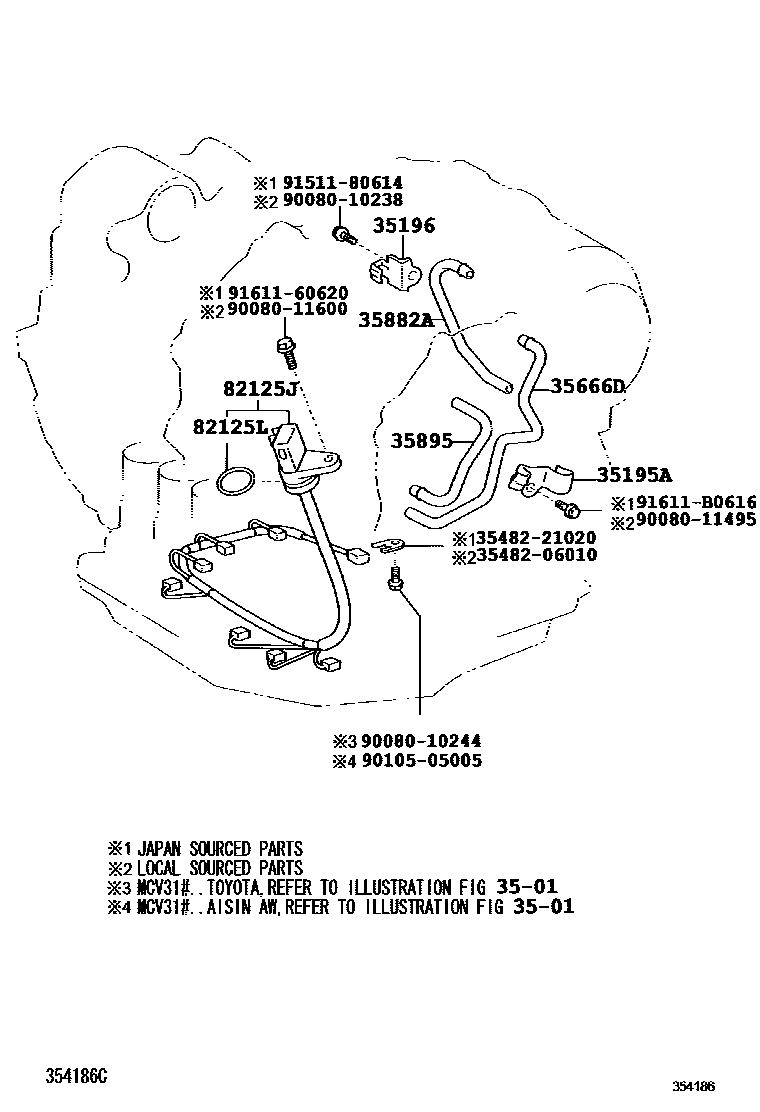

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 8 images and 118 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-07010 · 35195-21010 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-07010 · 35196-21010 |
| 35210 | No. 1 clutch control solenoid valve assembly | 35210-21010 · 35210-33020 · 35210-45010 |
| 35211D | Lock control valve sleeve | 35211-21010 |
| 35212 | lock relay valve | 35212-28010 |
| 35212A | Plunger seat (for locking relay valve) | 90339-04058 · 90339-A0010 |
| 35212B | Compression spring (for locking relay valve) | 90080-50310 |
| 35214 | lock control valve | 35214-28010 |
| 35214A | Straight key (for locking control valve) | 90282-03027 |
| 35214C | Compression spring (for locking control valve) | 90080-50312 |
| 35218A | Straight key (for locking the relay valve plunger) | 90282-03027 |
| 35219D | Lock control valve plunger | 35219-28010 |
| 35220 | No. 2 clutch control solenoid valve assembly | 35220-21010 · 35220-33020 · 35220-45010 |
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-21010 · 35230-33010 · 35230-33020 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-21010 · 35240-33030 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90080-50308 · 90501-03005 |
| 35275 | Solenoid regulator valve | 35275-21010 |
| 35275A | Compression spring (for solenoid regulator valve) | 90080-50306 |
| 35275B | Plunger (for solenoid regulator valve) | 90339-04058 · 90339-A0010 |
| 35275C | direct key | 90282-03018 |
| 35284D | C-2 exhaust check valve | 35284-28010 |
| 35284E | Straight key (for C-2 exhaust check valve) | 90282-03018 |
| 35284F | Plunger (for C-2 exhaust check valve) | 90339-04058 · 90339-A0010 |
| 35284G | Compression spring (for C-2 exhaust check valve) | 90080-50311 |
| 35284H | Compression spring (for C-2 lock valve) | 90080-50298 · 90080-50320 |
| 35285 | Solenoid valve lock plate | 35285-33030 · 35285-45010 |
| 35286 | B-1 lock valve | 35286-28010 |
| 35286A | Plunger (for B-1 lock valve) | 90339-04058 · 90339-A0010 |
| 35286B | Straight key (for B-1 lock valve) | 90282-03018 |
| 35286C | Compression spring (for B-1 lock valve) | 90080-50323 |
| 35286D | Compression spring (for B-1 lock valve) | 90080-50318 · 90080-50319 |
| 35287 | C-2 lock valve | 35287-28010 |
| 35287A | Straight key (for C-2 lock valve) | 90282-03027 |
| 35287B | Plunger (for C-2 lock valve) | 90339-04058 · 90339-A0010 |
| 35287C | Compression spring (for C-2 lock valve) | 90080-50322 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-33020 · 35290-33030 · 35290-45010 |
| 35290A | Pipe pressure control solenoid valve assembly | 35290-21010 |
| 35295 | No. 2 solenoid valve locking plate | 35295-33010 · 35295-45010 |
| 35296 | No. 3 solenoid valve locking plate | 35296-33010 · 35296-45010 |
| 35330 | Valve body oil filter assembly | 35330-06010 · 35330-08010 |
| 35339 | Oil filter gasket | 90080-30077 · 90301-32010 · 90301-32012 |
| 35409 | Manual lock spring sub-assembly | 35409-21010 |
| 35410 | Transmission valve body assembly | 35410-06010 · 35410-08010 · 35410-33130 · 35410-33150 · 35410-48011 |
| 35415F | Main regulator valve | 35415-28010 |
| 35415H | Compression spring (for main regulator valve) | 90080-50307 |
| 35415Q | Spacer (for main regulator valve) | 90560-07028 |
| 35416 | No. 1 main regulator valve plunger | 35416-28030 |
| 35417A | Main regulator valve sleeve | 35417-21010 |
| 35417B | Direct sales (for main regulator valve sleeve) | 90250-03093 · 90250-A0004 |
| 35417C | Plunger (for main regulator valve) | 90339-06020 · 90339-A0013 |
| 35418 | Manual valve | 35418-21011 · 35418-33010 |
| 35419 | No. 1 one-way valve | 35419-32010 |
| 35419A | Compression spring (for one-way valve) | 90080-50303 |
| 35419D | No. 2 one-way valve | 35246-30010 |
| 35419E | No. 3 one-way valve | 35247-30010 |
| 35419F | One way valve ball | 90080-36191 · 90360-06004 |
| 35420A | Ball (for pressure reducing valve) | 90080-36186 · 90080-36192 · 90360-10006 |
| 35420H | One way ball cover | 35493-28010 |
| 35422G | Reverse clutch accumulator piston | 35422-08010 · 35422-33040 · 35422-33050 |
| 35424C | C-1 Accumulator Piston | 35424-06010 · 35424-21010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90080-50304 · 90080-50314 · 90501-22039 |
| 35424E | O-ring (for C-1 accumulator piston) | 90080-30076 · 90301-27008 · 90301-30007 |
| 35425F | Accumulator valve | 35425-21010 |
| 35425G | Snap ring (for accumulator valve) | 96151-02500 |
| 35426D | C-3 Accumulator Piston | 35406-06010 · 35406-21010 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90080-50315 · 90080-50387 · 90501-22056 · 90905-01035 |
| 35426F | O-ring (for C-3 accumulator piston) | 90080-30076 · 90301-30007 |
| 35427K | B-3 Accumulator Piston | 35427-06010 · 35427-21010 · 35427-28010 |
| 35427L | Compression spring (for B-3 accumulator piston) | 90080-50305 · 90080-50309 · 90080-50313 · 90080-50388 · 90080-50389 · 90501-19037 · 90501-22038 · 90501-25053 · 90501-26096 |
| 35427M | O-ring (for B-3 accumulator piston) | 90301-28008 |
| 35429G | Reverse clutch accumulator sleeve | 35429-08010 · 35429-33020 |
| 35431A | Upper body cover gasket | 35431-21010 |
| 35432 | No. 1 valve body plate | 35432-48010 |
| 35441C | Solenoid valve oil filter | 35441-21010 · 35441-21011 |
| 35442 | Throttle regulator oil filter | 35442-21010 · 35442-21011 |
| 35445K | B-2 control valve | 35445-28010 |
| 35445L | Straight key (for B-2 control valve) | 90282-03026 |
| 35445M | Plunger (for B-2 control valve) | 90339-04058 · 90339-A0010 |
| 35445N | Compression spring (for B-2 control valve) | 90080-50299 |
| 35456H | C-2 control valve | 35456-28020 |
| 35456J | Straight key (for C-2 control valve) | 90282-03026 |
| 35456K | Plunger (for C-2 control valve) | 90339-04059 · 90339-A0011 |
| 35456L | Compression spring (for C-2 control valve) | 90080-50300 · 90501-19038 · 90501-A0039 |
| 35456M | O-ring (for C-2 control valve) | 90301-19016 |
| 35456N | O-ring (for C-2 control valve) | 90301-28011 |
| 35464F | B-1 control valve | 35464-28010 |
| 35464G | Straight key (for B-1 control valve) | 90282-03026 |
| 35464H | Plunger (for B-1 control valve) | 90339-04060 · 90339-A0012 |
| 35464J | Compression spring (for B-1 control valve) | 90080-50301 |
| 35466K | clutch engagement control valve | 35466-28010 |
| 35466L | Compression spring (for clutch engagement control valve) | 90080-50321 |
| 35468C | Secondary regulator valve | 35468-21010 |
| 35468D | Compression spring (for secondary regulator valve) | 90080-50316 |
| 35468E | Straight key (for secondary regulator valve) | 90282-03018 |
| 35468F | Plunger (for secondary regulator valve) | 90339-04060 · 90339-A0012 |
| 35469M | Spacer (for accumulator valve) | 35469-28030 |
| 35471A | Upper valve body cover | 35471-21011 |
| 35476H | Clutch engagement control valve plunger | 35476-21010 |
| 35486B | Pressure reducing valve spring seat | 35486-28010 |
| 35486C | Compression spring (for pressure reducing valve) | 90080-50302 |
| 35486D | Ball (for pressure reducing valve) | 90080-36186 · 90080-36192 · 90360-10006 |
| 35489M | B-3 Throttle Control Valve | 35489-28010 |
| 35489N | Straight key (for B-3 throttle control valve) | 35478-21010 |
| 35489Q | Compression spring (for B-3 throttle control valve) | 90080-50317 |
| 35492G | Clutch engagement control valve sleeve | 35492-21010 |
| 35492H | Direct sales (for clutch engagement control valve) | 90250-03092 |
| 35493V | No. 2 one-way valve seat | 90282-03018 |
| 35495B | One-way ball No. 1 | 35495-08010 · 35495-22020 |
| 35497 | 3rd-4th gear shift valve | 35497-21010 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90080-50310 |
| 35497F | Straight key (for 3-4 gear shift valve) | 35479-21010 |
| 35599 | Manual locking spring cover | 35599-21010 |
| 35666D | Brake oil supply pipe | 35666-06010 · 35666-06020 · 35666-08010 · 35666-32010 · 35666-33010 · 35666-33020 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-06010 · 35882-06020 · 35882-28010 · 35882-32020 |
| 35895 | Front clutch oil supply pipe | 35895-06010 · 35895-21010 · 35895-28010 |
| 82125J | Transmission wiring harness | 82125-06010 · 82125-08010 · 82125-28180 · 82125-33060 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 |
