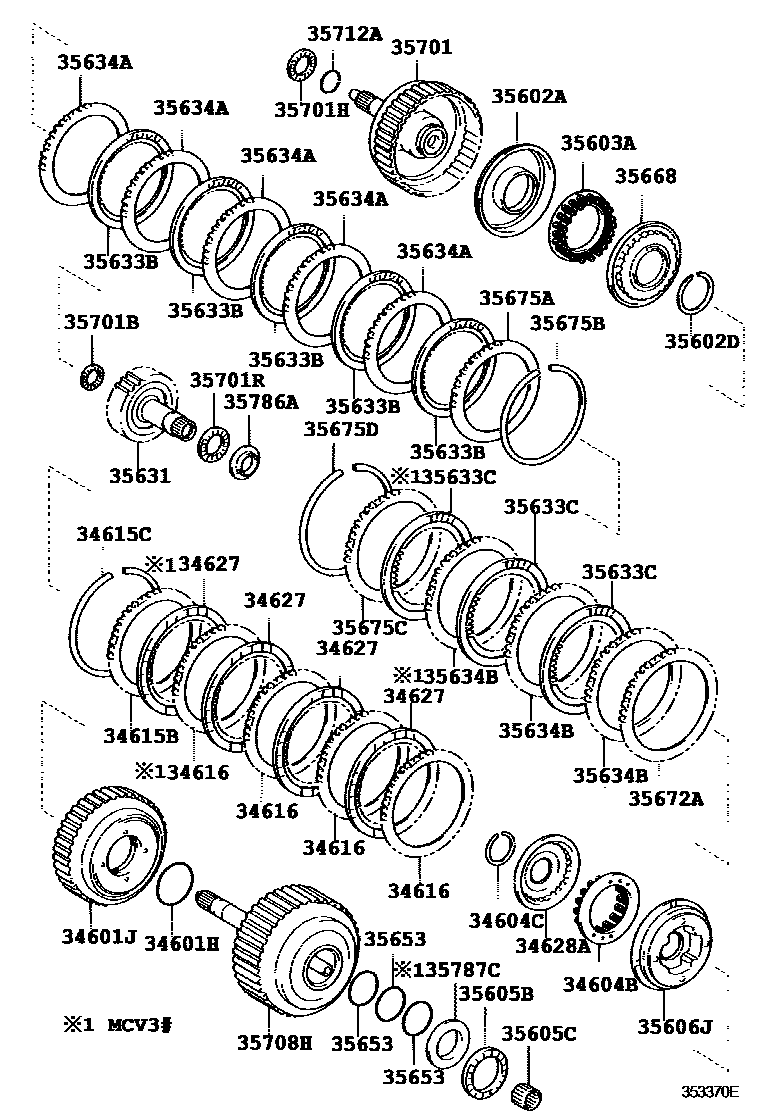

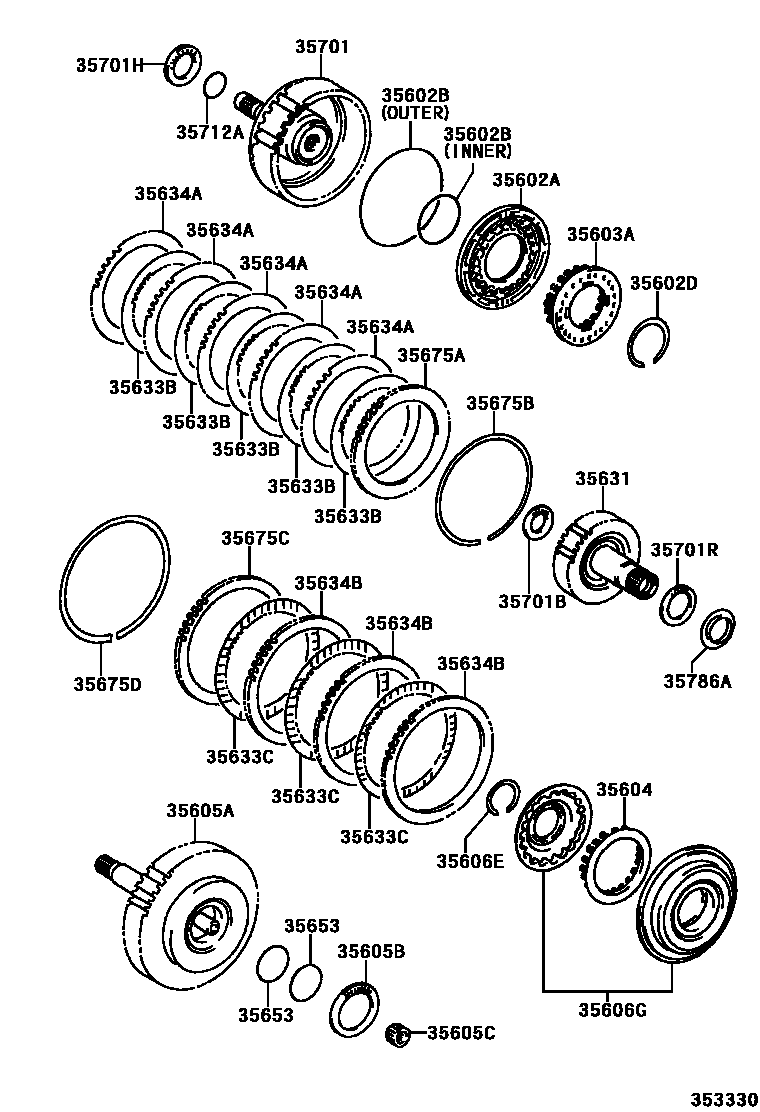

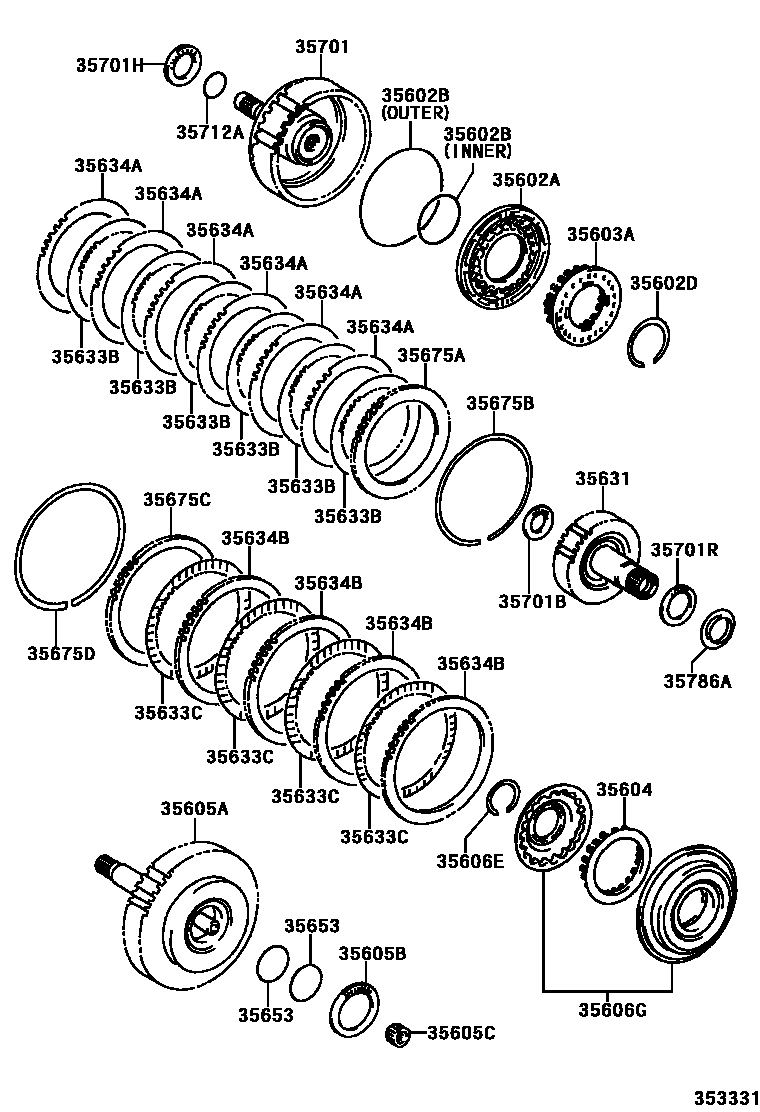

Toyota CAMRY 制动带和多片式离合器(ATM) — Figure 3507
Toyota CAMRY EPC diagram 3507, 制动带和多片式离合器(ATM), with 3 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34601H | O-ring (for overspeed direct gear clutch) | 90080-30104 · 90301-56008 |
| 34601J | Overspeed direct gear clutch drum sub-assembly | 34601-08010 · 34601-33020 · 34601-33030 |
| 34604B | Overdrive clutch return spring sub-assembly | 34604-08010 · 34604-33010 |
| 34604C | Overdrive clutch return spring sub-assembly | 90080-52147 · 90520-31013 |
| 34615B | Overdrive clutch flange | 34615-08010 · 34615-08020 · 34615-08030 · 34615-08040 · 34615-08050 · 34615-08060 · 34615-08070 · 34615-33060 · 34615-33070 · 34615-33080 · 34615-33090 · 34615-33100 · 34615-33110 · 34615-33120 |
| 34615C | Hole snap ring (for overdrive clutch) | 90080-52149 · 90520-99064 |
| 34616 | Overdrive clutch plate | 34616-08010 · 34616-33010 |
| 34627 | Overdrive direct gear clutch disc | 34627-08010 · 34627-33010 |
| 34628A | Overdrive direct gear clutch balancer | 34628-08010 · 34628-33010 |
| 35602A | Forward gear clutch piston sub-assembly | 35602-06010 · 35602-21010 · 35612-08010 · 35612-33050 |
| 35602B | O-ring (for forward clutch piston) | 90080-30062 · 90080-30063 · 90301-64008 · 90301-99104 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90080-52121 · 90520-54004 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-06010 · 35603-08010 · 35603-21010 · 35603-33030 |
| 35604 | Direct clutch return spring sub-assembly | 35604-06010 · 35604-21010 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-06010 · 35605-06020 · 35605-48010 |
| 35605B | Thrust needle roller bearing | 90080-37002 · 90080-37010 · 90374-53001 · 90374-53002 · 90374-55005 |
| 35605C | Needle roller bearings | 90080-36120 · 90364-18010 |
| 35606E | Shaft snap ring (for direct clutch piston return spring) | 90080-52126 · 90520-38019 |
| 35606G | Direct clutch piston assembly | 35606-06010 · 35606-06020 · 35606-21010 |
| 35606J | Overdrive direct clutch piston | 34612-08010 · 34612-33020 |
| 35631 | Clutch hub (for multi-plate clutches) | 35061-07010 · 35061-33010 · 35061-33020 · 35061-45010 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35633-06010 · 35633-08010 · 35633-21010 · 35633-33090 |
| 35633C | Clutch disc (for direct gear multi-plate clutch) | 35667-06010 · 35667-08010 · 35667-21010 · 35667-33020 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-06010 · 35634-21010 · 35634-28010 |
| 35634B | Clutch plate (for direct gear multi-plate clutch) | 35647-06010 · 35647-08010 · 35647-21010 · 35647-33030 |
| 35653 | Rear clutch outer oil ring | 35653-21010 |
| 35668 | No. 1 clutch balancer | 35668-08010 · 35668-20010 · 35668-33010 |
| 35672A | Clutch cushion (for direct gear multi-plate clutch) | 35672-08010 · 35672-33010 |
| 35675A | forward clutch flange | 35634-21010 · 35635-06010 · 35635-06020 · 35635-06030 · 35635-06040 · 35635-06050 · 35635-08010 · 35635-08020 · 35635-08030 · 35635-08040 · 35635-08050 · 35635-21010 · 35635-21020 · 35635-21030 · 35635-21040 · 35635-21050 · 35635-21060 · 35635-21070 |
| 35675B | Hole snap ring (for forward clutch flange) | 90080-52122 · 90520-99025 |
| 35675C | Direct clutch flange | 35675-06010 · 35675-06020 · 35675-06030 · 35675-06040 · 35675-06050 · 35675-06060 · 35675-08010 · 35675-08020 · 35675-08030 · 35675-08040 · 35675-08050 · 35675-08060 · 35675-08070 · 35675-21010 · 35675-21020 · 35675-21030 · 35675-21040 · 35675-21050 · 35675-21060 · 35675-21070 · 35675-21080 · 35675-33060 |
| 35675D | Hole snap ring (for direct clutch flange) | 90080-52125 · 90520-99028 |
| 35701 | Input shaft sub-assembly | 35701-06010 · 35701-06020 · 35701-28020 · 35701-44010 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90080-37006 · 90374-23002 |
| 35701H | Thrust needle roller bearing (for input shaft) | 90080-37005 · 90374-34005 |
| 35701R | Thrust needle roller bearing | 90080-37008 · 90374-37005 |
| 35708H | Intermediate shaft sub-assembly | 35708-08010 · 35708-33010 · 35708-33020 |
| 35712A | Input shaft oil ring | 35712-21010 |
| 35786A | No. 1 thrust bearing race | 35786-06010 · 35786-21010 |
| 35787C | No. 2 thrust bearing race | 35785-33010 |
