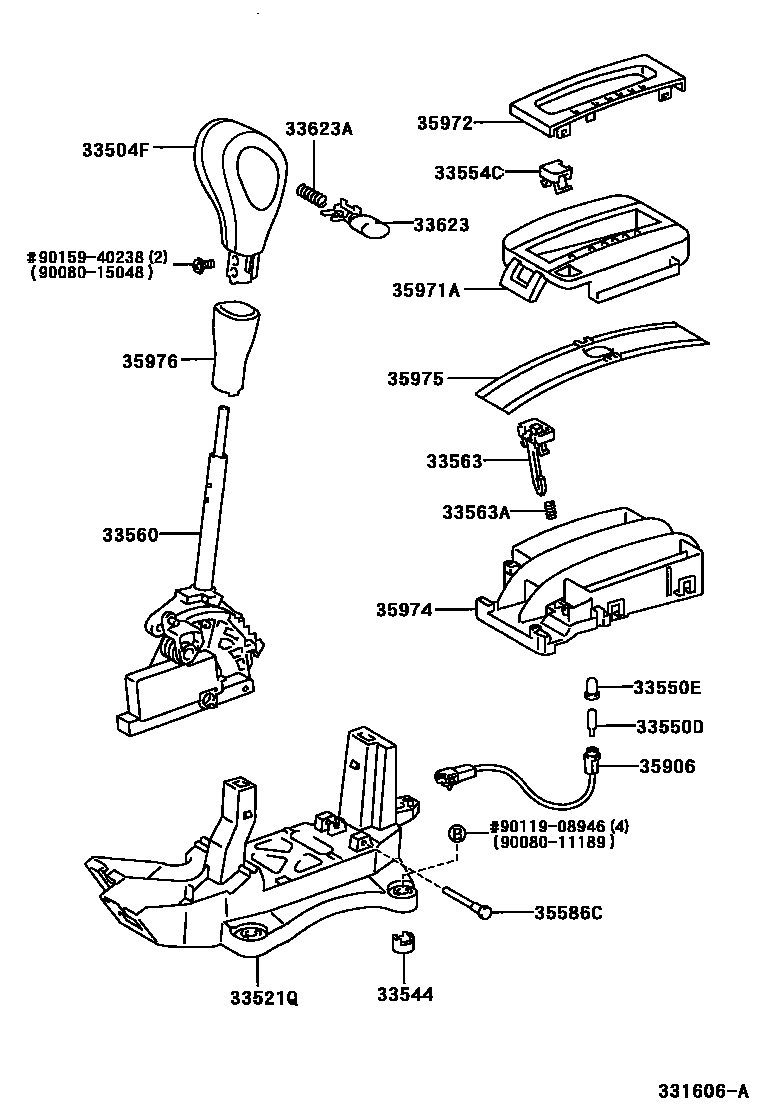

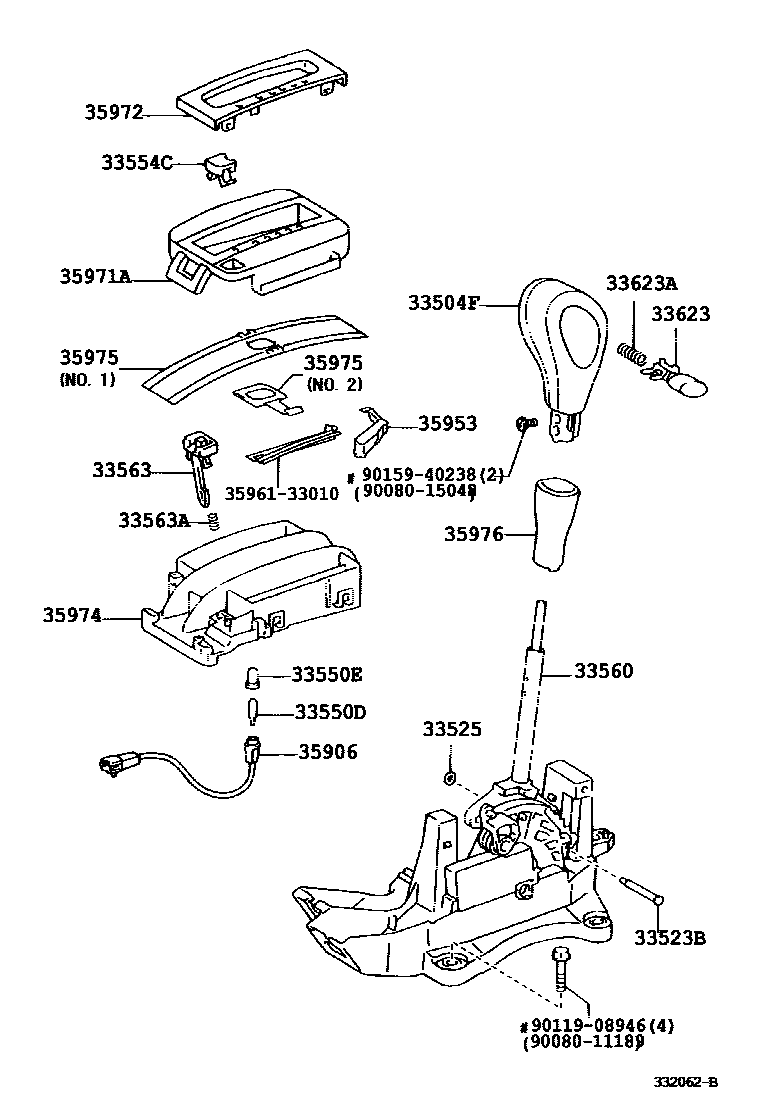

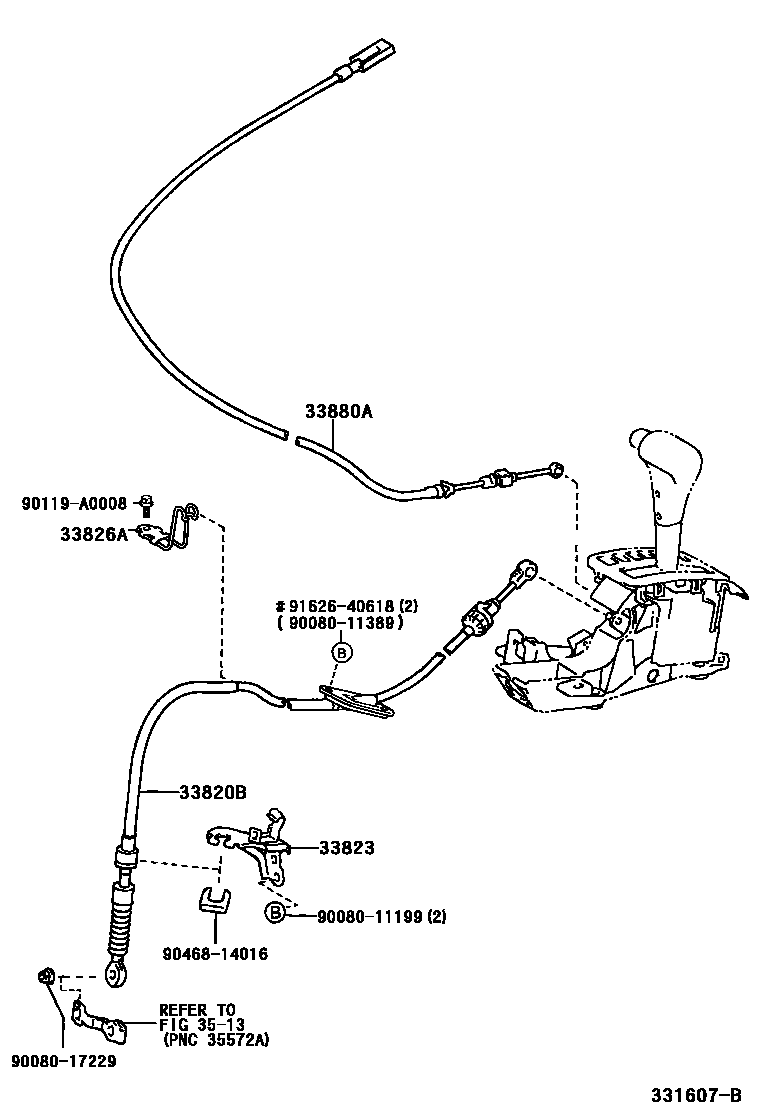

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33521Q | Shift lever housing (for floor shift) | 33521-06031 |
| 33523B | Shift lever pin (for floor shift) | 33523-33010 |
| 33525 | shift lever bracket | 33525-06010 |
| 33544 | Shift lever insert No. 1 | 33544-06010 |
| 33550D | position indicator light bulb | 90981-11014 |
| 33550E | position indicator cover | 90339-04049 |
| 33554C | Shift lock release button cover | 33502-06030 |
| 33560 | Shift lock control unit assembly | 33560-06012 · 33560-06030 |
| 33563 | Shift lock release button | 33563-06040 |
| 33563A | Compression spring (for shift lock release button) | 90080-50179 |
| 33623 | Shift lever handle button | 33623-06040 |
| 33623A | Compression spring (for shift lever knob button) | 90080-50180 |
| 33820B | Transmission control cable assembly | 33820-06130 · 33820-06140 |
| 33823 | No. 1 transmission control cable bracket | 33823-33040 · 33823-48040 |
| 33826A | No. 2 transmission control cable bracket | 33826-33010 · 33826-33040 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-06011 |
| 35586C | Toggle lever bracket pin | 35586-06010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06021 · 35906-06040 |
| 35953 | Position indicator light guide | 35953-33030 |
| 35971A | Position indicator light upper shell | 35971-06031 · 35971-33170 |
| 35972 | Position indicator light housing cover | 35972-06010 · 35972-33040 |
| 35974 | Position indicator light lower shell | 35974-06031 · 35974-33120 |
| 35975 | Slide cover (for position indicator light) | 35975-06040 · 35975-33080 · 35976-06050 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06030 · 35976-33090 · 35976-33100 |
