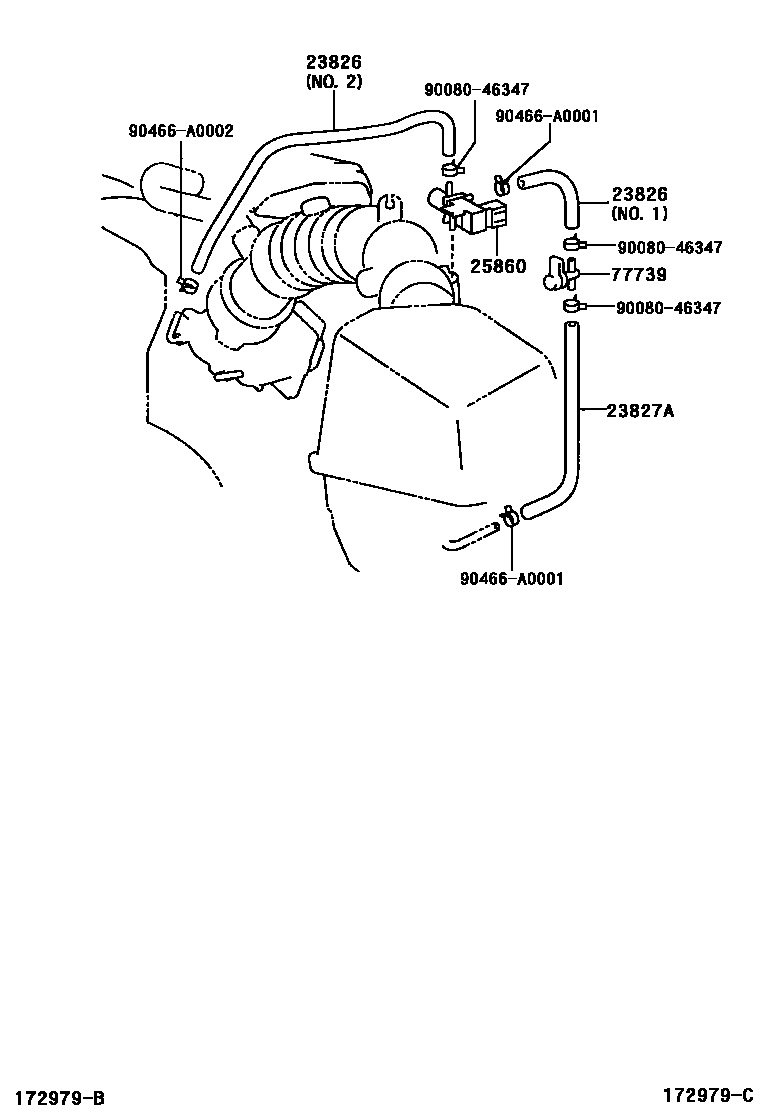

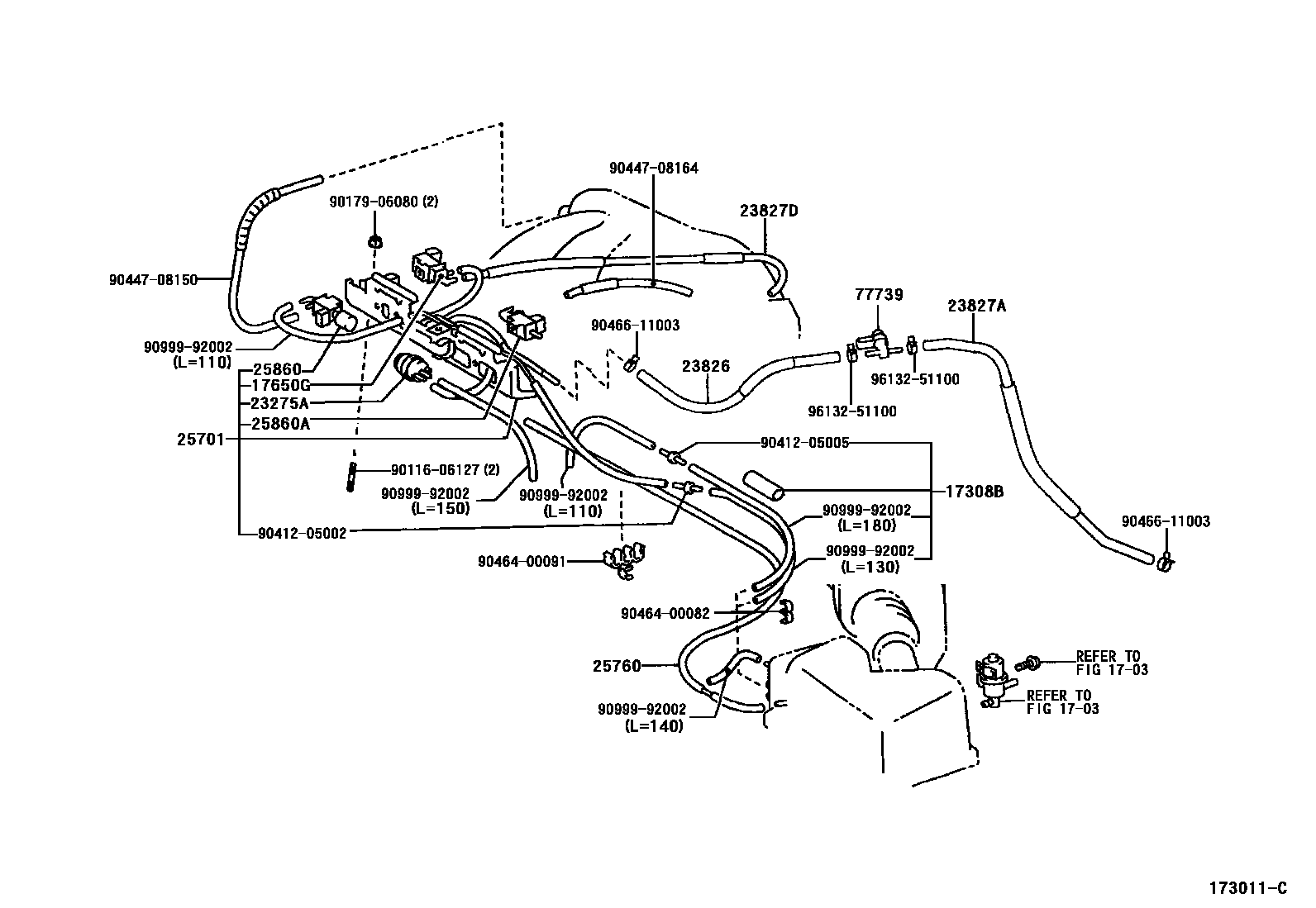

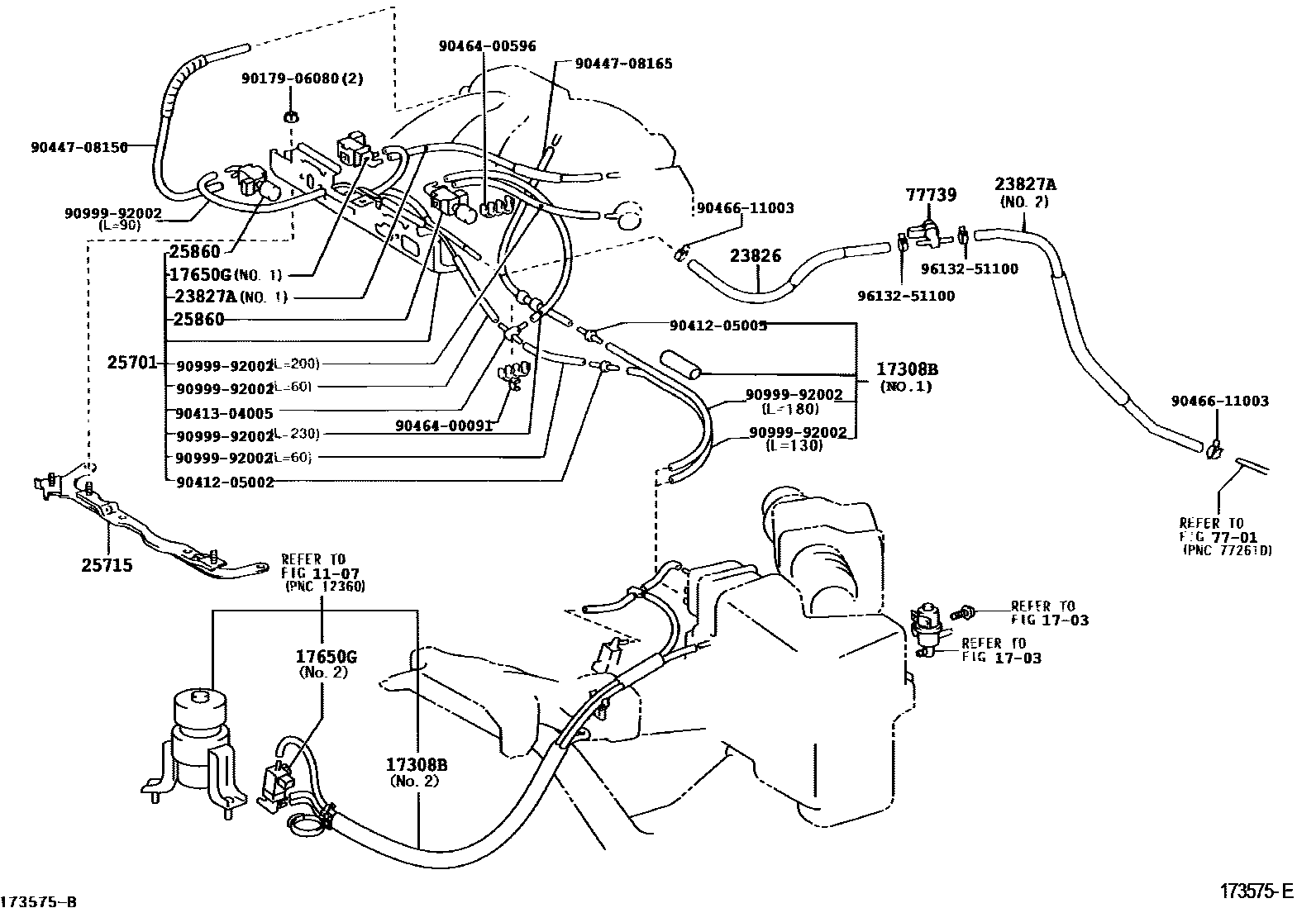

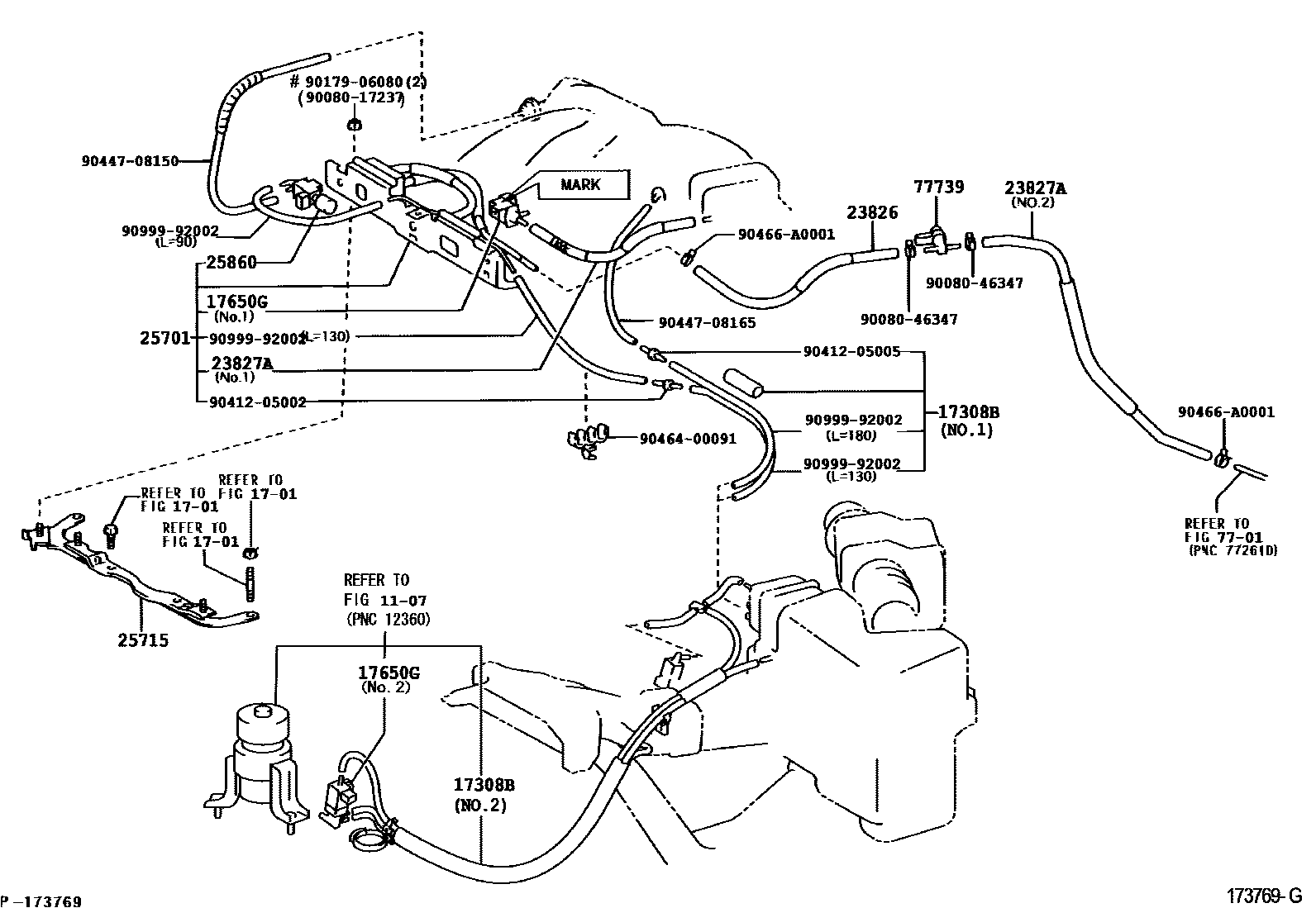

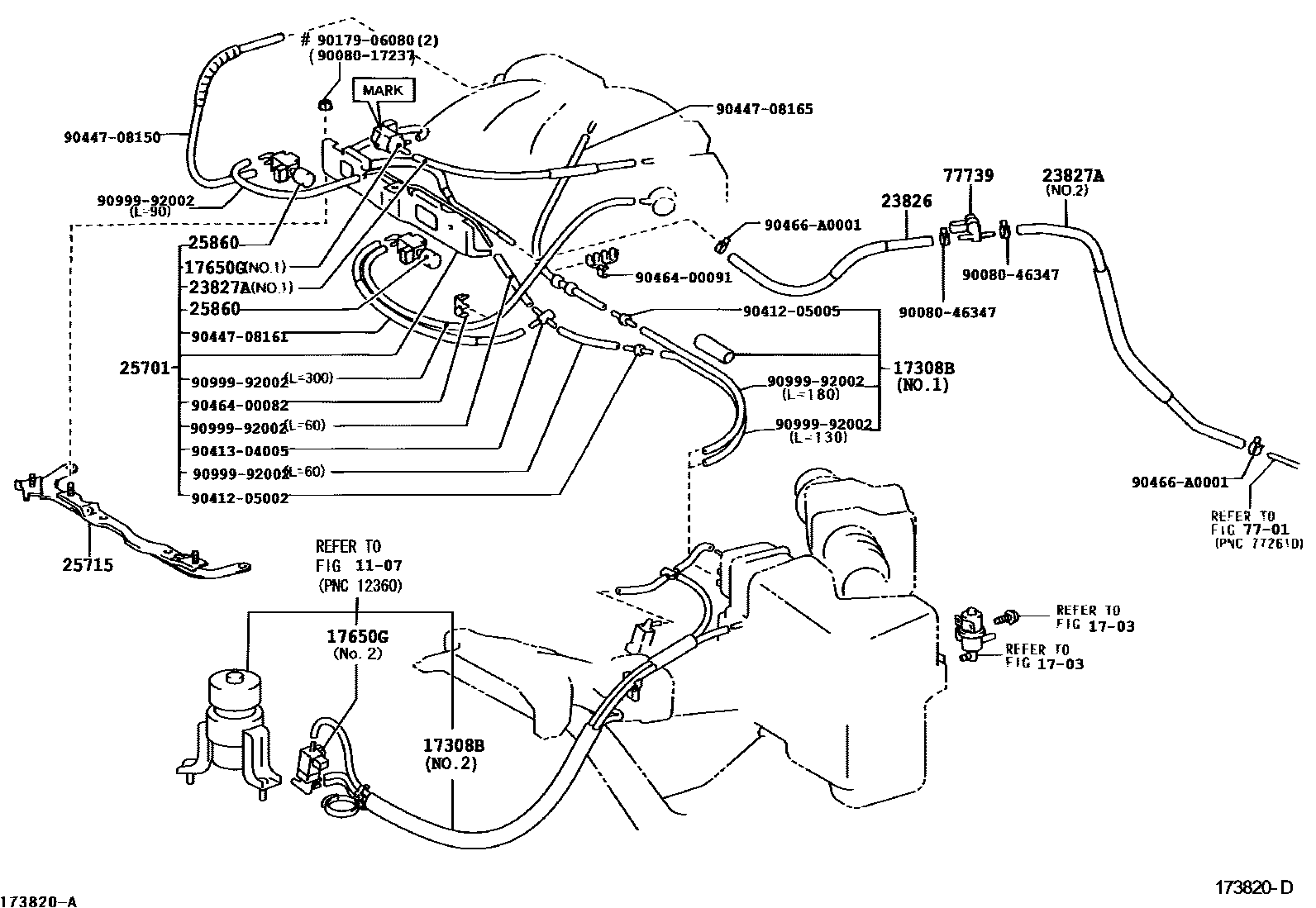

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 17308-0A070 · 17308-20170 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12204 · 90910-12241 · 90910-12259 · 90910-12272 |
| 23275A | vacuum control valve | 90925-03193 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0A050 · 23826-0A051 · 23826-0H010 · 23826-0H020 · 23826-0H040 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0A040 · 23827-0A041 · 23827-0H010 · 23827-20060 · 23827-20090 · 23827-20100 |
| 23827D | No. 2 fuel vapor supply hose | 23827-20070 |
| 25701 | Emission control valve assembly | 25701-20180 · 25701-20190 · 25701-20220 · 25701-20230 |
| 25715 | Emission control valve bracket | 25715-20010 · 25715-20011 · 25715-20020 · 25715-20021 |
| 25760 | Vacuum transfer hose assembly | 25760-20020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0H020 · 25860-0H050 · 25860-62010 |
| 25860A | No. 1 vacuum switch valve | 90910-12174 |
| 77739 | Steam service valve | 77739-06010 |
