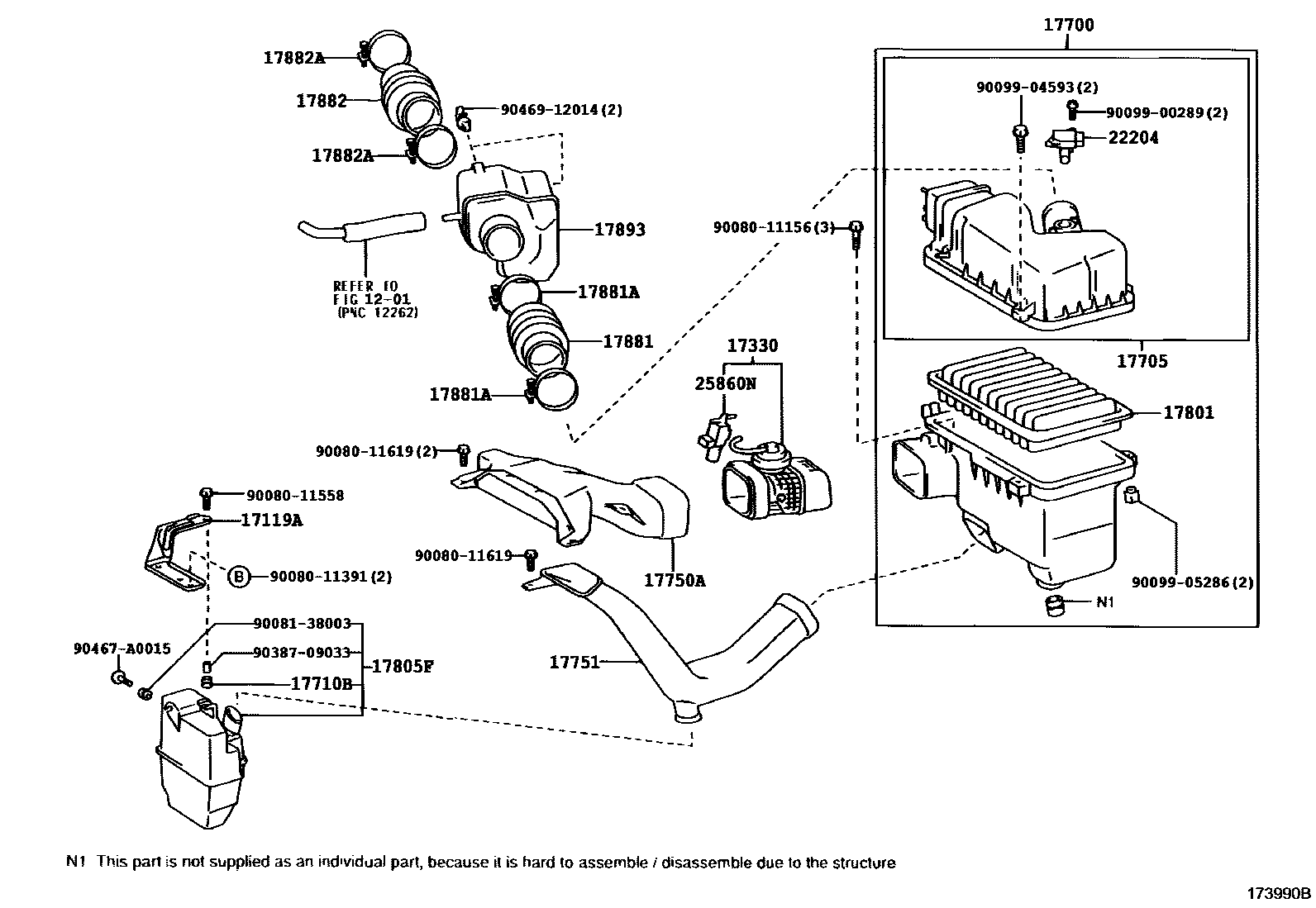

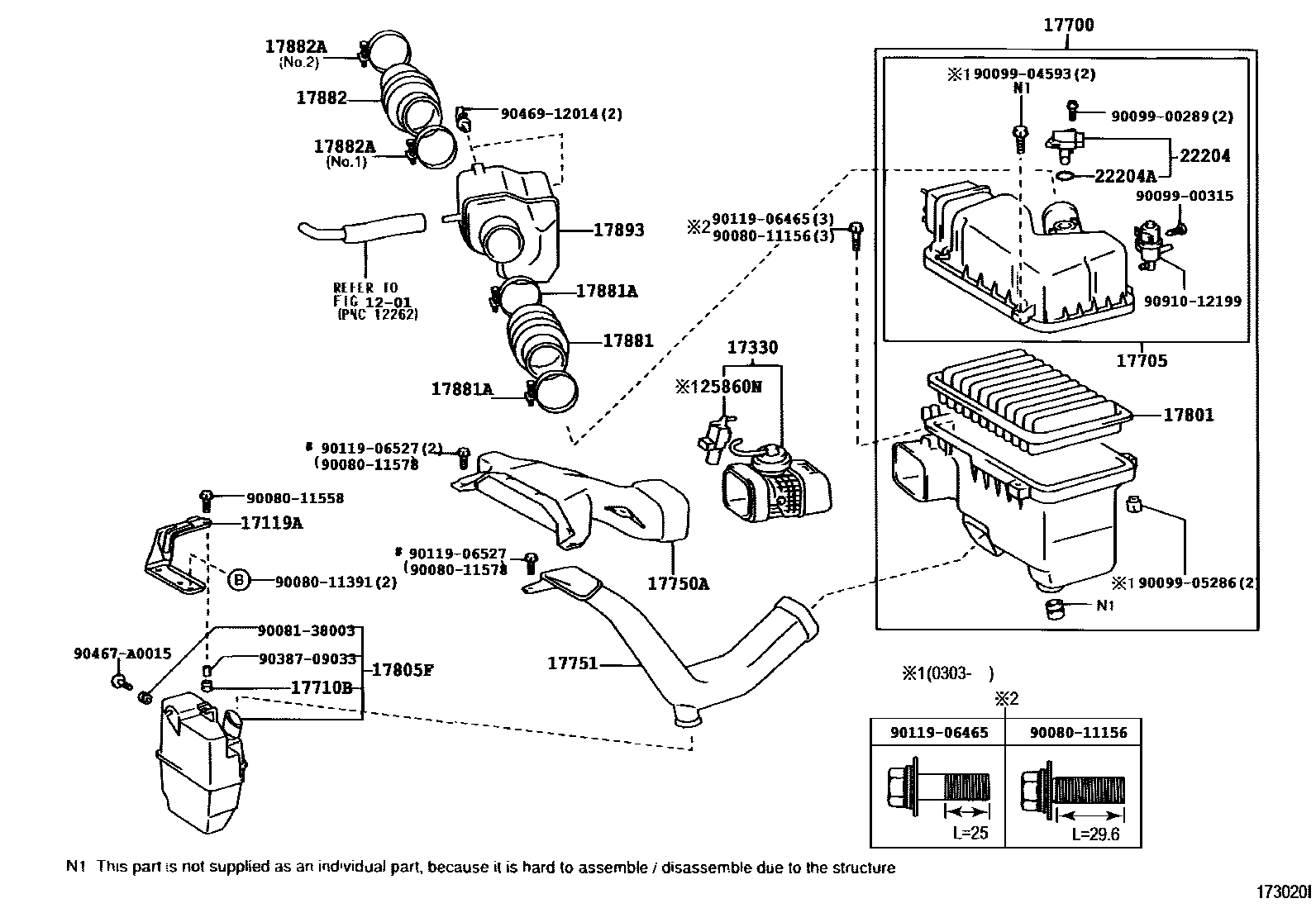

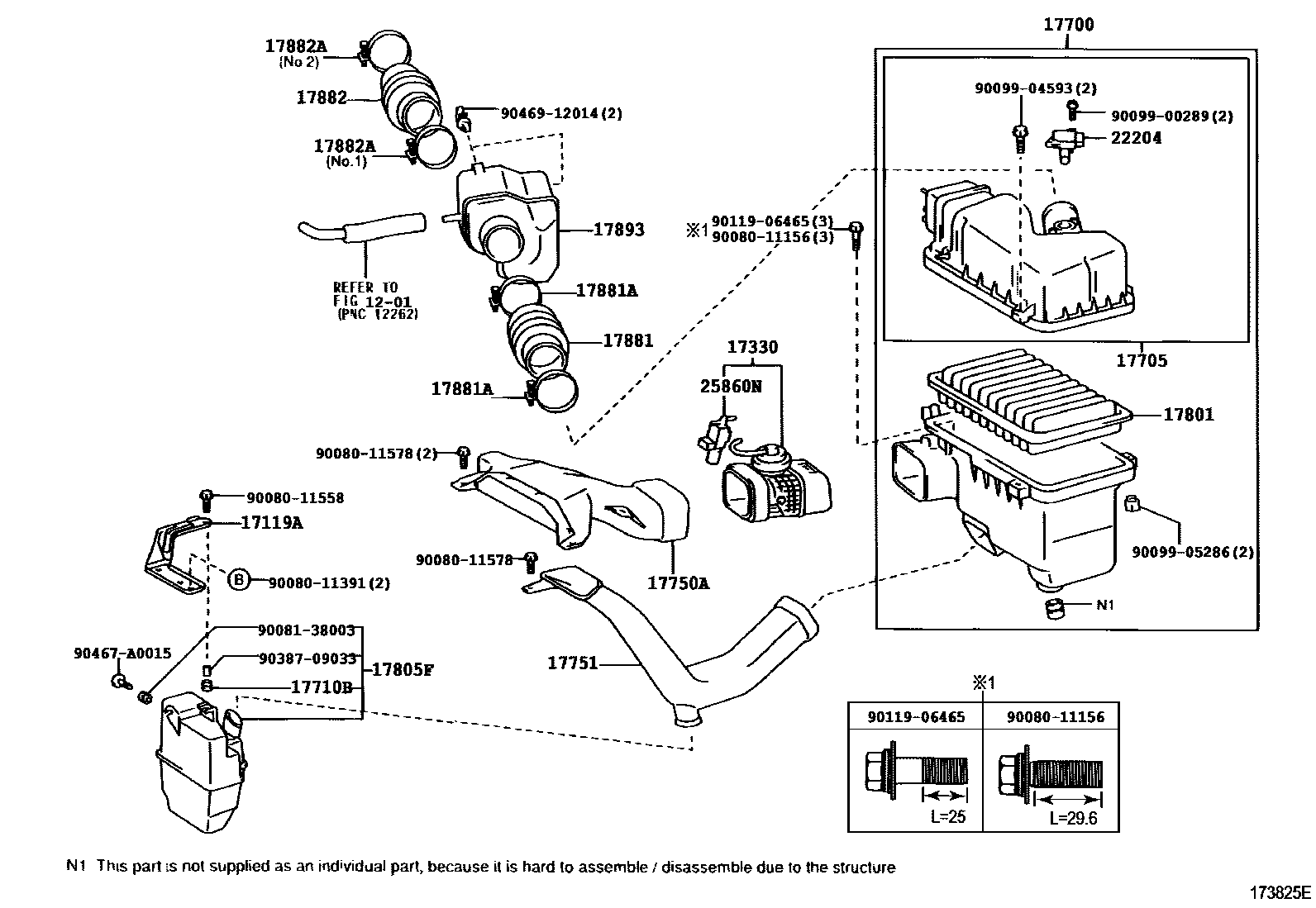

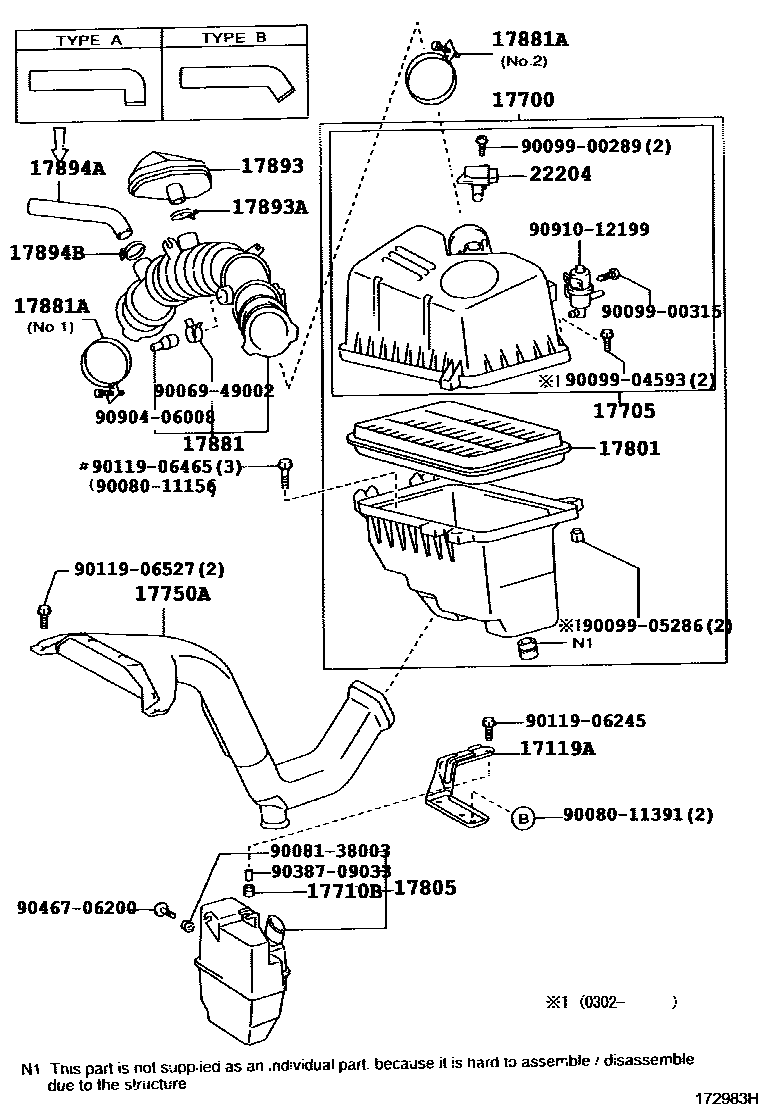

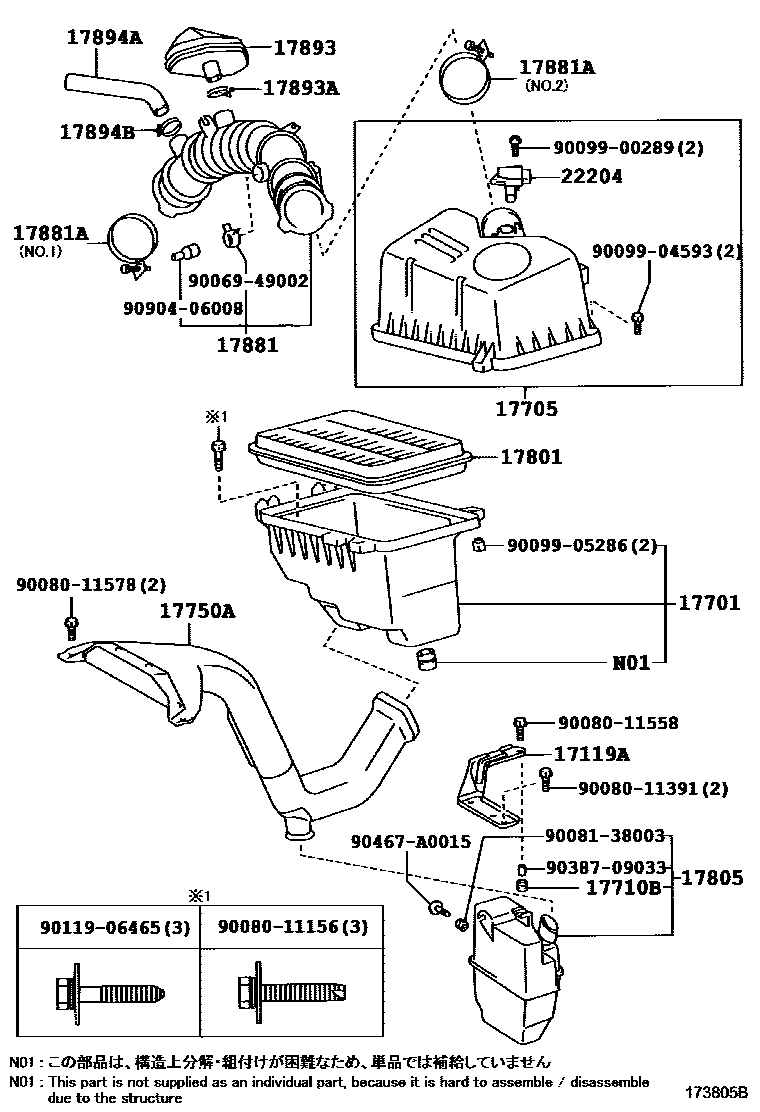

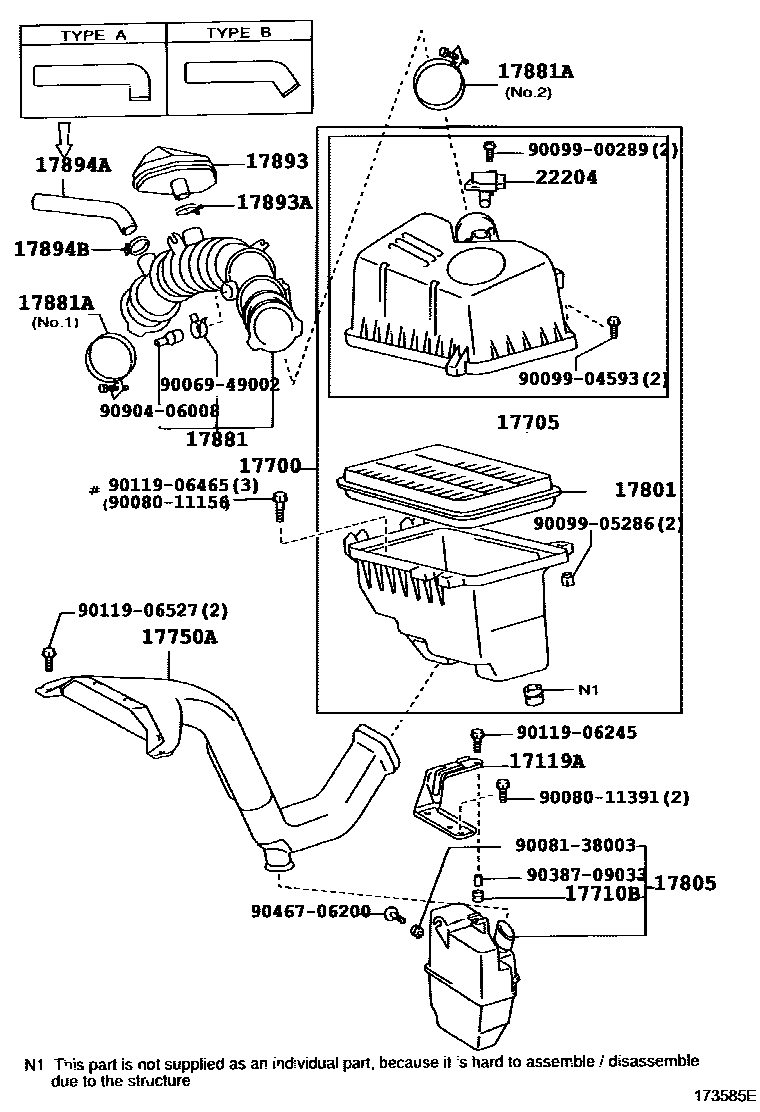

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17119A | air filter bracket | 17119-28040 · 17119-AA010 · 17119-AA020 |
| 17330 | No. 3 intake control valve assembly | 17330-0A010 · 17330-20010 |
| 17700 | air filter assembly | 17700-0A180 · 17700-0A210 · 17700-0H010 |
| 17701 | Air filter housing sub-assembly | 17701-0H010 |
| 17705 | Air filter cover sub-assembly | 17705-0A140 · 17705-0A170 · 17705-0H010 · 17705-0H080 |
| 17710B | gasket | 90480-17013 |
| 17750A | Air filter air inlet assembly | 17750-0H010 · 17750-20110 · 17750-AA010 · 17750-AA011 |
| 17751 | No. 1 air filter air inlet | 17751-AA010 |
| 17801 | Air filter element sub-assembly | 17801-0H010 |
| 17805 | Intake connecting pipe sub-assembly | 17805-0H010 |
| 17805F | Intake resonator sub-assembly | 17805-0A050 · 17805-0A051 |
| 17881 | No. 1 air cleaner hose | 17881-28140 · 17881-AA010 · 17881-AB010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90466-62002 · 96111-10830 · 96111-10880 |
| 17882 | No. 2 air cleaner hose | 17882-AA010 · 17882-AA030 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10830 · 96111-10880 |
| 17893 | Intake resonator | 17893-0A080 · 17893-0H050 |
| 17893A | hose clamp | 96111-10430 |
| 17894A | No. 2 intake resonator | 17894-28020 · 17894-AB010 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10480 |
| 22204 | Intake air flow meter assembly | 22204-07010 · 22204-0D030 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
| 25860N | Vacuum switch valve assembly | 25860-0A010 |
