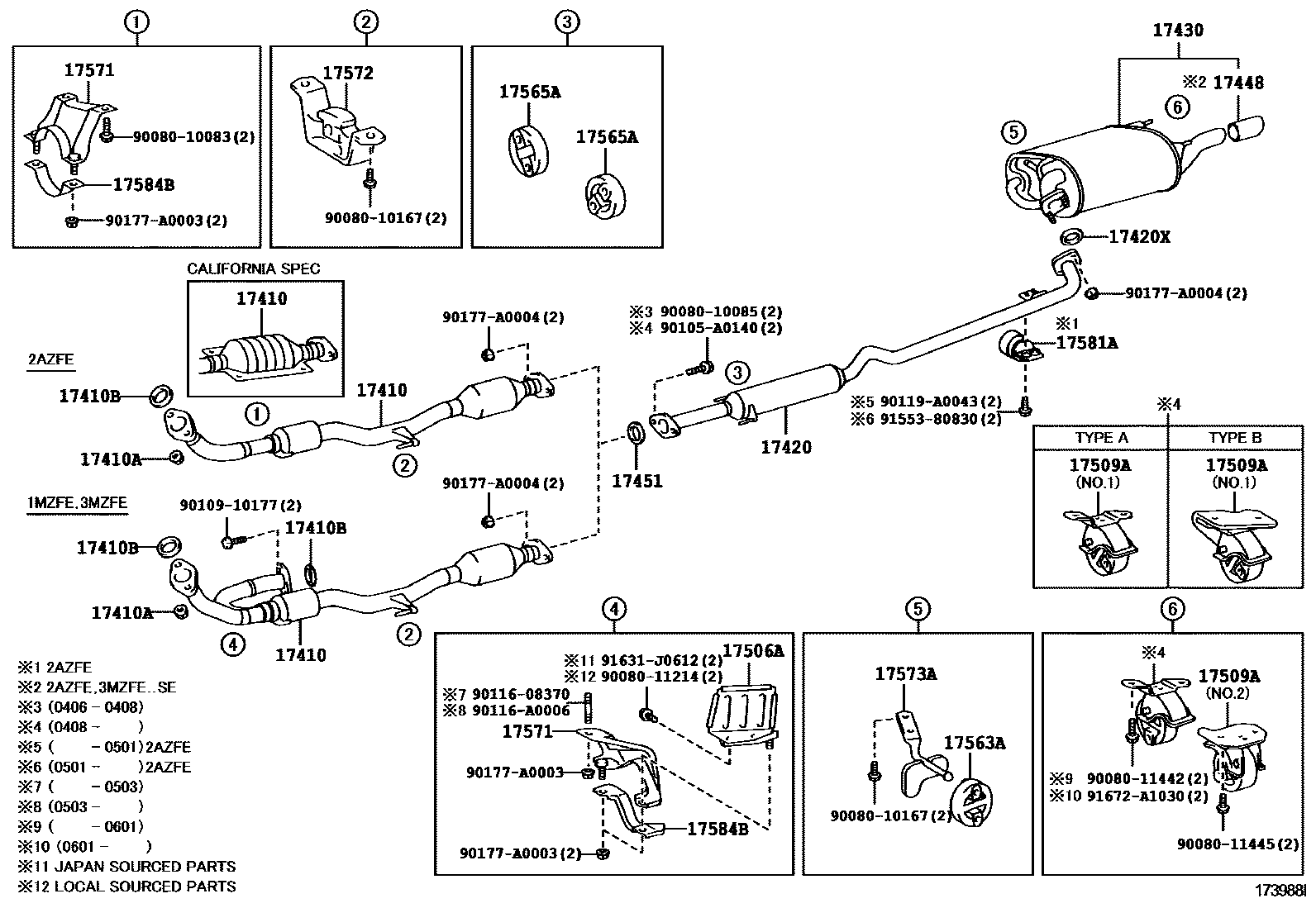

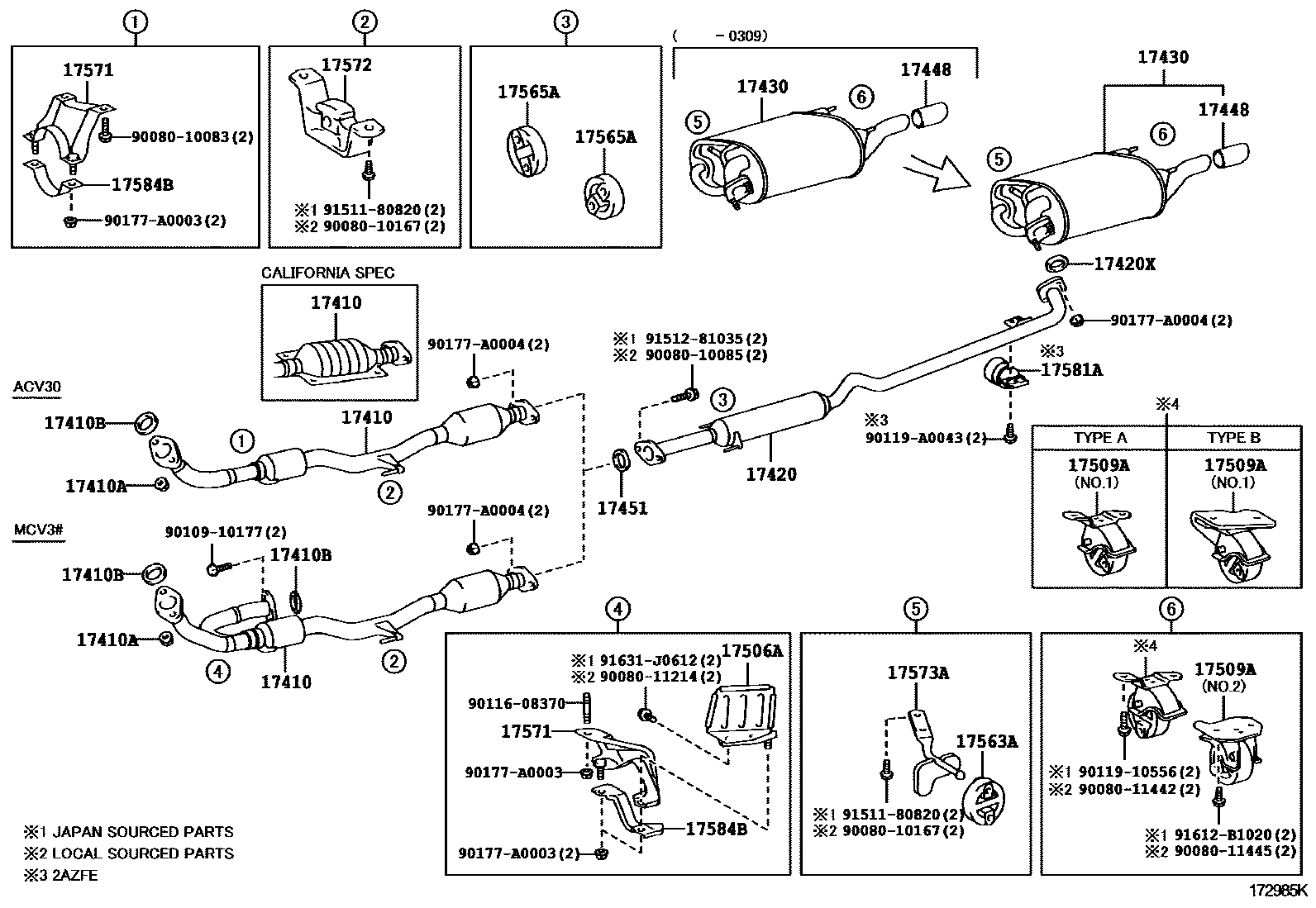

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0A340 · 17410-0A370 · 17410-0H020 · 17410-0H090 · 17410-0H130 |
| 17410A | Exhaust pipe fixing studs and nuts | 90080-17187 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90080-43036 · 90917-06089 · 90917-06090 · 90917-A6001 |
| 17420 | Central exhaust pipe assembly | 17420-0A200 · 17420-0A290 · 17420-0H010 · 17420-0H110 |
| 17420X | Center exhaust pipe liner | 90080-43026 |
| 17430 | Exhaust tailpipe assembly | 17430-0A261 · 17430-0H121 · 17430-0H140 · 17440-0A020 · 17440-0A030 · 17440-0H010 · 17440-0H020 · 17440-0H040 · 17440-0H050 · 17440-0H051 |
| 17448 | Exhaust pipe tail throat | 17408-46020 · 17408-74080 |
| 17451 | Exhaust pipe gasket | 90080-43033 · 90917-06057 · 90917-06076 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-0A051 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-0A010 · 17509-0A050 · 17509-0A060 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0A071 · 17565-0A160 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0A130 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0A090 · 17571-0H010 · 17571-20150 · 17571-28080 |
| 17572 | No. 1 exhaust pipe bracket | 17572-0H020 |
| 17573A | No. 3 exhaust pipe bracket | 17573-28010 |
| 17581A | Exhaust pipe damper | 17581-74070 |
| 17584B | No. 1 exhaust pipe bracket | 17584-0A020 · 17584-20010 · 17584-28020 |
