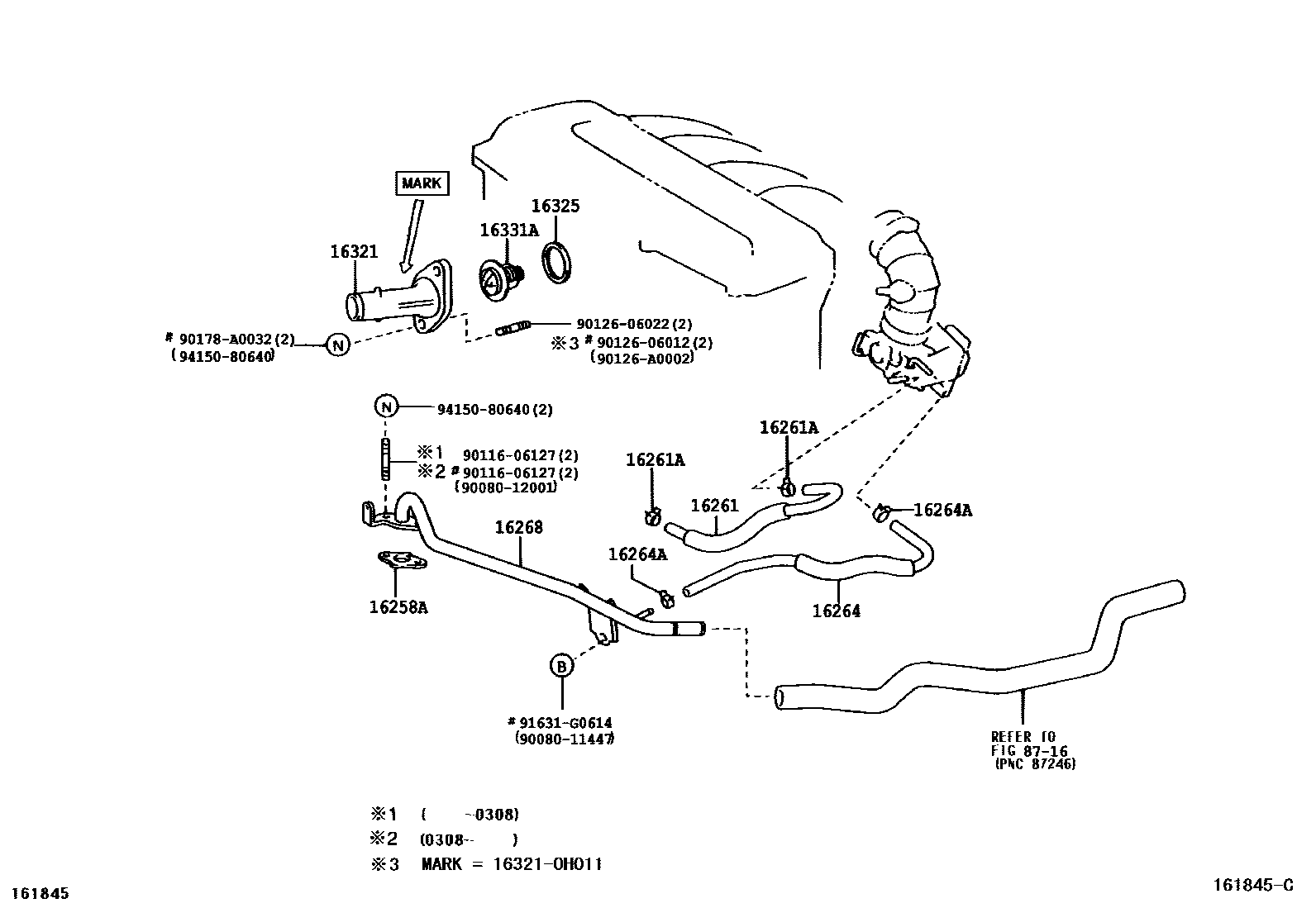

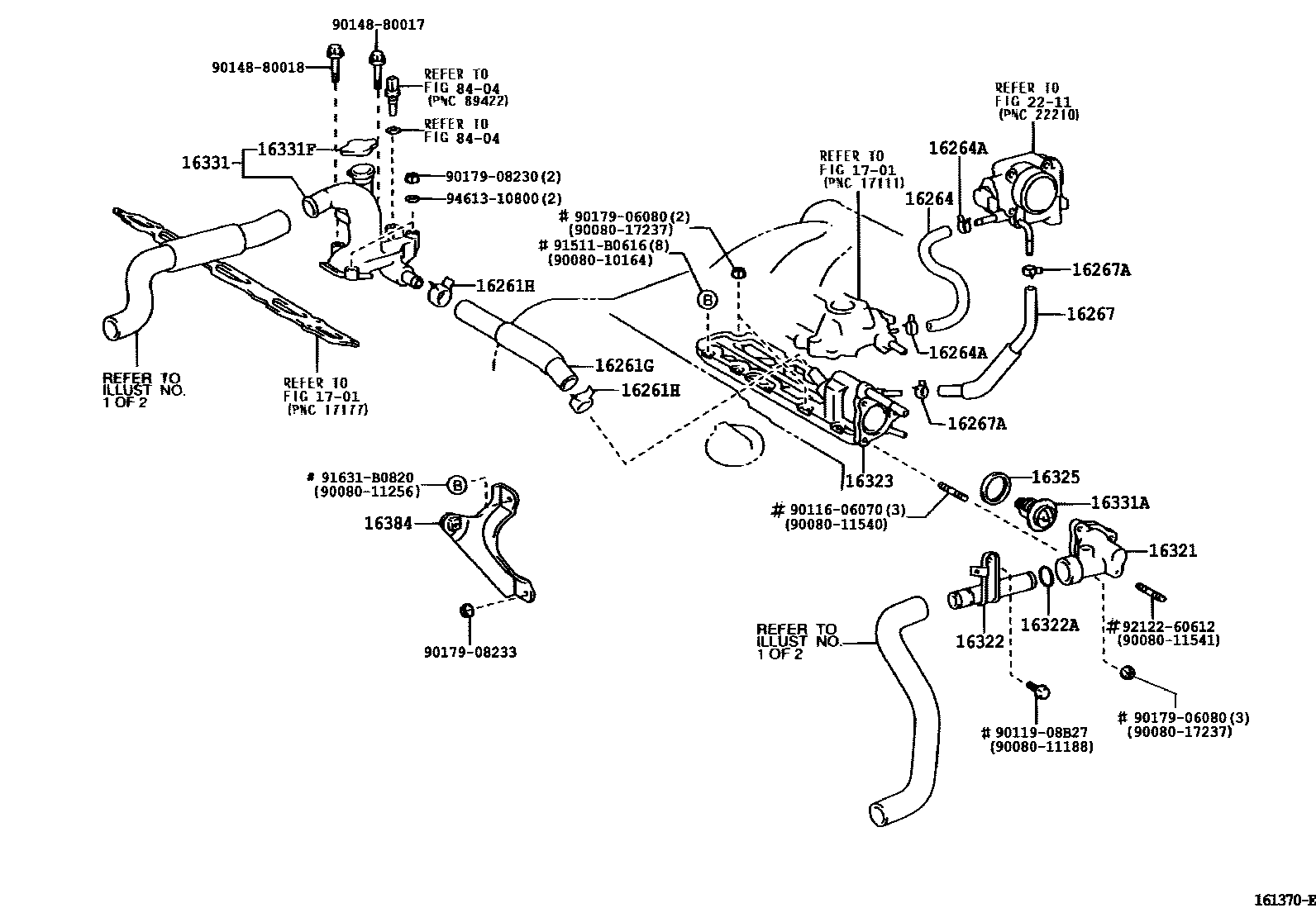

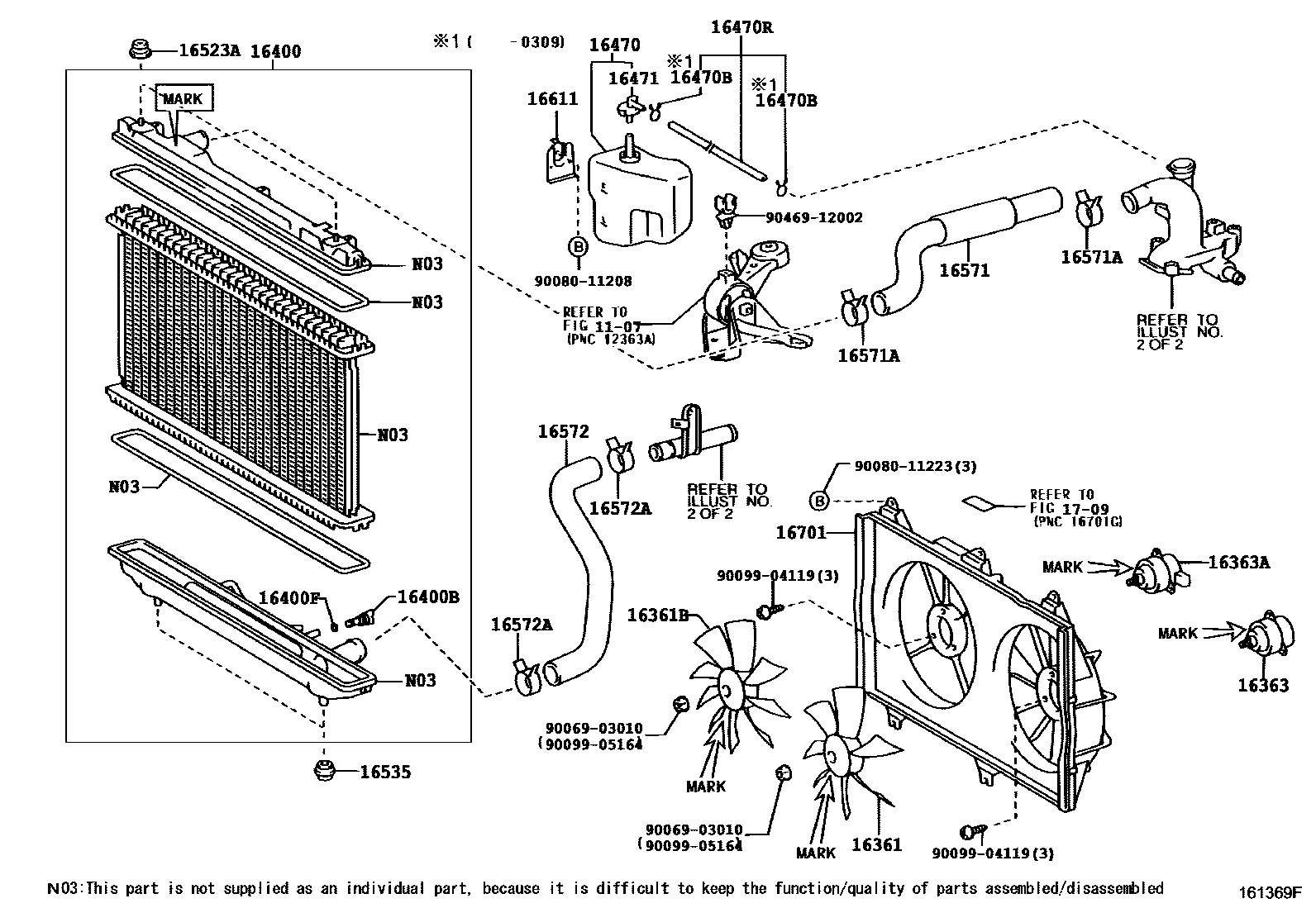

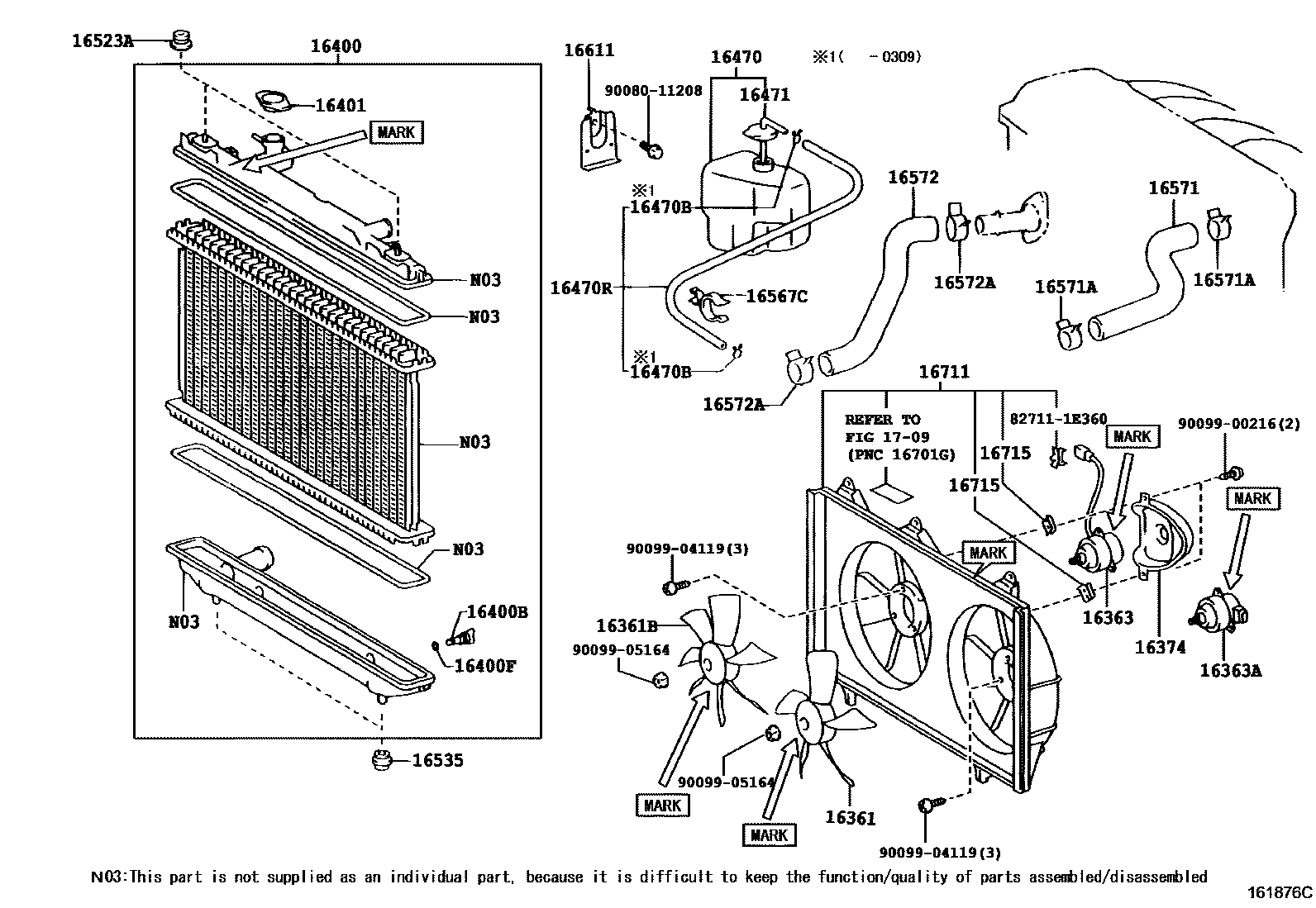

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-0H010 · 16258-28010 · 16258-28011 · 16258-28030 |
| 16261 | HOSE, WATER BY-PASS | 16261-0H010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0A010 · 16261-20010 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-28007 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0A030 · 16264-0A040 · 16264-0A041 · 16264-0H010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-51300 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0A030 · 16267-0A040 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96135-51300 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0H010 · 16268-28010 |
| 16321 | water inlet | 16321-0A020 · 16321-0A030 · 16321-0H010 · 16321-0H011 · 16321-28020 |
| 16322 | PIPE, WATER INLET | 16322-0A020 · 16322-0A030 |
| 16322A | O-RING, WATER INLET | 96761-35031 |
| 16323 | HOUSING, WATER INLET | 16323-0A010 · 16323-0A021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16331 | Water outlet | 16304-0A020 |
| 16331A | thermostat | 90916-03084 · 90916-03129 · 90916-03136 |
| 16331F | Cover assembly (for water outlet) | 16401-62090 |
| 16361 | Fan | 16361-03070 · 16361-03071 · 16361-0A120 · 16361-0A121 · 16361-20050 · 16361-21080 |
| 16361B | Fan No. 2 | 16361-03080 · 16361-03081 · 16361-0A130 · 16361-0A131 · 16361-28050 · 16361-28100 |
| 16363 | cooling fan motor | 16363-03100 · 16363-0A100 · 16363-0A170 · 16363-23020 · 16363-28030 · 16363-28150 |
| 16363A | Cooling fan motor No. 2 | 16363-0A110 · 16363-0A180 · 16363-0H010 · 16363-23030 · 16363-27040 · 16363-27050 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-28130 · 16366-28220 |
| 16384 | Fan belt adjustment lever bracket | 16384-20020 |
| 16400 | Radiator assembly | 16400-0A230 · 16400-0A240 · 16400-0A420 · 16400-0H030 · 16400-0H130 · 16400-0H131 · 16400-0H200 · 16400-20261 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-62100 |
| 16470 | Radiator reservoir assembly | 16470-AA010 · 16470-AA020 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-12058 |
| 16470R | No. 2 hose (for radiator reservoir) | 16472-AA010 · 16472-AB010 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-AA010 |
| 16523A | Radiator bracket cushion | 16523-0H010 |
| 16535 | Radiator lower support | 16535-03050 · 16535-0A050 |
| 16567C | Clip or clip (for No. 3 radiator reservoir hose) | 90464-00796 |
| 16571 | Radiator water inlet hose | 16571-0H020 · 16571-AA010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90080-46344 · 90466-35001 |
| 16572 | Radiator outlet hose | 16572-0H020 · 16572-AA010 · 16572-AA011 · 16572-AA030 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90080-46344 · 90466-35001 |
| 16611 | Radiator reservoir bracket | 16611-0A010 |
| 16701 | Fan cover sub-assembly | 16711-0A170 · 16711-20140 |
| 16711 | fan cover | 16711-0H020 · 16711-28270 |
| 16715 | fan cover bracket | 88688-18030 |
