Toyota CAMRY Crankshaft & Piston — Figure 1301

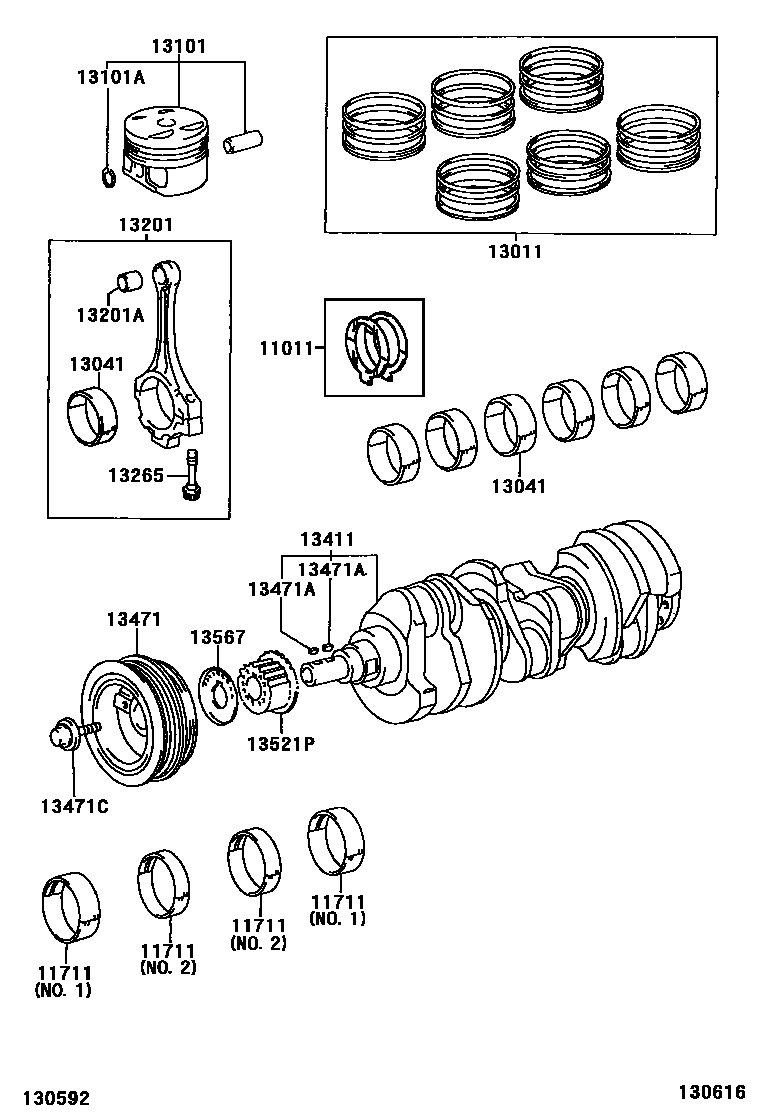

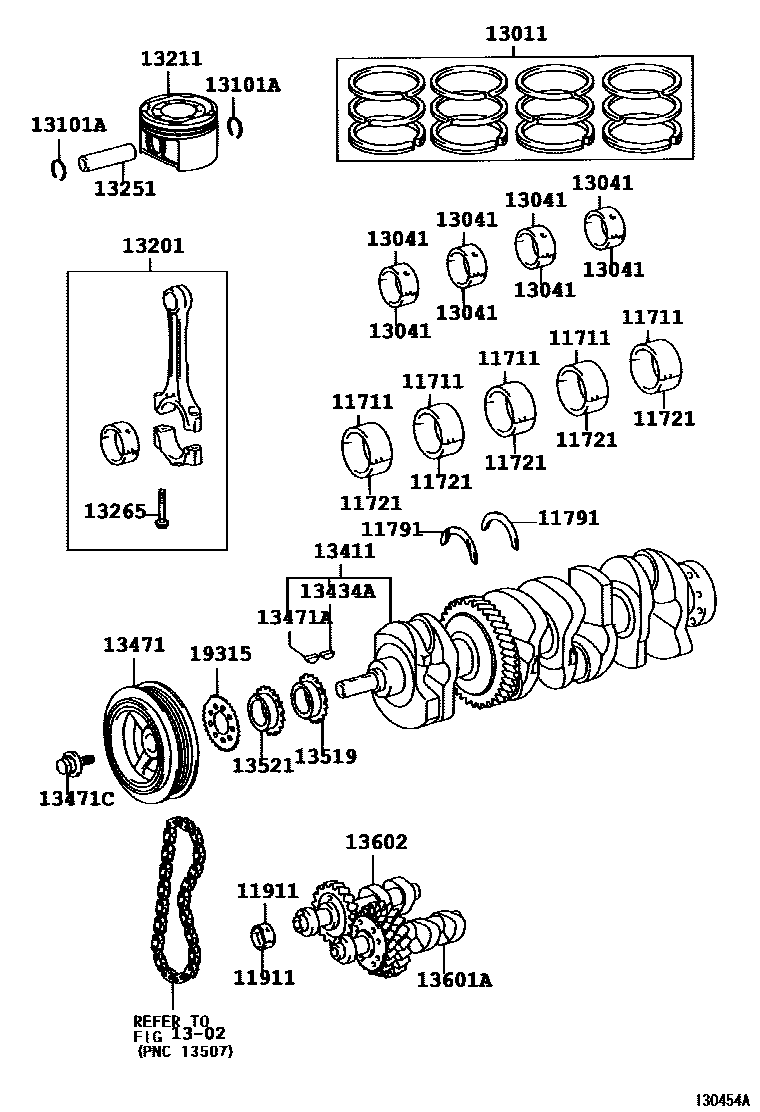

Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-0A010 · 11011-20020 |
| 11711 | crankshaft bearings | 11071-20020 · 11701-20020 |
| 11791 | Thrust washer on crankshaft | 11791-0H010 · 11791-28020 |
| 13011 | Piston ring assembly | 13011-0A020 · 13011-0A030 · 13011-0A040 · 13011-0H010 · 13011-20023 · 13011-28101 · 13011-28102 |
| 13041 | Connecting rod bearing | 13041-20010 |
| 13101 | Piston sub-assembly with pin | 13101-0A020 · 13101-0A040 · 13101-0A050 · 13301-0A020 · 13301-0A040 |
| 13101A | Bore snap ring (for piston pin) | 90520-22025 |
| 13201 | Connecting rod sub-assembly | 13201-09070 · 13201-09180 · 13201-09190 · 13201-29015 · 13201-29155 · 13201-29165 · 13201-29525 |
| 13201A | Bushing (for connecting rod small end) | 90999-73119 |
| 13265 | Connecting rod bolts | 13265-28010 · 13265-50020 |
| 13411 | crankshaft | 13401-0A020 · 13401-0A030 · 13401-0H010 · 13401-0H900 · 13401-20030 · 13401-28010 |
| 13434A | Key (for oil pump active spline) | 95161-30416 |
| 13471 | crankshaft pulley | 13408-0A010 · 13470-0H010 · 13470-28020 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30416 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90080-11419 · 90119-14106 · 90119-16004 |
| 13519 | Oil pump driving gear | 13519-0H010 · 13519-28010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0H010 · 13521-28010 · 13521-28030 |
| 13521P | crankshaft timing pulley | 13521-0A010 · 13521-20020 |
| 13567 | No. 2 timing belt guide | 13567-62010 |
| 13601A | No. 1 balance shaft sub-assembly | 13601-0H010 · 13601-28010 · 13601-28011 · 13601-28030 |
| 13602 | No. 2 balance shaft sub-assembly | 13602-0H010 · 13602-28010 · 13602-28011 · 13602-28030 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-0H010 · 19315-28010 |
