Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 7 PNC and OE references.

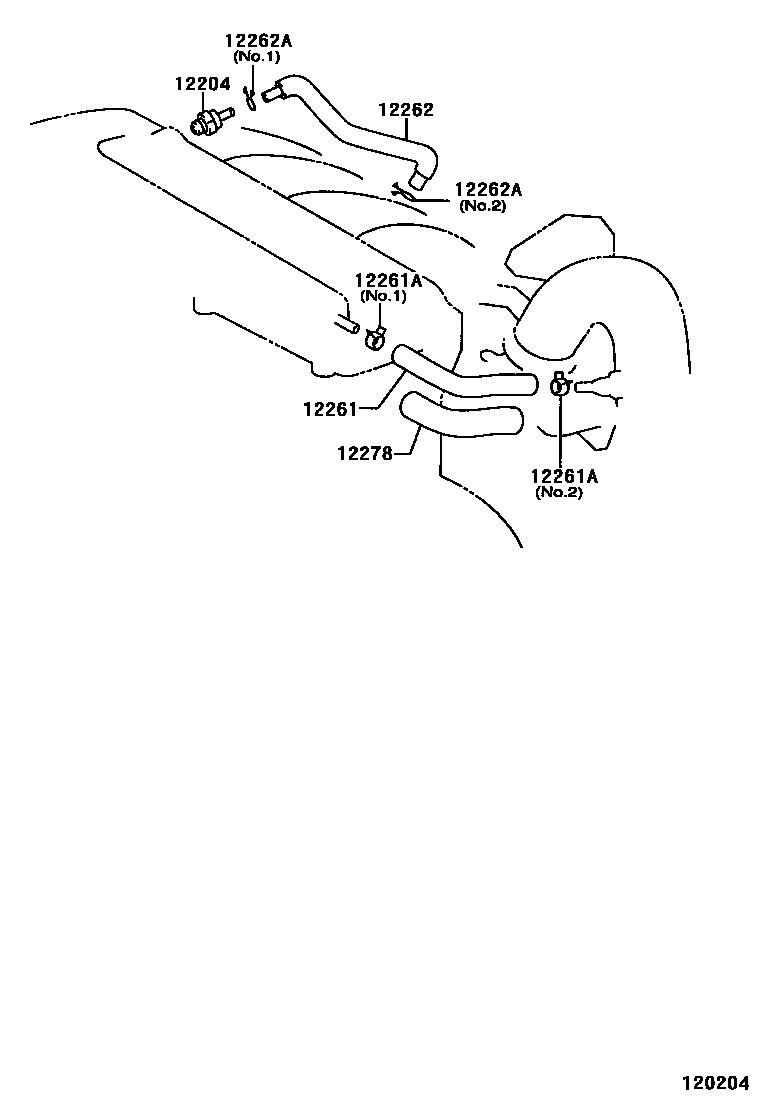

Toyota CAMRY Ventilation Hose EPC diagram — 120204
Ventilation Hose — 120204 (200107 – 999999)

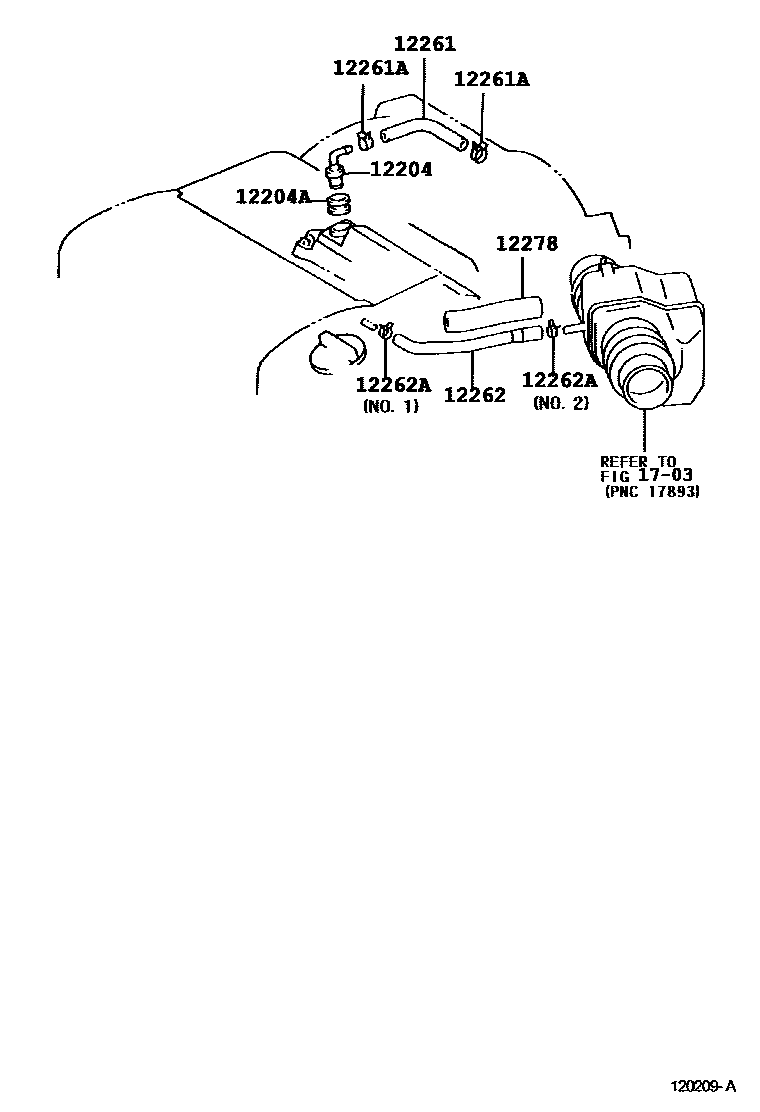

Toyota CAMRY Ventilation Hose EPC diagram — 120209A
Ventilation Hose — 120209A (200107 – 200301)

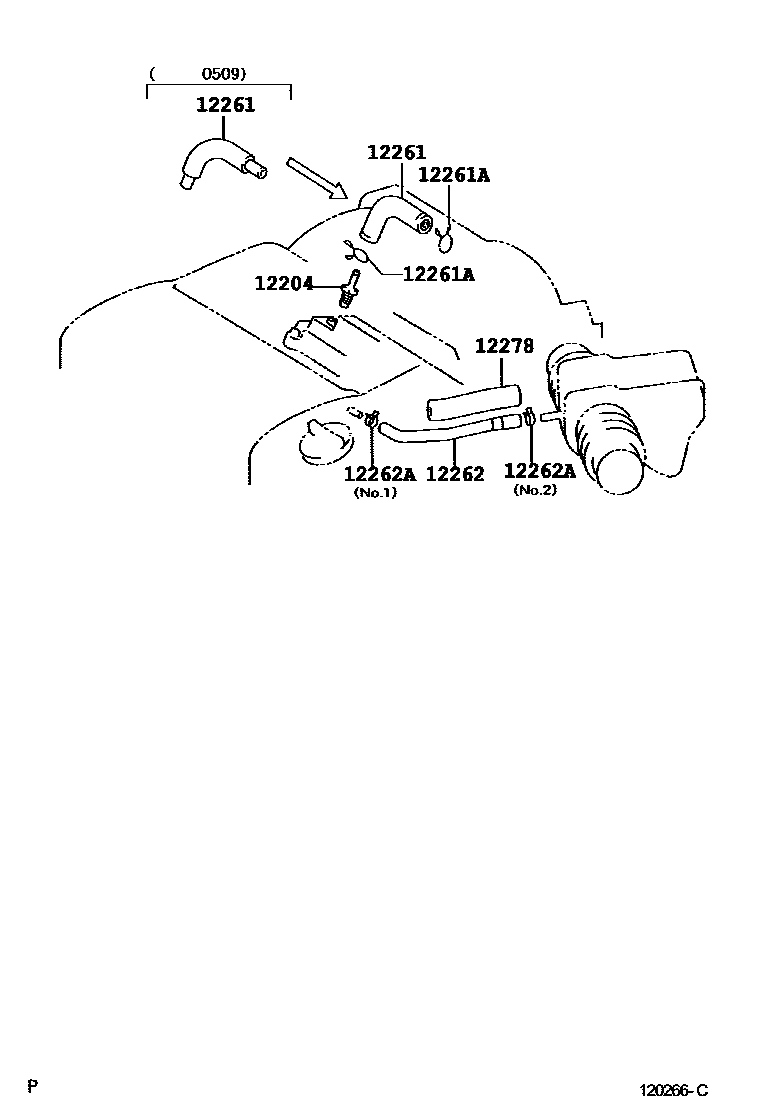

Toyota CAMRY Ventilation Hose EPC diagram — 120266C
Ventilation Hose — 120266C (200301 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-20020 · 12204-20040 · 12204-20060 · 12204-28020
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-0H010 · 12261-20011 · 12261-20090 · 12261-20091
12261AClip or clip (for vent hose)90080-46349 · 90467-14017 · 90467-20005 · 96134-41900
12262Ventilation hose No. 212261-0A020 · 12262-0H010
12262AClamp (for vent hose No. 2)90467-13103 · 90467-16035 · 90467-17013 · 96134-41900 · 96134-51700
12278Ventilation hose insulation pad12278-AA010 · 12278-AB010
