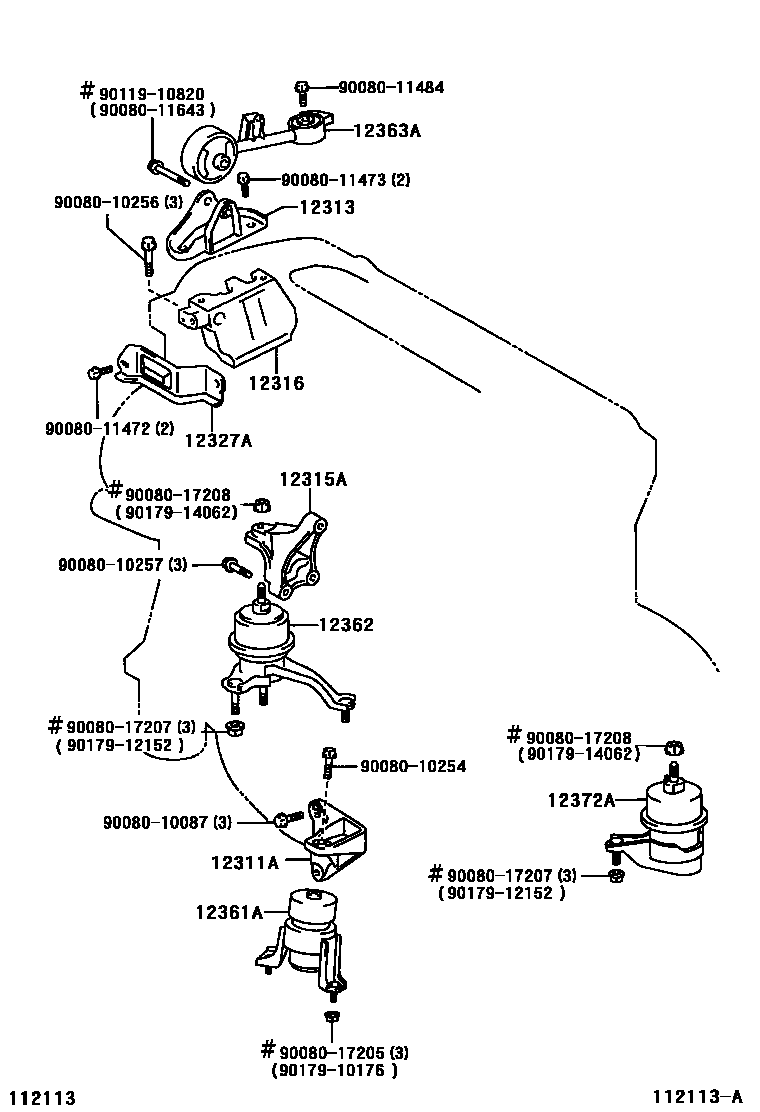

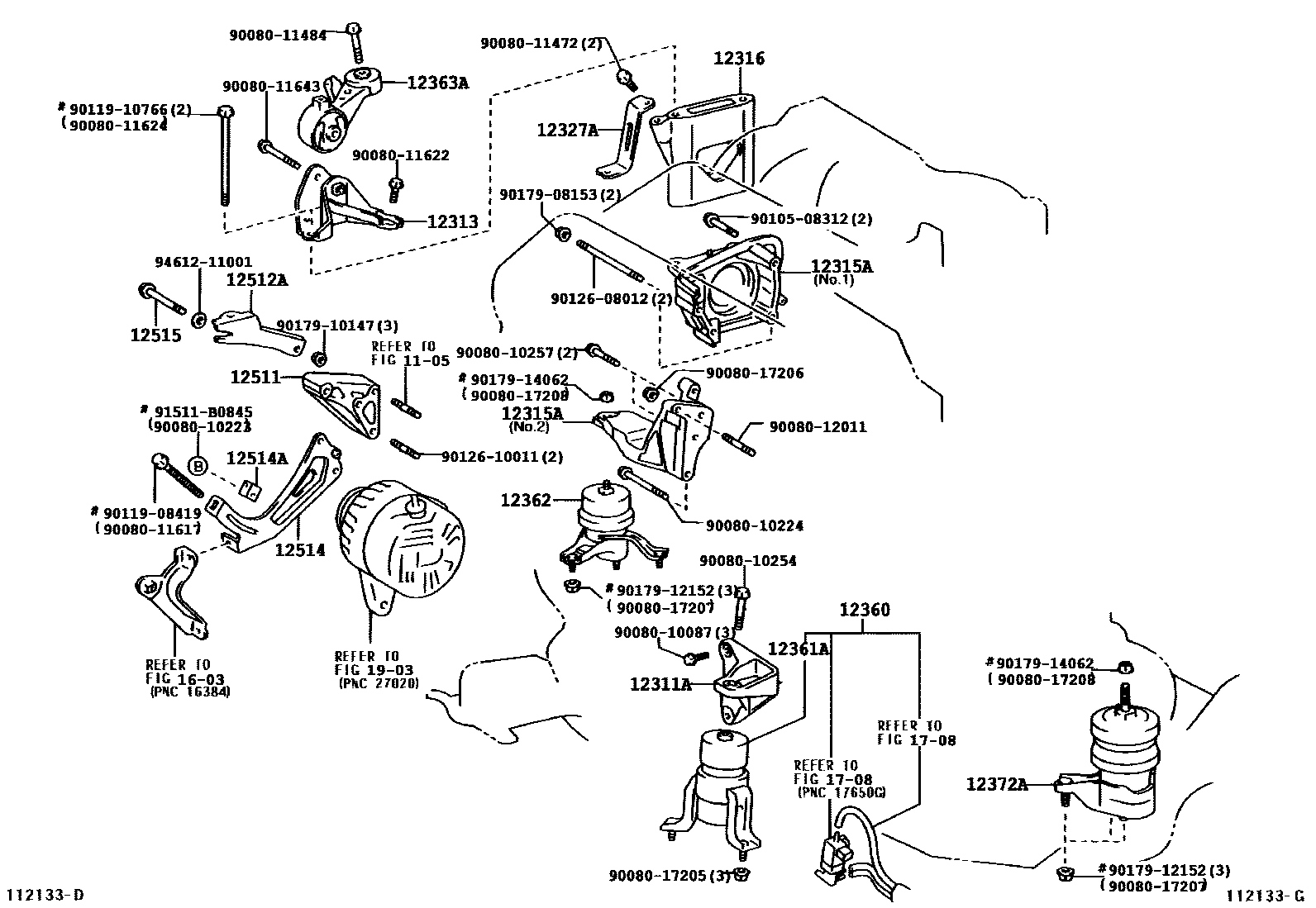

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0A050 · 12311-0A070 · 12311-0H070 · 12311-28080 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0A070 · 12313-0H040 · 12313-20060 · 12313-28020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0A010 · 12315-0A030 · 12315-0H010 · 12315-20030 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-0A022 · 12316-0H010 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0A030 · 12327-0H010 · 12327-20020 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-0A080 · 12360-0A100 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0A080 · 12361-0A100 · 12361-0A120 · 12361-0H030 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-0A010 · 12362-0A030 · 12362-0H010 |
| 12363A | Engine movement control lever | 12363-0A110 · 12363-0A120 · 12363-0H050 · 12363-20100 · 12363-28060 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0A040 · 12372-0H020 |
| 12511 | No. 1 generator bracket | 12511-20020 |
| 12512A | No. 2 generator bracket | 12512-20020 |
| 12514 | Generator belt adjustment lever | 12514-0A010 |
| 12514A | Fan belt adjustment slider | 16385-20010 |
| 12515 | Generator through bolts | 12515-0A010 |
