Toyota CAMRY Cylinder Head — Figure 1104

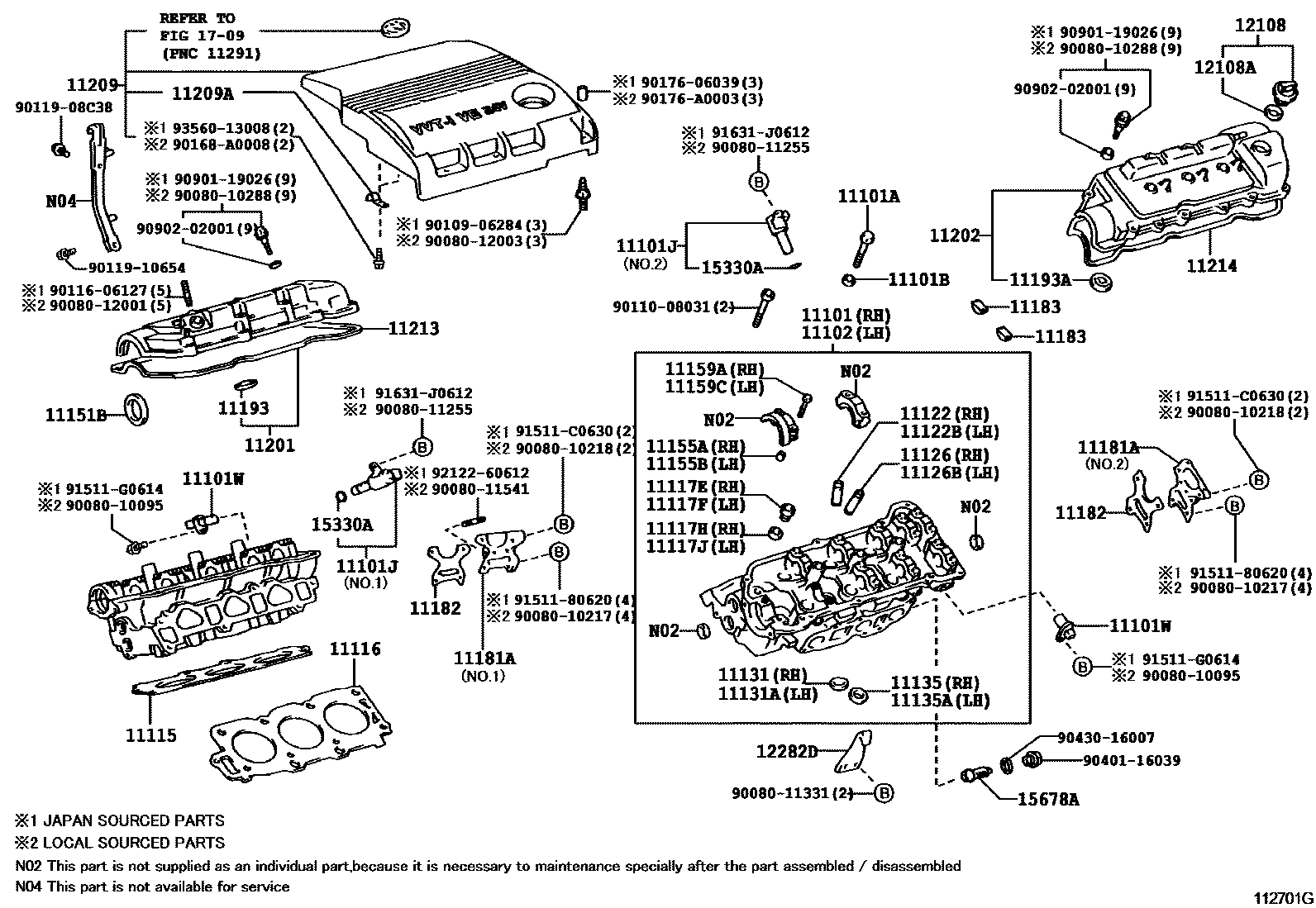

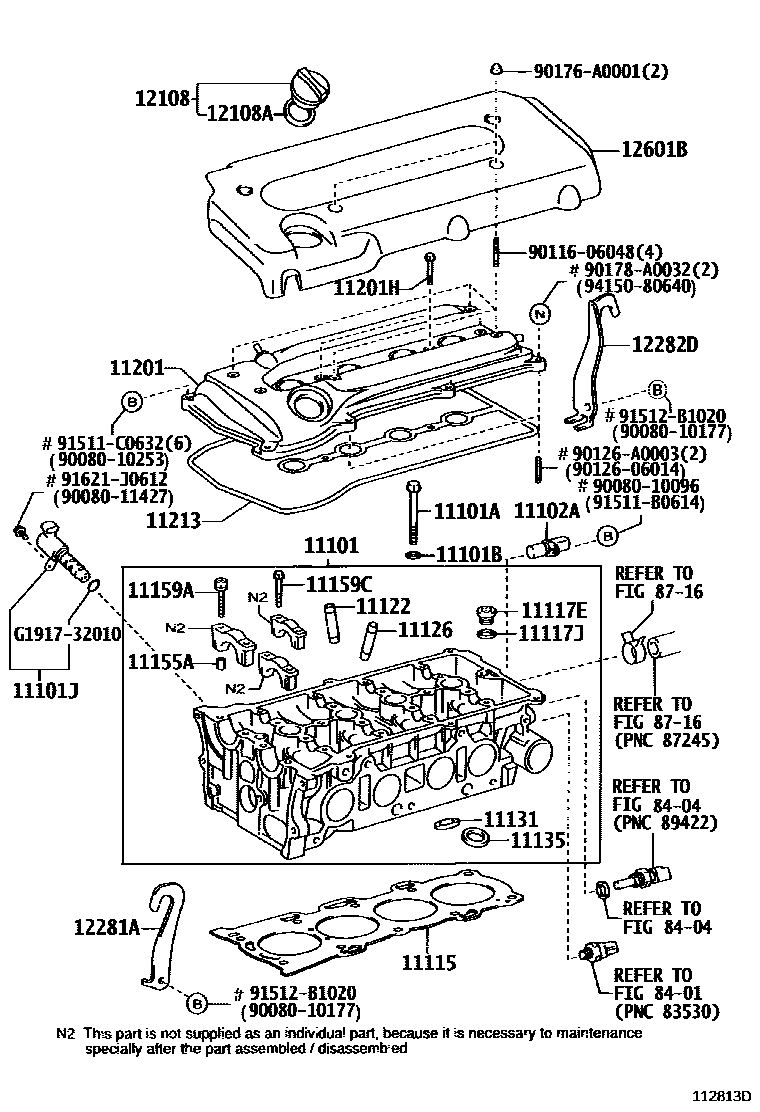

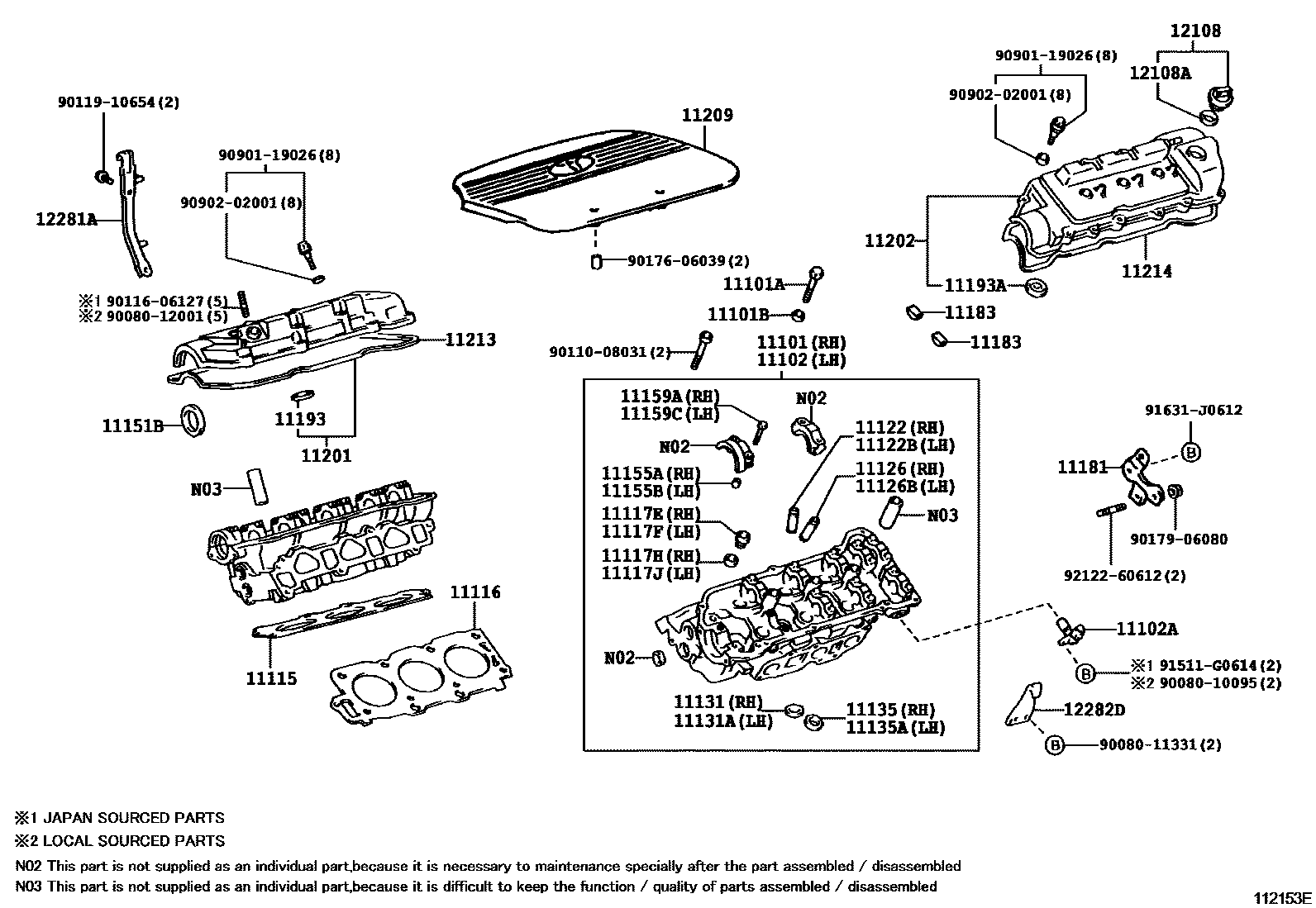

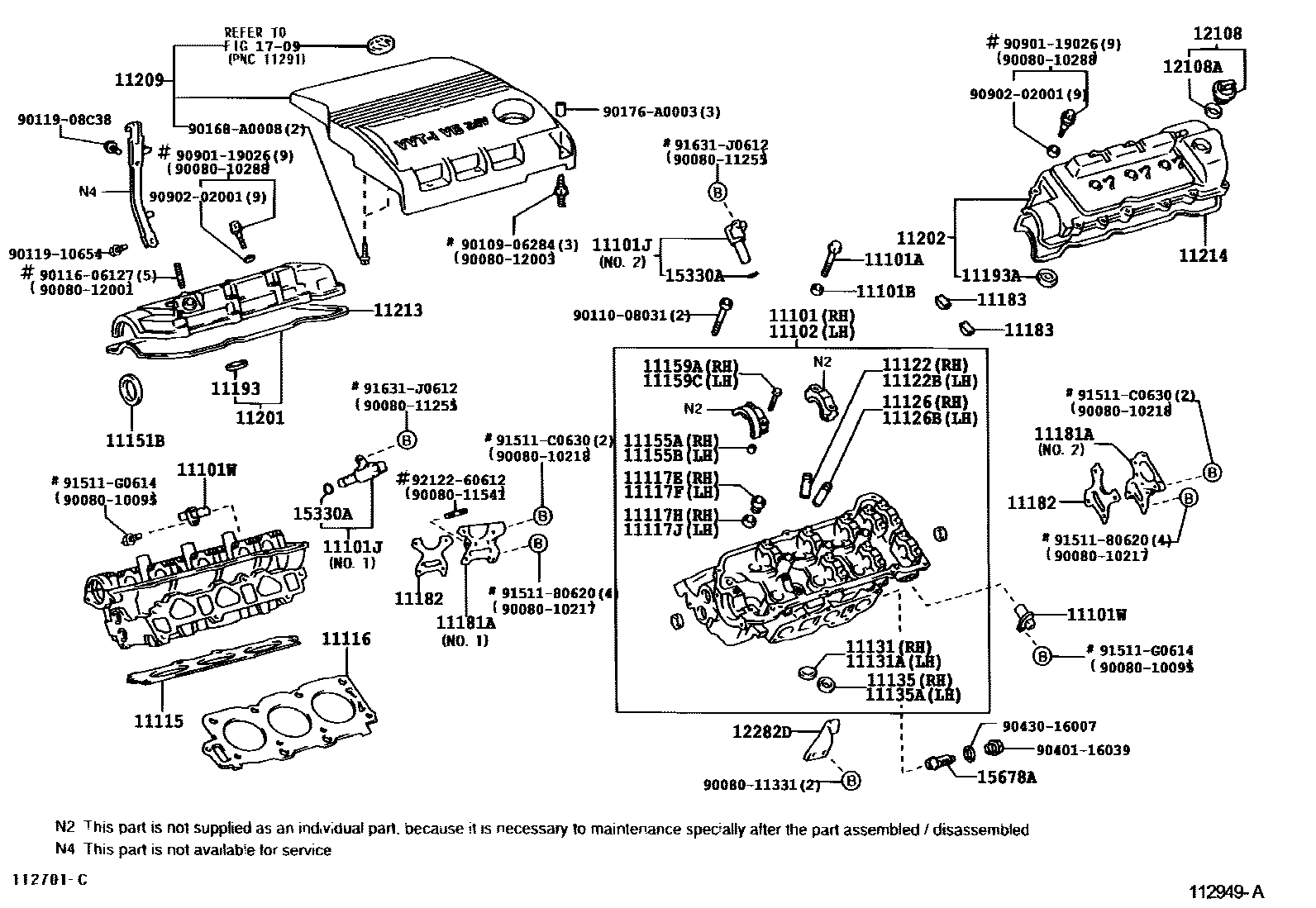

Toyota CAMRY EPC diagram 1104, Cylinder Head, with 4 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09074 · 11101-09132 · 11101-09150 · 11101-0H010 · 11101-0H011 · 11101-28011 · 11101-28012 · 11101-29409 · 11101-29438 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02117 · 90910-02141 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11031 · 90201-11033 · 90201-11034 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0A010 · 15330-20010 · 15330-20011 · 15330-28020 · 15340-0A010 · 15340-20010 · 15340-20011 |
| 11101W | No. 1 crankshaft position sensor | 90080-19014 |
| 11102 | left cylinder head | 11102-09013 · 11102-09032 · 11102-09050 · 11102-29039 · 11102-29058 |
| 11102A | Camshaft position sensor | 90080-19014 · 90919-05013 · 90919-05026 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0A010 · 11115-0A012 · 11115-20030 · 11115-20032 · 11115-20040 · 11115-28011 · 11115-28012 · 11115-28013 · 11115-28040 |
| 11116 | No. 2 cylinder head gasket | 11116-0A010 · 11116-0A012 · 11116-20030 · 11116-20032 · 11116-20040 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-24013 · 90341-27006 |
| 11117F | No. 2 headed straight thread plug | 90341-24013 |
| 11117H | Gasket (for coolant hole) | 90430-24246 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-24246 · 90430-27005 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-20020 · 11122-28010 · 11123-20020 · 11123-28010 |
| 11122B | No. 2 intake valve guide bushing | 11122-20020 · 11123-20020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-20020 · 11127-20020 |
| 11126B | No. 2 exhaust valve guide bushing | 11126-20020 · 11127-20020 |
| 11131 | intake valve seat | 11131-0H020 · 11131-28021 · 11131-62030 · 11131-62050 · 11132-0H020 · 11132-28021 · 11132-62030 · 11132-62050 |
| 11131A | No. 2 intake valve seat | 11131-62030 · 11131-62050 · 11132-62030 · 11132-62050 |
| 11135 | Exhaust valve seat | 11135-0H020 · 11135-20040 · 11135-28030 · 11135-28040 · 11136-0H020 · 11136-20040 · 11136-28030 · 11136-28040 |
| 11135A | No. 2 exhaust valve seat | 11135-20040 · 11136-20040 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90080-31035 |
| 11155A | PIN, RING W/HEAD | 90253-10004 · 90253-11021 |
| 11155B | PIN, RING | 90253-10004 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90080-10210 · 90105-08353 · 90119-07009 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90080-11292 · 90119-06902 · 90119-07009 |
| 11181 | cylinder head rear plate | 11181-0A011 · 11181-20030 |
| 11181A | cylinder head rear cover | 11108-20010 · 11109-20010 |
| 11182 | Rear cylinder head gasket | 11182-20020 |
| 11183 | PLUG, SEMICIRCULAR | 11183-0A010 · 11183-20010 |
| 11193 | spark plug bushing gasket | 11193-0A010 |
| 11193A | Left spark plug bushing gasket | 11193-0A010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0A011 · 11201-0A030 · 11201-0A050 · 11201-0A051 · 11201-0A060 · 11201-0H011 · 11201-28013 · 11201-28014 · 11201-28031 |
| 11201H | Bolts (for cylinder head cover) | 90080-11295 · 90119-06903 |
| 11202 | Left cylinder head cover sub-assembly | 11202-0A021 · 11202-0A050 · 11202-0A051 |
| 11209 | V-shaped cylinder head sub-assembly | 11209-0A020 · 11209-20100 · 11209-AA010 |
| 11209A | Pipe clamp | 17578-20010 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0A010 · 11213-0H010 · 11213-20020 · 11213-28021 |
| 11214 | No. 2 cylinder head cover gasket | 11214-0A010 · 11214-20010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H010 · 12180-0H030 · 12180-28020 · 12180-28021 · 12180-46030 · 12180-46031 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-20020 · 90080-43025 · 90430-37004 |
| 12281A | Engine No. 1 hanger | 12281-0A021 · 12281-28010 |
| 12282D | ENGINE HANGER, NO.2 | 12282-20020 · 12282-28010 |
| 12601B | No. 1 engine hood sub-assembly | 12601-AB010 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14030 · 90099-14137 |
| 15678A | Oil control valve filter | 15678-20010 |
