Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

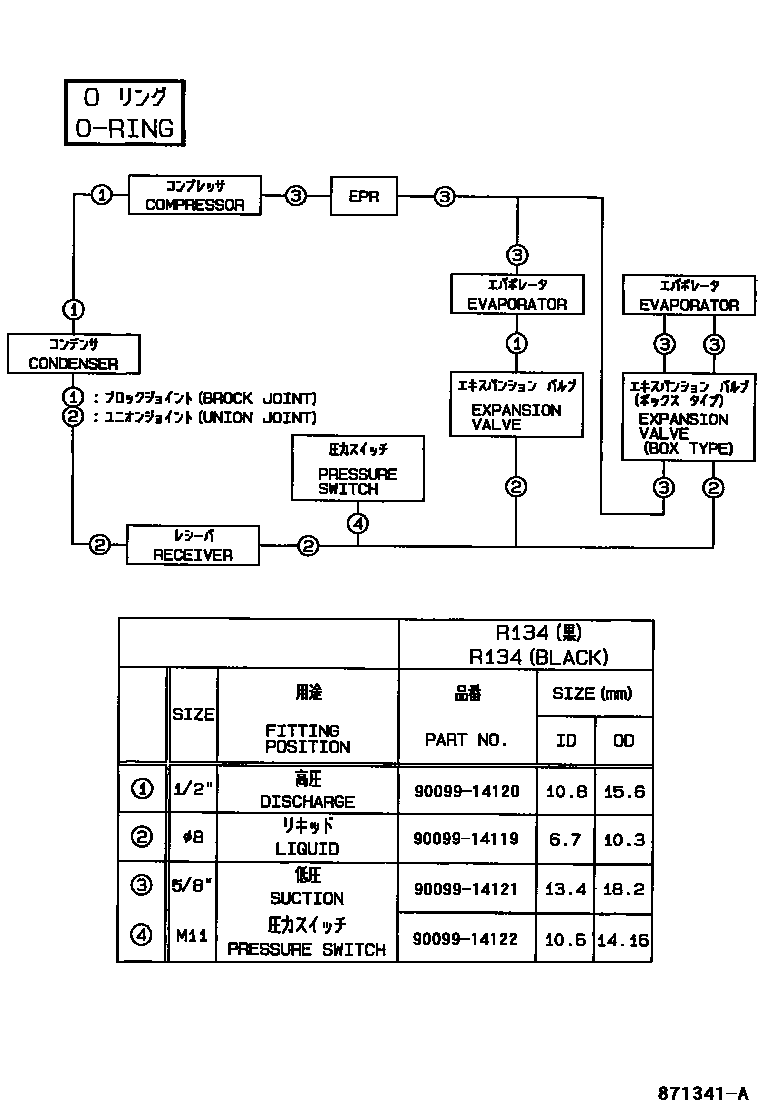

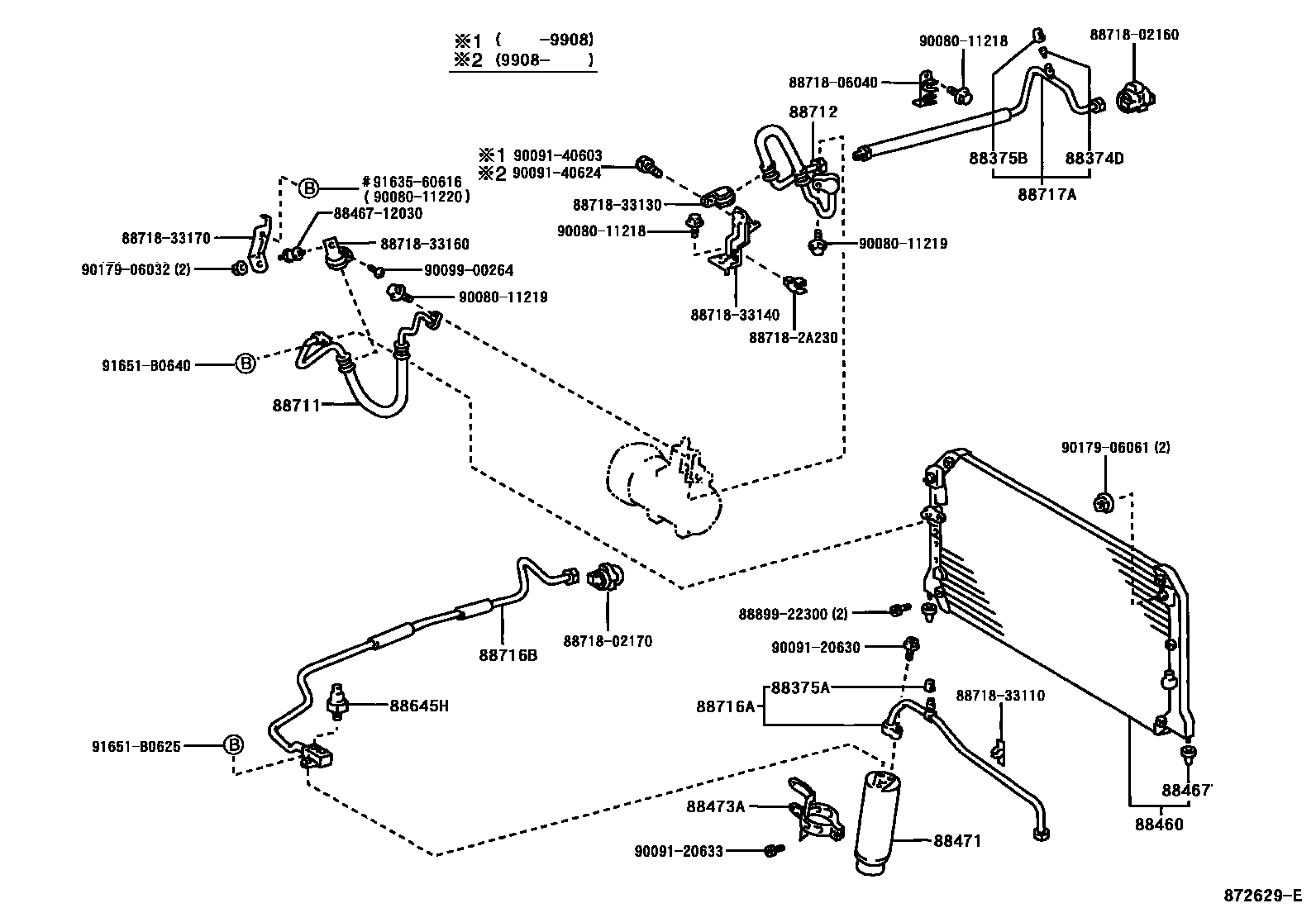

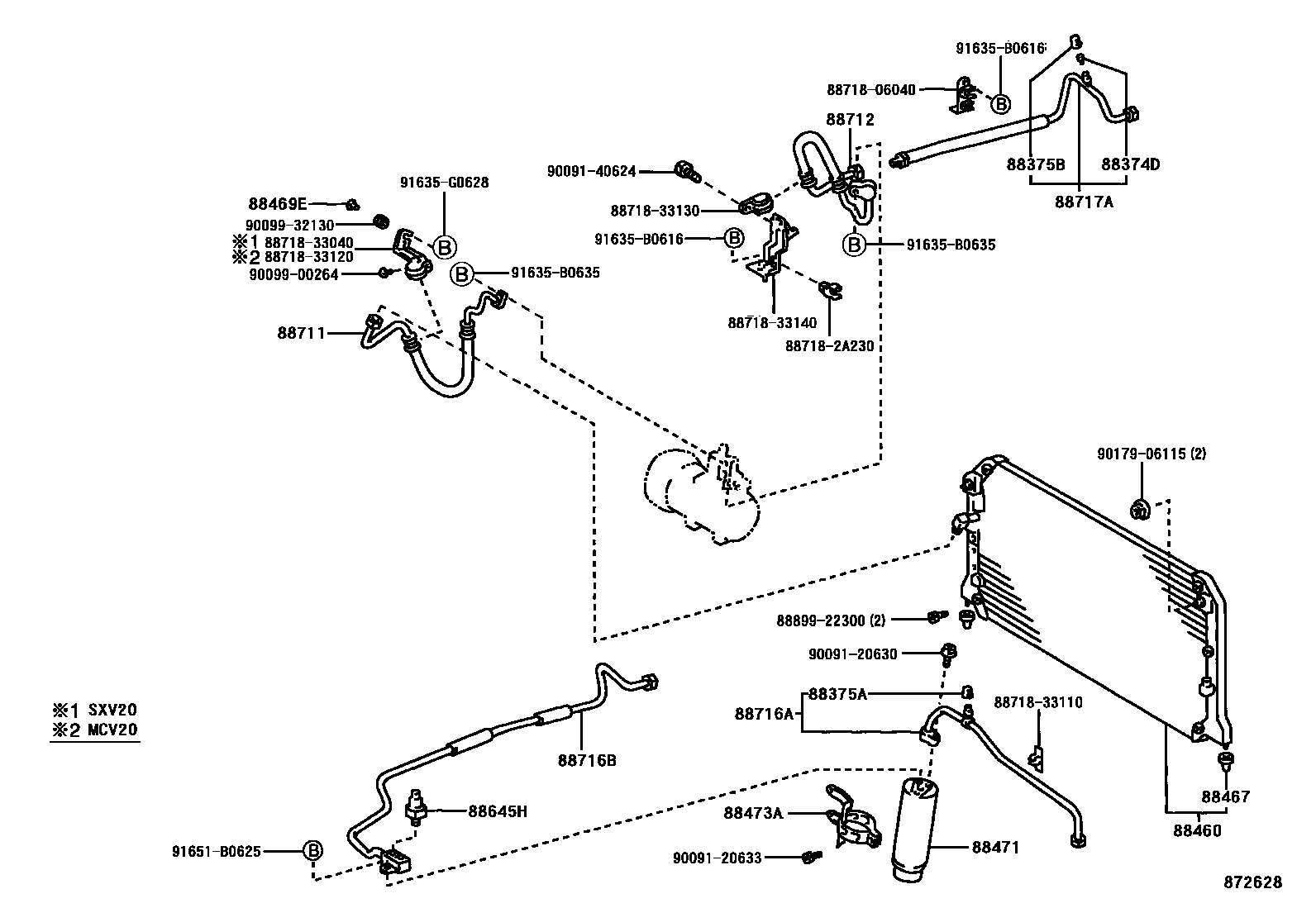

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374D | No. 3 maintenance valve | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-02060 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88460-06060 · 88460-06061 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-06030 |
| 88469E | No. 2 condenser bracket collar | 88469-28010 |
| 88471 | Air conditioning fluid storage tank | 88471-34010 |
| 88473A | Reservoir tank fixings | 88473-06030 |
| 88645H | No. 1 pressure switch | 88645-06020 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06070 · 88711-06071 · 88711-06080 · 88711-06081 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-06010 · 88712-06020 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-06110 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-06120 · 88716-06121 · 88716-06160 |
| 88717A | Cooler refrigerant suction pipe A | 88717-06050 · 88717-06060 |
