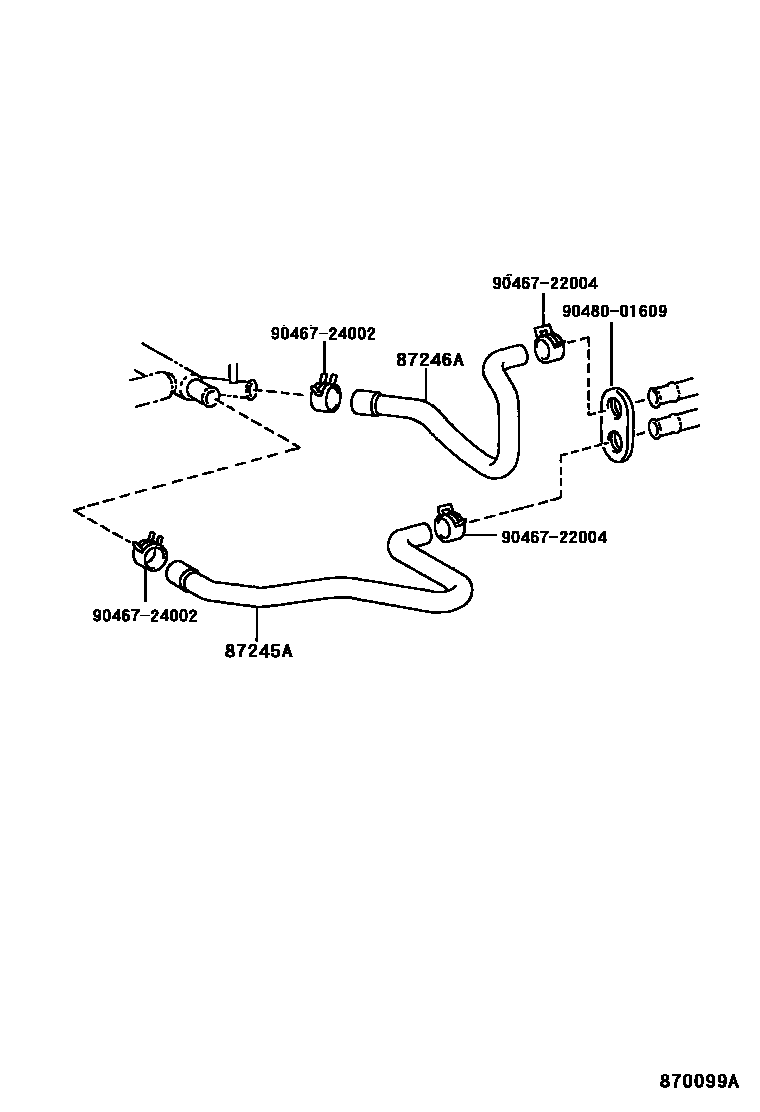

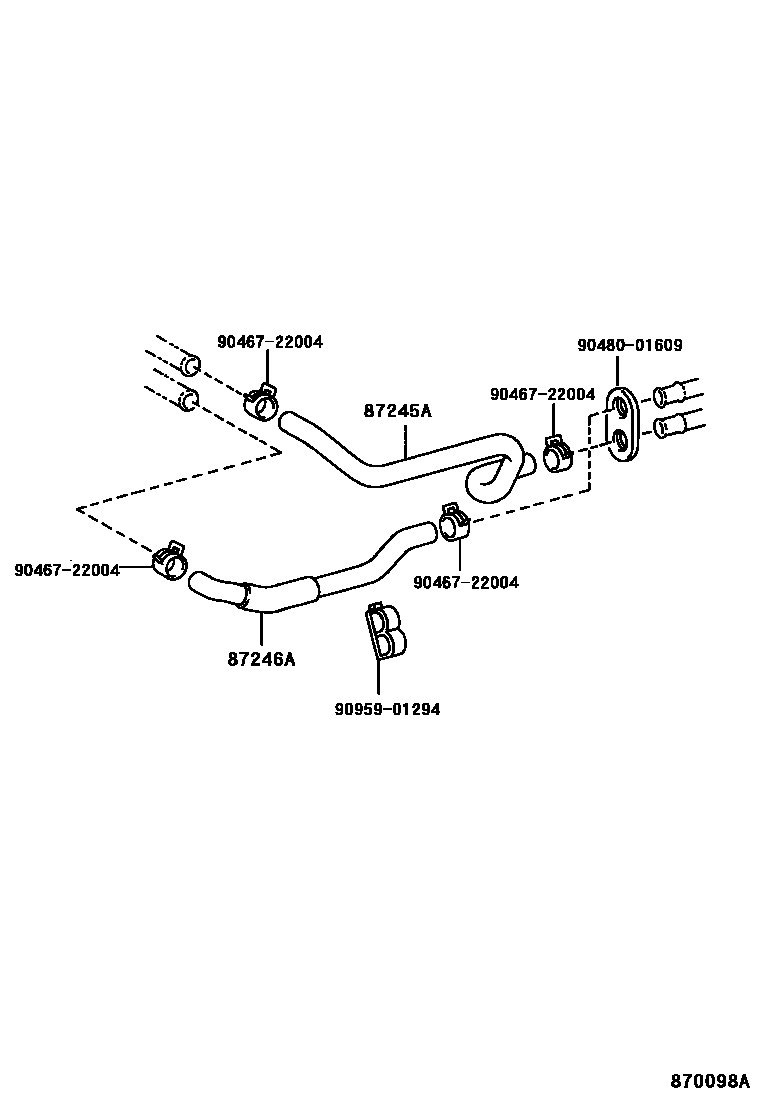

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245A | Heater water inlet hose A | 87245-06080 · 87245-06100 · 87245-06101 |
| 87246A | Heater outlet hose A | 87245-06090 · 87245-06110 · 87245-06111 |
