Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

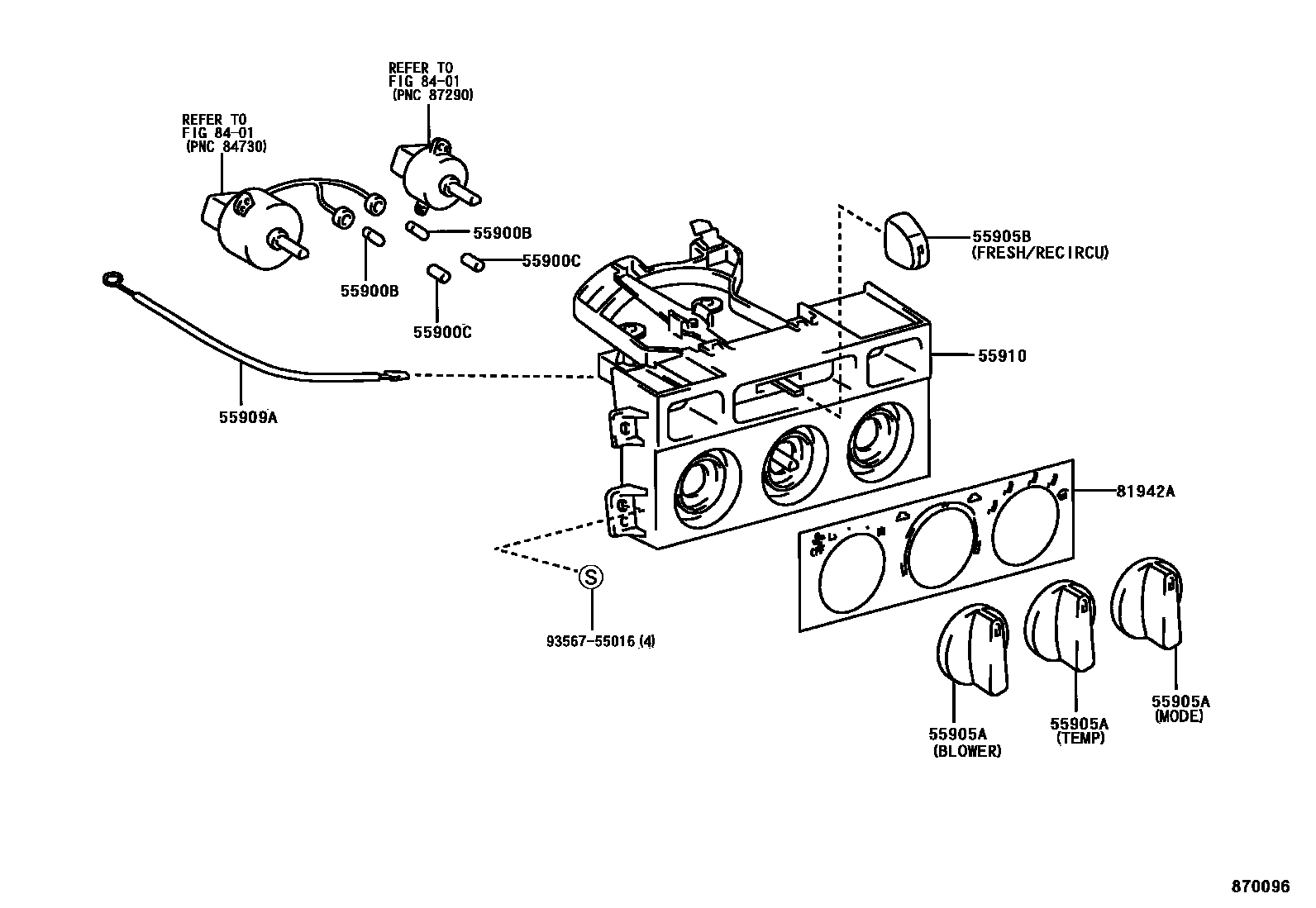

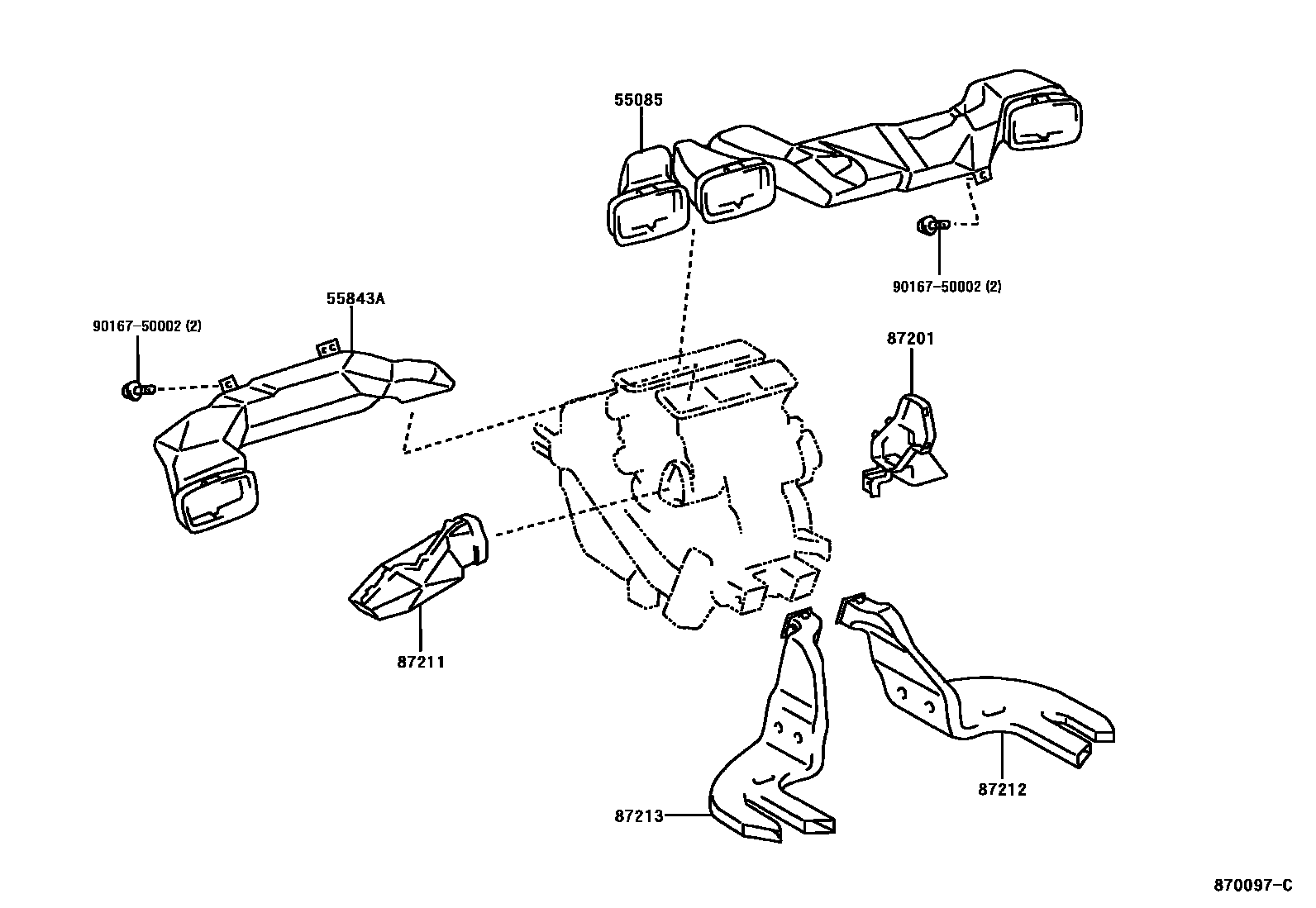

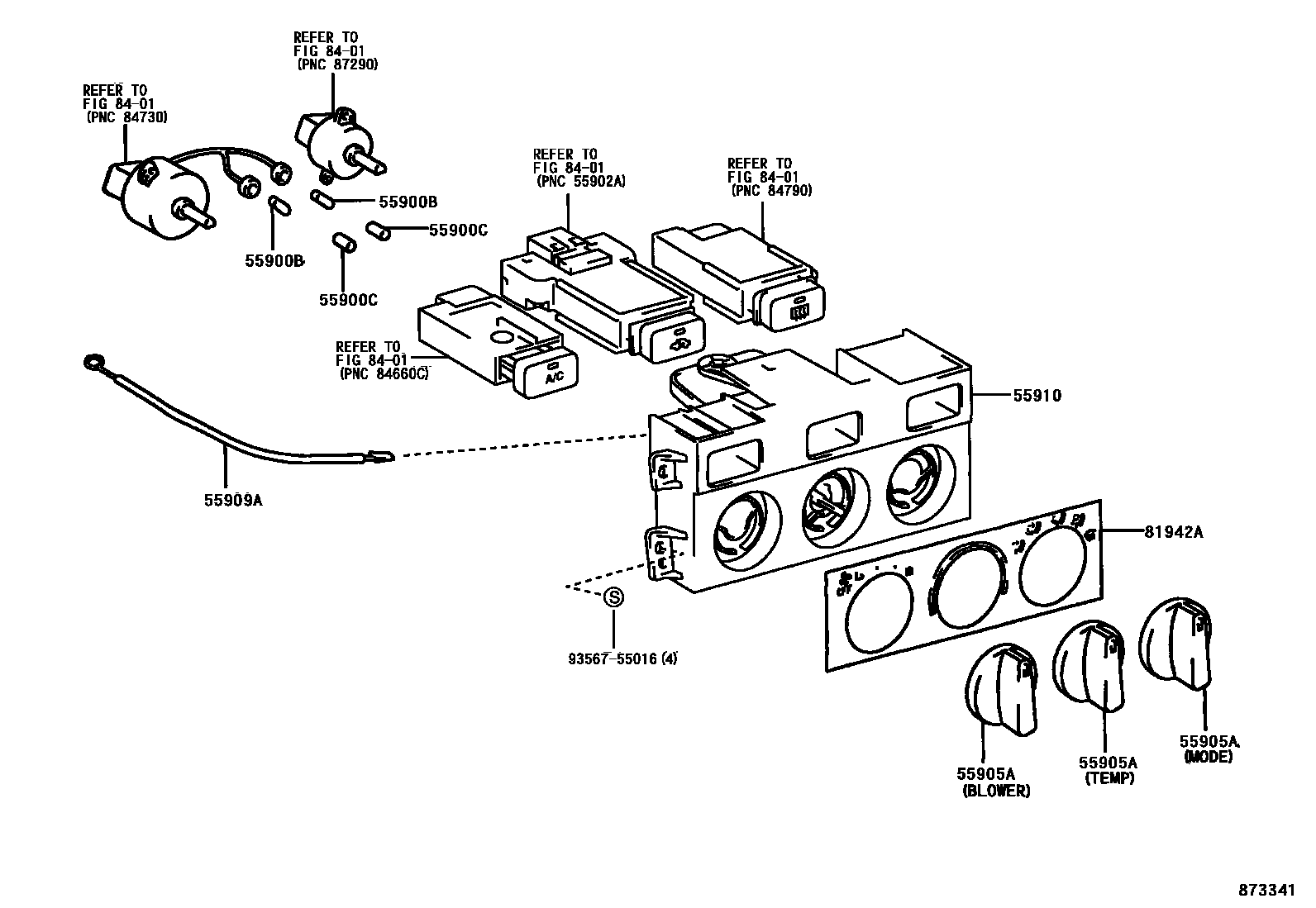

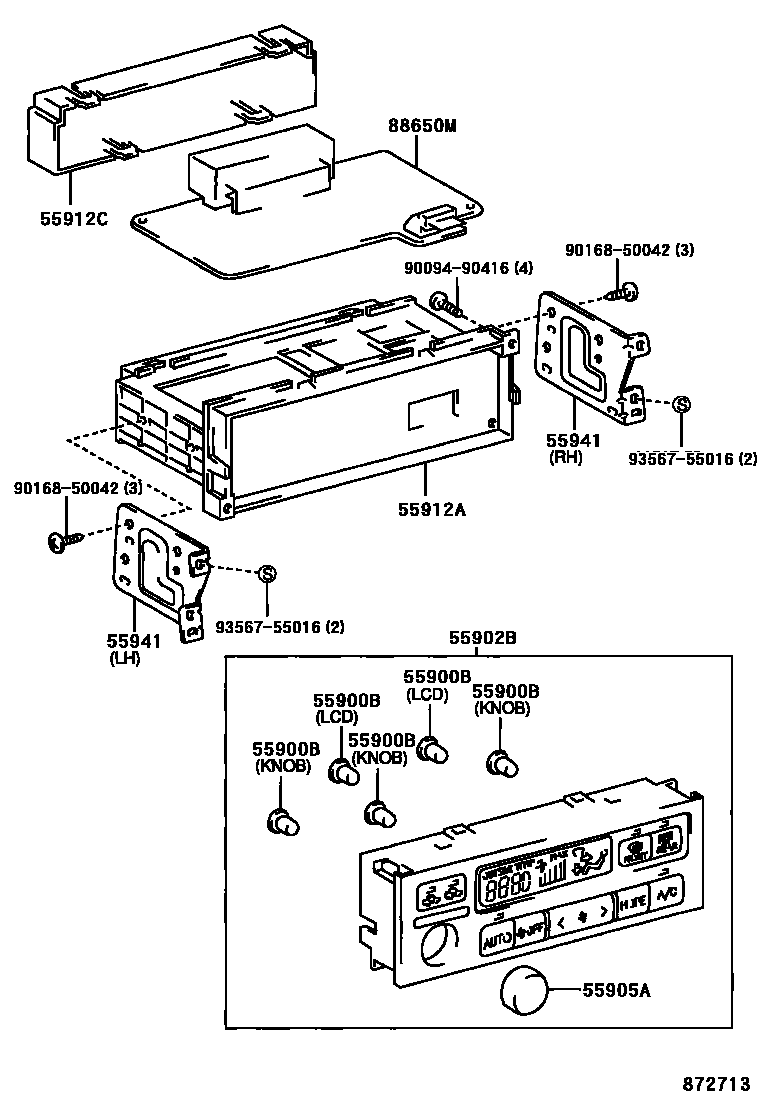

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-AA010 · 55085-AA020 |
| 55843A | Air duct No. 1 from heater to air register | 55843-AA010 |
| 55900B | air conditioning control light bulb | 90010-03003 · 90010-03004 · 90010-03030 · 90069-98004 |
| 55900C | Air conditioning control bulb cover | 90069-09006 |
| 55902B | Heater control sub-assembly | 55902-33180 · 55902-33250 |
| 55905A | Heater control button | 55905-06130 · 55905-30270 |
| 55905B | Heater control button 2 | 55905-06140 |
| 55909A | Air mix damper control cable sub-assembly | 55909-06020 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-06020 · 55910-06021 |
| 55912A | heater control housing | 55912-33020 |
| 55912C | heater control housing | 55912-33030 |
| 55941 | heater controller bracket | 55938-33010 · 55938-33020 |
| 81942A | Heater No. 1 control nameplate | 81942-06060 · 81942-06061 · 81942-06062 |
| 87201 | No. 1 air duct sub-assembly | 87201-06070 |
| 87211 | No. 1 air duct | 87211-06020 · 87211-06021 |
| 87212 | No. 1 rear air duct | 87212-06010 |
| 87213 | No. 2 rear air duct | 87213-06010 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-33150 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22130 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-20490 |
| 88650M | Air conditioning ECU assembly | 88650-33280 · 88650-33330 · 88650-33350 |
