Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

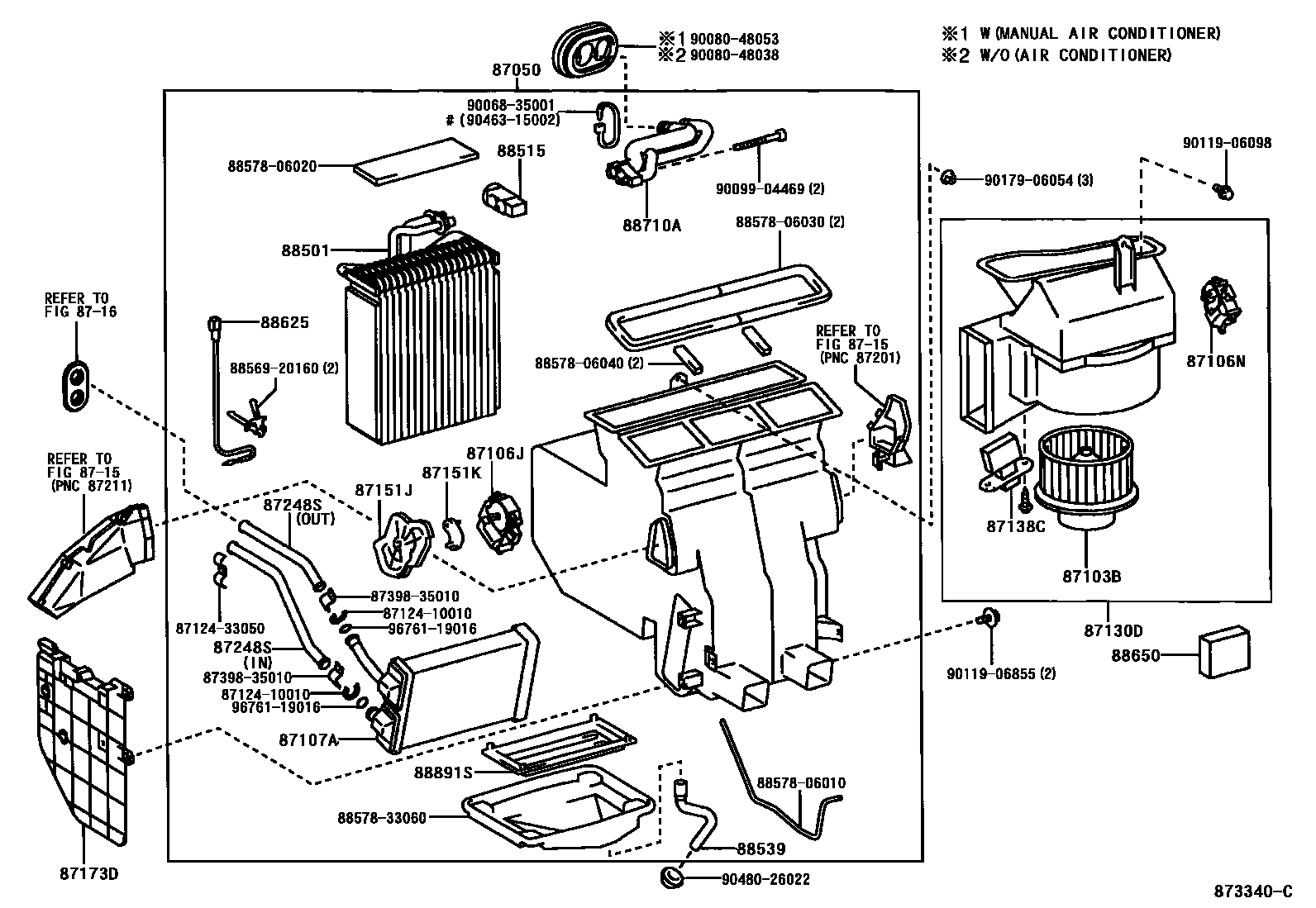

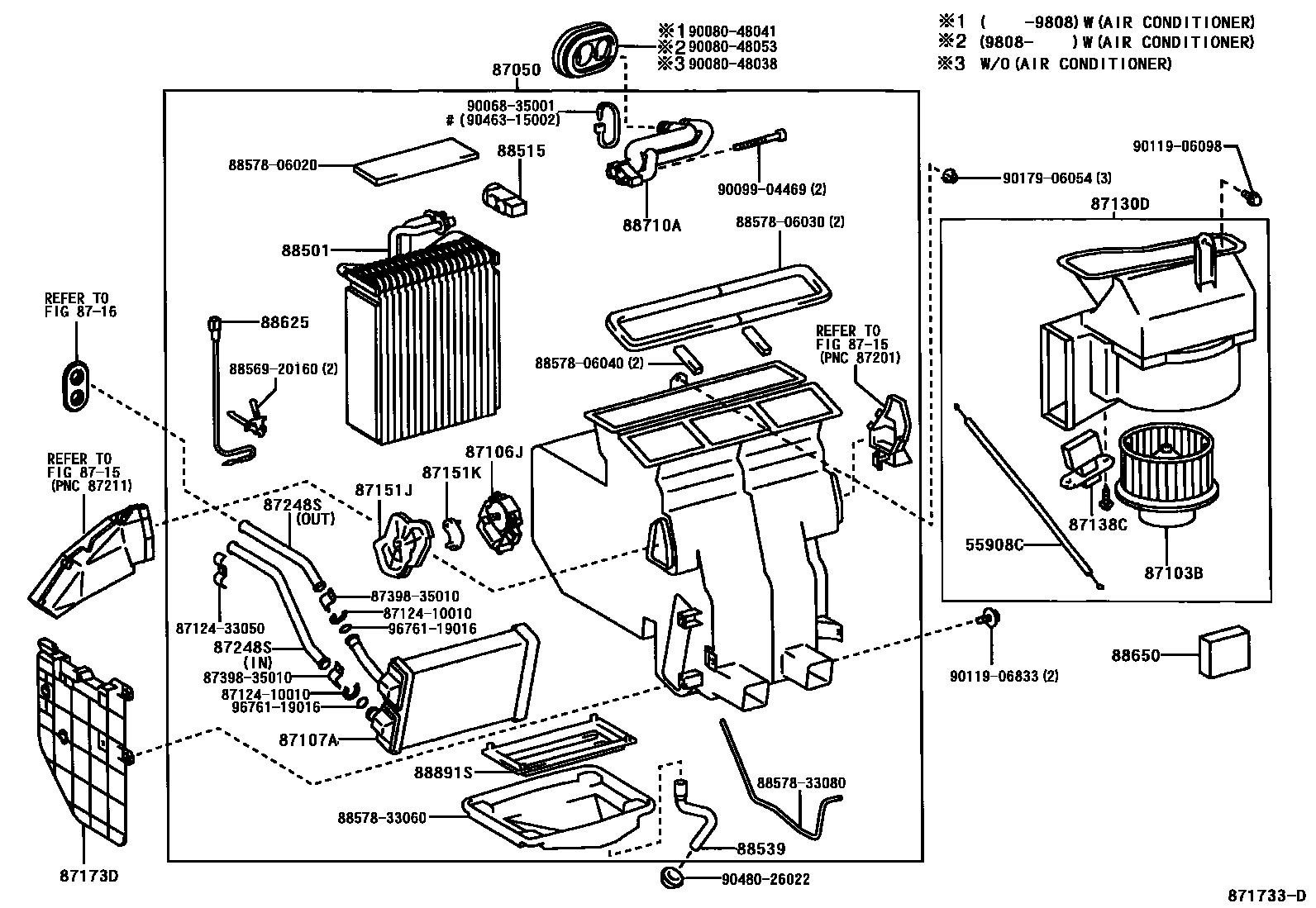

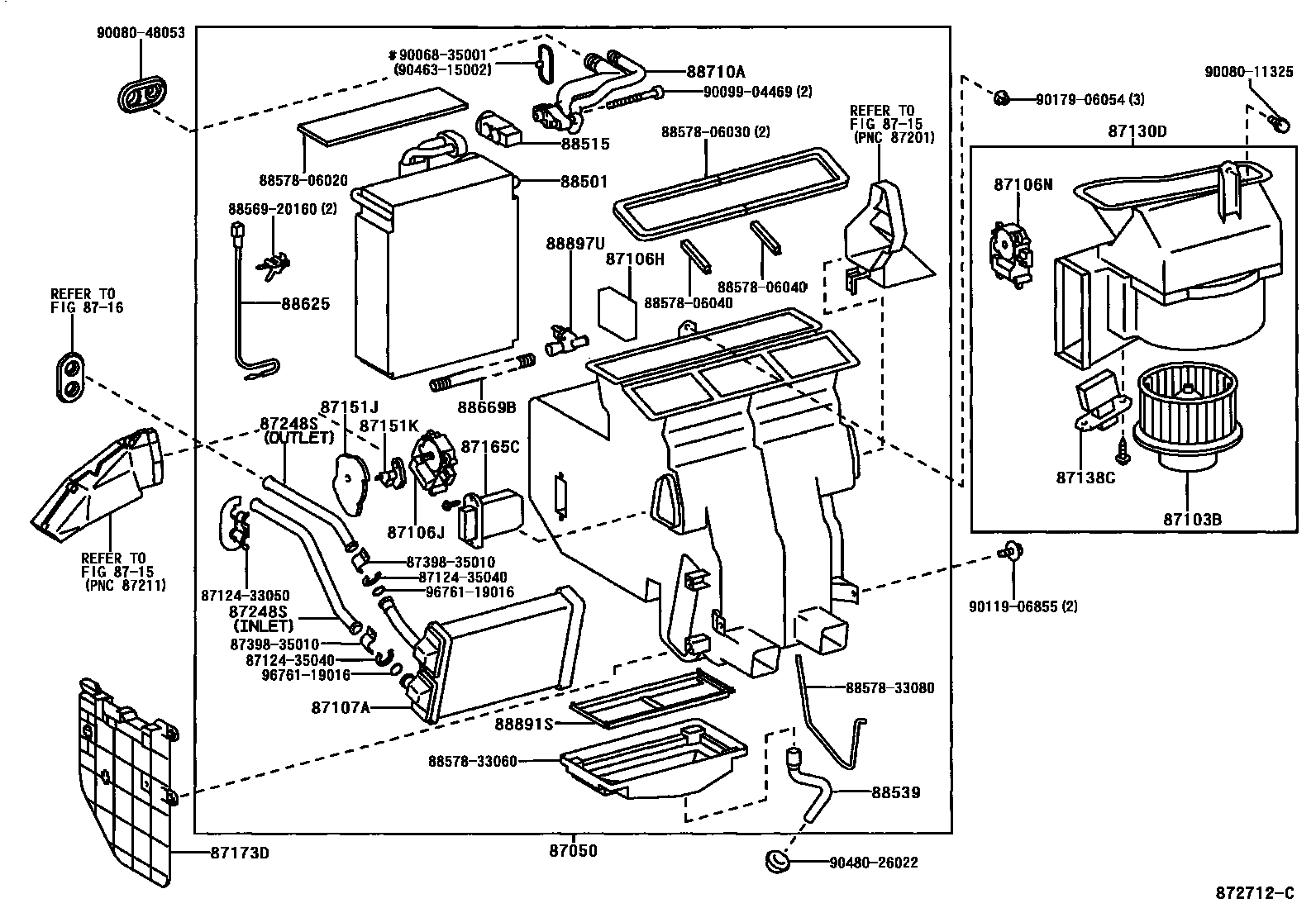

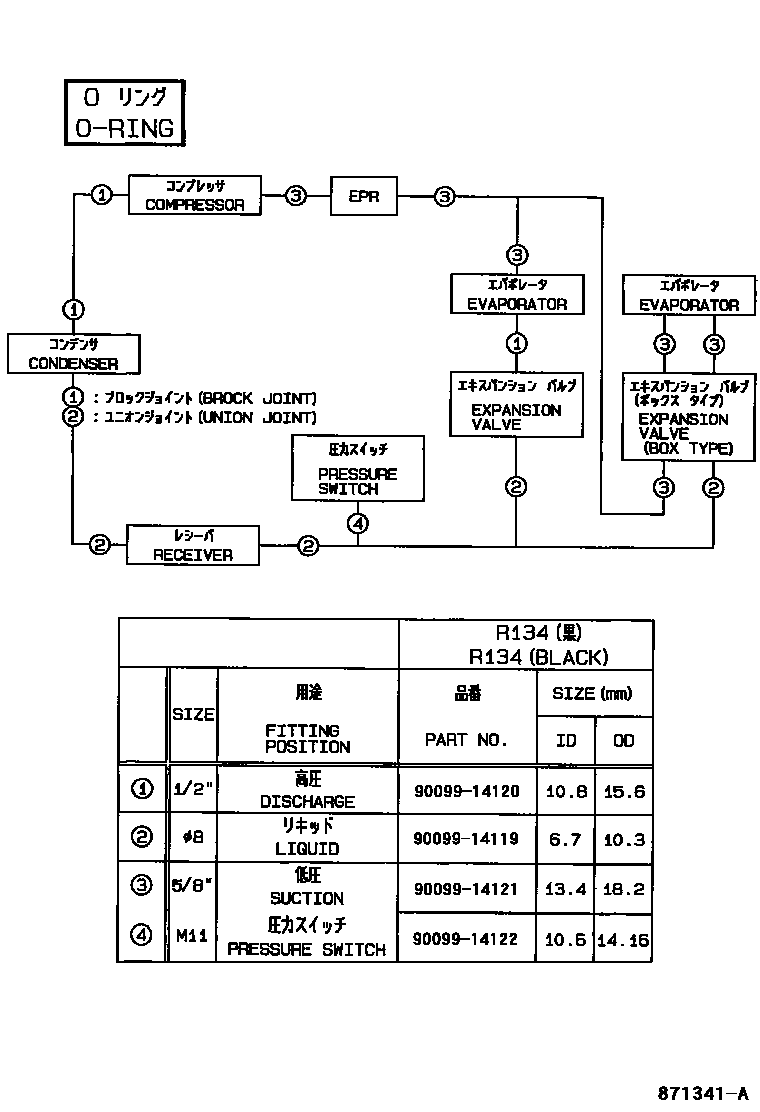

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55908C | Intake air valve control cable sub-assembly | 55908-06030 |
| 87050 | Air conditioning radiator assembly | 87050-06170 · 87050-06180 · 87050-06190 · 87050-06200 · 87050-06210 · 87050-06230 · 87050-06240 |
| 87103B | Blower motor sub-assembly with fan | 87103-06020 · 87103-06021 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-06070 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06060 · 87106-06100 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-06080 · 87106-06090 |
| 87107A | Heater radiator device sub-assembly | 87107-06020 · 87107-07010 |
| 87130D | Blower assembly | 87130-06050 · 87130-06060 · 87130-06061 · 87130-06070 |
| 87138C | Blower resistor | 87138-33030 · 87138-33050 · 87138-33060 |
| 87151J | No. 1 air door panel | 87151-06010 |
| 87151K | No. 2 air door panel | 87151-06020 |
| 87165C | Blower motor control device | 87165-32010 |
| 87173D | Heater protection device | 87173-06020 |
| 87248S | Front heater radiator water pipe | 87156-06010 · 87156-06020 · 87156-06030 · 87156-06040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06030 |
| 88515 | Cooler expansion valve | 88515-06020 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-06020 |
| 88625 | Cooler No. 1 Thermistor | 88625-33140 |
| 88650 | Cooler stabilized amplifier assembly | 88650-07010 |
| 88669B | Cooler air hose | 88669-33050 |
| 88710A | Air conditioning pipe assembly | 88710-06050 · 88710-06080 |
| 88891S | Cooler cover No. 1 | 88891-06040 |
| 88897U | aspirator tube | 88897-12210 · 88897-32090 |
