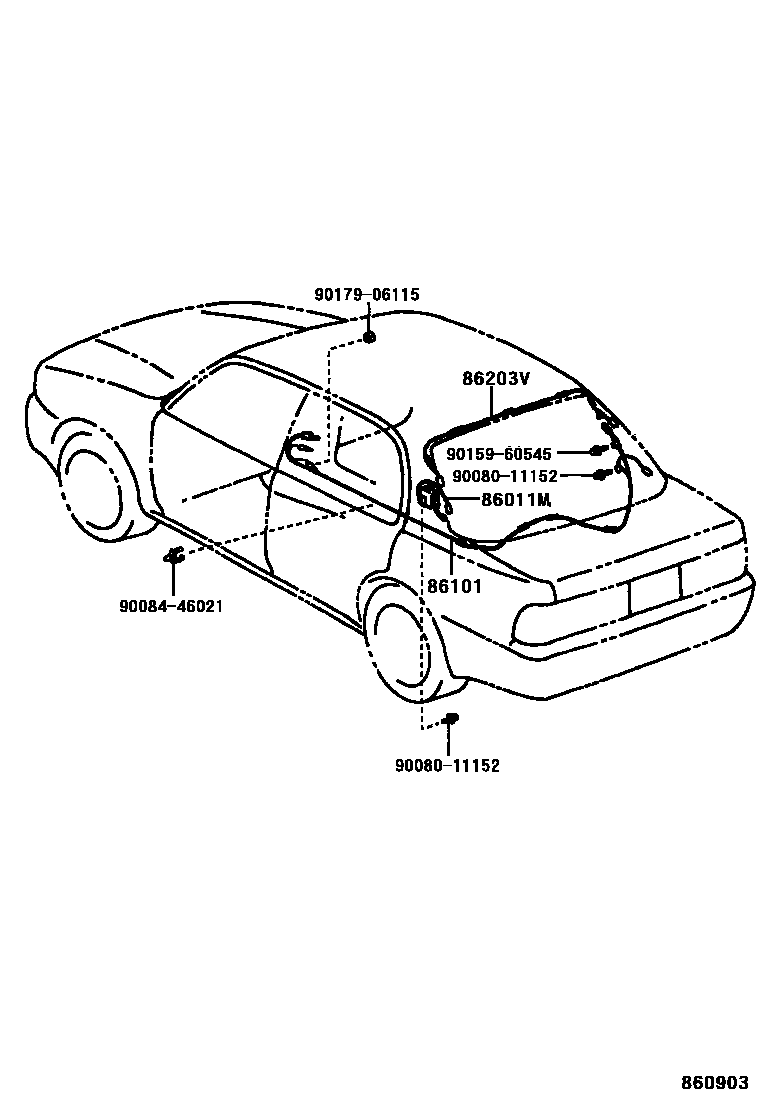

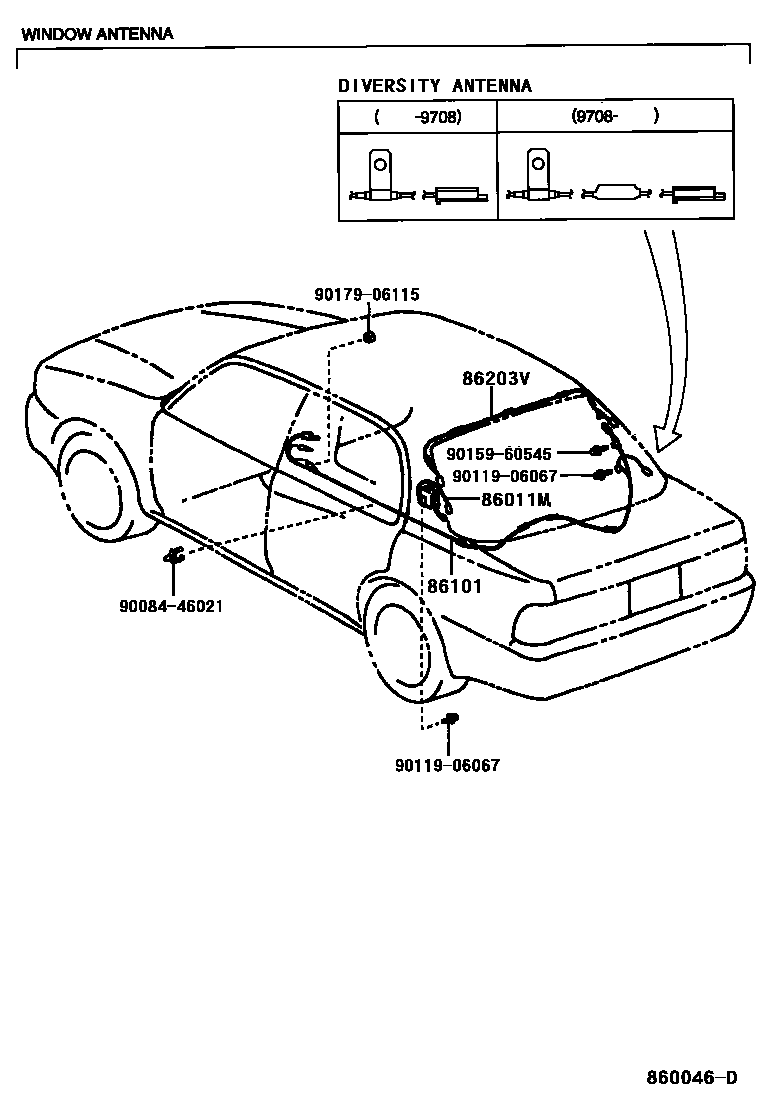

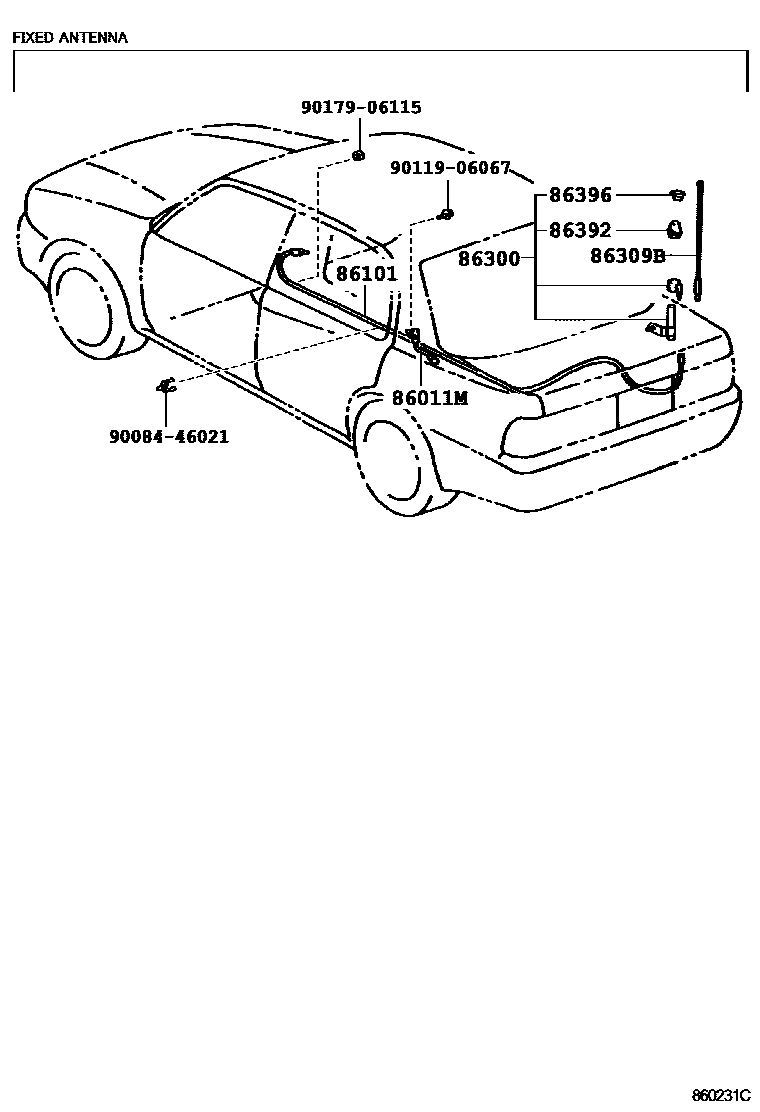

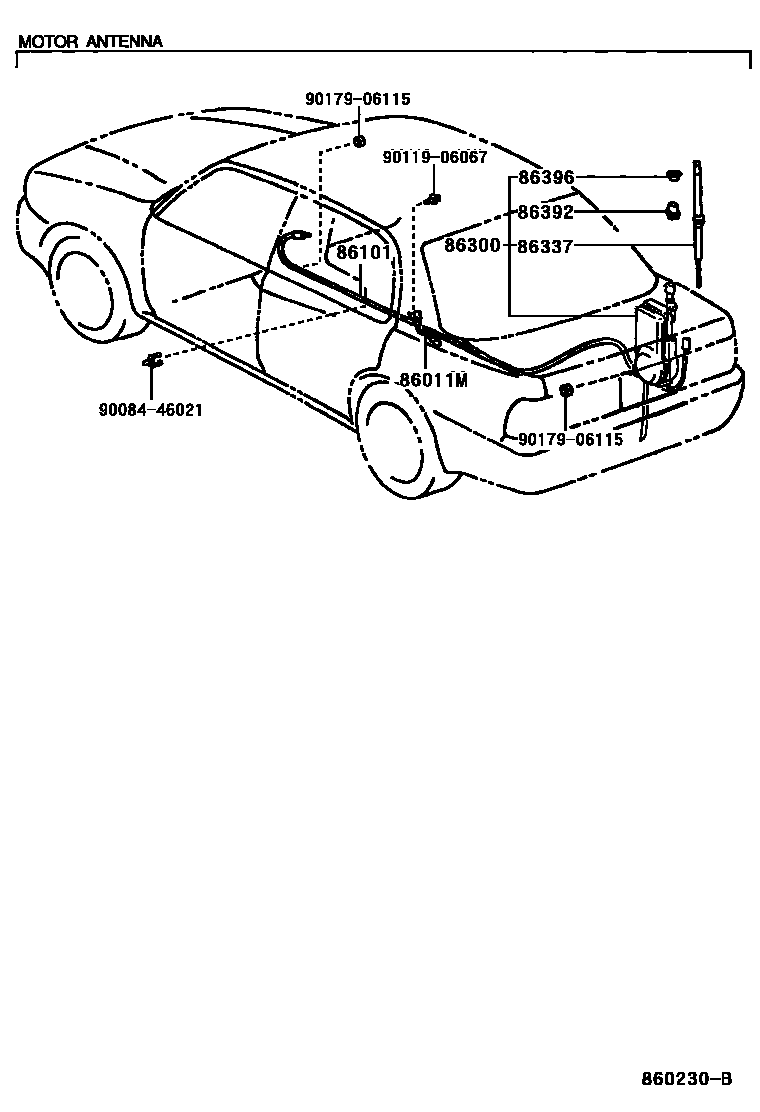

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011M | Noise filter | 90084-98015 · 90980-04129 |
| 86101 | Antenna wire sub-assembly | 86101-AA050 · 86101-AA091 · 86101-AA092 · 86101-AA101 · 86101-AA102 · 86101-AA103 |
| 86203V | Radio wiring harness sub-assembly | 86203-AA010 |
| 86300 | Antenna assembly with fixing parts | 86300-AA020 · 86300-AA030 |
| 86309B | Tensile roof antenna sub-assembly | 86309-AA040 |
| 86337 | Sealing rods and sealing tubes with cables | 86337-AA020 |
| 86392 | Antenna decorative parts | 86392-AA010 |
| 86396 | Antenna nut | 86396-06010 |
