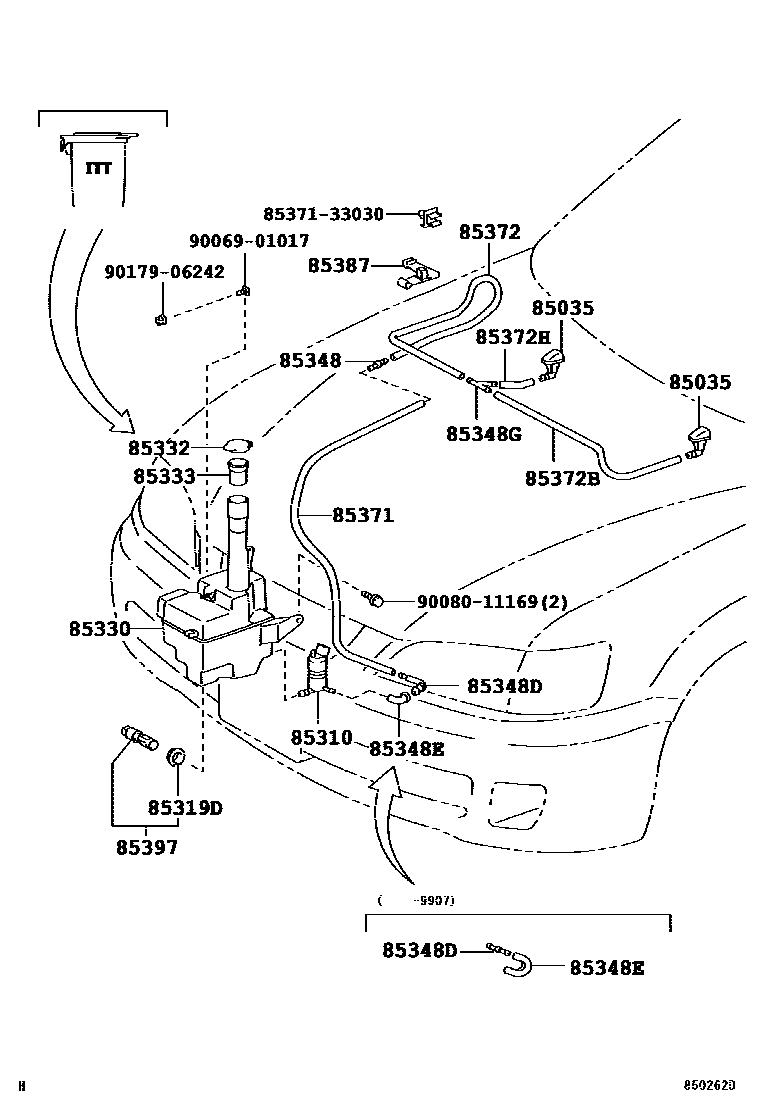

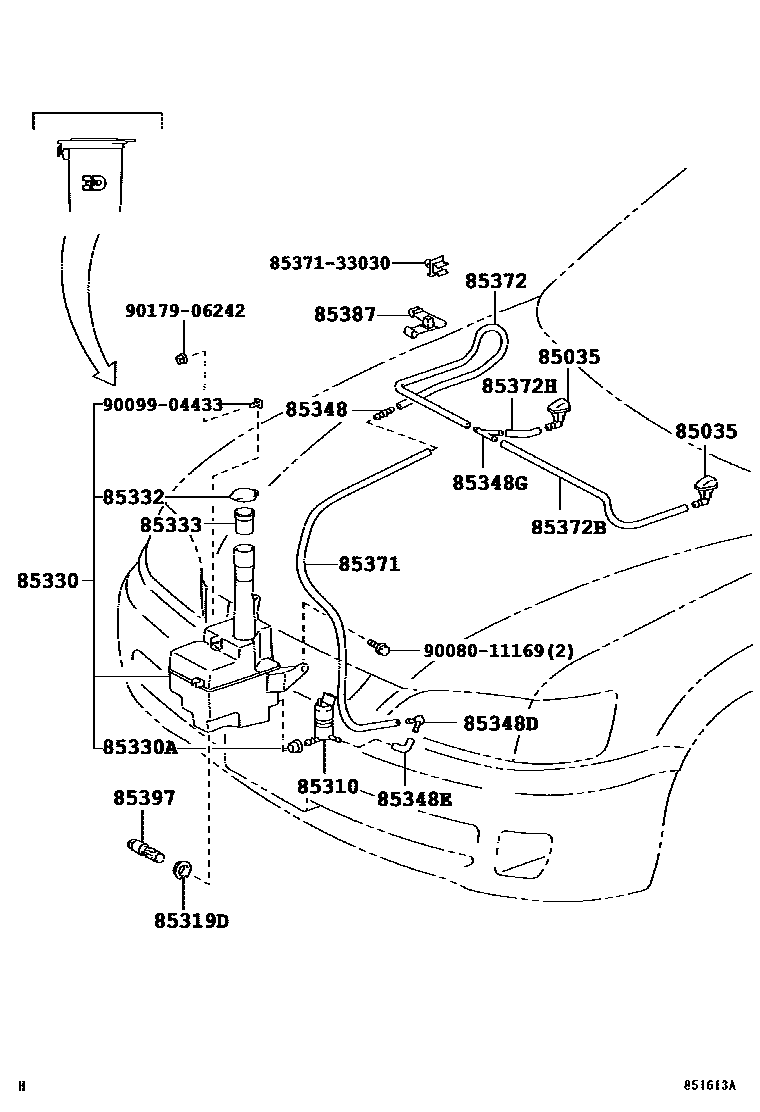

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-AA010 · 85381-AA020 · 85381-AA030 |
| 85310 | Windshield washer motor and pump assembly | 85330-06030 · 85330-AA010 |
| 85319D | front washer seal | 85319-AA020 · 90069-20003 |
| 85330 | Windshield washer fluid tank assembly | 85315-AA010 · 85315-AA020 |
| 85330A | Windshield washer fluid tank bushing | 85336-AA020 |
| 85332 | Windshield washer fluid tank cap | 85316-06020 · 85316-06021 · 85316-AA020 |
| 85333 | Windshield washer fluid tank filter | 85312-AA020 · 85333-03010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-AA010 |
| 85348D | No. 1 windshield washer elbow joint | 85357-07010 · 85375-01010 · 85375-24100 |
| 85348E | No. 2 windshield washer elbow joint | 85355-16192 · 85376-06010 · 85376-06011 |
| 85348G | Windshield washer hose connector No. 2 | 85378-AA010 |
| 85371 | Windshield washer hose (from motor to connector) | 85374-AA030 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-AA010 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 85374-AA010 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 85374-AA020 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-AA010 |
| 85397 | Liquid level warning switch assembly | 85397-AA010 · 85397-AA020 |
