Toyota CAMRY 空气囊 — Figure 8421

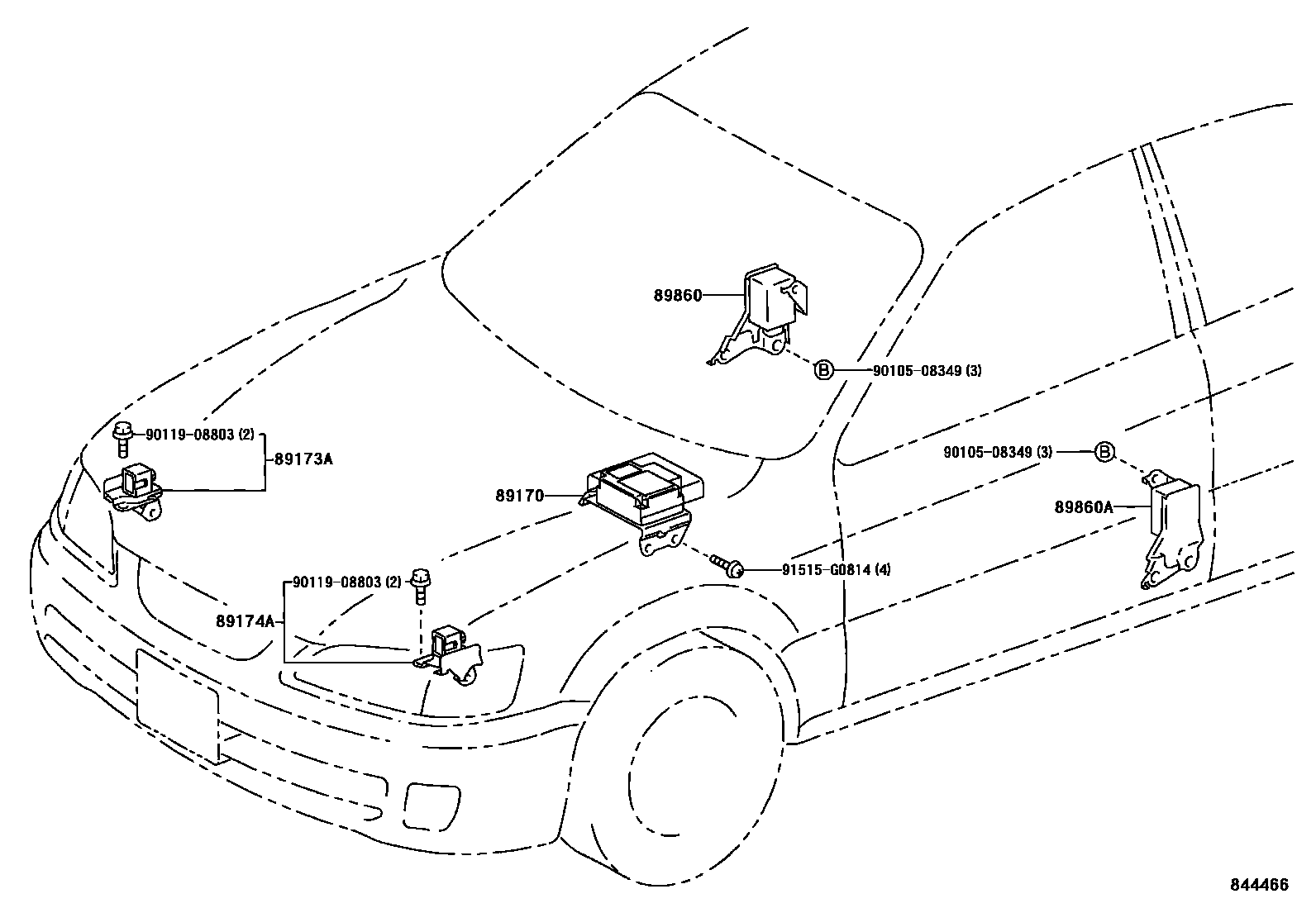

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-06040 · 89170-06041 · 89170-06070 · 89170-06080 · 89170-06110 · 89170-06120 |
| 89173A | Right front air bag sensor | 89173-39195 |
| 89174A | Left front air bag sensor | 89174-39065 |
| 89860 | Right side airbag sensor assembly | 89860-33030 |
| 89860A | Left side air bag sensor assembly | 89830-33030 |
