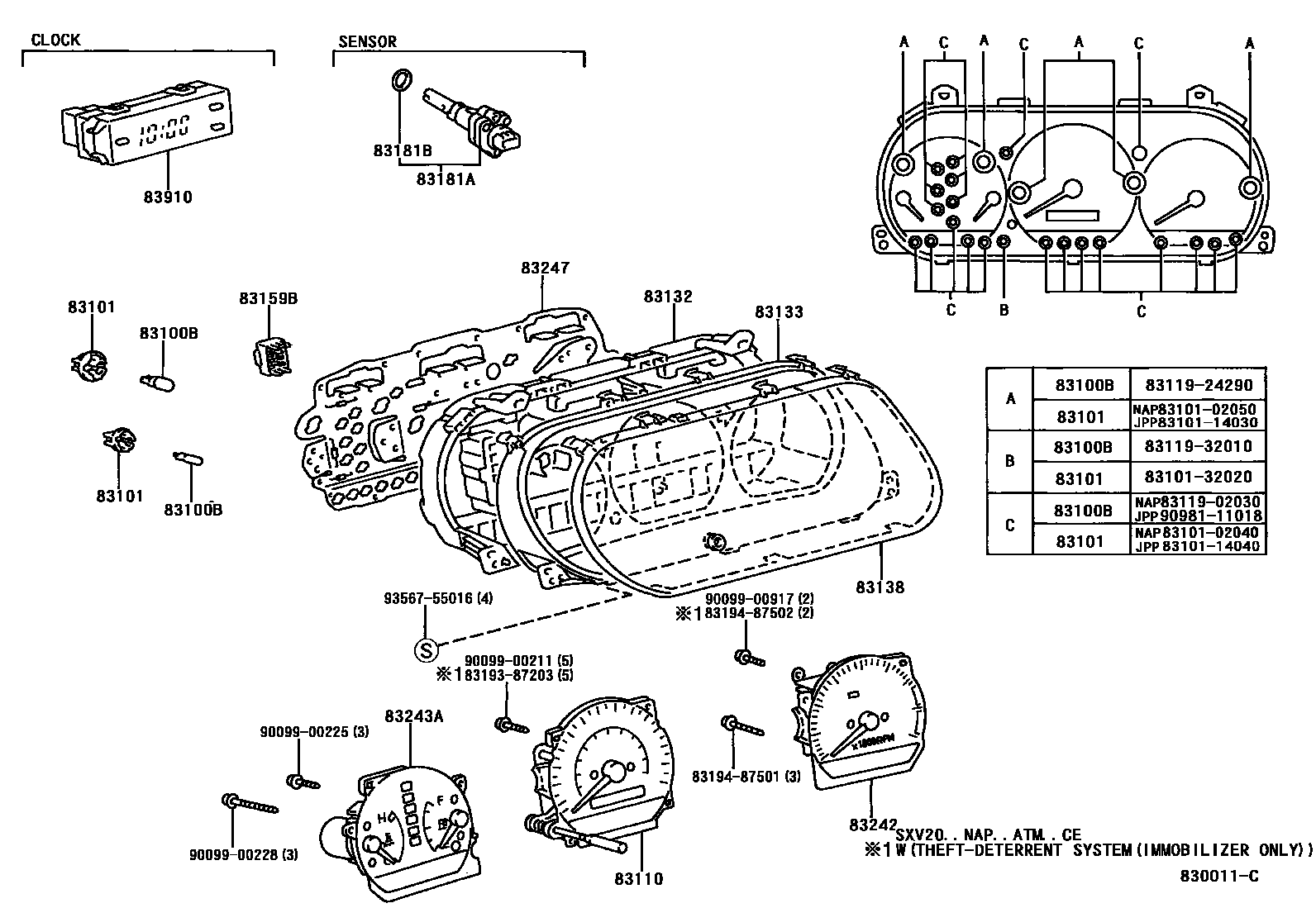

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83119-02030 · 83119-24290 · 83119-32010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-02040 · 83101-02050 · 83101-14030 · 83101-14040 · 83101-32020 |
| 83110 | Speedometer assembly | 83220-06010 · 83220-06011 · 83220-06020 · 83220-06021 · 83220-06090 · 83220-06091 |
| 83132 | Instrument cluster housing | 83841-06010 · 83841-06050 |
| 83133 | Combined instrument panel No. 1 | 83811-06010 |
| 83138 | speedometer glass | 83852-06010 |
| 83159B | Instrument relay assembly | 83159-22170 |
| 83181A | speedometer sensor | 83181-12030 · 83181-12040 · 83181-12050 |
| 83181B | O-ring (for speedometer sensor) | 96711-24018 · 96711-24030 |
| 83242 | Engine tachometer assembly | 83881-06010 · 83881-06020 · 83881-06030 · 83881-06040 · 83881-06070 · 83881-06080 · 83881-06090 · 83881-06100 |
| 83243A | Fuel gauge sub-assembly | 83882-06010 · 83882-06050 |
| 83247 | Instrument circuit board | 83861-06010 · 83861-06050 |
| 83910 | clock assembly | 83910-33030 · 83910-33050 · 83910-AA010 |
