Toyota CAMRY 车内灯 — Figure 8121

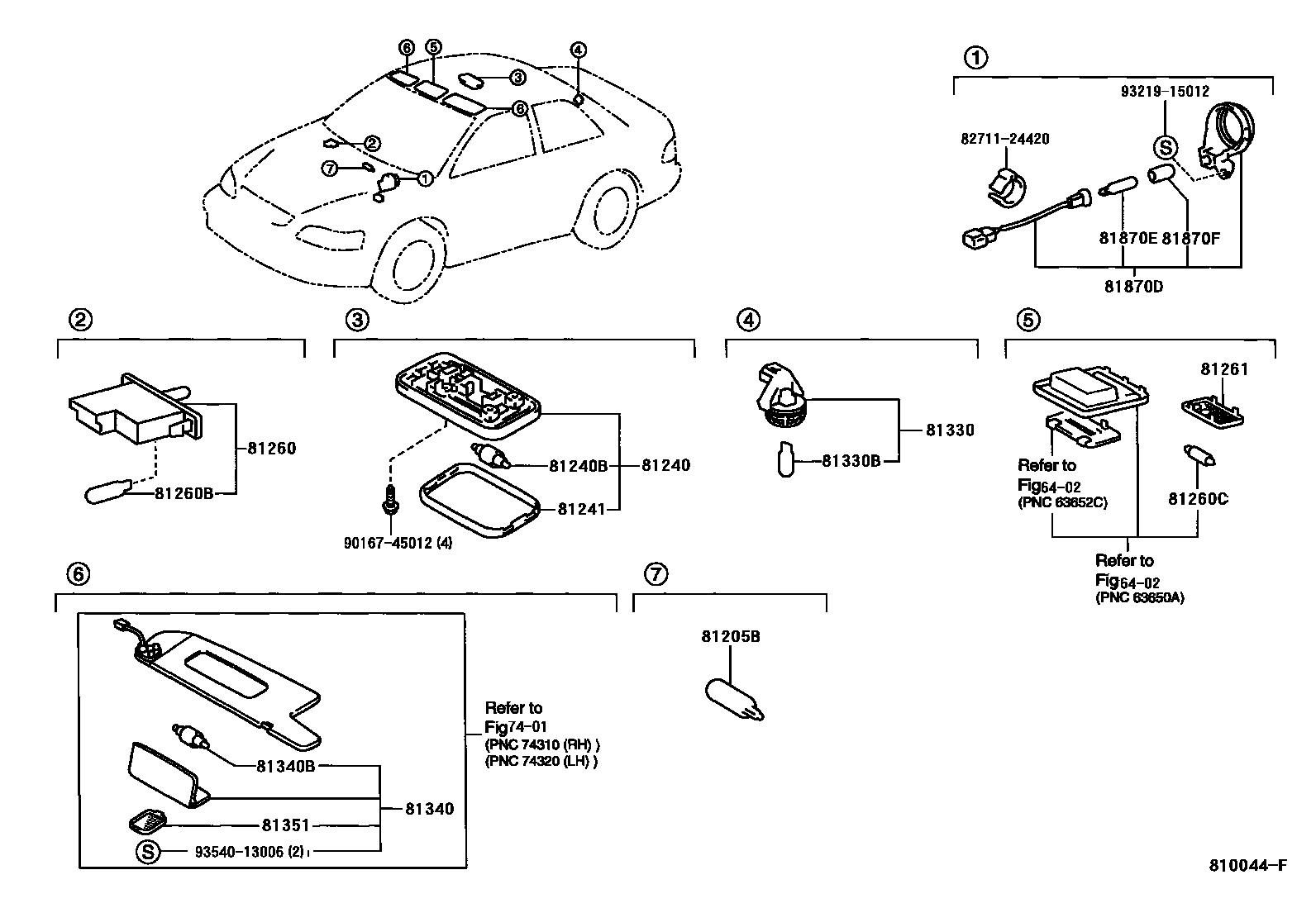

Toyota CAMRY EPC diagram 8121, 车内灯, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11014 |
| 81240B | Interior light bulb No. 1 | 90080-81029 · 90084-98054 |
| 81241 | Interior light cover No. 1 | 81241-06020 · 81241-AA010 |
| 81260 | Glove box light assembly | 81260-33030 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81260C | Light bulb (for reading lamp) | 90084-98049 |
| 81261 | Reading lamp shades and covers | 81231-AA010 |
| 81330 | No. 1 trunk light assembly | 81330-02010 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340B | Bulb (for vanity lights) | 90084-98013 |
| 81351 | shadowless lamp shade | 81351-AC010 |
| 81870D | Lock core lighting assembly | 81870-33030 · 81870-33050 · 81870-41020 |
| 81870E | Lock cylinder lighting bulb | 90981-11014 |
| 81870F | Lock cylinder lighting bulb cover | 84998-10070 |
