Toyota CAMRY 后牌照灯 — Figure 8113

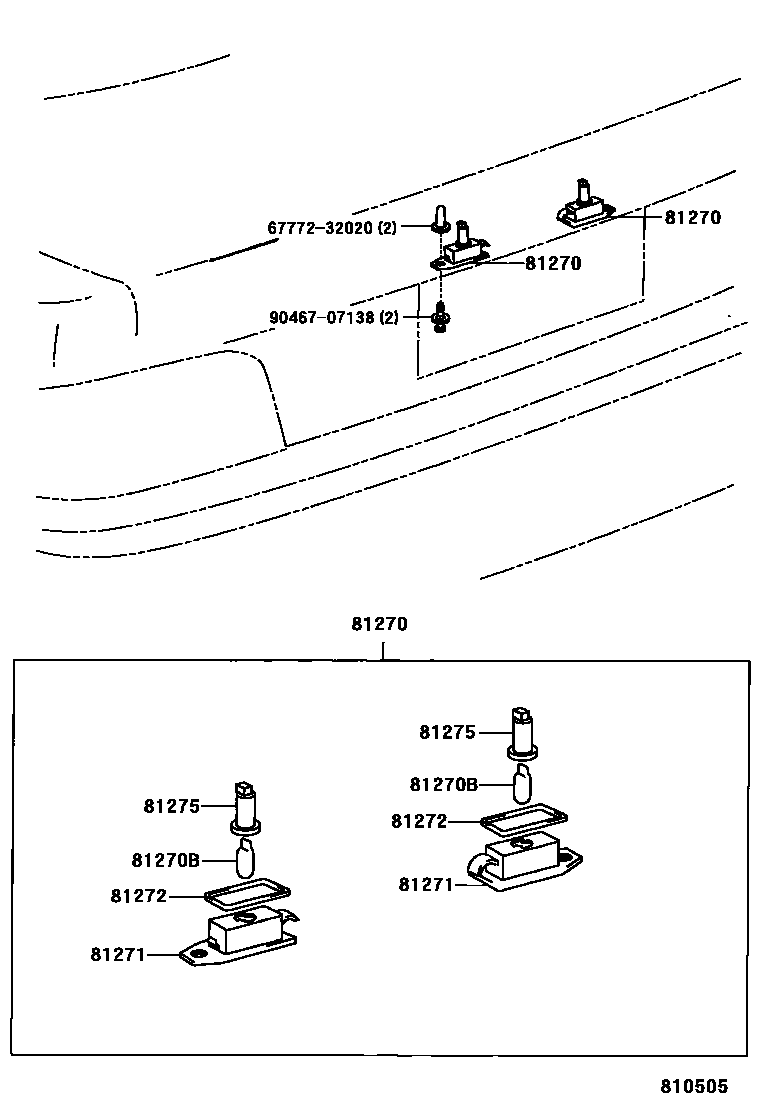

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-AA010 |
| 81270B | Bulb (for license plate light) | 90084-98043 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-AA010 |
| 81272 | License plate lamp shade gasket | 81272-AA010 · 81272-AA011 |
| 81275 | License plate lamp holder and wiring harness | 81275-AA010 |
